What Is a Pneumatic Control Valve and How Does It Work?

In the complex world of industrial automation and process control, pneumatic control valves stand as critical components that regulate fluid flow with precision and reliability. A pneumatic control valve is an automated valve that uses compressed air as its power source to control the flow rate, pressure, or direction of various fluids within industrial systems. These sophisticated devices combine mechanical engineering with pneumatic technology to deliver exceptional performance in applications ranging from oil and gas production to chemical processing and power generation. Understanding how these valves operate and their fundamental principles is essential for engineers, technicians, and industry professionals who work with fluid control systems across diverse industrial sectors.

Understanding the Fundamentals of Pneumatic Control Valve Operation

Core Components and Working Principles

The pneumatic control valve operates through a sophisticated integration of mechanical and pneumatic components that work in harmony to achieve precise fluid control. At its heart, the valve consists of a valve body housing the flow control element, an actuator powered by compressed air, and a positioner that ensures accurate positioning. The compressed air supply, typically ranging from 3 to 15 PSI or 6 to 30 PSI depending on the application, enters the actuator chamber and creates the necessary force to move the valve stem. This movement directly translates to the opening or closing of the valve trim, which controls the flow passage through the valve body. The pneumatic control valve's effectiveness lies in its ability to respond rapidly to control signals while maintaining consistent performance under varying pressure conditions. The actuator mechanism transforms the pneumatic energy into mechanical motion through either a diaphragm or piston arrangement. In diaphragm actuators, the flexible diaphragm separates the air chamber from the spring chamber, and as air pressure increases, it overcomes the spring force to move the valve stem. Piston actuators utilize a cylinder-piston arrangement where compressed air acts directly on the piston surface to generate the required force. The choice between these actuator types depends on the specific application requirements, including thrust requirements, stroke length, and environmental conditions. Modern pneumatic control valve systems incorporate advanced materials and precision manufacturing techniques to ensure optimal performance and longevity in demanding industrial environments.

Signal Processing and Control Integration

The pneumatic control valve receives control signals from various sources, including electronic control systems, pneumatic controllers, or direct manual operation. These input signals are processed through sophisticated control algorithms that determine the required valve position to maintain desired process conditions. The signal processing capability of modern pneumatic control valve systems enables them to respond to complex control strategies, including proportional, integral, and derivative (PID) control loops. This integration allows the valve to maintain precise control over process variables such as flow rate, pressure, temperature, and level, making them indispensable in automated industrial processes. Electronic-to-pneumatic (E/P) converters play a crucial role in modern pneumatic control valve systems by translating electronic control signals into proportional pneumatic signals. These devices ensure seamless integration between digital control systems and pneumatic actuators, providing the flexibility to implement advanced control strategies while maintaining the reliability and safety advantages of pneumatic operation. The pneumatic control valve's ability to fail-safe in the event of power loss or control system failure makes it particularly suitable for critical applications where safety is paramount. This inherent safety feature, combined with fast response times and high reliability, explains why pneumatic control valve technology remains the preferred choice for many industrial applications.

Valve Trim and Flow Characteristics

The valve trim, comprising the plug, seat, and cage assembly, determines the flow characteristics and performance capabilities of the pneumatic control valve. Different trim designs provide various flow characteristics, including linear, quick-opening, and equal percentage, each suited to specific application requirements. The relationship between valve stroke and flow capacity is carefully engineered to match process control needs and optimize system performance. Advanced trim designs incorporate features such as anti-cavitation technology, noise reduction elements, and enhanced rangeability to address challenging service conditions commonly encountered in industrial processes. Flow coefficient (Cv) calculations and sizing methodologies ensure that the pneumatic control valve is properly matched to the system requirements. The Cv value represents the flow capacity of the valve at full opening under standard conditions, and proper sizing ensures optimal control performance across the operating range. Manufacturers like CEPAI Group utilize advanced computational fluid dynamics (CFD) analysis and extensive testing to optimize trim designs for specific applications. The pneumatic control valve's trim selection significantly impacts control accuracy, stability, and overall system efficiency, making it a critical consideration in valve specification and selection processes.

Types and Applications of Pneumatic Control Valves in Industrial Processes

Globe and Rotary Valve Configurations

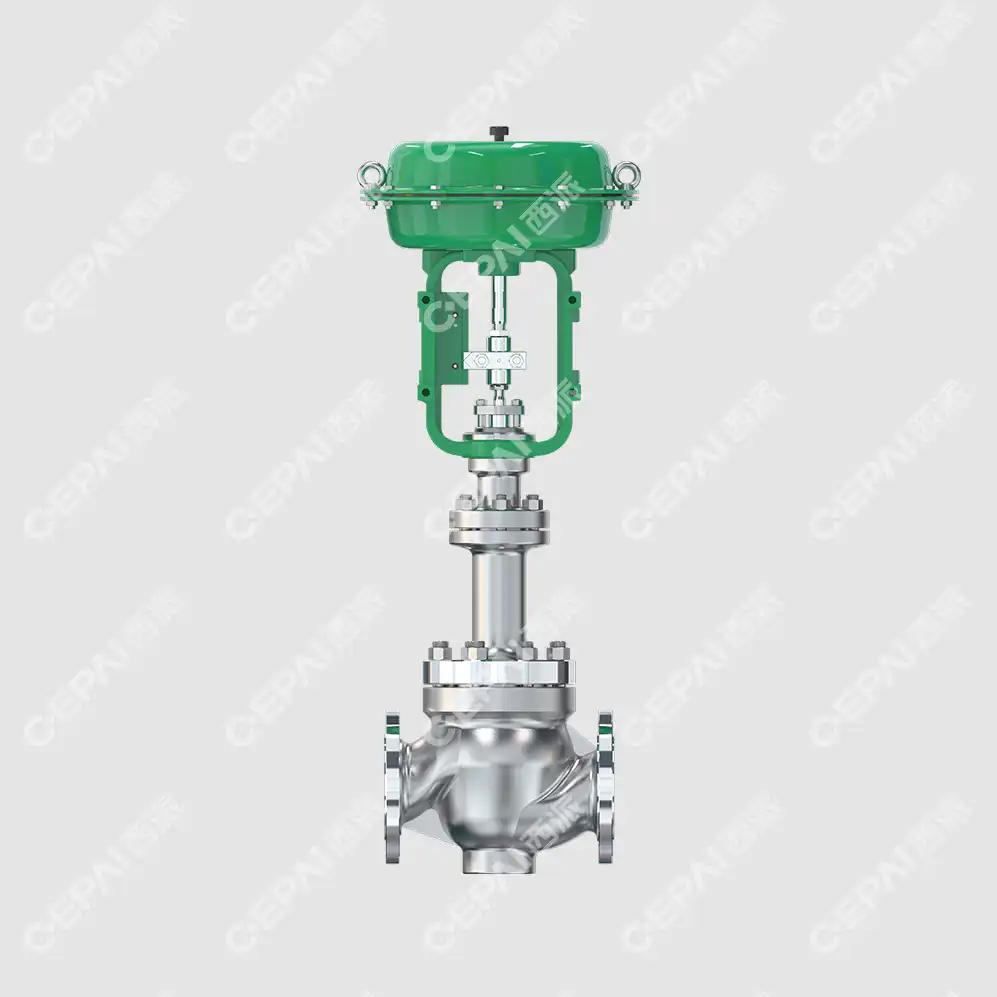

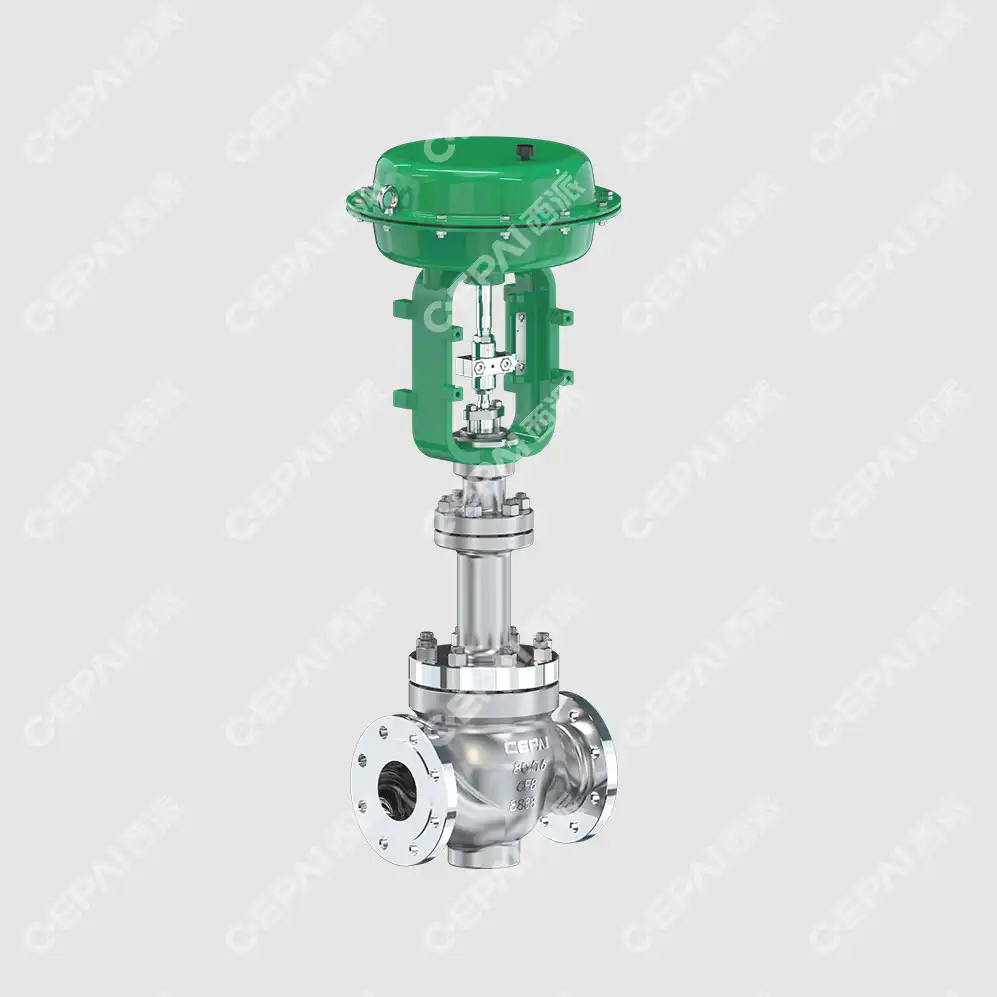

Pneumatic control valves are available in various configurations to suit different application requirements and installation constraints. Globe-style pneumatic control valves feature a linear motion actuator that moves the valve plug perpendicular to the flow path, providing excellent throttling characteristics and tight shutoff capabilities. These valves are particularly well-suited for applications requiring precise flow control and are commonly used in process industries where accurate regulation is critical. The globe valve design allows for easy maintenance and offers excellent control characteristics across a wide range of flow conditions, making it a popular choice for pneumatic control valve applications. Rotary pneumatic control valves, including ball valves, butterfly valves, and plug valves, utilize rotational motion to control flow through the valve body. These designs offer advantages in terms of lower pressure drop, compact installation requirements, and faster operation compared to linear motion valves. The pneumatic control valve in rotary configuration is particularly effective in applications where quick opening and closing are required, or where space constraints make linear actuators impractical. Modern rotary pneumatic control valve designs incorporate advanced sealing technologies and precision manufacturing to deliver reliable performance in demanding service conditions while maintaining the cost advantages associated with simpler mechanical designs. The selection between globe and rotary pneumatic control valve configurations depends on various factors including flow characteristics requirements, pressure drop limitations, installation space, maintenance accessibility, and specific process conditions. Each configuration offers unique advantages, and proper selection ensures optimal performance and longevity in the intended application. CEPAI Group's extensive product portfolio includes both globe and rotary pneumatic control valve options, allowing customers to select the most appropriate configuration for their specific requirements while benefiting from proven design and manufacturing expertise.

Specialized Applications in Oil and Gas Industry

The oil and gas industry presents unique challenges that require specialized pneumatic control valve solutions designed to handle extreme conditions and maintain safety standards. In upstream applications, pneumatic control valves are used in wellhead control systems, production manifolds, and separation equipment where they must operate reliably in harsh environmental conditions while handling corrosive and abrasive fluids. These specialized pneumatic control valve systems incorporate materials and designs specifically developed for hydrocarbon service, including special alloys, enhanced sealing systems, and explosion-proof actuator configurations to ensure safe operation in hazardous environments. Midstream and downstream applications require pneumatic control valves capable of handling high-pressure, high-temperature conditions while maintaining precise control over critical process parameters. Pipeline applications utilize pneumatic control valves for pressure regulation, flow control, and emergency shutdown functions, where reliability and fail-safe operation are paramount. Refinery and petrochemical applications demand pneumatic control valve solutions that can handle a wide range of process fluids while meeting stringent safety and environmental regulations. The pneumatic control valve's inherent safety characteristics and reliable operation make it the preferred choice for many critical applications in the oil and gas industry. CEPAI Group has established itself as a trusted supplier to major oil and gas companies including PetroChina, Sinopec, and CNOOC through the development of specialized pneumatic control valve solutions that meet the demanding requirements of these applications. The company's API certifications and extensive testing capabilities ensure that their pneumatic control valve products meet international standards for safety, performance, and reliability in oil and gas service conditions.

Process Control in Chemical and Power Generation

Chemical processing applications require pneumatic control valves capable of handling corrosive chemicals, maintaining precise control over reaction conditions, and providing reliable operation in automated process control systems. The pneumatic control valve's ability to provide accurate positioning and fast response makes it ideal for applications where tight control over temperature, pressure, and flow is critical for product quality and process safety. Specialized materials and coatings are often required to ensure compatibility with aggressive chemical environments while maintaining long-term reliability and performance. Power generation applications utilize pneumatic control valves in various systems including steam control, feedwater regulation, and emission control systems. These applications demand high reliability, precise control, and the ability to operate under extreme temperature and pressure conditions. The pneumatic control valve's fail-safe characteristics are particularly important in power generation applications where equipment failures can have significant safety and economic consequences. Modern pneumatic control valve designs incorporate advanced diagnostic capabilities and remote monitoring features that enable predictive maintenance and optimize plant availability. The integration of pneumatic control valves with modern distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems enables advanced process optimization and remote operation capabilities. These integrated systems utilize the pneumatic control valve's precise positioning and fast response characteristics to implement sophisticated control strategies that optimize process efficiency, reduce energy consumption, and minimize environmental impact while maintaining safe operation.

Installation, Maintenance, and Performance Optimization

Proper Installation Techniques and Best Practices

Successful pneumatic control valve installation requires careful attention to multiple factors that influence long-term performance and reliability. The installation process begins with proper system design and valve sizing to ensure optimal performance characteristics and control stability. Pneumatic supply system design must provide clean, dry air at appropriate pressure levels with adequate flow capacity to meet actuator requirements. The pneumatic control valve installation should include proper filtration, pressure regulation, and moisture removal equipment to protect the actuator components and ensure consistent operation over the valve's service life. Physical installation considerations include proper valve orientation, adequate clearance for maintenance access, and appropriate support for the valve and actuator assembly. The pneumatic control valve must be installed with proper alignment to prevent binding or excessive wear on moving components. Tubing connections should be made with appropriate fittings and routing to minimize pressure drop and eliminate potential leak points. Signal tubing should be protected from physical damage and environmental exposure while maintaining the required routing to control equipment. Proper installation documentation and as-built drawings facilitate future maintenance and troubleshooting activities. Commissioning procedures for pneumatic control valve systems include calibration of the actuator and positioner, verification of fail-safe operation, and testing of control loop performance. These procedures ensure that the pneumatic control valve operates according to design specifications and integrates properly with the overall control system. Proper commissioning reduces startup problems and establishes baseline performance data for future maintenance activities. CEPAI Group provides comprehensive installation guidance and technical support to ensure proper installation and commissioning of their pneumatic control valve products.

Preventive Maintenance Strategies

Effective maintenance of pneumatic control valve systems requires a comprehensive approach that includes regular inspection, preventive maintenance, and performance monitoring. Routine maintenance activities include inspection of actuator components, lubrication of moving parts, and verification of control signal accuracy. The pneumatic control valve's air supply system requires regular attention to ensure clean, dry air delivery and proper pressure regulation. Filter elements should be replaced according to manufacturer recommendations, and moisture removal equipment should be serviced regularly to prevent contamination of actuator components. Diagnostic techniques for pneumatic control valve systems include stroke testing, signature analysis, and performance trending to identify potential problems before they result in equipment failure. Modern valve positioners incorporate diagnostic capabilities that monitor actuator performance and provide early warning of developing problems. These diagnostic systems can detect issues such as packing wear, actuator diaphragm deterioration, and air supply problems before they impact process control performance. The pneumatic control valve's diagnostic information can be integrated with plant maintenance management systems to optimize maintenance scheduling and resource allocation. Predictive maintenance programs utilize performance data and diagnostic information to optimize maintenance intervals and reduce unplanned downtime. These programs analyze trends in pneumatic control valve performance to identify components approaching end-of-life conditions and schedule maintenance activities during planned outages. The implementation of predictive maintenance strategies can significantly reduce maintenance costs while improving equipment reliability and availability. CEPAI Group's commitment to quality and reliability includes providing comprehensive maintenance support and technical expertise to help customers optimize their pneumatic control valve maintenance programs.

Performance Optimization and Troubleshooting

Optimizing pneumatic control valve performance requires understanding the relationship between valve characteristics, actuator sizing, and control system parameters. Performance optimization activities include tuning control loop parameters, adjusting valve characteristics through positioner configuration, and implementing advanced control strategies to improve process stability and efficiency. The pneumatic control valve's response characteristics can be modified through positioner programming to match specific application requirements and optimize control performance. Common troubleshooting issues with pneumatic control valve systems include control instability, slow response, and positioning errors. These problems can often be traced to air supply issues, positioner calibration problems, or mechanical wear in actuator components. Systematic troubleshooting procedures help identify root causes and implement appropriate corrective actions. The pneumatic control valve's modular design facilitates efficient troubleshooting and component replacement when necessary. Advanced performance optimization techniques include the use of digital valve controllers with enhanced diagnostic capabilities and communication protocols that enable integration with asset management systems. These advanced pneumatic control valve systems provide detailed performance data and diagnostic information that supports condition-based maintenance and performance optimization activities. The implementation of these technologies can significantly improve plant efficiency and reduce operating costs while maintaining high levels of safety and reliability.

Conclusion

Pneumatic control valves represent a cornerstone technology in modern industrial automation, offering reliable, safe, and precise fluid control across diverse applications. Their unique combination of fast response, fail-safe operation, and robust construction makes them indispensable in critical process control applications throughout various industries.
