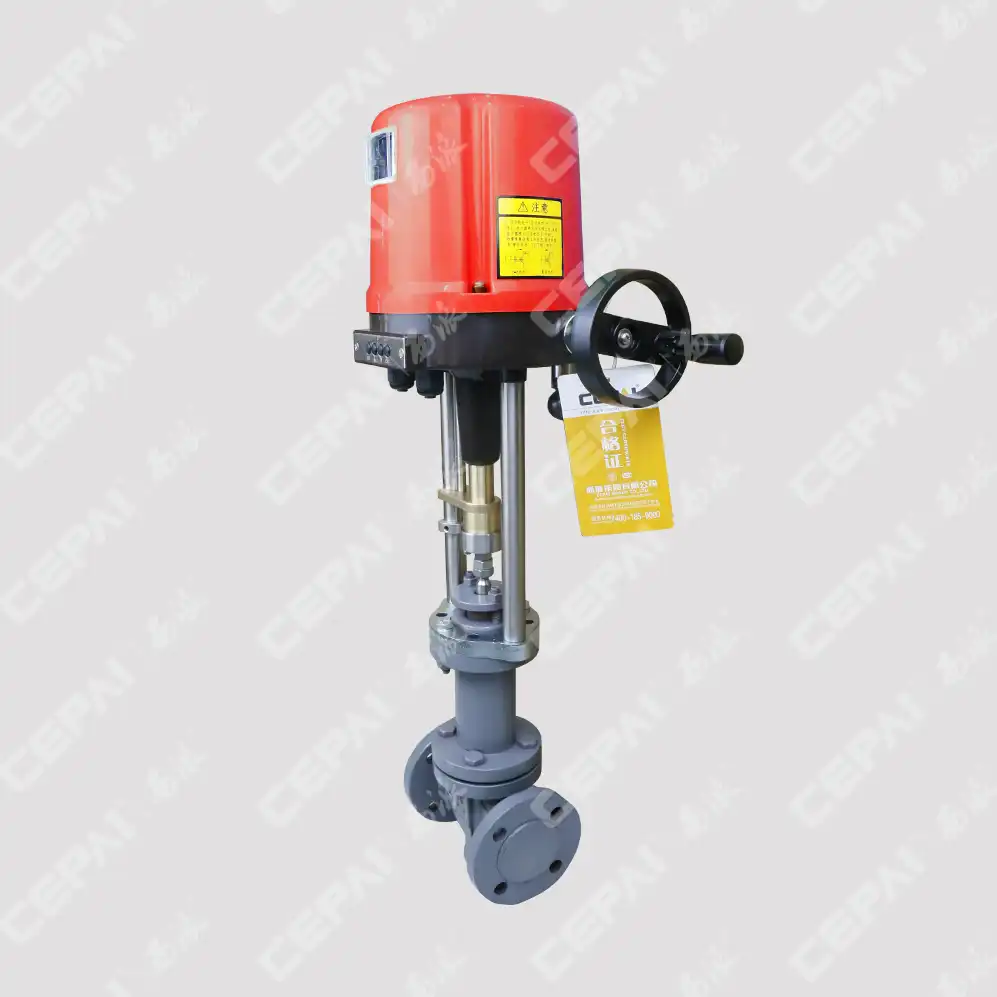

How to Diagnose and Fix Common Control Valve Failures?

Control valve failures can lead to significant production downtime, safety risks, and increased maintenance costs across industrial applications. Understanding how to properly diagnose and effectively address these issues is crucial for maintaining operational efficiency in oil and gas, petrochemical, power generation, and other critical sectors. This comprehensive guide explores the most common control valve problems, their root causes, and proven solutions to restore proper valve function and extend equipment lifespan.

Identifying Critical Control Valve Failure Symptoms

Recognizing early warning signs of control valve problems can prevent catastrophic failures and minimize downtime. Proper diagnosis begins with understanding the various symptoms that indicate developing issues with your Control Valves system.

Visual Inspection Indicators

Visual inspection remains one of the most effective first-line diagnostic approaches for Control Valves maintenance. External signs often reveal internal problems before they escalate to complete failure. Experienced maintenance technicians should routinely check for leakage around valve stems, body joints, and end connections. Fluid leakage not only indicates seal degradation but can potentially create environmental hazards and safety risks for personnel. Surface corrosion or erosion patterns may suggest inappropriate material selection for the process media or inadequate protective coatings. These conditions can accelerate component deterioration, leading to premature failure. Additionally, proper inspection should include examination of actuator mounting brackets and linkages for signs of misalignment, wear, or damage. Even minor misalignments in Control Valves can dramatically increase friction and accelerate wear on packing, stems, and guides, creating a cascade of component failures that ultimately compromise valve performance and reliability. Regular inspection schedules that incorporate comprehensive visual assessment protocols enable maintenance teams to detect these issues early and implement corrective actions before small problems evolve into costly failures.

Performance Abnormalities Detection

Performance abnormalities in Control Valves often manifest through specific operational symptoms that experienced operators can detect through monitoring system behavior. Flow inconsistencies represent one of the most common indicators, where process variables fail to maintain setpoints despite control signals indicating proper valve positioning. This condition frequently points to internal valve problems such as seat damage, obstructions, or actuator issues that prevent the valve from achieving its commanded position. Unusual noise signatures—including cavitation sounds, water hammer effects, or mechanical chattering—provide valuable diagnostic clues about specific failure modes. For instance, high-frequency vibrations might indicate turbulent flow patterns caused by damaged trim components, while distinct knocking sounds often signal actuator hunting problems or loose mechanical connections within the Control Valves assembly. Modern diagnostic approaches have evolved to incorporate advanced condition monitoring, where pressure differential measurements across valves, ultrasonic flow detection, and vibration analysis can quantify performance degradation before it becomes apparent through traditional observation. These techniques allow maintenance teams to establish baseline performance parameters and track gradual deterioration, enabling more precise failure prediction and scheduled interventions that minimize production disruptions while optimizing maintenance resource allocation.

Control System Alarm Analysis

The integration of Control Valves with digital control systems provides valuable diagnostic data through alarm patterns and system behavior analysis. Modern distributed control systems (DCS) and asset management platforms capture extensive information about valve performance, creating digital fingerprints of developing problems that can be identified through systematic review. Position feedback discrepancies, where commanded positions fail to match actual valve positions, frequently indicate mechanical binding, actuator failures, or positioner calibration issues. These discrepancies often appear in control system logs before operators notice process inconsistencies. Control loop oscillations represent another critical diagnostic indicator, where PID controllers struggle to maintain stable process conditions due to valve problems. These oscillations typically manifest as repeated overshooting and undershooting of setpoints despite controller adjustments. Advanced pattern recognition software can now analyze Control Valves response characteristics to identify specific mechanical issues such as excessive friction, deadband problems, or hysteresis effects that compromise control precision. By establishing normal control loop behavior benchmarks and monitoring deviations from these patterns, maintenance teams can implement predictive maintenance strategies that address developing valve problems during planned maintenance windows rather than emergency situations. This approach significantly reduces operational disruptions while extending Control Valves lifespan through timely intervention before cumulative damage occurs.

Root Cause Analysis of Common Control Valve Failures

Understanding the underlying causes of control valve malfunctions enables effective troubleshooting and implementation of lasting solutions that prevent recurrence.

Mechanical Wear and Component Degradation

Mechanical wear represents the most prevalent cause of Control Valves deterioration over time, affecting multiple components through continuous operational stress. Valve trim components—including seats, plugs, cages, and discs—experience material loss through erosion when process media contains particulates or creates high-velocity flow patterns that gradually remove material from critical sealing surfaces. This erosion progressively compromises shutoff capability and control precision as the carefully engineered flow geometries become distorted. Similarly, stem packing and gasket materials undergo compression set and hardening with thermal cycling and chemical exposure, gradually losing their elastic properties and sealing effectiveness. This degradation creates leak paths that worsen over time, potentially leading to environmental releases and safety hazards. Bearing surfaces throughout Control Valves assemblies also experience frictional wear, particularly in high-cycle applications where repeated movement creates metal-to-metal contact that deteriorates guiding surfaces. Modern materials technology has introduced advanced solutions including ceramic-coated trim components, composite packing materials with enhanced chemical resistance, and specialized alloys engineered for specific service conditions. Implementing these materials can dramatically extend component life, but requires proper application engineering to match material properties with process conditions. Effective maintenance programs must therefore include regular condition assessment of these wear-prone components through scheduled inspections and testing protocols that measure critical dimensions and surface characteristics to determine remaining service life.

Environmental and Process-Related Damage

Environmental factors and process conditions significantly impact Control Valves longevity and reliability through various degradation mechanisms. Chemical attack represents a particularly destructive force, where process media incompatible with valve construction materials causes accelerated corrosion, embrittlement, or other material property changes that compromise component integrity. This damage often occurs incrementally, with subtle changes accumulating until sudden failure occurs. Temperature cycling creates another significant stress mechanism, where different expansion rates between valve body materials, trim components, and actuator elements generate thermal stresses that can cause distortion, cracking, or fastener loosening over time. These thermal effects are particularly problematic in applications with frequent startup and shutdown cycles or batch processes with significant temperature variations. Particulate contamination introduces both erosive wear and mechanical interference issues in Control Valves, where suspended solids gradually accumulate in internal cavities or become trapped between moving components. This contamination accelerates trim wear while potentially creating flow restrictions or preventing complete valve closure. Sophisticated filtration systems, specialized trim designs for erosive service, and careful material selection based on compatibility testing can mitigate these environmental effects. Additionally, implementing controlled startup and shutdown procedures that minimize thermal shock and incorporate proper warm-up sequences can significantly reduce temperature-related stresses on Control Valves components, extending service life in thermally challenging applications while maintaining reliable performance throughout varying process conditions.

Installation and Maintenance Deficiencies

Improper installation and inadequate maintenance practices often contribute significantly to premature Control Valves failures, creating issues that compound over time. Installation errors frequently begin with improper alignment, where piping stress transfers mechanical loads to valve bodies that were not designed for structural support. These stresses can cause distortion that prevents smooth operation, creates leakage paths at flange connections, or binds internal components. Insufficient support structures exacerbate these problems by allowing excessive vibration that accelerates mechanical wear on guiding surfaces and connection points. Similarly, improper actuator sizing and adjustment create operational problems where available thrust or torque proves insufficient for process conditions, preventing complete valve closure or causing sluggish response to control signals. Maintenance deficiencies further compound these issues, particularly when repairing Control Valves without proper procedures or replacement parts. Using incorrect packing materials, improper torque sequences, or makeshift repairs often creates short-term functionality at the expense of long-term reliability. Training deficiencies among maintenance personnel frequently contribute to these problems, especially regarding specialized valve types with unique service requirements. Implementing comprehensive installation procedures that include proper alignment verification, stress-free mounting, and professional commissioning can prevent many of these issues. Additionally, establishing rigorous maintenance documentation systems that capture repair history, component replacements, and observed conditions creates valuable historical data for predicting failures and optimizing maintenance intervals based on actual service conditions rather than generic recommendations.

Effective Troubleshooting and Repair Methodologies

Implementing systematic approaches to valve repair ensures long-term reliability and optimal performance restoration for control valves experiencing failures.

Diagnostic Testing Procedures

Implementing comprehensive diagnostic testing represents the foundation of effective Control Valves troubleshooting, providing quantifiable data to isolate specific failure modes and guide repair decisions. Pressure testing serves as a primary diagnostic tool, where hydrostatic or pneumatic tests verify sealing capability and structural integrity under controlled conditions. These tests can identify leakage paths through seats, body joints, or packing arrangements that might not be apparent during normal operation. Performance signature testing has emerged as a valuable technique where specialized equipment records the relationship between actuator movement and various parameters including stem position, actuator pressure, and valve position. The resulting performance curves reveal specific mechanical problems such as excessive friction, binding, or hysteresis effects that compromise control precision. Advanced facilities incorporate specialized valve test benches that can simulate actual operating conditions while measuring flow coefficients, pressure drops, and response characteristics of Control Valves. These quantitative measurements establish baseline performance parameters that allow precise comparison with manufacturer specifications to determine performance degradation. Ultrasonic testing provides another valuable diagnostic approach for detecting internal defects or material flaws without disassembly, using sound wave propagation to identify hidden cracks, voids, or material thickness variations that might contribute to failures. By establishing standardized testing protocols that incorporate these techniques, maintenance teams can move beyond subjective assessments to evidence-based diagnostics that precisely identify root causes and verify repair effectiveness before returning Control Valves to service.

Component Repair and Replacement Strategies

Developing optimal component repair and replacement strategies requires balancing immediate restoration needs against long-term reliability considerations for Control Valves. Reconditioning techniques such as lapping, polishing, and resurfacing can effectively restore sealing surfaces with minor damage, extending component life when erosion or wear hasn't progressed beyond salvageable limits. These techniques must follow precise procedures to maintain critical geometric relationships and surface finishes that ensure proper functionality. Critical decision-making involves determining when reconditioning becomes insufficient and complete replacement becomes necessary—a determination that should incorporate failure analysis findings, remaining service life projections, and consideration of available upgraded materials or designs. For instance, repeated trim failures in erosive service might justify upgrading to hardened materials or erosion-resistant designs rather than simply replacing with identical components. Standardization programs that establish approved repair procedures and replacement component specifications ensure consistency across maintenance events, preventing variation in repair quality that can lead to unpredictable service life. Modern Control Valves maintenance strategies increasingly incorporate lifetime cost analysis rather than focusing solely on immediate repair costs, recognizing that higher-quality components or more thorough reconditioning may deliver superior long-term value despite higher initial expenses. This approach requires maintenance organizations to maintain comprehensive records of repair histories, failure incidents, and post-repair performance to quantify the effectiveness of different repair strategies and continuously refine component selection criteria based on actual field experience rather than theoretical predictions.

Preventive Maintenance Program Implementation

Establishing comprehensive preventive maintenance programs transforms Control Valves management from reactive repairs to proactive reliability assurance. Effective programs begin with proper baseline documentation of valve specifications, performance parameters, and critical operating limits that establish reference points for detecting degradation. Inspection schedules should be risk-based rather than calendar-driven, allocating more frequent attention to valves in critical service, severe operating conditions, or with historical reliability issues while extending intervals for non-critical applications with proven reliability. Lubrication management represents a critical yet often overlooked aspect of Control Valves maintenance, requiring careful selection of compatible lubricants that withstand process conditions while maintaining appropriate viscosity and protective properties. Standardized lubrication procedures should specify not only lubricant types but also application methods, quantities, and frequencies tailored to specific valve types and service conditions. Predictive techniques including infrared thermography to detect unusual heat patterns, ultrasonic monitoring to identify developing leaks, and vibration analysis to detect mechanical looseness enable condition-based intervention before failures occur. Digital technologies now enable automated condition monitoring where instrumented Control Valves continuously transmit performance data to computerized maintenance management systems that automatically generate work orders when parameters exceed established thresholds. This approach optimizes maintenance resource allocation while minimizing unnecessary intrusive maintenance that can inadvertently introduce new problems. The most sophisticated programs incorporate reliability engineering principles that analyze failure patterns across valve populations to identify systemic issues requiring design modifications, procedural changes, or alternative component selections that address underlying causes rather than symptoms.

Conclusion

Effective diagnosis and repair of Control Valves failures requires systematic approaches combining visual inspection, performance monitoring, and root cause analysis. By understanding common failure mechanisms and implementing proper maintenance practices, industrial facilities can significantly reduce downtime and extend equipment life. CEPAI Group's commitment to excellence in valve manufacturing ensures exceptional durability and high-precision control performance across our product range. With our robust R&D investment, comprehensive technical support, and industry-leading certifications, we continue to deliver innovative solutions that withstand the most demanding industrial applications.

Are you experiencing control valve issues in your facility? Our expert team can provide customized solutions to address your specific challenges. Contact us today at cepai@cepai.com to discuss how our high-performance fluid control devices can enhance your operational reliability and efficiency.
