What is the difference between pneumatic and hydraulic control valves?

Control valves serve as the backbone of industrial automation systems, regulating fluid flow with precision and reliability. Understanding the fundamental differences between pneumatic and hydraulic control valves is crucial for engineers and procurement professionals seeking optimal solutions for their applications. A pneumatic control valve utilizes compressed air as its power source for actuation, offering distinct advantages in terms of safety, environmental impact, and operational characteristics compared to hydraulic alternatives. While both systems effectively control fluid flow, their operational mechanisms, performance characteristics, and application suitability vary significantly, making the choice between them a critical decision that impacts system efficiency, maintenance requirements, and overall operational costs.

Key Operational Differences Between Pneumatic and Hydraulic Control Systems

Power Source and Energy Transmission

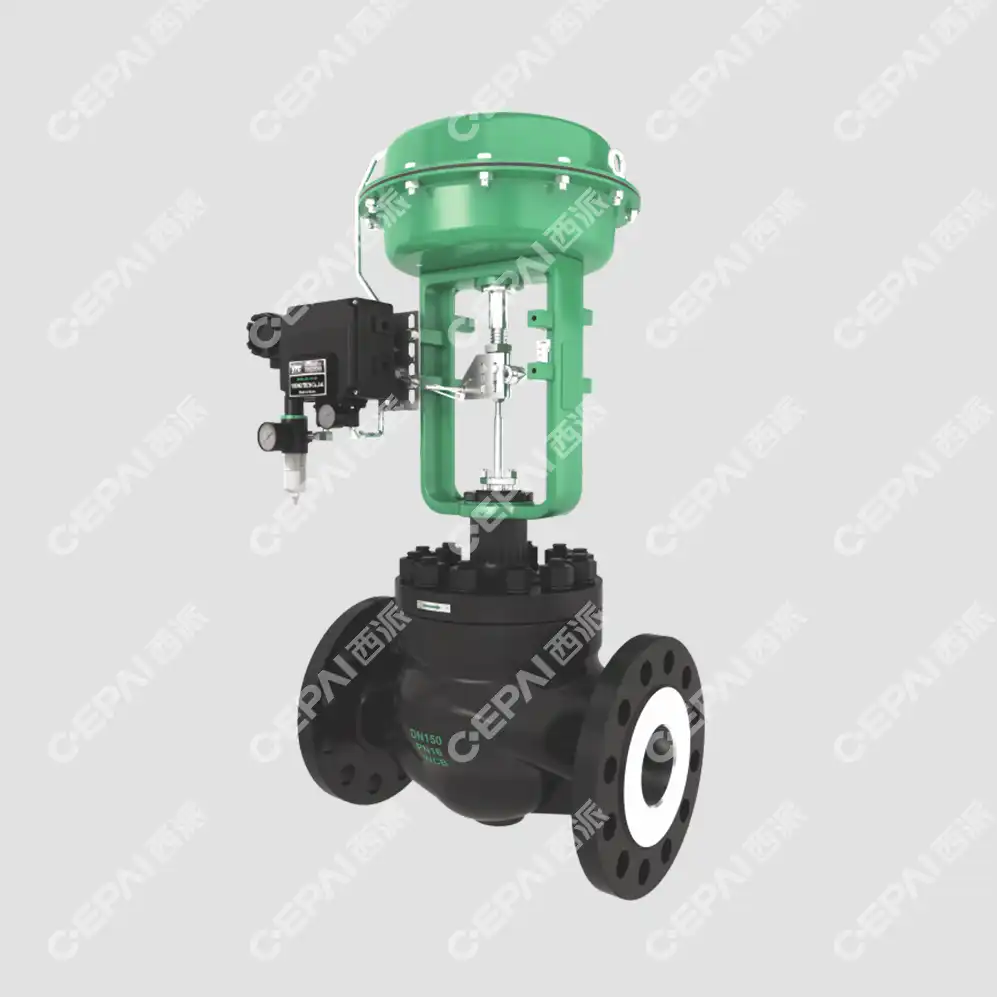

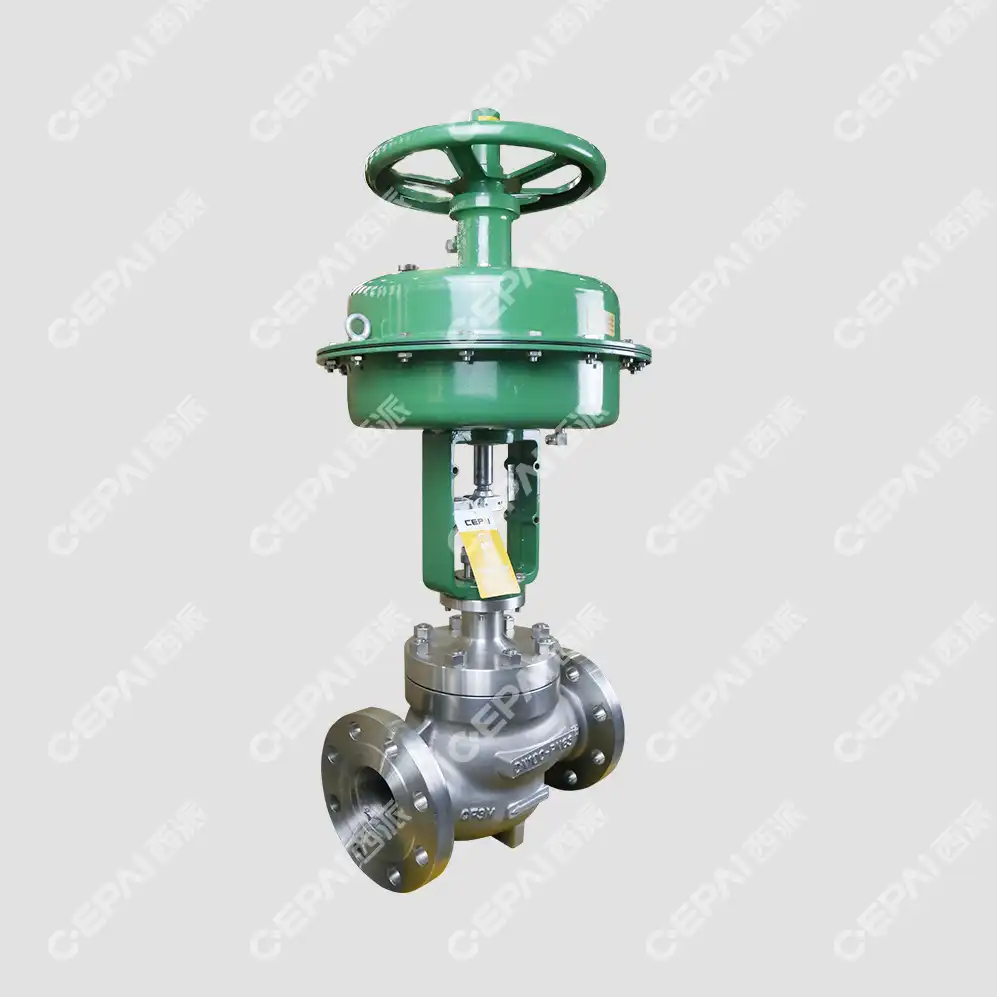

Pneumatic control valve systems operate using compressed air as their primary power source, typically requiring air pressures ranging from 15 to 150 PSI for standard industrial applications. The compressed air is distributed through dedicated piping systems to individual valve actuators, where it converts pneumatic energy into mechanical motion to position the valve stem and control element. This air-based system offers inherent safety advantages since compressed air is non-toxic, non-flammable, and poses minimal environmental risks in case of leakage. The pneumatic control valve actuators respond quickly to pressure changes, enabling rapid valve positioning and excellent dynamic response characteristics essential for process control applications. Hydraulic control systems, conversely, utilize pressurized hydraulic fluid, typically specialized oils or water-based fluids, operating at much higher pressures ranging from 500 to 5000 PSI or even higher in specialized applications. The hydraulic fluid is circulated through a closed-loop system comprising pumps, reservoirs, filters, and distribution networks. While hydraulic systems can generate significantly higher forces than pneumatic systems of comparable size, they introduce complexity through fluid contamination concerns, temperature sensitivity, and potential environmental hazards from fluid leakage. The higher operating pressures enable hydraulic control valves to handle larger valve sizes and higher differential pressures, making them suitable for heavy-duty industrial applications.

Response Time and Control Precision

The response characteristics of pneumatic control valve systems are influenced by the compressibility of air and the system's pneumatic volume. Compressed air can be rapidly pressurized and vented, allowing pneumatic actuators to achieve fast opening and closing cycles, typically completing full stroke operations in 1-15 seconds depending on actuator size and system design. The inherent compressibility of air provides natural cushioning effects during valve operation, reducing mechanical stress and extending component life. Modern pneumatic control valve systems incorporate sophisticated positioners and feedback systems that achieve positioning accuracy within ±0.25% of full scale, making them suitable for precise process control applications. Hydraulic systems excel in applications requiring precise positioning and high holding forces due to the incompressible nature of hydraulic fluids. Hydraulic control valves can maintain their position under load without continuous energy input, as the incompressible fluid acts as a solid column when flow is stopped. This characteristic enables superior positioning accuracy and stability, particularly important in applications involving high differential pressures or where valve position must be maintained against significant process forces. However, the response time of hydraulic systems can be slower due to fluid inertia and the time required to build pressure throughout the hydraulic circuit.

Environmental Considerations and Safety Aspects

Pneumatic control valve systems offer significant environmental and safety advantages in many industrial applications. Compressed air is environmentally benign, and any leakage poses no contamination risk to soil, water, or atmosphere. This characteristic makes pneumatic systems particularly attractive in food processing, pharmaceutical manufacturing, and other applications where environmental contamination must be minimized. Additionally, pneumatic systems eliminate fire and explosion hazards associated with hydraulic fluids, making them preferred choices in potentially explosive atmospheres or high-temperature environments where hydraulic fluid degradation could pose safety risks. The safety profile of hydraulic systems requires careful consideration of fluid selection, system design, and maintenance practices. Mineral oil-based hydraulic fluids can pose environmental contamination risks and fire hazards under certain conditions. However, modern hydraulic systems often utilize biodegradable fluids or fire-resistant synthetic fluids to mitigate these concerns. Hydraulic systems require comprehensive leak detection and containment systems to prevent environmental contamination, adding complexity and cost to system installation and maintenance. Despite these considerations, hydraulic systems remain essential in applications where their unique performance characteristics outweigh environmental and safety concerns.

Performance Characteristics and Application Suitability

Force Generation and Power Density

The fundamental difference in power density between pneumatic and hydraulic systems significantly influences their application suitability. Pneumatic control valve actuators typically generate forces ranging from a few pounds to several thousand pounds, adequate for most standard industrial valve applications. The force output of pneumatic actuators is directly proportional to air pressure and actuator effective area, making force calculation straightforward for system designers. Modern pneumatic control valve systems incorporate spring-return mechanisms and fail-safe designs that ensure valve positioning during power failures, enhancing system reliability and safety. Hydraulic control valves can generate forces ranging from hundreds to hundreds of thousands of pounds, making them suitable for the largest industrial valves and most demanding applications. The power-to-weight ratio of hydraulic systems typically exceeds pneumatic systems by 5-10 times, enabling compact actuator designs for high-force applications. This characteristic makes hydraulic control valves particularly suitable for large gate valves, emergency shutdown systems, and applications requiring rapid closure against high differential pressures. The ability to generate and maintain high forces makes hydraulic systems indispensable in critical safety applications where valve closure must be guaranteed regardless of process conditions.

Maintenance Requirements and Operational Costs

Pneumatic control valve systems generally require less complex maintenance routines compared to hydraulic alternatives. The primary maintenance requirements include air filtration system servicing, lubrication of moving components, and periodic replacement of seals and gaskets. Compressed air systems require effective moisture removal and contamination filtration to prevent actuator corrosion and ensure reliable operation. The absence of complex fluid handling systems reduces maintenance complexity and associated costs. However, pneumatic systems consume energy continuously during operation, as compressed air must be generated and maintained even when valves are in static positions. Hydraulic control valve systems require more intensive maintenance protocols due to fluid contamination sensitivity and system complexity. Regular hydraulic fluid analysis, filtration system maintenance, and seal replacement are essential for reliable operation. Hydraulic systems are sensitive to fluid contamination, temperature variations, and component wear that can affect system performance and reliability. However, hydraulic systems typically consume energy only during valve movement, making them more energy-efficient for applications with infrequent valve operation. The complexity of hydraulic systems requires specialized maintenance expertise and equipment, potentially increasing operational costs but ensuring superior performance in demanding applications.

Temperature and Environmental Adaptability

The temperature operating range of pneumatic control valve systems is primarily limited by seal materials and lubricant selection rather than the working medium itself. Compressed air maintains consistent properties across wide temperature ranges, enabling pneumatic systems to operate effectively from -40°F to +250°F with appropriate component selection. Special applications can extend this range further with heated enclosures or specialized materials. The absence of fluid viscosity concerns eliminates temperature-related performance degradation common in hydraulic systems, making pneumatic control valves particularly suitable for outdoor installations and applications with significant temperature variations. Hydraulic control valve systems face greater temperature-related challenges due to hydraulic fluid property changes with temperature. Fluid viscosity increases significantly at low temperatures, potentially causing sluggish actuator response and increased power requirements. High temperatures can cause fluid degradation, seal deterioration, and system performance issues. However, hydraulic systems can be engineered for extreme temperature applications through careful fluid selection, system heating, and insulation. The thermal mass of hydraulic fluid can provide temperature stability in some applications, and specialized fluids enable operation in extreme environments where pneumatic systems might face challenges.

Cost Analysis and Selection Criteria

Initial Investment and Installation Considerations

The initial cost structure of pneumatic control valve systems typically involves lower complexity installation requirements and reduced infrastructure investment. Pneumatic systems require compressed air generation and distribution infrastructure, which many industrial facilities already possess for other applications, reducing incremental installation costs. The simplicity of pneumatic control valve installation, with straightforward air connections and minimal specialized tooling requirements, reduces installation time and labor costs. Additionally, pneumatic actuators are generally less expensive than equivalent hydraulic actuators, making them attractive for budget-conscious applications where their performance characteristics meet system requirements. Hydraulic control valve systems require more substantial initial investment in infrastructure, including hydraulic power units, fluid reservoirs, filtration systems, and specialized piping networks. The complexity of hydraulic system installation requires specialized expertise and equipment, increasing installation costs and time requirements. However, the superior power density and performance characteristics of hydraulic systems can justify higher initial costs in applications where these characteristics provide operational advantages. The ability to share hydraulic power sources among multiple control valves can improve system economics in large installations with multiple high-force valve applications.

​​​​​​​

Long-term Operational Economics

Long-term operational costs of pneumatic control valve systems are influenced by compressed air generation costs, maintenance requirements, and component replacement cycles. Compressed air is one of the most expensive forms of industrial energy, with generation costs typically 7-8 times higher than equivalent electrical energy. However, the reliability and low maintenance requirements of pneumatic systems often offset higher energy costs through reduced downtime and maintenance expenses. The widespread availability of pneumatic components and service expertise contributes to predictable operational costs and simplified spare parts management. Hydraulic control valve systems typically demonstrate superior long-term economics in applications requiring high forces or frequent operation cycles. The energy efficiency of hydraulic systems during operation, combined with their ability to maintain position without continuous energy input, can result in lower operational energy costs despite higher maintenance requirements. The extended service life of hydraulic components in properly maintained systems, combined with their superior performance characteristics, often justifies higher initial and maintenance costs through improved process efficiency and reduced replacement frequency.

Application-Specific Selection Guidelines

The selection between pneumatic and hydraulic control valve systems requires careful evaluation of application-specific requirements, performance criteria, and operational constraints. Pneumatic control valves excel in applications requiring fast response times, clean operation, and simplified maintenance requirements. They are particularly suitable for process control applications in chemical processing, water treatment, HVAC systems, and any application where environmental safety and operational simplicity are priorities. The inherent safety characteristics of pneumatic systems make them preferred choices in explosive atmospheres, food processing, and pharmaceutical applications. Hydraulic control valves are optimal for applications requiring high forces, precise positioning under load, and operation in extreme environmental conditions. They excel in heavy industrial applications, large pipeline systems, power generation facilities, and emergency shutdown systems where reliable high-force operation is critical. The ability of hydraulic systems to generate and maintain high forces makes them indispensable in applications involving large valve sizes, high differential pressures, or critical safety functions where valve operation must be guaranteed regardless of process conditions.

Conclusion

The choice between pneumatic and hydraulic control valves fundamentally depends on specific application requirements, performance criteria, and operational priorities. Pneumatic control valve systems offer environmental safety, operational simplicity, and fast response characteristics ideal for standard process control applications. Hydraulic systems provide superior force generation, precise positioning, and reliable operation under extreme conditions essential for heavy-duty industrial applications. Understanding these fundamental differences enables informed decision-making that optimizes system performance, operational costs, and long-term reliability.

At CEPAI Group, we leverage our exceptional durability standards, high-precision control performance, and extensive R&D investment to deliver both pneumatic and hydraulic control valve solutions that exceed industry expectations. Our comprehensive product range, backed by pre-sales technical consultation, customized solution services, and robust after-sales support, ensures optimal valve selection and performance for your specific applications. With our ISO quality system certification, strict testing protocols, and commitment to zero defects, we guarantee products that meet the highest industry standards. Ready to optimize your control valve system performance? Contact our technical experts at cepai@cepai.com for personalized consultation and discover how CEPAI's innovative control valve solutions can enhance your operational efficiency and reliability.
