What is the Difference Between a Pneumatic Control Valve and a Self-Operated Control Valve?

In industrial process control systems, selecting the right valve technology is crucial for maintaining optimal performance, safety, and efficiency. The fundamental difference between pneumatic control valves and self-operated control valves lies in their operational mechanisms and control capabilities. A pneumatic control valve relies on compressed air signals from external controllers to modulate flow, pressure, or temperature, offering precise control through sophisticated feedback systems. In contrast, self-operated control valves function autonomously using the process medium's own energy, such as pressure or temperature changes, to regulate flow without requiring external power sources or control signals.

Key Operational Differences Between Pneumatic and Self-Operated Control Valves

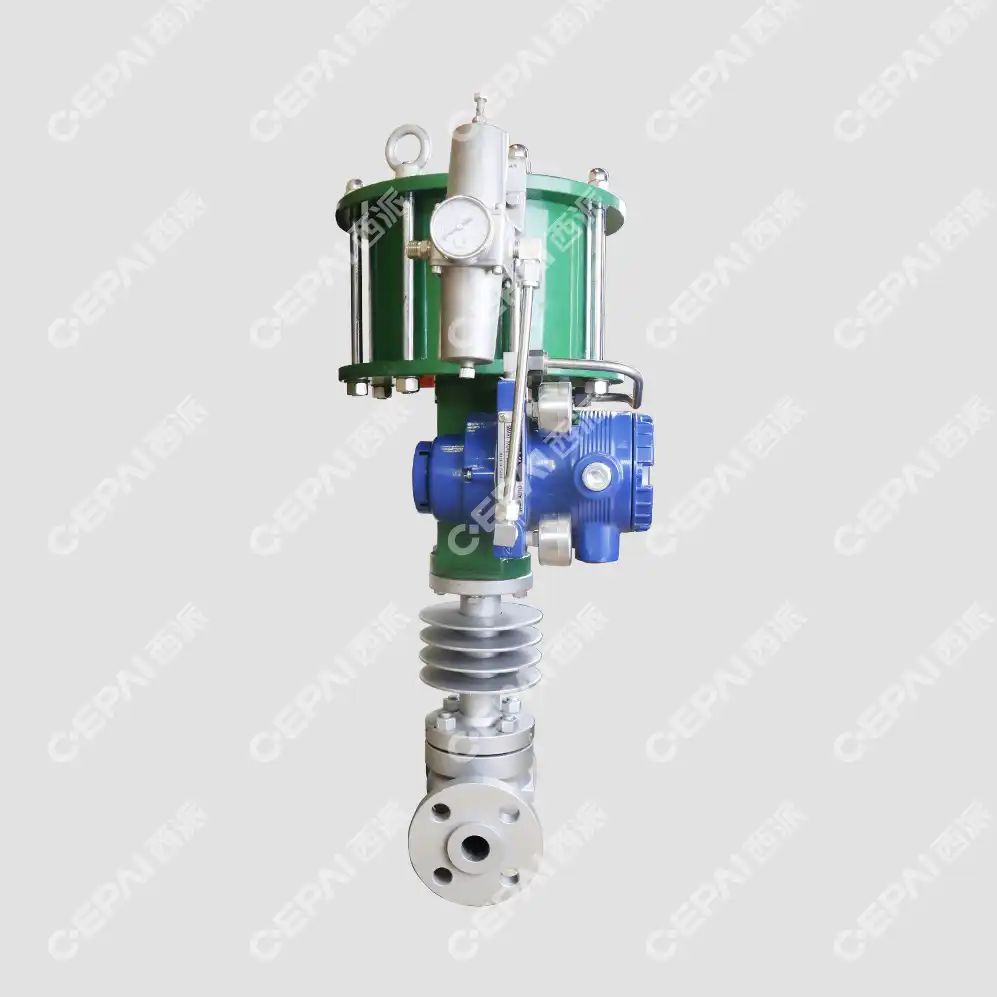

Control System Architecture and Signal Processing

Pneumatic control valves operate within complex control loops that integrate sensors, controllers, and actuators to achieve precise process regulation. The pneumatic control valve receives standardized air pressure signals, typically ranging from 3-15 PSI or 0.2-1.0 bar, which correspond to specific valve positions. These signals originate from electronic controllers or distributed control systems (DCS) that process feedback from field instruments measuring parameters like flow rate, pressure, temperature, or level. The pneumatic actuator converts these air pressure signals into mechanical motion, positioning the valve plug or disc to achieve the desired flow characteristic. The sophisticated control architecture enables pneumatic control valves to participate in advanced control strategies such as cascade control, feedforward control, and model predictive control. Modern pneumatic control valve systems often incorporate digital valve controllers or positioners that enhance accuracy, provide diagnostic capabilities, and enable remote configuration. These intelligent devices can compensate for friction, hysteresis, and other non-linearities in the valve assembly, ensuring consistent performance across varying operating conditions. Self-operated control valves, conversely, employ direct-acting mechanisms that respond immediately to changes in the controlled parameter without requiring external control signals. These valves utilize the process fluid's inherent properties, such as pressure differential or temperature variation, to generate the actuating force. The sensing element, whether a diaphragm, bellows, or thermal expansion element, directly connects to the valve mechanism, creating a closed-loop control system entirely contained within the valve assembly.

Response Time and Dynamic Performance Characteristics

The dynamic response characteristics of pneumatic control valves depend on several factors, including air supply pressure, tubing length, actuator size, and positioner settings. Pneumatic control valve systems typically exhibit response times ranging from 1-10 seconds for full stroke, depending on the actuator volume and air supply capacity. The response can be optimized through proper sizing of air supply lines, use of volume boosters, and adjustment of positioner parameters. Advanced pneumatic control valve systems can achieve faster response times through the use of high-capacity positioners and optimized actuator designs. The pneumatic control valve's response characteristics can be precisely tuned to match process requirements. Engineers can adjust the valve's gain, response time, and stability margins through positioner configuration, enabling optimal performance for different applications. Fast-acting pneumatic control valves are essential in applications requiring rapid response to process disturbances, such as pressure relief systems, emergency shutdown scenarios, or high-frequency process variations. Self-operated control valves typically provide faster initial response to process changes since they eliminate the time delays associated with signal transmission, processing, and pneumatic actuator response. The direct mechanical connection between the sensing element and valve mechanism enables instantaneous response to pressure or temperature changes. However, the response characteristics are fixed by the valve's mechanical design and cannot be easily adjusted for different operating conditions or control strategies.

Installation Complexity and Infrastructure Requirements

Pneumatic control valve installations require comprehensive infrastructure including compressed air supply systems, instrument air treatment equipment, signal transmission cables, and control system integration. The pneumatic control valve system demands clean, dry instrument air at consistent pressure, typically requiring air compressors, air dryers, filters, and pressure regulators. Signal transmission infrastructure must accommodate 4-20mA analog signals or digital communication protocols such as HART, Foundation Fieldbus, or Profibus, depending on the control system architecture. The installation process for pneumatic control valves involves multiple trades including instrumentation technicians, electricians, and piping specialists. Proper grounding, signal shielding, and EMI protection are essential for reliable operation in industrial environments. Pneumatic control valve systems require integration with control system databases, configuration of control algorithms, and comprehensive testing of all control loops before commissioning. Self-operated control valves significantly simplify installation requirements by eliminating the need for external power sources, control signals, or complex infrastructure. These valves connect directly to the process piping with minimal additional components, reducing installation time and complexity. The absence of electrical connections makes self-operated control valves particularly suitable for hazardous area applications or remote locations where electrical infrastructure is limited or prohibitively expensive.

Performance Advantages and Application Suitability

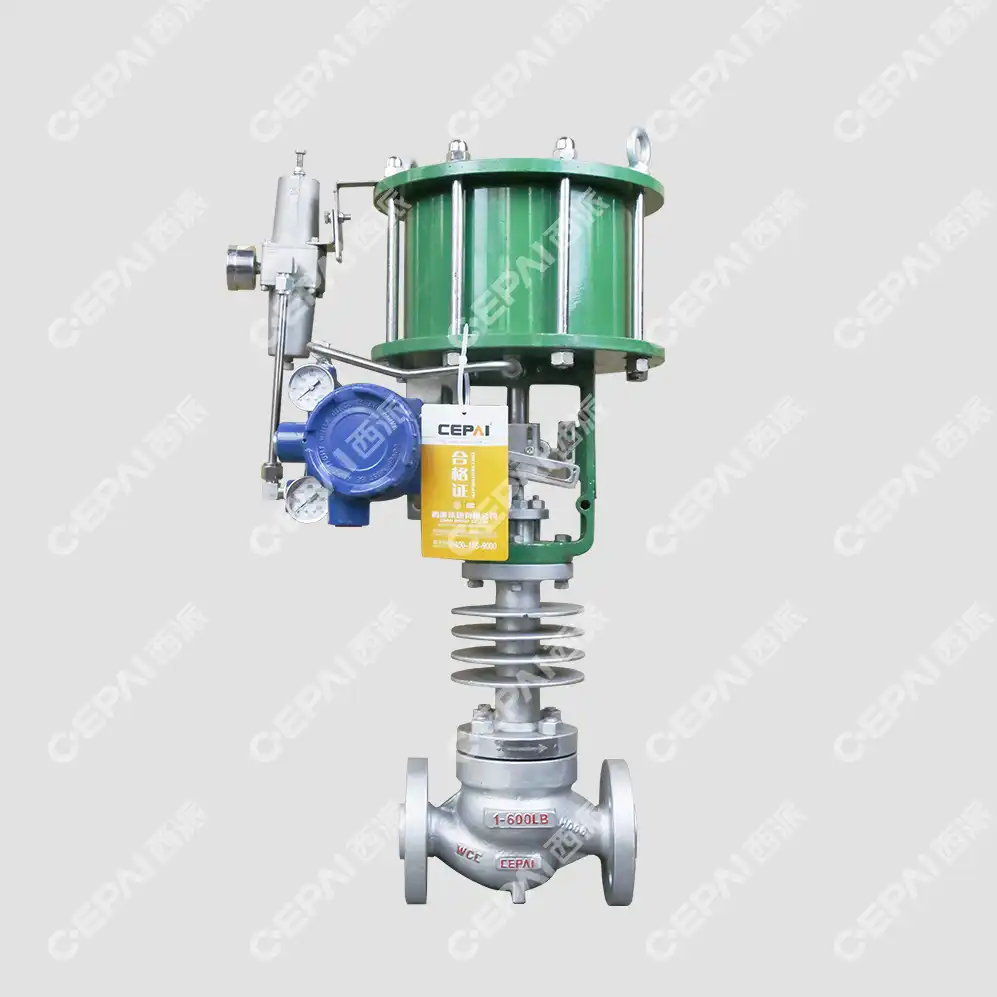

Precision Control and Repeatability Characteristics

Pneumatic control valves excel in applications requiring high precision and repeatability due to their ability to maintain exact positions through closed-loop feedback control. Modern pneumatic control valve systems can achieve positioning accuracy within ±0.5% of full scale, making them ideal for critical process control applications where tight tolerance is essential. The pneumatic control valve's performance remains consistent across varying process conditions, with digital positioners providing automatic compensation for wear, temperature effects, and process fluid variations. The inherent characteristics of pneumatic control valves enable them to handle complex control requirements such as split-range operation, where multiple valves operate from a single control signal, or valve sequencing for multi-stage processes. Advanced pneumatic control valve systems incorporate diagnostic capabilities that monitor valve performance, detect potential problems, and predict maintenance requirements, contributing to improved plant reliability and reduced unplanned shutdowns. Pneumatic control valves offer superior rangeability, typically achieving 50:1 or higher turndown ratios while maintaining accurate control throughout the operating range. This wide operating range makes pneumatic control valves suitable for processes with varying throughput requirements or seasonal demand fluctuations. The ability to provide consistent control at low flow rates is particularly valuable in batch processes or applications requiring precise metering of expensive or hazardous materials.

Energy Efficiency and Environmental Considerations

Self-operated control valves provide inherent energy efficiency advantages by eliminating the continuous compressed air consumption required by pneumatic systems. Pneumatic control valve systems consume instrument air continuously, even when maintaining steady-state conditions, resulting in ongoing energy costs for air compression and treatment. Large industrial facilities with hundreds of pneumatic control valves can consume significant amounts of compressed air, representing a substantial portion of plant energy consumption. The environmental benefits of self-operated control valves extend beyond energy savings to include reduced carbon footprint from eliminated air compression requirements and decreased maintenance activities. Self-operated control valves typically require minimal maintenance since they have fewer moving parts and no dependency on external utilities that can fail or require service. This reduced maintenance requirement translates to lower environmental impact from service activities and replacement parts. However, pneumatic control valves can contribute to overall system energy efficiency through their superior control precision, which can optimize process performance and reduce waste. The ability of pneumatic control valves to maintain tight control can result in higher product quality, reduced raw material consumption, and improved process efficiency that may offset the energy consumption of the compressed air system.

Reliability and Maintenance Requirements

The reliability profile of pneumatic control valves depends heavily on the quality and maintenance of supporting infrastructure, including compressed air systems, electrical systems, and control networks. Well-maintained pneumatic control valve systems can provide decades of reliable service, but they require regular attention to air quality, filter replacement, and calibration checks. Modern pneumatic control valve systems incorporate comprehensive diagnostics that can predict failures and optimize maintenance schedules, potentially improving reliability compared to older systems. Pneumatic control valve maintenance typically involves periodic calibration, air filter replacement, and inspection of pneumatic connections and tubing. The complexity of pneumatic control valve systems requires skilled technicians familiar with instrumentation and control systems, which may increase maintenance costs but also enables sophisticated troubleshooting and optimization capabilities. Self-operated control valves generally offer superior reliability in applications where their simpler design is appropriate, with fewer failure modes and reduced dependency on external systems. The mechanical nature of self-operated control valves makes them less susceptible to electrical interference, communication failures, or compressed air system problems that can affect pneumatic control valve operation. Maintenance requirements are typically limited to periodic valve inspection and replacement of seals or springs, activities that can often be performed by general maintenance personnel.

Selection Criteria and Cost-Benefit Analysis

Application-Specific Performance Requirements

The selection between pneumatic control valves and self-operated control valves requires careful analysis of process requirements, including required accuracy, response time, turndown ratio, and environmental conditions. Pneumatic control valves are essential for applications requiring precise control, remote operation, integration with plant control systems, or compliance with specific performance standards. Industries such as pharmaceutical manufacturing, semiconductor processing, and specialty chemical production often mandate the precision and traceability that only pneumatic control valve systems can provide. Self-operated control valves excel in applications where simplicity, reliability, and independence from external utilities are prioritized over precision control. These applications include basic pressure regulation, temperature control in heating systems, level control in storage tanks, and safety relief functions. The inherent fail-safe characteristics of many self-operated control valve designs make them suitable for critical safety applications where operation must continue even during power failures or control system malfunctions. Process characteristics such as fluid properties, operating pressure and temperature, flow variation, and required control accuracy all influence valve selection. Pneumatic control valves handle a wider range of process conditions and can be configured for specific applications through actuator selection, trim design, and positioner programming. Self-operated control valves are typically limited to specific operating ranges and control characteristics determined by their mechanical design.

​​​​​​​

Total Cost of Ownership Analysis

The initial capital cost of pneumatic control valve systems is typically higher than self-operated control valves due to the complexity of components, including actuators, positioners, air supply systems, and control system integration. However, the total cost of ownership analysis must consider operational benefits such as improved process efficiency, reduced product variability, and enhanced safety that pneumatic control valves can provide. In many applications, the improved control performance of pneumatic control valves results in operational savings that justify the higher initial investment. Operating costs for pneumatic control valve systems include compressed air consumption, electrical power for control systems, and more frequent maintenance activities. However, these costs must be weighed against the potential for reduced raw material consumption, improved product quality, and decreased process variability that can result from superior control performance. Modern pneumatic control valve systems with diagnostic capabilities can reduce maintenance costs through predictive maintenance strategies and optimized service intervals. Self-operated control valves offer lower total cost of ownership in applications where their simpler control characteristics are adequate for process requirements. The absence of ongoing utility consumption and reduced maintenance requirements make self-operated control valves economically attractive for simple control applications, remote installations, or cost-sensitive projects where precise control is not critical.

Integration with Modern Process Control Systems

Pneumatic control valves integrate seamlessly with modern distributed control systems (DCS), programmable logic controllers (PLC), and supervisory control and data acquisition (SCADA) systems through standardized communication protocols. This integration enables advanced control strategies, real-time monitoring, historical data collection, and remote operation capabilities that are increasingly important in modern industrial operations. The ability to incorporate pneumatic control valves into plant-wide optimization strategies and predictive maintenance programs adds significant value beyond basic flow control functions. Digital communication capabilities of modern pneumatic control valve systems provide access to extensive diagnostic information, including valve position, actuator pressure, temperature, and performance metrics that enable condition-based maintenance and process optimization. This data integration capability supports Industry 4.0 initiatives and smart manufacturing strategies that rely on comprehensive process data for decision-making and continuous improvement activities. Self-operated control valves operate independently of plant control systems, which can be advantageous in applications requiring autonomous operation or backup control functions. However, this independence limits the ability to collect performance data, implement advanced control strategies, or integrate with plant-wide optimization systems that are becoming increasingly important in competitive industrial environments.

Conclusion

The choice between pneumatic control valves and self-operated control valves ultimately depends on specific application requirements, performance expectations, and economic considerations. Pneumatic control valves offer superior precision, flexibility, and integration capabilities that make them essential for complex process control applications, while self-operated control valves provide simple, reliable, and cost-effective solutions for basic control requirements. Understanding these fundamental differences enables engineers to select the optimal valve technology for each specific application, ensuring reliable operation and maximum value from their control system investment.
