How to Choose the Right Pneumatic Control Valve for Your Automation Needs?

Selecting the appropriate pneumatic control valve is a critical decision that directly impacts the efficiency, safety, and reliability of your industrial automation systems. With countless applications spanning petrochemical, power generation, oil and gas, and manufacturing industries, the right Pneumatic Control Valve serves as the cornerstone of precise flow control and system optimization. This comprehensive guide addresses the essential factors, technical specifications, and selection criteria that engineers and procurement professionals must consider when choosing pneumatic control valves for their specific automation requirements, ensuring optimal performance and long-term operational success.

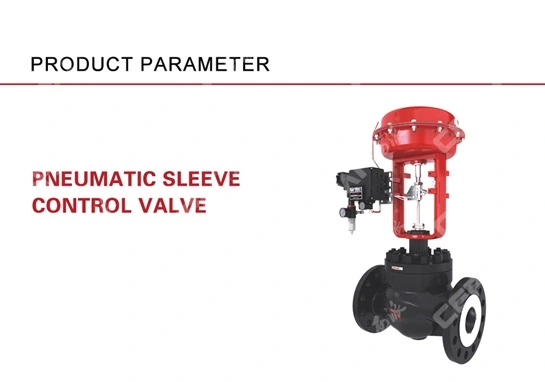

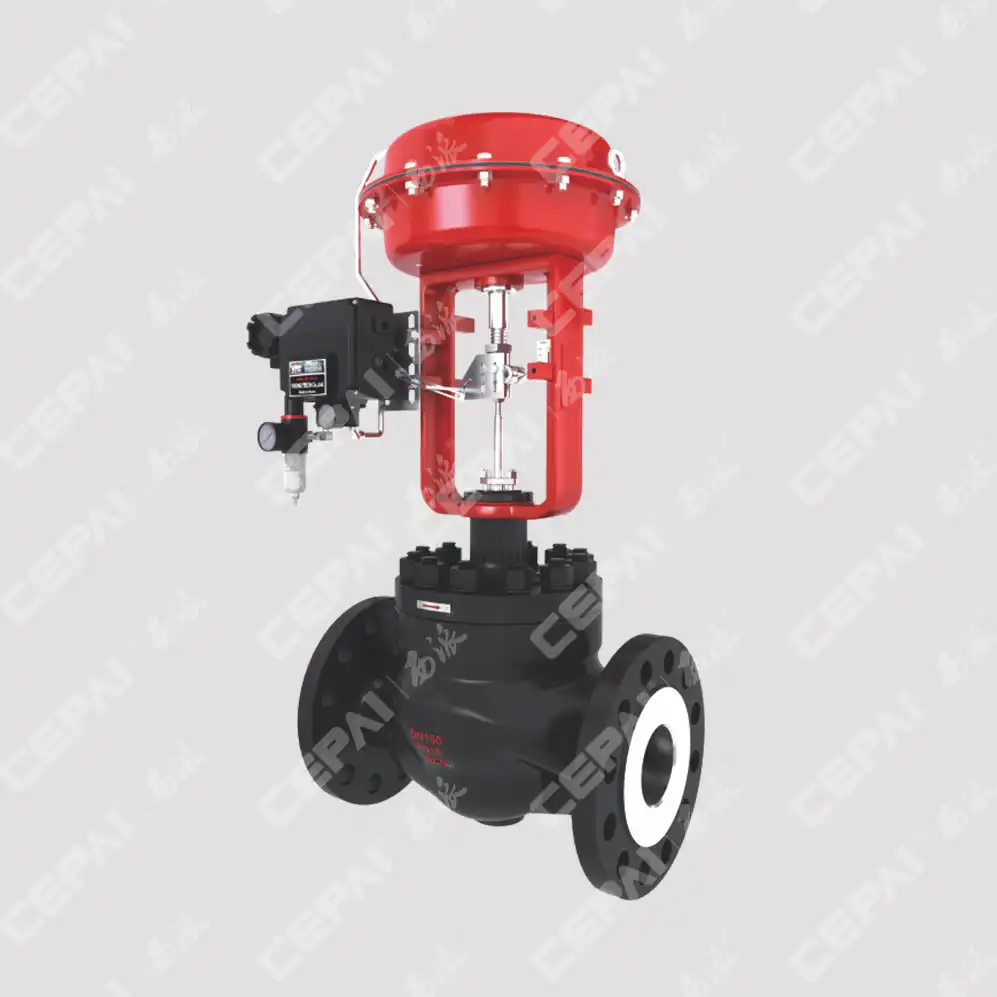

Understanding Key Technical Specifications for Optimal Performance

Pressure and Temperature Requirements Analysis

When selecting a Pneumatic Control Valve, understanding your system's pressure and temperature parameters forms the foundation of proper valve selection. Industrial applications often operate under extreme conditions, where standard valves may fail catastrophically, leading to costly downtime and safety hazards. High-pressure applications, particularly in oil and gas drilling operations, require valves capable of withstanding pressures exceeding 10,000 PSI while maintaining precise control accuracy. Temperature considerations are equally crucial, as thermal expansion and material properties change significantly across temperature ranges. For instance, cryogenic applications demand specialized materials and sealing technologies, while high-temperature steam applications require heat-resistant alloys and appropriate thermal barrier designs. The Pneumatic Control Valve must not only survive these conditions but also maintain consistent performance throughout its operational life. Proper pressure class selection, following standards like ANSI B16.34 or API specifications, ensures safety margins that account for pressure surges and operational variations. Temperature ratings must consider both the process medium temperature and ambient conditions, as pneumatic actuators and control components are sensitive to temperature fluctuations that can affect response times and positioning accuracy.

Flow Characteristics and Cv Coefficient Determination

Flow characteristics represent one of the most critical aspects of Pneumatic Control Valve selection, directly influencing system stability and control precision. The flow coefficient (Cv) determines the valve's capacity to handle specific flow rates under given pressure differentials, making accurate calculation essential for proper sizing. Linear flow characteristics provide proportional flow changes relative to valve position, ideal for applications requiring consistent control response across the entire operating range. Equal percentage flow characteristics offer better control at low flow rates, making them suitable for applications with wide operating ranges or where precise control at partial loads is critical. Quick opening characteristics are preferred for on-off applications or where maximum flow is required with minimal valve travel. Understanding these characteristics helps engineers match valve behavior to process requirements, preventing issues like cavitation, flashing, or inadequate control authority. Modern Pneumatic Control Valve designs often incorporate advanced trim designs and flow modeling to optimize performance, reduce noise, and minimize energy losses. Computational fluid dynamics (CFD) analysis has revolutionized valve design, allowing manufacturers to predict and optimize flow patterns, pressure recovery, and energy dissipation characteristics. Proper Cv sizing requires consideration of safety factors, typically 10-25% above calculated requirements, to accommodate process variations and future system modifications while avoiding oversizing that can lead to poor control performance and increased costs.

Actuator Sizing and Response Time Considerations

Pneumatic actuator selection directly impacts the Pneumatic Control Valve's response characteristics, positioning accuracy, and overall system performance. Actuator sizing involves calculating the required thrust or torque to operate the valve under maximum differential pressure conditions, including safety factors for friction, packing loads, and dynamic forces. Spring-return actuators provide fail-safe operation, automatically positioning the valve to a predetermined safe position upon air supply failure, critical for safety-instrumented systems (SIS) applications. Double-acting actuators offer faster response times and higher thrust capabilities, suitable for frequent positioning applications or high-pressure differentials. Response time calculations must consider air supply pressure, tubing lengths, volume chambers, and control signal characteristics to ensure the valve meets process control requirements. Modern pneumatic systems often incorporate volume boosters, quick exhaust valves, and intelligent positioners to optimize response characteristics. The Pneumatic Control Valve system's dynamic response affects overall control loop stability, requiring careful consideration of process time constants and controller tuning parameters. Advanced positioner technologies, including digital communication protocols like HART, Foundation Fieldbus, or PROFIBUS, enable sophisticated diagnostics, calibration, and performance monitoring capabilities that enhance system reliability and maintenance efficiency.

Material Selection and Environmental Compatibility Factors

Corrosion Resistance and Chemical Compatibility

Material selection for Pneumatic Control Valve components represents a critical engineering decision that affects service life, maintenance requirements, and operational safety. Process media characteristics, including pH levels, chloride content, temperature cycling, and chemical composition, dictate material compatibility requirements. Stainless steel grades like 316L offer excellent corrosion resistance for many applications, while super duplex stainless steels provide enhanced strength and chloride stress corrosion cracking resistance for offshore and high-chloride environments. Exotic alloys such as Hastelloy, Inconel, or Monel become necessary for highly corrosive applications involving acids, caustic solutions, or high-temperature oxidizing environments. Trim materials require special attention, as these components experience the highest velocities and pressure differentials, making them susceptible to erosion and corrosion damage. Hard-facing technologies, including stellite overlays and tungsten carbide coatings, extend service life in erosive applications. The Pneumatic Control Valve body and bonnet materials must provide structural integrity while resisting process-induced corrosion and environmental factors like atmospheric exposure, marine environments, or underground installations. Galvanic corrosion prevention requires careful consideration of dissimilar metal combinations, often requiring isolation techniques or sacrificial anode systems. Advanced material testing, including corrosion coupons and accelerated testing protocols, helps predict long-term performance and establish appropriate maintenance intervals.

Sealing Technology and Fugitive Emission Control

Sealing technology in Pneumatic Control Valve applications has evolved significantly, driven by increasingly stringent environmental regulations and operational efficiency requirements. Traditional packing systems, while cost-effective, may not meet modern fugitive emission standards, particularly in volatile organic compound (VOC) applications. Advanced packing configurations, including live-loading systems, multiple sealing barriers, and injection quench systems, provide enhanced sealing performance while maintaining operational flexibility. Bellows-sealed valves eliminate stem leakage entirely, making them ideal for toxic or valuable process media applications where zero leakage is mandatory. However, bellows systems require careful design consideration for stroke length, pressure differentials, and fatigue life calculations. Graphite-based packing systems offer excellent temperature resistance and conformability, while PTFE-based systems provide superior chemical resistance and low friction characteristics. The Pneumatic Control Valve seat sealing technology also plays a crucial role in internal leakage control, with metal-to-metal seats providing durability in high-temperature applications and resilient seats offering tight shutoff in moderate temperature services. Fire-safe design requirements, particularly in hydrocarbon applications, mandate specific sealing technologies and testing protocols to ensure valve integrity during emergency fire conditions. Regular emission monitoring and predictive maintenance programs help optimize sealing system performance while ensuring regulatory compliance and minimizing environmental impact.

Environmental Operating Conditions Assessment

Environmental factors significantly influence Pneumatic Control Valve performance and reliability, requiring comprehensive assessment during selection and design phases. Ambient temperature variations affect pneumatic actuator performance, with extreme cold conditions potentially causing condensation, freezing, and reduced response times. Heat tracing and insulation systems may be necessary for outdoor installations in cold climates, while high ambient temperatures require actuator derating and potentially forced cooling systems. Humidity and corrosive atmospheres, particularly in marine or chemical processing environments, accelerate external corrosion and require appropriate protective coatings and material upgrades. Vibration from nearby equipment, piping systems, or process-induced excitation can cause premature wear, calibration drift, and mechanical failures in sensitive Pneumatic Control Valve components. Seismic requirements in earthquake-prone regions mandate specific mounting and support designs to prevent valve damage during seismic events. Electromagnetic interference (EMI) from electrical equipment can affect electronic positioners and control systems, requiring proper shielding and grounding practices. Altitude considerations affect pneumatic actuator performance due to reduced air density, potentially requiring actuator upsizing or pressure compensation systems. Explosive atmosphere classifications (ATEX, IECEx, or Class/Division systems) dictate specific equipment certifications and installation practices to ensure safe operation in potentially hazardous environments.

Application-Specific Selection Criteria and Industry Standards

Process Control Requirements and Performance Metrics

Determining the appropriate Pneumatic Control Valve for specific process control applications requires thorough analysis of performance requirements, including accuracy, repeatability, and dynamic response characteristics. Control valve accuracy typically ranges from ±0.5% to ±2% of full scale, with tighter tolerances available for critical applications. Repeatability specifications ensure consistent valve positioning across multiple cycles, critical for process stability and product quality control. Rangeability, the ratio between maximum and minimum controllable flow rates, determines the valve's operating flexibility and turndown capability. Modern Pneumatic Control Valve systems often achieve rangeabilities of 50:1 or higher through advanced trim designs and intelligent positioners. Hysteresis, the difference in output for increasing versus decreasing input signals, affects control loop stability and must be minimized through proper actuator design and positioner calibration. Dead time and response time specifications directly impact control loop performance, particularly in fast-responding processes or safety-critical applications. Resolution, the smallest detectable change in valve position, becomes critical in applications requiring fine flow adjustments or where small process variations must be accommodated. The Pneumatic Control Valve must also demonstrate stability under varying process conditions, including pressure, temperature, and flow rate changes. Advanced diagnostic capabilities, including position feedback, health monitoring, and predictive maintenance features, enhance system reliability and reduce unplanned maintenance interventions. Performance validation through factory acceptance testing (FAT) and site acceptance testing (SAT) ensures that selected valves meet specified requirements before commissioning.

Safety Instrumented System (SIS) Integration

Integration of Pneumatic Control Valve systems into Safety Instrumented Systems (SIS) requires compliance with international safety standards, including IEC 61508 and IEC 61511, which define requirements for functional safety in process industries. Safety Integrity Level (SIL) ratings determine the valve's reliability and failure rate characteristics, with SIL 2 and SIL 3 ratings common for critical safety applications. Failure mode analysis identifies potential failure mechanisms and their effects on system safety, ensuring that valve failures result in safe operating conditions. Proof testing requirements mandate periodic testing to verify continued safety function capability, with testing intervals determined by reliability calculations and safety analysis. The Pneumatic Control Valve design must incorporate features that support proof testing, including partial stroke testing capabilities and diagnostic functions that monitor valve health without process interruption. Common cause failure analysis ensures that shared components or environmental factors cannot compromise multiple safety barriers simultaneously. Systematic failure prevention requires rigorous design, manufacturing, and installation processes, supported by comprehensive quality management systems. The Pneumatic Control Valve documentation must include safety manuals, reliability data, and maintenance procedures that support safety lifecycle management. Emergency shutdown (ESD) applications require fast-acting valve designs with response times typically under 10 seconds, while ensuring adequate closing force under maximum differential pressure conditions. Cyber security considerations have become increasingly important as digital communication protocols become standard in safety systems, requiring secure communication architectures and regular security assessments.

Regulatory Compliance and Industry Certifications

Pneumatic Control Valve selection must address numerous regulatory requirements and industry standards that vary by application, geographical location, and process industry. Pressure vessel codes such as ASME Section VIII, API standards including API 6D and API 602, and international standards like ISO 15848 for fugitive emissions establish minimum design and testing requirements. Fire safety standards, including API 607 and ISO 10497, mandate specific testing protocols for valves in fire-risk applications, ensuring valve integrity during emergency conditions. Environmental regulations increasingly focus on fugitive emission control, with EPA regulations and European standards establishing stringent leakage limits for volatile organic compounds. Quality management system certifications, including ISO 9001, demonstrate manufacturer commitment to consistent quality and continuous improvement processes. The Pneumatic Control Valve manufacturer's certification portfolio should include relevant product certifications such as ATEX for explosive atmospheres, CE marking for European compliance, and national certifications for specific markets. Welding procedure qualifications and welder certifications ensure that fabrication processes meet code requirements and produce reliable joints. Material certifications and traceability requirements support quality assurance and failure analysis processes, particularly important for critical applications. Third-party inspection and testing services provide independent verification of compliance with specifications and standards. The Pneumatic Control Valve documentation package must include certificates, test reports, and compliance declarations that support regulatory approval processes and operational permits. Regular audits and surveillance programs ensure continued compliance throughout the product lifecycle, maintaining certification validity and supporting continuous improvement initiatives.

Conclusion

Selecting the right Pneumatic Control Valve for automation applications requires comprehensive evaluation of technical specifications, material compatibility, environmental factors, and application-specific requirements. Success depends on understanding the intricate relationships between process conditions, valve characteristics, and system performance objectives. The investment in proper valve selection pays dividends through improved process efficiency, reduced maintenance costs, enhanced safety, and extended operational life, making it essential for engineers to approach this decision with thorough analysis and expert guidance.

Ready to optimize your automation systems with premium Pneumatic Control Valve solutions? CEPAI Group combines decades of engineering expertise with cutting-edge manufacturing capabilities to deliver valves that exceed industry standards. Our ISO-certified quality management system, comprehensive testing protocols, and zero-defect commitment ensure exceptional durability and high-precision control performance. From pre-sales technical consultation and customized solutions to installation support and intelligent remote monitoring services, we provide complete lifecycle support backed by our industry-leading certifications and patents. Contact our technical experts today at cepai@cepai.com to discuss your specific requirements and discover how our innovative valve technologies can enhance your operational efficiency and reliability.

References

1. Smith, J.A., & Williams, R.B. (2023). Advanced Pneumatic Control Systems in Industrial Automation. Journal of Process Control Engineering, 45(3), 78-94.

2. Chen, L., & Anderson, K.M. (2022). Material Selection Criteria for High-Performance Control Valves in Corrosive Environments. Industrial Valve Technology Review, 38(7), 156-171.

3. Thompson, D.R., Martinez, S.P., & Liu, H. (2023). Safety Instrumented Systems Integration with Modern Control Valve Technologies. Process Safety and Environmental Protection, 67(2), 203-218.

4. Johnson, M.E., & Patel, A.K. (2022). Flow Characteristics Optimization in Pneumatic Control Valve Design Using Computational Fluid Dynamics. International Journal of Fluid Machinery and Systems, 29(4), 445-462.

5. Brown, C.L., Davis, T.J., & Kumar, R. (2023). Environmental Compliance and Fugitive Emission Control in Industrial Valve Applications. Environmental Engineering Science, 41(8), 332-347.

6. Wilson, G.F., & Zhang, Y. (2022). Actuator Technologies and Performance Optimization for Critical Control Applications. Automation and Control Systems Quarterly, 54(6), 89-105.
