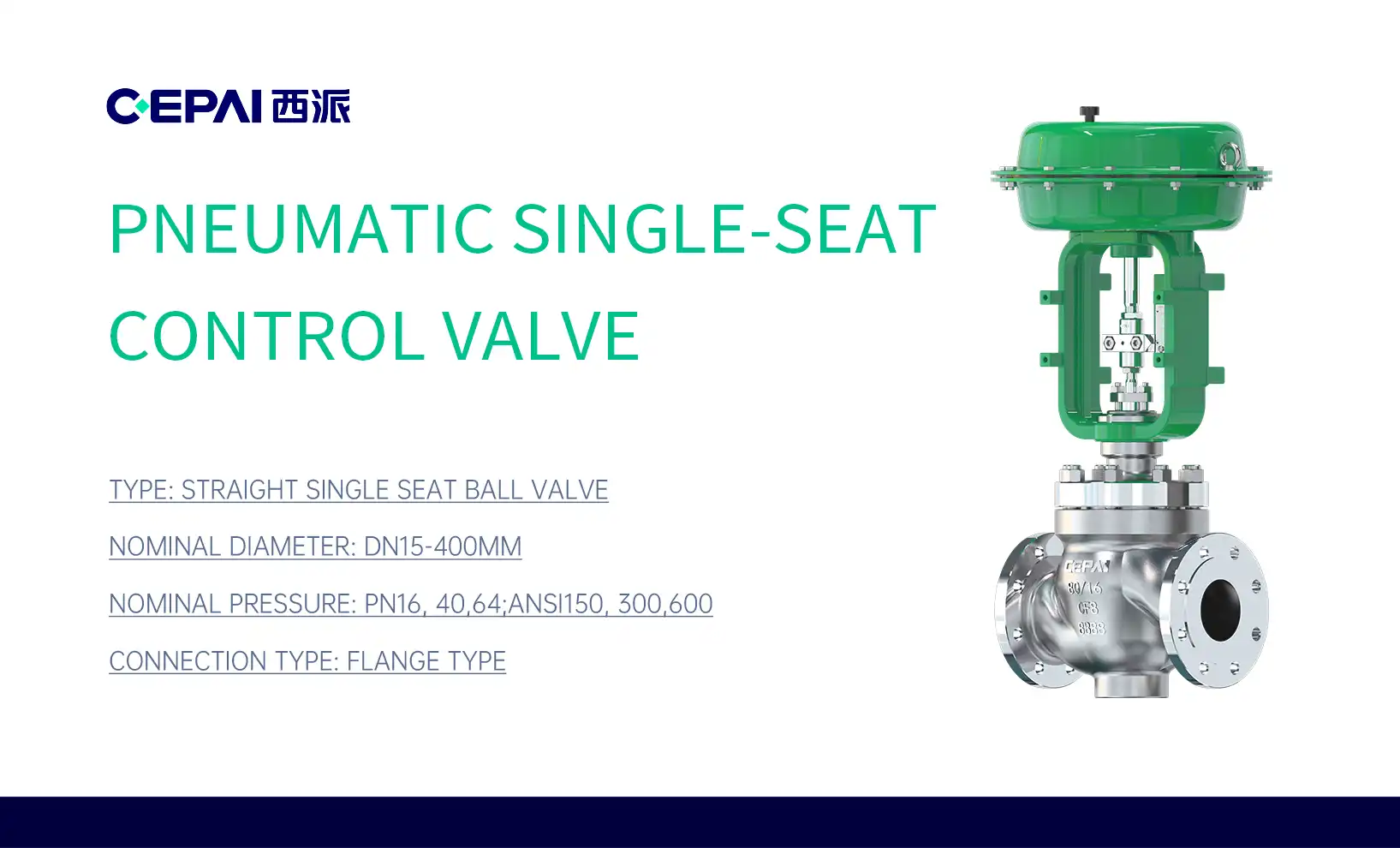

Beginner’s Guide to Pneumatic Single-Seat Control Valves for Industrial Use

Industrial automation systems rely heavily on precise flow control mechanisms to maintain operational efficiency and safety standards. Among the most critical components in these systems are pneumatic single-seat control valves, which serve as the backbone of fluid control applications across petrochemical, power generation, and manufacturing industries. Understanding the fundamentals of pneumatic control valve technology is essential for engineers, maintenance professionals, and procurement specialists who need to make informed decisions about valve selection and implementation in their industrial processes.

Understanding Pneumatic Single-Seat Control Valve Fundamentals

Basic Operating Principles and Mechanisms

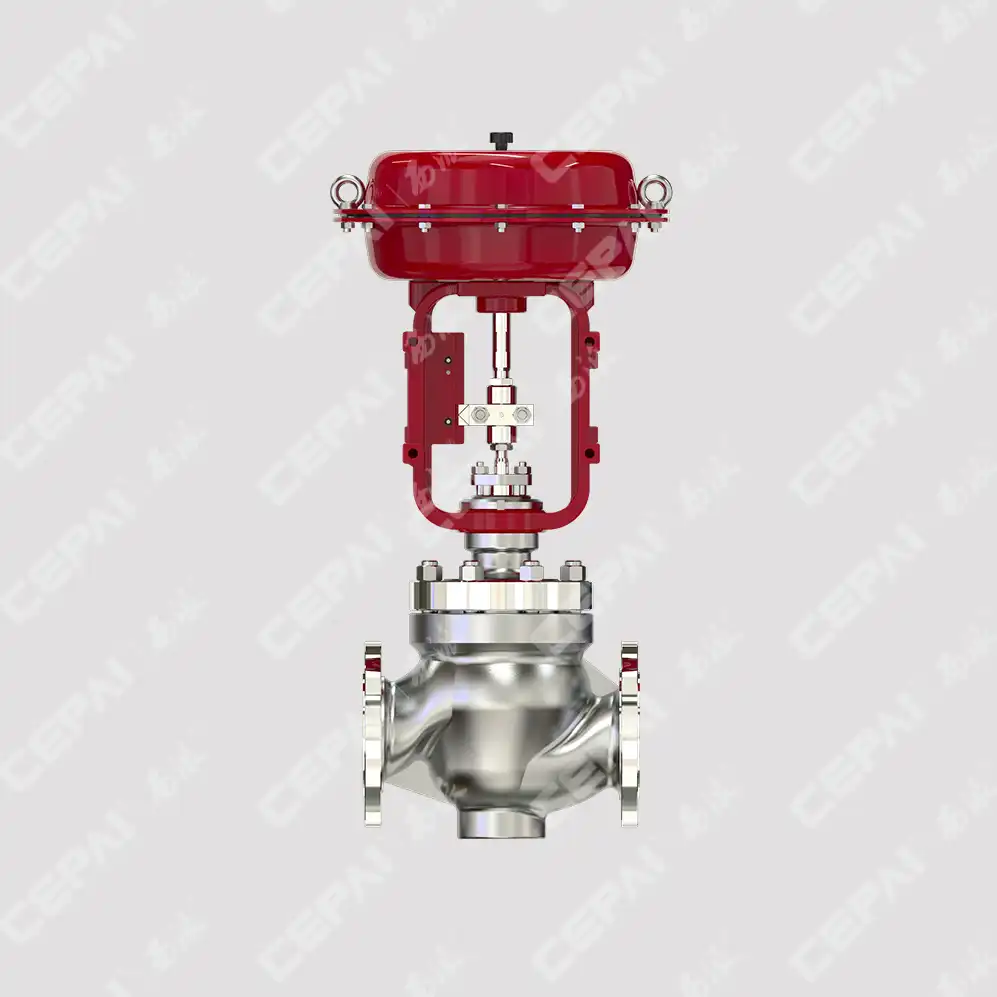

Pneumatic single-seat control valves operate on the principle of using compressed air to actuate valve movement, providing precise control over fluid flow rates, pressure, and direction. The pneumatic control valve system consists of a valve body with a single seat design, an actuator mechanism powered by compressed air, and control instrumentation that regulates the air pressure to achieve desired valve positioning. The single-seat configuration offers superior shut-off capabilities compared to double-seat designs, as the full system pressure assists in closing the valve, creating a tight seal against the single seat. This design principle makes pneumatic control valve units particularly effective in applications requiring reliable isolation and precise flow modulation. The actuator mechanism converts pneumatic pressure signals into mechanical motion, typically using a diaphragm or piston arrangement that responds to varying air pressure levels. When control signals adjust the pneumatic pressure, the actuator moves the valve stem and plug assembly, which in turn modifies the flow area through the valve seat. This direct relationship between pneumatic pressure and valve position allows for accurate and repeatable flow control. The pneumatic control valve response time is generally faster than electric alternatives, making these systems ideal for applications requiring rapid adjustments to changing process conditions.

Key Components and Design Features

The valve body represents the primary pressure-containing component of any pneumatic control valve system, engineered to withstand high pressures while providing smooth flow characteristics. Single-seat designs incorporate a precisely machined seat ring and valve plug combination that creates the variable flow orifice. The seat and plug geometry directly influences the valve's flow characteristics, with options including linear, equal percentage, and quick-opening profiles depending on application requirements. High-quality materials such as stainless steel, carbon steel, or specialized alloys ensure long-term durability and chemical compatibility with process fluids. The actuator assembly typically features a spring-loaded diaphragm or piston mechanism that converts pneumatic signals into linear motion. Spring-return actuators provide fail-safe operation by automatically positioning the valve to a predetermined safe position upon loss of air supply. The pneumatic control valve actuator sizing must accommodate the forces required to overcome fluid pressure, packing friction, and dynamic flow forces acting on the valve plug. Proper actuator selection ensures reliable operation across the full range of operating conditions while maintaining the required response speed and positioning accuracy for effective process control.

Installation and Configuration Requirements

Proper installation of pneumatic single-seat control valves requires careful attention to piping configuration, support structures, and accessibility for maintenance operations. The valve should be installed with adequate upstream and downstream straight pipe runs to minimize flow disturbances that could affect control performance. Pneumatic control valve installation guidelines typically specify minimum distances equivalent to several pipe diameters to ensure developed flow profiles entering the valve. The valve orientation must consider the flow direction, with most single-seat designs requiring flow under the seat for optimal performance and actuator sizing calculations. The pneumatic supply system must provide clean, dry compressed air at appropriate pressure levels to ensure reliable actuator operation. Air filtration, pressure regulation, and moisture removal equipment protect the pneumatic control valve components from contamination that could cause malfunctions or premature wear. Control signal connections require proper routing and protection from environmental factors, electromagnetic interference, and mechanical damage. Calibration procedures verify that the valve responds accurately to control signals across the full operating range, establishing the relationship between input signals and actual valve position for precise process control implementation.

Selection Criteria and Application Guidelines

Process Requirements and Performance Specifications

Selecting the appropriate pneumatic single-seat control valve begins with thorough analysis of process conditions including fluid properties, flow rates, pressure drops, and temperature ranges. The valve's flow coefficient (Cv) must be calculated based on maximum and minimum flow requirements, ensuring adequate capacity while avoiding oversizing that could compromise control accuracy at low flows. Pneumatic control valve sizing calculations consider factors such as fluid density, viscosity, vapor pressure, and critical flow conditions that influence valve performance. The selected valve must accommodate the full range of operating conditions while maintaining stable control characteristics throughout the process operating envelope. Material selection becomes critical when dealing with corrosive fluids, high temperatures, or abrasive media that could damage valve components. The valve body, seat, plug, and stem materials must demonstrate chemical compatibility with process fluids while providing adequate mechanical strength for operating pressures and temperatures. Pneumatic control valve manufacturers typically offer various material options including carbon steel, stainless steel grades, exotic alloys, and specialized coatings to address specific application challenges. Proper material selection extends valve service life, reduces maintenance requirements, and ensures reliable long-term performance in demanding industrial environments.

Industry-Specific Applications and Standards

Different industries impose unique requirements on pneumatic control valve selection and performance standards. The oil and gas sector demands valves certified to API specifications, with rigorous testing for high-pressure applications and hazardous service conditions. Petrochemical plants require valves capable of handling aggressive chemicals while meeting safety integrity level (SIL) requirements for critical process control functions. The pneumatic control valve certification process includes extensive testing for leakage rates, pressure capabilities, temperature cycling, and functional safety compliance to ensure reliable operation in these demanding applications. Power generation facilities utilize pneumatic control valves for boiler feedwater control, steam conditioning, and cooling water systems, requiring compliance with ASME and IEEE standards. The pharmaceutical and food processing industries mandate sanitary designs with smooth surfaces, validated cleaning procedures, and materials approved for direct product contact. Each application sector has established testing protocols and performance criteria that pneumatic control valve manufacturers must meet through comprehensive certification programs. Understanding these industry-specific requirements enables proper valve selection that ensures compliance with applicable codes and standards while meeting operational performance expectations.

Economic Considerations and Lifecycle Cost Analysis

The total cost of ownership for pneumatic single-seat control valves extends beyond initial purchase price to include installation, commissioning, maintenance, and energy consumption over the valve's operational lifetime. Initial valve cost varies significantly based on size, materials, actuator type, and certification requirements, but represents only a fraction of total lifecycle expenses. Pneumatic control valve efficiency directly impacts energy consumption through pressure drop characteristics and air consumption for actuator operation. High-quality valves with optimized flow characteristics can reduce pumping costs and compressed air usage, providing long-term operational savings that offset higher initial investment costs. Maintenance requirements significantly influence lifecycle costs, with factors including spare parts availability, service intervals, and repair complexity affecting ongoing expenses. Premium pneumatic control valve designs often incorporate features such as replaceable seat rings, accessible packing arrangements, and standardized components that reduce maintenance time and costs. The valve's reliability record and manufacturer support capabilities directly impact unplanned downtime costs, which can far exceed the valve's purchase price in critical applications. Comprehensive lifecycle cost analysis considers all these factors to identify the most economical valve solution that meets performance requirements while minimizing total ownership expenses.

Maintenance, Troubleshooting, and Optimization Strategies

Preventive Maintenance Programs and Procedures

Effective preventive maintenance programs for pneumatic single-seat control valves focus on regular inspection, lubrication, and component replacement before failures occur. Scheduled maintenance activities include visual inspection of valve exteriors for leakage, corrosion, or damage, pneumatic actuator function testing, and control signal calibration verification. The pneumatic control valve maintenance schedule should align with plant shutdown periods to minimize production disruptions while ensuring adequate inspection frequency to detect developing problems. Documentation of maintenance activities, performance trends, and component condition provides valuable data for optimizing maintenance intervals and predicting future service requirements. Actuator maintenance involves inspection of diaphragm condition, spring tension, and air supply quality to ensure reliable operation. Pneumatic supply systems require regular filter element replacement, moisture trap drainage, and pressure regulator calibration to maintain clean, dry air at proper pressure levels. Internal valve components including seats, plugs, and packing require periodic inspection and replacement based on service conditions and performance criteria. The pneumatic control valve maintenance program should include spare parts inventory management, technician training, and specialized tools required for efficient service operations.

Common Problems and Diagnostic Techniques

Pneumatic control valve problems typically manifest as poor control performance, excessive leakage, or complete failure to respond to control signals. Control loop oscillation often indicates valve sizing issues, actuator problems, or controller tuning difficulties that require systematic diagnosis to identify root causes. Valve sticking or sluggish response may result from actuator diaphragm deterioration, contaminated air supply, or internal valve component wear that restricts smooth operation. The pneumatic control valve troubleshooting process involves systematic testing of individual components to isolate problems and determine appropriate corrective actions. Diagnostic procedures include stroke testing to verify full valve travel, leakage testing to assess seat condition, and signal response testing to evaluate actuator performance. Air supply quality problems can cause erratic valve operation, requiring inspection of filtration systems, moisture levels, and pressure consistency. Internal valve damage from cavitation, erosion, or corrosion requires disassembly and inspection to assess component condition and determine repair or replacement needs. Modern pneumatic control valve diagnostic techniques may include vibration analysis, acoustic emission testing, and performance monitoring systems that provide early warning of developing problems before they impact process operations.

Performance Optimization and Upgrade Opportunities

Optimizing pneumatic single-seat control valve performance involves analyzing current operation against design specifications and identifying opportunities for improvement. Flow characteristic modification through trim changes can improve control accuracy and reduce energy consumption in applications where process requirements have evolved since original installation. Actuator upgrades may provide faster response times, improved positioning accuracy, or enhanced diagnostic capabilities that optimize process control performance. The pneumatic control valve optimization process considers factors such as control loop stability, energy efficiency, maintenance requirements, and integration with modern control systems. Digital positioner technology offers significant performance improvements over traditional pneumatic positioners, providing enhanced accuracy, diagnostic capabilities, and communication with distributed control systems. Smart pneumatic control valve systems can provide real-time performance feedback, predictive maintenance alerts, and remote configuration capabilities that improve operational efficiency. Valve body modifications such as low-noise trim, anti-cavitation designs, or improved flow characteristics can address specific performance issues while extending valve service life. Systematic performance optimization programs evaluate multiple improvement opportunities to maximize the return on upgrade investments while enhancing overall process control effectiveness.

​​​​​​​

Conclusion

Pneumatic single-seat control valves represent essential components in modern industrial automation systems, offering reliable flow control capabilities across diverse applications. Success in valve selection, installation, and maintenance requires comprehensive understanding of operating principles, application requirements, and optimization strategies. Professional guidance from experienced manufacturers ensures optimal valve performance while minimizing lifecycle costs through proper specification and ongoing support services.
