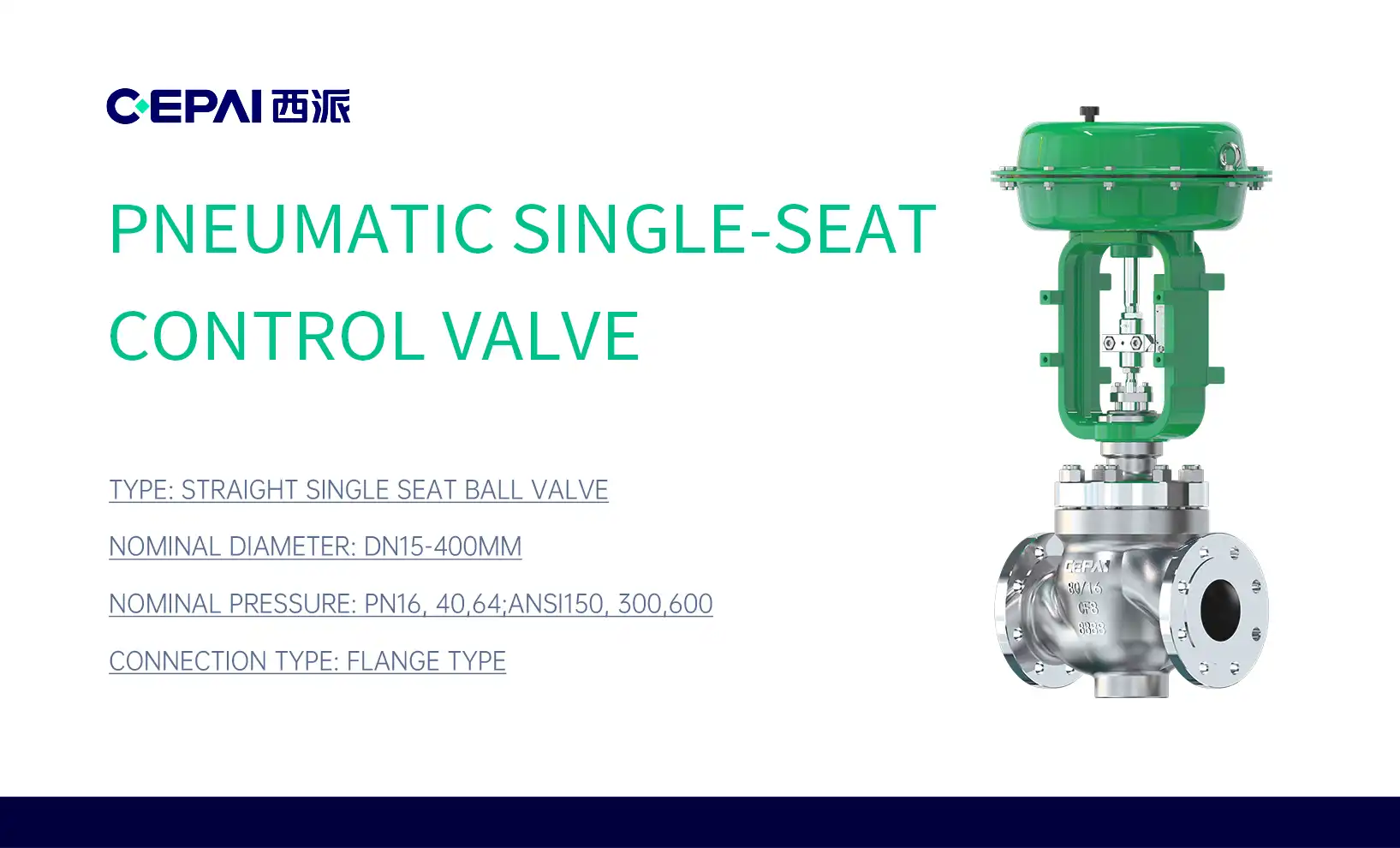

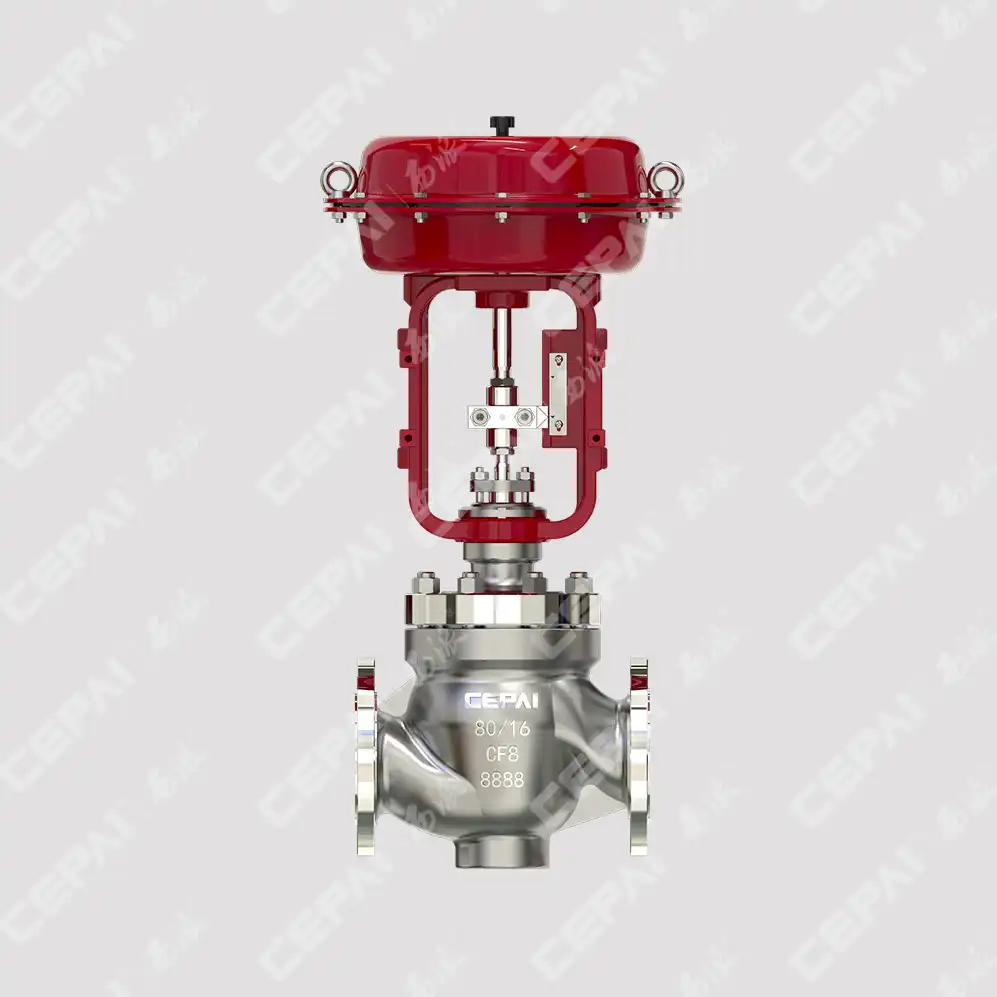

Troubleshooting Common Issues with Pneumatic Single-Seat Control Valves

Pneumatic single-seat control valves are critical components in industrial automation systems, serving as the primary interface between process control systems and fluid flow regulation. These sophisticated devices combine mechanical precision with pneumatic actuation to deliver accurate flow control across diverse industrial applications. Understanding common operational challenges and their solutions is essential for maintaining optimal system performance, minimizing downtime, and ensuring reliable process control. The Pneumatic Control Valve represents a cornerstone technology in modern industrial processes, where even minor malfunctions can result in significant operational disruptions, safety concerns, and economic losses. This comprehensive guide addresses the most prevalent issues encountered with pneumatic single-seat control valves and provides practical troubleshooting methodologies to restore optimal functionality.

Diagnosing Actuator-Related Performance Problems

Insufficient Actuator Force and Stroke Limitations

Pneumatic single-seat control valves frequently experience performance degradation due to actuator force insufficiency, which manifests as incomplete valve opening or closing cycles. This condition typically occurs when the pneumatic actuator cannot generate adequate force to overcome process pressures, valve friction, or spring resistance. The Pneumatic Control Valve system relies heavily on precise actuator sizing and proper air supply pressure to function effectively. Engineers must evaluate the actuator's force output against the valve's required thrust, considering factors such as differential pressure across the valve seat, packing friction, and unbalanced forces acting on the valve plug. When diagnosing force-related issues, technicians should measure actual air supply pressure, verify actuator diaphragm integrity, and assess the condition of internal springs and mechanical linkages. Additionally, environmental factors such as temperature extremes can affect actuator performance by altering diaphragm elasticity and air pressure characteristics. Proper troubleshooting requires systematic evaluation of pneumatic supply systems, including pressure regulators, air filters, and distribution lines, to ensure consistent and adequate force delivery to the actuator assembly.

Air Supply Contamination and Pressure Fluctuations

Contaminated air supply represents one of the most common causes of pneumatic actuator malfunction in industrial environments. Moisture, oil particles, and solid contaminants introduced through inadequate air treatment systems can compromise actuator performance and accelerate component wear. The Pneumatic Control Valve system's reliability depends critically on clean, dry compressed air delivered at consistent pressure levels. Contamination typically manifests as erratic valve positioning, slow response times, or complete actuator failure due to internal corrosion or seal degradation. Troubleshooting contamination issues requires comprehensive evaluation of the entire pneumatic supply chain, from compressor output through distribution networks to individual valve connections. Technicians should inspect air treatment equipment including filters, dryers, and lubricators, replacing elements as necessary and verifying proper drainage of accumulated moisture. Pressure fluctuations can result from undersized supply lines, inadequate compressor capacity, or downstream equipment cycling, all of which affect valve positioning accuracy and response characteristics. Implementing proper air quality standards and regular maintenance schedules for pneumatic supply systems significantly reduces contamination-related failures and extends valve service life.

Positioner Calibration and Signal Processing Errors

Modern pneumatic control valves often incorporate electronic or pneumatic positioners to enhance control accuracy and provide diagnostic capabilities. Positioner-related issues frequently manifest as poor valve positioning accuracy, oscillation, or failure to respond to control signals. The Pneumatic Control Valve positioner serves as the critical interface between control system output and valve positioning, translating electronic or pneumatic signals into precise actuator movement. Calibration errors represent the most common positioner problem, typically resulting from drift in feedback mechanisms, wear in mechanical linkages, or changes in system operating conditions. Troubleshooting positioner issues requires systematic verification of input signal integrity, feedback sensor accuracy, and output pressure characteristics. Technicians should utilize appropriate calibration equipment to verify positioner response across the full operating range, documenting any deviations from expected performance. Additionally, electromagnetic interference from nearby equipment can disrupt electronic positioner operation, necessitating proper shielding and grounding practices. Regular positioner maintenance, including cleaning of pneumatic connections, verification of mounting stability, and software updates where applicable, helps prevent many common positioning errors and maintains optimal valve performance throughout the service life.

Addressing Valve Internal Component Failures

Seat Leakage and Sealing Surface Degradation

Internal leakage through valve seats represents a critical performance issue that can compromise process control effectiveness and safety. Seat leakage typically develops gradually due to erosion, corrosion, or mechanical damage to sealing surfaces, though sudden failures can occur due to foreign object interference or excessive differential pressures. The Pneumatic Control Valve seat design incorporates precision-machined surfaces that maintain tight shutoff when properly maintained, but these surfaces are vulnerable to process fluid characteristics and operating conditions. Troubleshooting seat leakage requires careful evaluation of upstream filtration systems, process fluid composition, and operating pressure profiles to identify root causes. Visual inspection of seat and plug surfaces often reveals scoring, pitting, or erosion patterns that indicate specific failure mechanisms. Metallic seats may require resurfacing or replacement, while soft-seated designs typically need complete seal replacement to restore proper sealing performance. Process conditions including high temperatures, aggressive chemicals, or abrasive particles accelerate seat wear and may necessitate upgraded materials or alternative valve designs. Implementing proper upstream protection, regular inspection schedules, and appropriate seat material selection based on process conditions significantly extends valve service life and maintains reliable shutoff capability.

​​​​​​​

Stem and Packing System Complications

The valve stem and packing system represents a critical interface between the actuator and internal valve components, subject to both mechanical stresses and process fluid exposure. Common failures include stem binding, packing leakage, and premature wear of guide surfaces. The Pneumatic Control Valve stem assembly must provide smooth, precise movement while maintaining process containment under varying pressure and temperature conditions. Stem binding often results from misalignment, insufficient lubrication, or buildup of process deposits on guide surfaces. Troubleshooting requires careful evaluation of stem straightness, guide bushing condition, and actuator alignment to identify mechanical interference sources. Packing leakage typically develops gradually as elastomeric seals age and lose resilience, though sudden failures can occur due to excessive stem movement or aggressive process conditions. Proper packing adjustment requires balancing leak prevention against stem friction, as over-tightening can cause premature stem wear and increased actuator force requirements. Regular maintenance including packing replacement, stem cleaning, and lubrication of moving parts helps prevent many common failures and maintains optimal valve performance throughout extended service periods.

Flow Characteristic Alterations and Cavitation Effects

Changes in valve flow characteristics can significantly impact process control performance, often manifesting as reduced control authority, nonlinear response, or excessive noise generation. These alterations typically result from internal component wear, cavitation damage, or changes in process conditions that affect flow patterns through the valve. The Pneumatic Control Valve flow characteristic is engineered to provide specific control relationships between valve position and flow rate, but erosion or deposit buildup can alter these relationships and compromise control effectiveness. Cavitation represents a particularly destructive phenomenon that occurs when local pressure drops cause vapor bubble formation and subsequent collapse within the valve body. This process generates intense localized forces that can rapidly damage internal surfaces and create significant noise and vibration. Troubleshooting flow characteristic issues requires systematic evaluation of pressure drop profiles, flow rate measurements across the operating range, and assessment of noise and vibration levels during operation. Computational fluid dynamics analysis can help identify problematic flow patterns and guide selection of appropriate trim designs to minimize cavitation potential. Implementing proper valve sizing methodologies, considering process fluid properties, and selecting appropriate trim configurations helps prevent cavitation-induced damage and maintains consistent flow characteristics throughout the valve service life.

Implementing Preventive Maintenance and System Optimization

Comprehensive Inspection and Testing Protocols

Establishing systematic inspection and testing protocols represents the foundation of effective pneumatic control valve maintenance programs. Regular evaluation of valve performance parameters including positioning accuracy, response time, and leakage rates helps identify developing issues before they result in system failures. The Pneumatic Control Valve requires periodic assessment of both internal components and external support systems to maintain optimal performance throughout its service life. Comprehensive testing protocols should include verification of actuator force output, positioner calibration accuracy, and seat leakage rates using appropriate test equipment and documented procedures. Vibration analysis can reveal developing mechanical problems such as stem binding or actuator mounting issues before they cause complete failures. Acoustic monitoring techniques help identify cavitation or flow-induced noise that may indicate inappropriate operating conditions or internal damage. Implementing standardized inspection checklists, documentation systems, and performance trending helps maintenance personnel track valve condition over time and identify patterns that may indicate systematic issues. Regular training of maintenance staff on proper testing techniques, safety procedures, and documentation requirements ensures consistent application of inspection protocols and reliable identification of potential problems.

Predictive Maintenance Technologies and Remote Monitoring

Modern predictive maintenance technologies offer significant advantages in optimizing pneumatic control valve performance and reducing unplanned downtime. Digital valve controllers and smart positioners provide continuous monitoring capabilities that enable real-time assessment of valve condition and performance trends. The Pneumatic Control Valve equipped with intelligent diagnostics can provide early warning of developing problems including actuator degradation, positioner drift, or internal component wear. Remote monitoring systems allow centralized tracking of multiple valves across facility-wide networks, enabling predictive maintenance scheduling based on actual equipment condition rather than arbitrary time intervals. Advanced diagnostic algorithms can analyze valve signature patterns to identify specific failure modes and recommend appropriate corrective actions. Wireless communication technologies facilitate data collection from remote or hazardous locations where traditional monitoring approaches may be impractical. Integration with plant-wide asset management systems enables optimization of maintenance resources and coordination with production scheduling to minimize operational disruptions. Implementing predictive maintenance programs requires careful selection of monitoring technologies, establishment of baseline performance parameters, and development of response protocols for various diagnostic indicators to maximize the benefits of these advanced maintenance approaches.

Optimization Strategies for Enhanced Performance and Longevity

Systematic optimization of pneumatic control valve systems encompasses both individual component improvements and system-wide enhancements that collectively extend service life and improve performance reliability. Proper valve sizing represents the foundation of optimization, ensuring that selected valves operate within their designed performance envelope under normal process conditions. The Pneumatic Control Valve performance can be significantly enhanced through careful attention to installation practices, including proper piping configuration, adequate support structures, and appropriate isolation and bypass arrangements. Material selection optimization based on specific process conditions helps minimize corrosion and erosion effects that contribute to premature component failure. Actuator sizing optimization ensures adequate force margins while avoiding oversizing that may result in excessive costs or installation complexity. Control tuning optimization balances response speed against stability to minimize wear from excessive cycling while maintaining acceptable process control performance. Environmental protection measures including weather shields, insulation, and proper drainage help protect external components from adverse conditions that accelerate degradation. Implementing comprehensive optimization strategies requires systematic evaluation of operating conditions, performance requirements, and maintenance capabilities to develop integrated approaches that maximize valve reliability and service life while minimizing total cost of ownership throughout the equipment lifecycle.

Conclusion

Effective troubleshooting of pneumatic single-seat control valves requires systematic understanding of component interactions, failure mechanisms, and diagnostic techniques. The Pneumatic Control Valve represents a sophisticated system where actuator performance, internal component condition, and support system adequacy collectively determine overall reliability and control effectiveness. Implementing comprehensive maintenance programs that combine regular inspection protocols with predictive monitoring technologies provides the foundation for optimal valve performance and extended service life throughout diverse industrial applications.
