Understanding the Anatomy of a Control Valve: A Breakdown of Key Components

Industrial processes across the globe depend on precise fluid control to maintain operational efficiency and safety standards. Yet many engineers and technicians struggle with unexpected equipment failures, production bottlenecks, and safety incidents that could be prevented with proper understanding of Control Valve components. Whether you're dealing with pressure drops in petrochemical plants, temperature fluctuations in power generation facilities, or flow irregularities in water treatment systems, understanding the intricate anatomy of a Control Valve is essential for preventing costly downtime and ensuring optimal performance. This comprehensive guide breaks down every critical component of Control Valve systems, providing the technical insights you need to make informed decisions about valve selection, maintenance, and troubleshooting for your specific applications.

Essential Control Valve Body Components and Their Functions

The valve body serves as the foundation of any Control Valve system, housing the primary flow path and providing structural integrity for the entire assembly. This critical component determines the valve's pressure rating, temperature limitations, and flow characteristics that directly impact process performance. Every control valve has a passage that allows fluid to enter and leave, with the body ends serving as connection points to the piping system. The body's internal geometry, including the flow path design and seat configuration, significantly influences the valve's flow coefficient (Cv) and pressure recovery characteristics. Modern Control Valve bodies are manufactured using various materials depending on the application requirements. Carbon steel bodies excel in standard hydrocarbon services, while stainless steel variants provide superior corrosion resistance in chemical processing environments. For extreme conditions, exotic alloys such as Hastelloy or Inconel ensure reliable performance in highly corrosive or high-temperature applications. The body's wall thickness and pressure class rating must align with system operating parameters to maintain safety margins throughout the valve's service life. CEPAI Group's advanced manufacturing facilities produce Control Valve bodies using precision casting and machining techniques, ensuring dimensional accuracy and surface finish quality that meets international standards including API 602 and API 6D certifications.

• Internal Flow Path Design

The internal flow path design within the Control Valve body directly affects turbulence, pressure drop, and cavitation potential during operation. Streamlined flow passages minimize energy losses and reduce the likelihood of erosive damage to internal components. The transition areas between the inlet, valve seat, and outlet require careful engineering to avoid sharp corners or sudden diameter changes that could create flow disturbances. Computational fluid dynamics modeling helps optimize these internal geometries for specific applications, ensuring optimal performance characteristics while minimizing maintenance requirements.

• Body Connection Types

Control Valve bodies feature various end connection types to accommodate different piping systems and installation requirements. Flanged connections provide robust, removable joints suitable for larger valve sizes and high-pressure applications. Threaded connections offer cost-effective solutions for smaller valves in lower-pressure services. Welded end connections eliminate potential leak paths in critical applications but require specialized installation procedures. Socket weld and butt weld configurations provide permanent connections with excellent pressure ratings for demanding industrial environments.

Control Valve Trim: The Heart of Flow Regulation

The trim assembly represents the most critical functional element within any Control Valve, directly controlling fluid flow through precise positioning and sealing mechanisms. The trim refers to the internal elements directly responsible for flow control, including the plug, seat, and stem. These components work together to modulate flow rates from zero to maximum capacity while maintaining tight shutoff when required. The trim design determines the valve's inherent flow characteristic, whether linear, equal percentage, or quick opening, which must match the process control requirements for optimal system performance. Material selection for trim components requires careful consideration of process conditions including fluid properties, operating temperature, pressure differentials, and potential corrosive or erosive conditions. Standard trim materials include stainless steel grades for general service, while specialized applications may require hardened materials, stellite overlays, or ceramic components for extended service life. CEPAI Group's engineering team utilizes advanced metallurgical expertise to specify appropriate trim materials that maximize valve reliability while minimizing lifecycle costs for each specific application.

• Plug and Seat Interface Design

The plug and seat interface forms the primary sealing and flow control mechanism within the Control Valve trim assembly. The plug geometry, whether contoured, ported, or characterized, determines the relationship between valve travel and flow capacity. Seat design considerations include sealing surface angles, material combinations, and pressure-assisted or pressure-opposed configurations. Proper plug and seat alignment ensures consistent performance throughout the valve's operating range while maintaining tight shutoff capabilities when required. Precision manufacturing tolerances and surface finish specifications directly impact sealing performance and service life.

• Stem and Guide System

The stem connects the actuator to the valve plug, transmitting positioning forces while maintaining alignment throughout the operating stroke. Stem materials must resist tensile stresses, bending moments, and potential corrosive attack from process fluids. Guide systems, including top and bottom guides, maintain concentricity between moving and stationary components while accommodating thermal expansion and operational stresses. Proper guide clearances prevent binding while minimizing stem vibration that could cause premature wear or control instability.

Actuator Systems and Control Mechanisms

Control Valve actuators provide the mechanical force necessary to position the valve trim against process pressures and external loads. A control valve has two separate components: the Valve and the Actuator, with the actuator selection directly impacting control accuracy, response time, and fail-safe capabilities. Pneumatic actuators dominate industrial applications due to their reliability, fast response, and inherent fail-safe characteristics. Electric actuators offer precise positioning and eliminate the need for instrument air systems, while hydraulic actuators provide high force capabilities for large valve applications. Actuator sizing calculations must account for maximum differential pressure conditions, packing friction, spring forces, and dynamic flow forces that oppose valve movement. Safety margins ensure reliable operation under all anticipated operating conditions while preventing actuator overload that could compromise control performance. CEPAI Group's actuator selection process incorporates detailed force analysis using industry-standard calculation methods to ensure optimal performance throughout the valve's service life.

• Pneumatic Actuator Components

Pneumatic actuators consist of a diaphragm or piston assembly that converts air pressure into linear motion. The spring holds tension on the stem, keeping the valve in its fail position, providing fail-safe operation during instrument air supply interruptions. Diaphragm actuators offer consistent performance with minimal maintenance requirements, while piston actuators provide higher force capabilities for demanding applications. Actuator materials must resist corrosive environments and temperature extremes while maintaining dimensional stability throughout extended service periods.

• Positioner Technology Integration

Valve positioners enhance Control Valve performance by comparing actual valve position with control signals and adjusting actuator air supply accordingly. Digital positioners provide advanced diagnostic capabilities, including valve signature analysis, partial stroke testing, and predictive maintenance alerts. Smart positioners communicate via digital protocols such as HART, FOUNDATION Fieldbus, or Profibus, enabling integration with distributed control systems and asset management platforms. Position feedback systems ensure accurate valve positioning while detecting potential mechanical problems before they impact process performance.

Packing and Sealing Systems for Leak Prevention

​​​​​​​

Effective sealing systems prevent process fluid leakage while accommodating stem movement and thermal cycling throughout the Control Valve's operating range. Packing systems must balance sealing performance with stem friction to avoid compromising control accuracy or actuator performance. Traditional compression packing utilizes multiple rings of flexible materials compressed within a stuffing box to create an effective seal around the moving stem. Live-loaded packing systems maintain consistent sealing force despite thermal cycling and packing compression set, extending service intervals and reducing maintenance requirements. Packing material selection depends on process fluid compatibility, temperature range, pressure conditions, and regulatory requirements for fugitive emissions control. PTFE-based packing provides excellent chemical compatibility and low friction characteristics for general service applications. Graphite packing systems excel in high-temperature environments while maintaining reliable sealing performance. Environmental regulations increasingly require low-emission packing systems that minimize fugitive emissions to meet environmental standards. CEPAI Group's packing system designs incorporate proven sealing technologies with appropriate material selections to ensure reliable, long-term performance in diverse industrial applications.

• Bellows Seal Alternatives

Bellows seal assemblies eliminate dynamic packing systems by using flexible metal bellows to contain process pressures while accommodating stem movement. These systems provide zero-emission operation essential for toxic or environmentally sensitive applications. Welded bellows construction ensures reliable containment while accommodating the thermal stresses and pressure cycling encountered in typical industrial service. Backup packing systems provide secondary containment in case of bellows failure, maintaining safety while allowing continued operation during planned maintenance windows.

• Live-Loading Mechanisms

Live-loaded packing systems utilize spring mechanisms to maintain consistent compression on packing elements despite thermal cycling and compression set. Disc springs or wave springs provide controlled loading that adapts to changing conditions while maintaining effective sealing performance. Load indicators help maintenance personnel verify proper spring compression during installation and routine maintenance activities. These systems significantly extend packing service life while reducing maintenance frequency and associated downtime costs.

Accessories and Auxiliary Components

Control Valve accessories enhance functionality, improve performance, and enable advanced control strategies for complex industrial processes. Position transmitters provide valve position feedback to control systems, enabling closed-loop position control and diagnostic monitoring. Limit switches indicate valve position for safety interlocks and process sequencing applications. Solenoid valves control actuator air supply for emergency shutdown or process safety functions. Volume boosters increase actuator air flow rates for faster response times in critical control applications. Instrument air filtration and conditioning accessories ensure clean, dry air supply to pneumatic components, preventing contamination-related failures and maintaining consistent performance. Air sets combine filtration, pressure regulation, and gauge monitoring in compact assemblies suitable for individual valve installations. Tubing and fittings must provide reliable connections while resisting vibration, corrosion, and temperature cycling throughout extended service periods. CEPAI Group offers comprehensive accessory packages tailored to specific application requirements, ensuring optimal system performance and reliability.

• Smart Diagnostic Systems

Advanced diagnostic systems monitor Control Valve performance parameters including position deviation, travel time, supply pressure variations, and internal leakage rates. These systems detect developing problems before they impact process performance, enabling proactive maintenance strategies that minimize unplanned downtime. Partial stroke testing verifies emergency shutdown valve capability without process interruption. Valve signature analysis identifies mechanical wear, binding, or calibration drift that could compromise control performance. Integration with asset management systems provides comprehensive valve lifecycle tracking and maintenance optimization.

• Emergency Shutdown Integration

Safety instrumented systems require reliable emergency shutdown capabilities that operate independently of normal process control systems. Quick-exhaust valves rapidly depressurize actuator systems for fast valve closure during emergency conditions. Trip valves provide backup pneumatic control for critical safety functions. Redundant instrument air supplies ensure reliable operation during utility disruptions. Safety integrity level certifications verify compliance with international safety standards for process industries. CEPAI Group's emergency shutdown solutions meet SIL certification requirements for critical safety applications.

Conclusion

Understanding the intricate anatomy of Control Valve systems empowers engineers and technicians to make informed decisions about valve selection, installation, and maintenance strategies. Each component plays a vital role in achieving reliable flow control performance that meets process requirements while ensuring safe, efficient operation throughout extended service periods.

Cooperate with CEPAI Group Co., LTD.

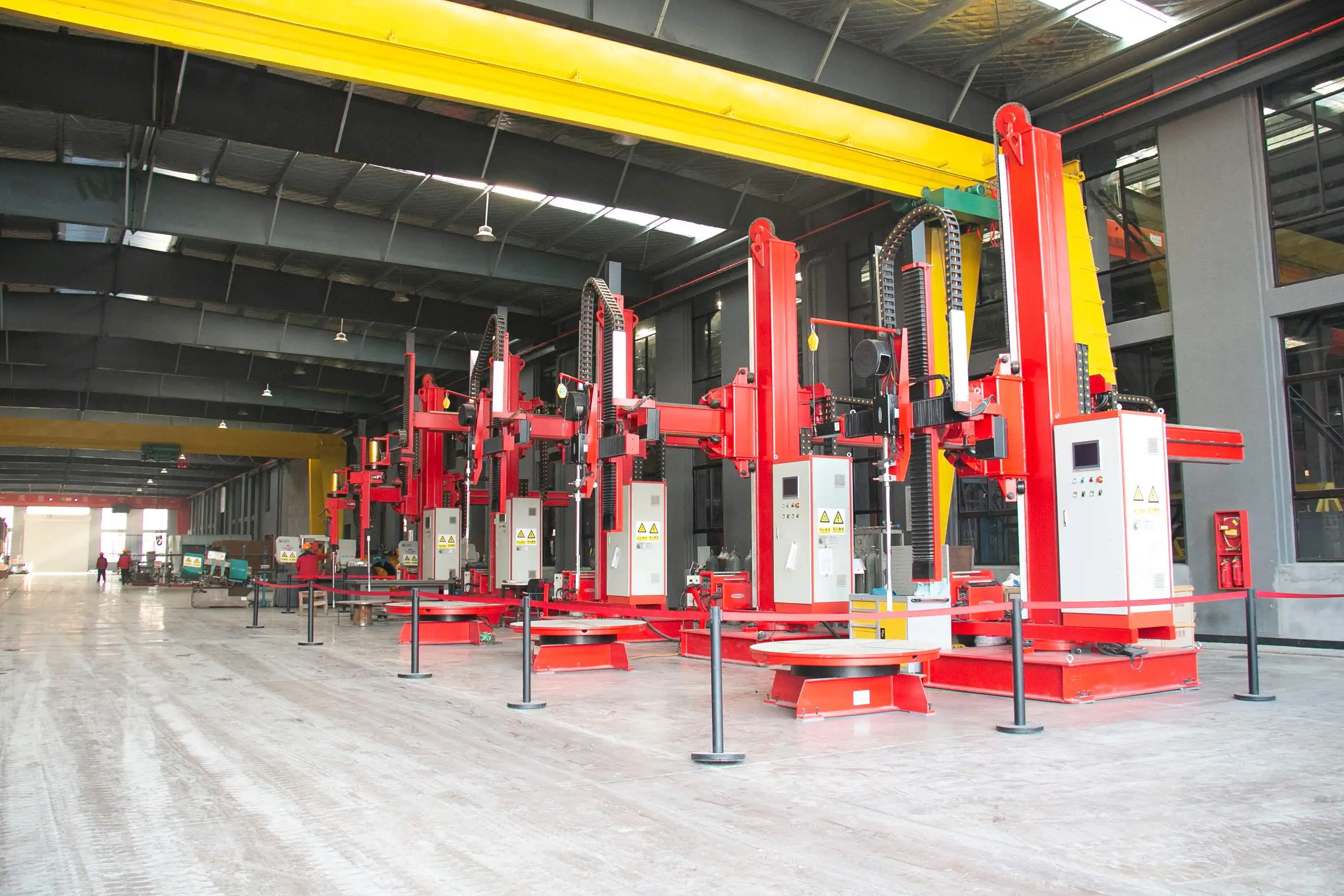

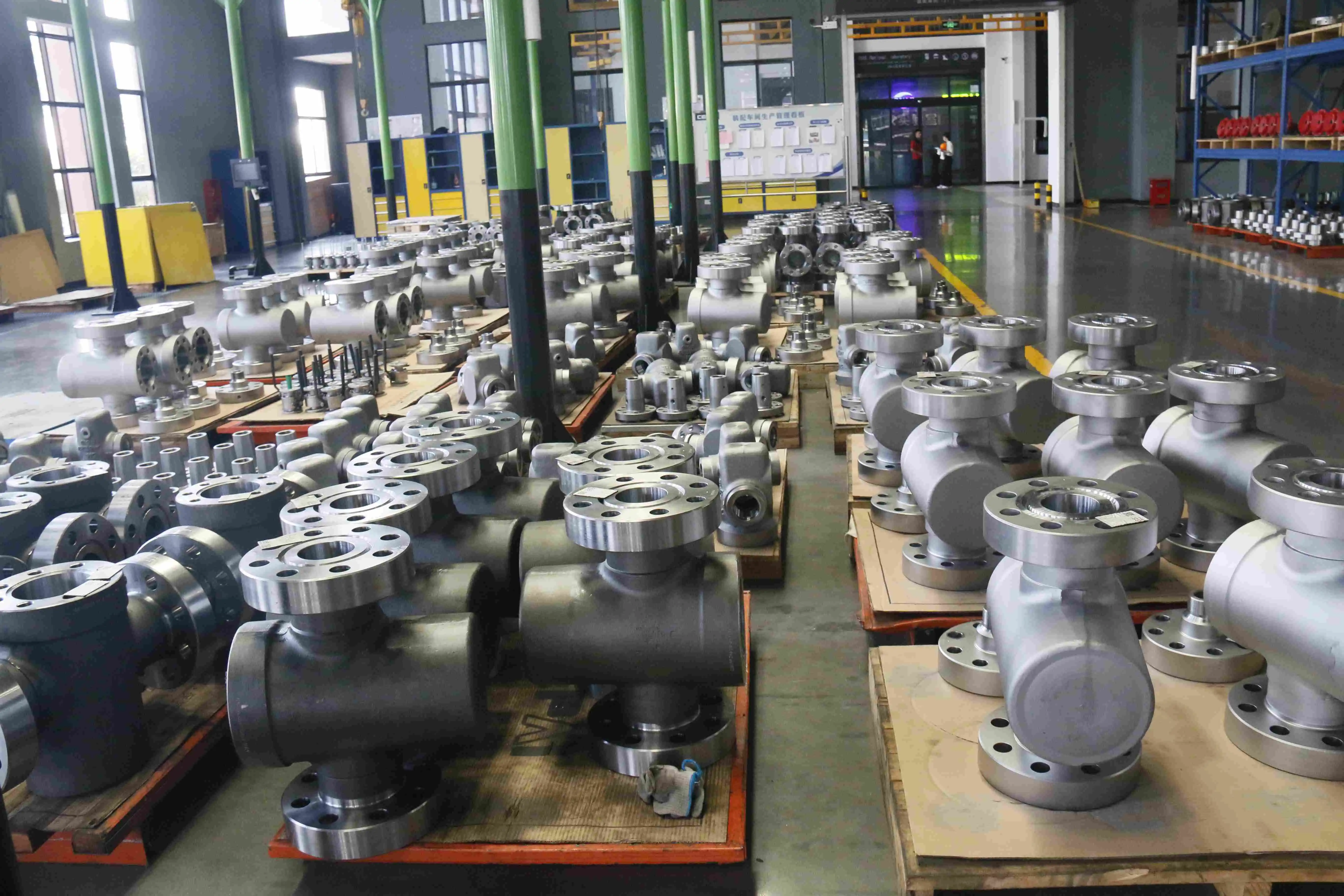

CEPAI Group Co., LTD. stands as a leading China Control Valve manufacturer with over 15 years of specialized experience in high-end energy valve manufacturing. Established in January 2009 with registered capital of 200 million yuan, our state-of-the-art facility spans 56,000 square meters and features the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region. As a national high-tech enterprise and Jiangsu Smart Factory, we have earned recognition as a national specialized and special new small giant enterprise, winning the Mayor Quality Award in 2022.

Our comprehensive certification portfolio includes API Q1, API 6A, API 6D, API 16C, API 602, ISO 9001, ISO 14001, ISO 45001, CE, and SIL certifications for butterfly valves, ball valves, and Control Valve systems. We maintain supplier qualification status with PetroChina, Sinopec, and CNOOC, while serving major industrial clients including China Datang Group, Baowu Group, China Huaneng, and Wanhua Chemical. Our sleeve-type regulating valves, throttle valves, and high-pressure double disc check valves represent international well-known brands in the industry.

As your trusted China Control Valve supplier and China Control Valve wholesale partner, we offer exceptional durability, high-precision control performance, and comprehensive after-sales service support. Our investment of 156 million yuan in intelligent manufacturing transformation ensures High Quality Control Valve products at competitive Control Valve prices. Whether you need standard Control Valve for sale or customized solutions, our experienced engineering team provides pre-sales technical consultation, valve selection services, and ongoing support throughout your valve's service life. Contact us today at cepai@cepai.com to discover how our advanced Control Valve technologies can optimize your process performance while ensuring reliable, long-term operation.

FAQ

Q: What are the main components of a Control Valve?

A: The main components include the valve body, trim assembly (plug, seat, stem), actuator, packing system, and various accessories like positioners and limit switches.

Q: How do I select the right trim material for my Control Valve application?

A: Trim material selection depends on process fluid properties, operating temperature, pressure conditions, and potential corrosive or erosive environments. Consult with valve manufacturers for specific recommendations.

Q: What is the difference between pneumatic and electric actuators?

A: Pneumatic actuators offer fast response and fail-safe operation, while electric actuators provide precise positioning and eliminate the need for instrument air systems.

Q: How often should Control Valve packing be replaced?

A: Packing replacement intervals depend on operating conditions, but typically range from 1-3 years. Live-loaded packing systems often extend service intervals significantly.
