How a Control Valve Works in a Process Control Loop?

Picture this scenario: A petrochemical plant experiences sudden pressure fluctuations that could lead to equipment damage or safety hazards. Without proper flow control mechanisms, operators would struggle to maintain optimal process conditions. This is where understanding how a Control Valve works in a process control loop becomes critical for industrial operations. A Control Valve functions as the final control element that modulates fluid flow by varying the size of the flow passage based on signals from a controller, enabling precise regulation of process variables like pressure, temperature, and flow rate to maintain desired setpoints and ensure safe, efficient operations across various industrial applications.

Understanding Control Valve Fundamentals in Process Systems

The foundation of any effective process control system relies on the seamless integration of measurement, control, and final control elements. A Control Valve serves as the muscle of the control loop, executing commands from the control system to physically manipulate process conditions. This sophisticated piece of equipment operates by receiving pneumatic, hydraulic, or electrical signals that translate into mechanical motion, adjusting the valve's opening to control fluid flow rates. The Control Valve's design incorporates precision-engineered components including the valve body, actuator, positioner, and trim elements that work together to deliver accurate flow modulation. Modern Control Valve technology has evolved to include smart capabilities with digital communication protocols, enabling real-time diagnostics and enhanced performance monitoring. The selection of appropriate Control Valve technology depends on factors such as fluid properties, pressure ratings, temperature ranges, and required control accuracy.

• Basic Components and Architecture

The architecture of a Control Valve system encompasses several critical components that ensure reliable operation within process control loops. The valve body houses the flow control mechanism and provides the pressure boundary, while the actuator converts the control signal into mechanical force to position the valve stem. The positioner acts as an intermediary device that receives the control signal and precisely positions the actuator to achieve the desired valve opening. Trim components, including the valve plug, seat, and cage, determine the flow characteristics and provide the sealing interface. Advanced Control Valve designs incorporate additional features such as volume boosters for rapid response, solenoid valves for emergency shutdown, and limit switches for position feedback. The integration of these components creates a robust Control Valve assembly capable of handling demanding process conditions while maintaining precise control performance throughout extended service life.

• Signal Processing and Communication Protocols

Modern Control Valve systems utilize sophisticated signal processing and communication protocols to interface with distributed control systems and process automation networks. Traditional analog signals like 4-20 mA current loops remain prevalent for basic control applications, while digital communication protocols such as HART, FOUNDATION Fieldbus, and Profibus enable enhanced functionality including diagnostics, configuration, and multi-variable control. The Control Valve positioner plays a crucial role in signal processing, converting the control signal into precise actuator positioning while providing feedback to the control system. Smart Control Valve technology incorporates microprocessor-based controllers that can perform local control functions, implement advanced algorithms, and provide comprehensive diagnostic information. These capabilities enable predictive maintenance strategies, reduce process variability, and optimize Control Valve performance throughout the operational lifecycle.

Control Loop Architecture and Integration

The effectiveness of a Control Valve within a process control loop depends on proper integration with measurement devices, controllers, and human machine interfaces. A typical control loop consists of a process variable sensor, controller, and Control Valve working together to maintain desired process conditions. The sensor continuously measures the process variable and transmits this information to the controller, which compares the measurement to the setpoint and calculates the required corrective action. The controller then sends an output signal to the Control Valve, which adjusts its position to modify the process variable. This closed-loop feedback system enables automatic regulation of process conditions without continuous operator intervention. The Control Valve's dynamic response characteristics significantly impact overall loop performance, requiring careful consideration of factors such as dead time, gain, and time constants during system design and tuning.

• Feedback Control Strategies

Effective Control Valve operation within process control loops requires implementation of appropriate feedback control strategies that account for process dynamics and disturbance rejection. Proportional-Integral-Derivative (PID) control represents the most common feedback strategy, where the Control Valve position adjusts based on the error between setpoint and process variable. The proportional component provides immediate response to errors, the integral component eliminates steady-state offset, and the derivative component anticipates future trends. Advanced control strategies such as cascade control, feedforward control, and model predictive control can enhance Control Valve performance in complex processes. Cascade control utilizes multiple control loops with the Control Valve responding to a secondary controller output, while feedforward control anticipates disturbances and preemptively adjusts the Control Valve position. These strategies require careful tuning of control parameters to optimize Control Valve response and maintain stable process operation.

• Loop Performance and Optimization

Optimizing Control Valve performance within process control loops involves systematic analysis of loop dynamics, tuning parameters, and equipment capabilities. Loop performance assessment typically includes evaluation of settling time, overshoot, steady-state error, and disturbance rejection characteristics. The Control Valve's inherent flow characteristic, whether linear, equal percentage, or quick opening, significantly influences loop behavior and must align with process requirements. Valve sizing calculations ensure adequate flow capacity while maintaining controllability across the operating range. Advanced diagnostic capabilities in modern Control Valve systems provide insights into performance degradation, including issues such as stiction, hysteresis, and calibration drift. Regular performance monitoring and optimization of Control Valve operations contribute to improved process efficiency, reduced energy consumption, and enhanced product quality.

Types and Applications of Control Valves

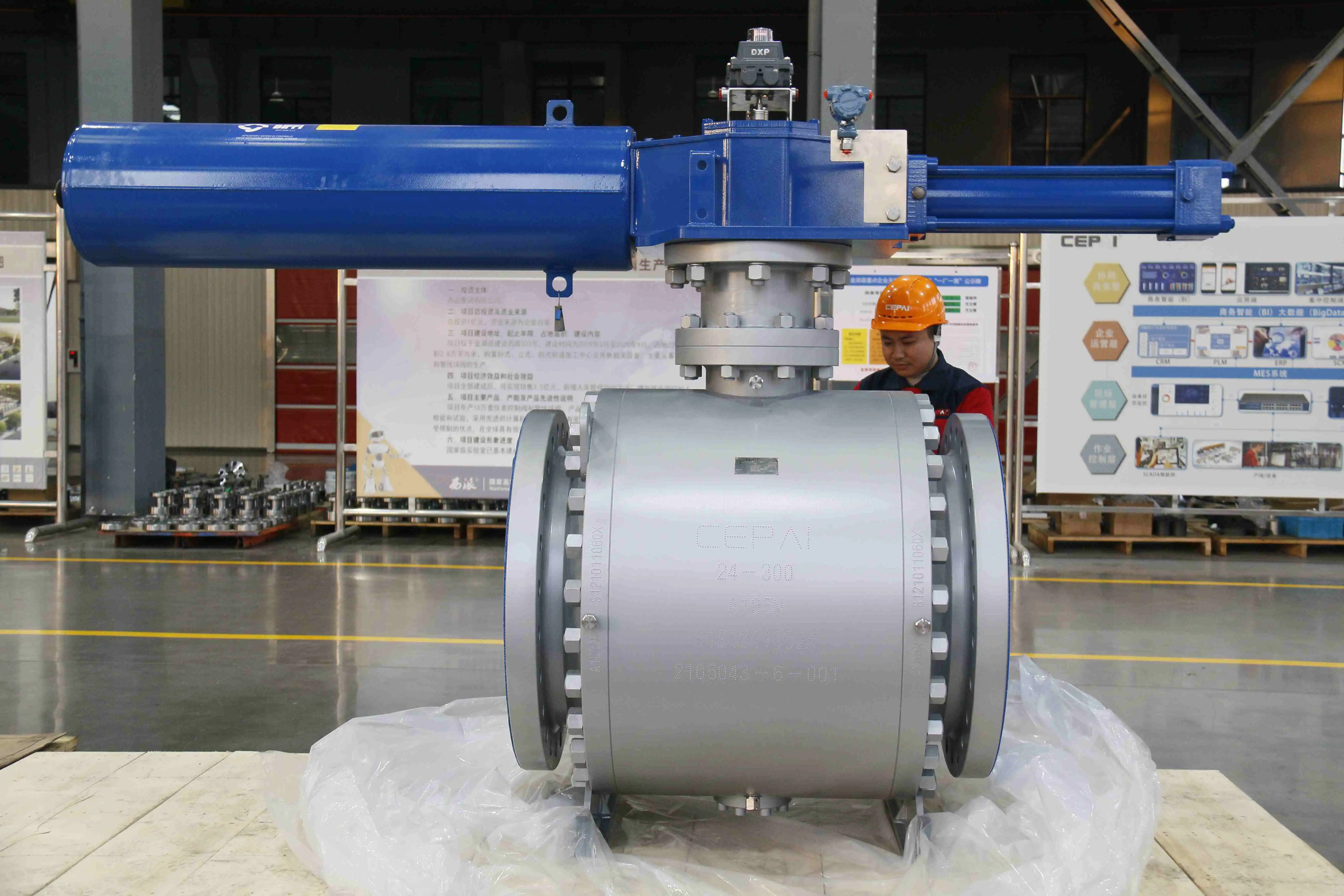

The diverse range of Control Valve types available enables optimization for specific process applications and operating conditions. Globe valves represent the most common Control Valve design, offering excellent throttling characteristics and shut-off capability for general-purpose applications. Ball valves provide low pressure drop and bidirectional flow capability, making them suitable for on-off and throttling service in clean fluid applications. Butterfly valves offer compact design and low cost for large diameter applications where tight shut-off is not critical. Specialized Control Valve designs include rotary plug valves for severe service applications, diaphragm valves for corrosive fluids, and cryogenic valves for low-temperature service. The selection of appropriate Control Valve type depends on factors such as fluid properties, pressure and temperature conditions, flow characteristics, and maintenance requirements. Each Control Valve design offers unique advantages that can be leveraged to optimize process performance and reliability.

• Industry-Specific Applications

Control Valve applications span numerous industries, each presenting unique challenges and requirements that influence valve selection and configuration. In oil and gas operations, Control Valves handle hydrocarbon fluids under high pressure and temperature conditions, requiring specialized materials and safety features. Petrochemical processes demand Control Valves capable of handling corrosive chemicals and maintaining precise control to ensure product quality and safety. Power generation facilities utilize Control Valves for steam, water, and fuel systems, where reliability and rapid response are critical for operational safety. Water and wastewater treatment applications require Control Valves resistant to corrosion and capable of handling abrasive solids. The pharmaceutical industry demands Control Valves with sanitary designs and materials that meet strict regulatory requirements. Each application presents specific challenges that require careful consideration of Control Valve design, materials, and accessories to ensure optimal performance and longevity.

• Sizing and Selection Criteria

Proper Control Valve sizing and selection represent critical aspects of process design that directly impact control performance, energy efficiency, and operational reliability. Valve sizing calculations consider factors such as flow coefficient (Cv), pressure drop, fluid properties, and required rangeability to ensure adequate flow capacity while maintaining controllability. The Control Valve's inherent characteristic must match process requirements, with equal percentage characteristics preferred for most applications due to their constant relative gain. Actuator sizing calculations ensure sufficient force or torque to operate the Control Valve against maximum differential pressure and process forces. Safety factors account for uncertainties in process conditions and ensure reliable operation under all anticipated scenarios. Material selection considers compatibility with process fluids, temperature ranges, and corrosion resistance requirements. Proper Control Valve sizing and selection contribute to optimal control performance, reduced maintenance requirements, and extended service life.

Advanced Control Valve Technologies

The evolution of Control Valve technology continues to drive improvements in control performance, reliability, and operational efficiency. Digital valve controllers incorporate advanced algorithms for improved dynamic response, noise reduction, and diagnostic capabilities. Smart positioners provide comprehensive valve health monitoring, including detection of developing problems before they impact process performance. Wireless communication capabilities enable remote monitoring and configuration of Control Valve systems without physical access to field devices. Advanced materials and coatings enhance Control Valve durability and expand application possibilities in severe service conditions. Noise prediction and reduction technologies address environmental concerns and operator safety in high-pressure drop applications. These technological advances position modern Control Valve systems as intelligent field devices capable of autonomous operation and self-optimization within process control loops.

• Digital Control and Smart Capabilities

Digital Control Valve technology represents a significant advancement in process automation, offering enhanced functionality beyond traditional pneumatic control systems. Digital valve controllers incorporate microprocessors that execute sophisticated control algorithms, enabling features such as adaptive tuning, predictive control, and advanced diagnostics. Smart Control Valve systems provide comprehensive device health monitoring, including early detection of issues such as actuator problems, positioner drift, and process disturbances. Integrated safety functions include partial stroke testing, proof testing, and emergency shutdown capabilities that enhance overall plant safety. Digital communication protocols enable seamless integration with plant asset management systems, providing real-time performance data and maintenance scheduling recommendations. The intelligence embedded in modern Control Valve systems contributes to reduced maintenance costs, improved process efficiency, and enhanced operational safety through predictive maintenance strategies and automated optimization capabilities.

Conclusion

Understanding how a Control Valve works in a process control loop is essential for optimizing industrial automation systems and ensuring safe, efficient operations. The Control Valve serves as the critical final control element that translates control system commands into physical process changes, enabling precise regulation of flow, pressure, temperature, and other process variables through sophisticated feedback control mechanisms.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Control Valve manufacturer and Control Valve supplier with over 15 years of expertise in high-end energy valve manufacturing. As a national high-tech enterprise and Jiangsu Smart Factory, CEPAI has invested 156 million yuan in intelligent transformation, building the Asia Pacific region's longest high-precision intelligent manufacturing production line. Our comprehensive Control Valve product range includes sleeve type regulating valves, throttle valves, and emergency cut-off valves, all certified to international standards including API, ISO, and CE certifications.

As a trusted China Control Valve factory, CEPAI serves major clients including PetroChina, Sinopec, CNOOC, and China Datang Group, demonstrating our commitment to High Quality Control Valve manufacturing. Our Control Valve for sale offerings feature advanced SIL certification and intelligent manufacturing capabilities, ensuring superior performance in demanding applications. Whether you need Control Valve wholesale solutions or competitive Control Valve price quotations, CEPAI's experienced team provides comprehensive pre-sales consultation, customized solutions, and reliable after-sales service. Contact our China Control Valve supplier team at cepai@cepai.com for expert technical consultation and discover why industry leaders trust CEPAI for their critical flow control applications.

FAQ

Q: What are the main components of a control valve in a process loop?

A: The main components include the valve body, actuator, positioner, and trim elements (plug, seat, cage) that work together to control fluid flow.

Q: How does a control valve receive and respond to control signals?

A: Control valves receive pneumatic, hydraulic, or electrical signals from controllers and use positioners to convert these signals into precise valve positioning.

Q: What factors should be considered when sizing a control valve?

A: Key factors include flow coefficient (Cv), pressure drop, fluid properties, temperature, rangeability requirements, and process safety margins.

Q: What is the difference between control valve types like globe and ball valves?

A: Globe valves offer excellent throttling control, while ball valves provide low pressure drop and bidirectional flow for on-off or limited throttling applications.
