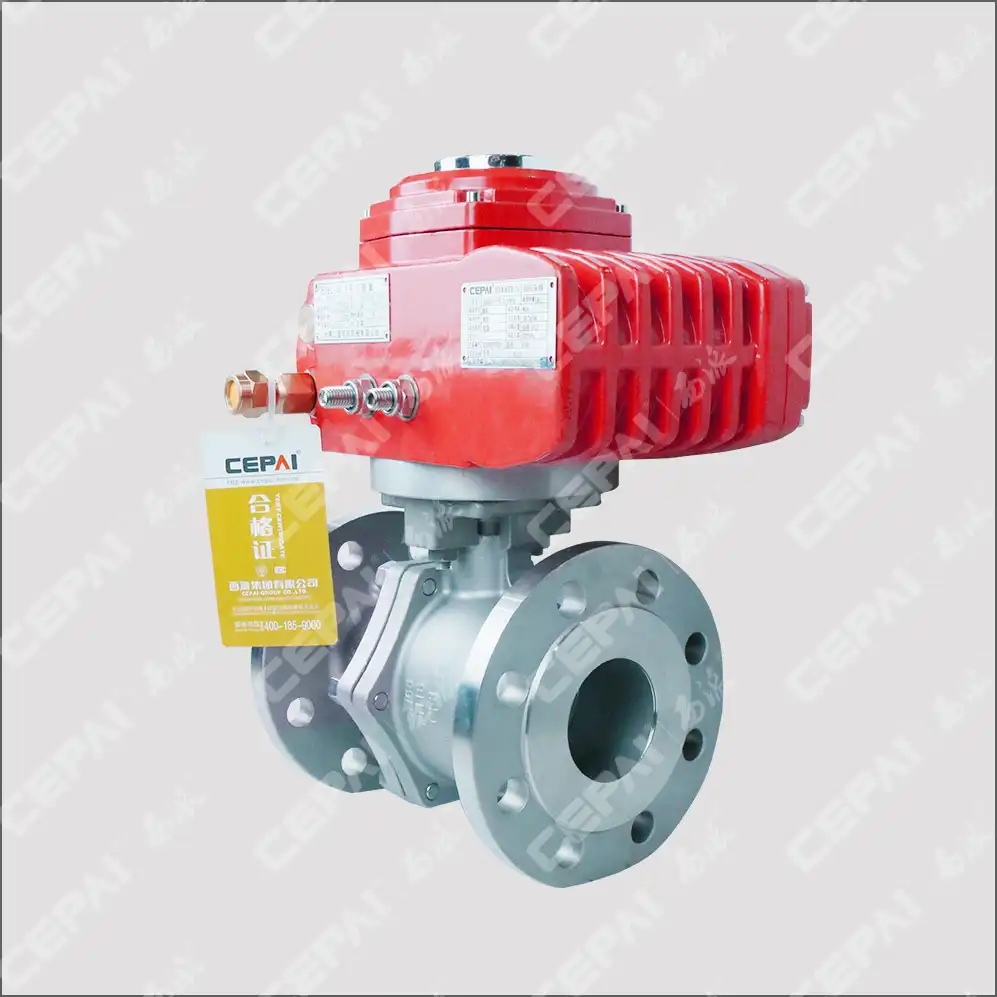

Troubleshooting Common Electric Control Valve Problems

Electric control valves are critical components in many industrial applications, serving as the final control element in automated systems that regulate flow, pressure, temperature, and other process variables. When these valves malfunction, they can lead to significant operational inefficiencies, production losses, and even safety hazards. Understan ding how to identify, diagnose, and resolve common issues with electric control valves is essential for maintaining optimal system performance and preventing costly downtime. This comprehensive guide addresses the most frequent problems encountered with electric control valves and provides practical troubleshooting solutions for maintenance technicians and engineers.

Identifying Common Electric Control Valve Failure Modes

Actuator Response Issues

Electric control valve actuators can experience various response problems that compromise their functionality. When an actuator fails to respond to control signals properly, it may be due to electrical supply issues, damaged wiring, or controller malfunction. Start by checking the power supply voltage and current to ensure they meet the specified requirements for your particular Electric Control Valve model. Inspect all wiring connections for signs of damage, corrosion, or loose terminals that might interrupt signal transmission. The control circuit itself should be examined for proper functioning, including the verification of input signals using appropriate measurement tools. Advanced troubleshooting might involve analyzing the control loop performance with specialized diagnostic equipment to identify subtle issues in the communication between the control system and the valve actuator. Remember that environmental factors like excessive heat, moisture, or electromagnetic interference can also affect actuator response, so consider the operating environment when diagnosing these problems with Electric Control Valve assemblies.

Improper Valve Positioning

Position-related failures are among the most common issues affecting electric control valves in industrial applications. When a valve doesn't achieve its intended position or exhibits inconsistent positioning behavior, the result can be significant process deviations. Start troubleshooting by checking the position feedback system, which may include potentiometers, encoders, or limit switches that provide position data back to the controller. Calibration drift is a frequent culprit—over time, the correlation between commanded positions and actual valve positions can become misaligned due to mechanical wear or electronic component aging. Perform a recalibration procedure following the manufacturer's protocol to re-establish accurate position control. Mechanical issues like excessive friction, binding in the valve stem, or debris in the valve body can also prevent proper positioning. Inspect the valve internals for foreign materials and ensure smooth mechanical operation throughout the full travel range. For Electric Control Valve systems with digital positioning capabilities, check the positioner settings and configuration parameters against the required specifications. Modern smart positioners often include self-diagnostic capabilities that can pinpoint specific positioning problems, so review any available diagnostic data when troubleshooting these sophisticated Electric Control Valve components.

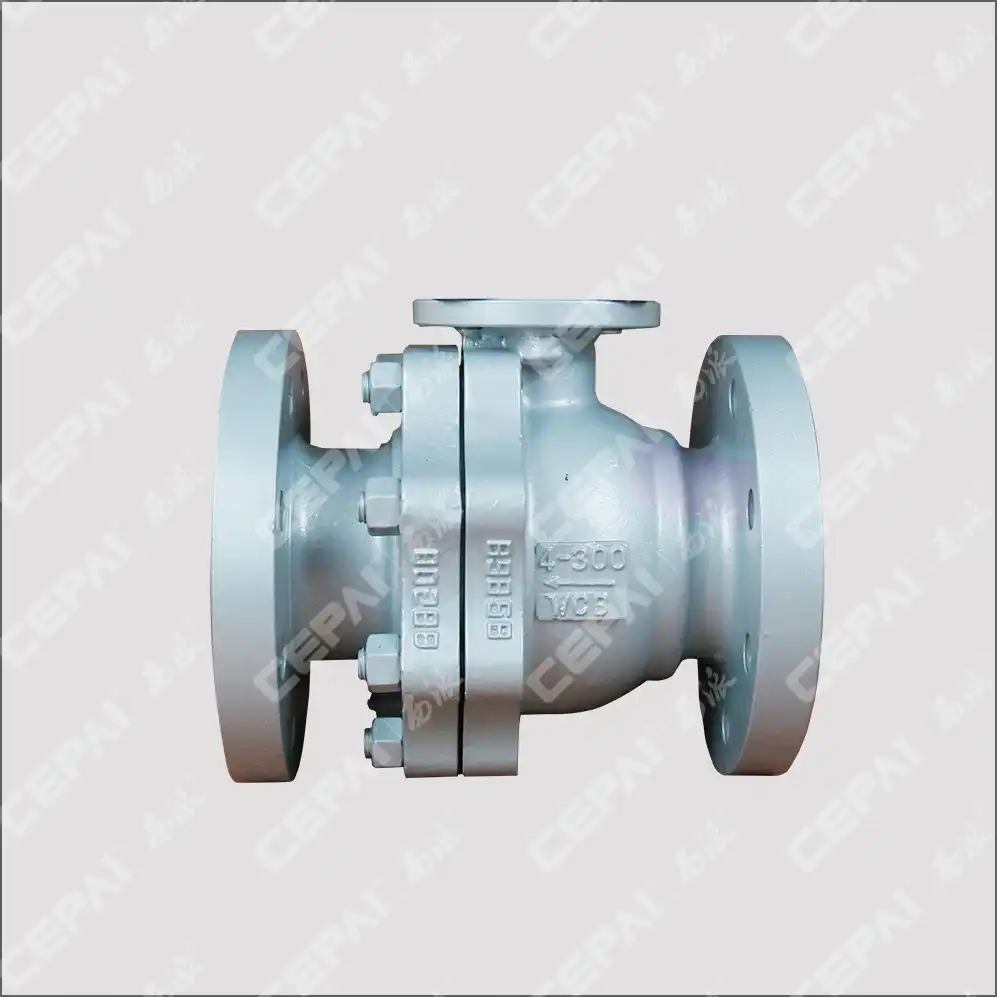

Seal and Leakage Problems

Leakage is a persistent challenge with electric control valves that compromises both performance and safety. Internal leakage occurs when the valve fails to provide adequate shutoff, allowing process media to flow when the valve should be fully closed. This commonly results from worn or damaged sealing surfaces, improper seat alignment, or insufficient seating force from the actuator. Inspect valve seats and seals for signs of wear, erosion, or chemical attack that might compromise their integrity. External leakage, where process media escapes to the environment, typically occurs at packing glands, gaskets, or body joints. Addressing these issues may require tightening packing nuts to the recommended torque specifications or replacing deteriorated packing materials entirely. For critical applications involving hazardous or expensive process media, implementing a preventive maintenance program specifically focused on Electric Control Valve sealing components can dramatically reduce leakage incidents. Consider that process conditions like high temperature cycles, pressure spikes, or corrosive media can accelerate seal deterioration. Advanced leak detection methods such as ultrasonic testing may be necessary to identify minor leaks before they develop into significant failures. Always consider the specific type of Electric Control Valve and its sealing technology when diagnosing and resolving leakage problems, as different valve designs (ball, butterfly, globe, etc.) present unique sealing challenges.

Advanced Diagnostic Techniques for Electric Control Valves

Performance Signature Analysis

Performance signature analysis represents a sophisticated approach to electric control valve diagnostics that can reveal subtle issues before they develop into catastrophic failures. This technique involves collecting and analyzing data related to valve performance under various operating conditions to establish baseline performance metrics. Key parameters typically include valve travel, actuator pressure or current, friction profiles, and dynamic response characteristics. By comparing current performance signatures against baseline data, technicians can identify degradation trends and emerging issues long before they affect process control. For instance, an increasing friction signature might indicate developing stem packing problems in an Electric Control Valve, while changes in dynamic response could signal actuator mechanical issues. Modern diagnostic tools can automate this analysis, providing graphical representations of valve performance that make complex problems more visible. Implementation of performance signature analysis requires initial benchmark testing of Electric Control Valve assemblies when they are known to be operating correctly, followed by periodic testing to track changes over time. This approach is particularly valuable for critical valves where unexpected failures would have significant operational or safety consequences. Industry leaders like CEPAI Group incorporate advanced signature analysis capabilities into their Electric Control Valve monitoring systems, allowing for condition-based maintenance rather than time-based maintenance, ultimately reducing unnecessary service interventions while still preventing failures.

Electrical Troubleshooting and Circuit Analysis

Electrical problems account for a significant percentage of electric control valve failures in modern industrial environments. A systematic approach to electrical troubleshooting begins with verifying proper voltage levels at each point in the control circuit. Measure incoming power supply, control signal integrity, and output signals from controllers to confirm they meet specifications. For analog control signals (such as 4-20mA or 0-10V), verify not only the signal strength but also its stability over time using appropriate measurement tools. Common electrical issues include ground faults, short circuits, and signal interference that can be difficult to detect without proper instrumentation. Circuit analysis should also include checking for voltage drops across connections and components, which might indicate developing resistance problems that could eventually lead to failure. For Electric Control Valve systems incorporating sophisticated electronics like microprocessors or communication networks, diagnostic software provided by manufacturers like CEPAI can help isolate complex electrical issues. Pay particular attention to electrical connections in harsh environments where corrosion, moisture, or vibration might compromise terminal integrity. Surge protection devices and proper grounding systems should also be inspected, as electrical transients represent a significant threat to sensitive Electric Control Valve components. When replacing electrical components, always ensure that replacements match the original specifications exactly, as seemingly minor differences in electrical characteristics can lead to ongoing performance issues or premature failure of the Electric Control Valve system.

Vibration Analysis and Mechanical Assessment

Mechanical failures in electric control valves often manifest through abnormal vibration patterns that can be detected and analyzed with appropriate instrumentation. Vibration analysis provides valuable insights into the mechanical health of valve components without requiring disassembly or process interruption. Excessive vibration can indicate problems such as misalignment, loose mounting, imbalance in rotating components, or improper valve sizing for the application. Using vibration analyzers with spectral analysis capabilities, maintenance technicians can identify specific frequency signatures associated with different failure modes. For example, high-frequency vibrations might indicate bearing problems in an Electric Control Valve actuator, while low-frequency vibrations could suggest mounting or pipeline issues. Beyond vibration analysis, comprehensive mechanical assessment should include examining the valve for proper support, checking alignment between actuator and valve stem, and inspecting for signs of mechanical stress or material fatigue. Thermal imaging can complement vibration analysis by identifying hot spots that might indicate excessive friction or electrical resistance problems. For valves in critical service, consider implementing continuous vibration monitoring systems that provide real-time data on Electric Control Valve mechanical condition. CEPAI Group's advanced valve monitoring systems incorporate vibration analysis as part of their predictive maintenance approach, allowing operators to detect developing mechanical issues before they result in unplanned downtime. Remember that environmental factors like pipe stress, water hammer, or cavitation can induce damaging vibration patterns in Electric Control Valve installations, so analysis should consider the entire system rather than just the valve itself.

Preventive Maintenance Strategies for Electric Control Valves

Establishing Effective Maintenance Schedules

Creating optimized maintenance schedules for electric control valves requires balancing several competing factors including operational criticality, failure consequences, equipment reliability history, and available maintenance resources. Rather than applying a one-size-fits-all approach, develop a tiered maintenance strategy that allocates resources according to valve importance and failure risk. Begin by categorizing your Electric Control Valve inventory based on process criticality – valves controlling safety-critical processes or those whose failure would cause significant production losses should receive more frequent attention. Historical performance data should inform these schedules; valves with recurring issues need more frequent service, while consistently reliable units might require less intensive maintenance. Consider environmental and operational factors that accelerate wear, such as extreme temperatures, corrosive media, or high-cycle applications. Modern maintenance approaches increasingly incorporate condition-based elements, where real-time monitoring triggers maintenance activities based on actual equipment condition rather than fixed time intervals. For organizations implementing reliability-centered maintenance, failure mode and effects analysis (FMEA) can help identify the most probable failure modes for each Electric Control Valve and develop targeted preventive actions. Documentation plays a crucial role in schedule effectiveness – maintain detailed records of all maintenance activities, findings, and repairs to build a comprehensive understanding of your valve fleet's behavior over time. Leading manufacturers like CEPAI Group often provide recommended maintenance interval guidelines for their Electric Control Valve products, which should serve as a starting point for developing customized schedules based on your specific operating conditions and reliability requirements.

Calibration and Testing Procedures

Regular calibration and testing are essential to maintaining optimal performance and extending the service life of electric control valves in industrial applications. A comprehensive calibration procedure should verify the entire control loop, from input signal to actual valve position, ensuring accurate and repeatable valve response. Start with a visual inspection of the valve assembly, followed by stroking the valve through its full range of motion to check for smooth, consistent movement without binding or excessive friction. For Electric Control Valve positioners, verify that the input signal (typically 4-20mA) corresponds correctly to the desired valve positions throughout the travel range. Pay particular attention to critical positions like fully open, fully closed, and typical operating points where precise control is essential. Modern smart positioners often include self-calibration routines that can automatically adjust internal parameters to optimize performance. Beyond basic calibration, implement periodic performance testing that measures parameters like deadband, hysteresis, resolution, and step response to quantify the dynamic behavior of the valve system. Leak testing should be performed regularly, especially for critical service applications where even minor leakage could have significant consequences. Advanced testing might include diagnostic routines that compare current performance metrics against baseline values to identify deteriorating trends before they result in failure. Specialized testing equipment designed specifically for Electric Control Valve systems can streamline these procedures and provide more accurate results than general-purpose instruments. Always document calibration and test results thoroughly, maintaining records that allow for trend analysis and informed maintenance decisions. CEPAI Group's valve products are designed with testability in mind, incorporating features that facilitate efficient calibration and performance verification without extensive disassembly or specialized tools.

Spare Parts Management and Inventory Optimization

Effective spare parts management represents a critical but often overlooked aspect of electric control valve maintenance programs. Having the right components available when needed can dramatically reduce downtime during both planned maintenance and emergency repairs. Start by identifying critical spare parts based on manufacturer recommendations, failure history, and part availability lead times. For Electric Control Valve components with long procurement cycles or limited availability, maintain appropriate inventory levels on-site to ensure immediate access during emergencies. However, balance this against the costs of carrying excessive inventory, particularly for expensive components or those with limited shelf life. Standardization of valve types and models across your facility can significantly reduce spare parts requirements while simplifying maintenance procedures. Where possible, implement inventory management systems that track part usage patterns, automatically generate reorder notifications, and maintain accurate records of spare part locations and quantities. Pay special attention to proper storage conditions for sensitive Electric Control Valve components; actuator electronic boards, seals, and gaskets often have specific temperature, humidity, and handling requirements to maintain their integrity until installation. For organizations with multiple facilities, consider implementing a shared spare parts program that allows transfer of components between locations to optimize overall inventory levels while still maintaining adequate emergency coverage. Develop relationships with reliable suppliers like CEPAI Group who can provide technical support for parts selection and expedited delivery when needed. Many leading valve manufacturers offer spare parts kits specifically designed for different maintenance levels – from basic service kits for routine maintenance to comprehensive rebuild kits for major overhauls – simplifying the parts management process for Electric Control Valve systems.

Conclusion

Mastering the troubleshooting and maintenance of Electric Control Valves is crucial for ensuring system reliability, operational efficiency, and safety across industrial applications. By implementing the diagnostic techniques and preventive strategies outlined in this guide, maintenance professionals can significantly reduce valve-related downtime and extend equipment lifespan. CEPAI Group, with our exceptional durability, high-precision control performance, and extensive R&D investments, offers industry-leading solutions for all your fluid control challenges. Our comprehensive pre-sales consultation, customized solutions, and robust after-sales support ensure optimal performance throughout your valve's lifecycle. Experience the difference that our ISO-certified quality management system and rigorous testing protocols make in delivering zero-defect products. Ready to elevate your control valve performance? Contact our team today at cepai@cepai.com to discuss your specific requirements.
