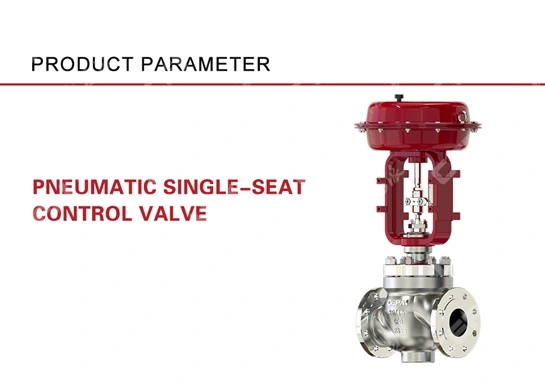

Top 5 Features of Pneumatic Single-Seat Control Valves That Boost Industrial Precision

In today's rapidly evolving industrial landscape, precision control systems have become the cornerstone of operational excellence across petrochemical, power generation, and manufacturing sectors. Among the most critical components driving this precision are pneumatic single-seat control valves, which serve as the gatekeepers of fluid flow regulation in complex industrial processes. These sophisticated devices combine advanced engineering principles with cutting-edge technology to deliver unparalleled accuracy in flow control applications. The evolution of Pneumatic Control Valve technology has revolutionized how industries approach process optimization, offering enhanced reliability, superior performance characteristics, and remarkable versatility that meets the demanding requirements of modern industrial automation systems.

1. Superior Flow Coefficient and Rangeability Performance

The exceptional flow coefficient (Cv) characteristics of pneumatic single-seat control valves represent one of their most significant advantages in industrial precision applications. These valves demonstrate remarkable rangeability capabilities, typically achieving ratios of 50:1 or higher, which allows for precise control across a wide spectrum of flow conditions. The inherent design of Pneumatic Single-Seat Control Valves enables them to maintain consistent performance characteristics throughout their operational range, ensuring that even at minimum flow rates, the valve maintains accurate control without hunting or instability issues that commonly plague other valve types. The superior rangeability of these valves stems from their optimized trim design and actuator response characteristics. Unlike their double-seat counterparts, single-seat configurations provide better shut-off capabilities while maintaining excellent control precision at low flow rates. This performance advantage is particularly crucial in applications where process conditions vary significantly, such as in chemical processing plants where reaction temperatures and pressures fluctuate based on production demands. The Pneumatic Control Valve technology employed in these systems ensures that flow control remains stable and predictable, even when operating at the extremes of their design parameters, thereby contributing to overall process efficiency and product quality consistency.

2. Advanced Actuator Technology and Response Time Optimization

Modern pneumatic single-seat control valves incorporate sophisticated actuator designs that deliver exceptional responsiveness and positioning accuracy. These advanced actuators utilize high-quality diaphragms, precision-machined components, and optimized air chambers to achieve rapid response times typically ranging from 1 to 3 seconds for full stroke operation. The integration of intelligent positioners and digital communication protocols further enhances the performance of Pneumatic Single-Seat Control Valves by providing real-time feedback and precise positioning control that traditional mechanical systems cannot match. The actuator technology in contemporary valve designs includes features such as fail-safe mechanisms, position indication systems, and diagnostic capabilities that continuously monitor valve performance. These Pneumatic Control Valve systems can detect potential issues before they impact process operations, allowing for predictive maintenance strategies that minimize unplanned downtime. The combination of fast response times and accurate positioning enables these valves to handle rapid process changes effectively, making them ideal for applications in power generation facilities where load demands can shift dramatically within seconds, or in petrochemical processes where maintaining precise temperature and pressure control is critical for product quality and safety.

3. Enhanced Seat Design and Leakage Control Capabilities

The sophisticated seat design in pneumatic single-seat control valves represents a significant technological advancement that directly impacts industrial precision. These valves typically achieve Class IV or Class V shut-off ratings according to ANSI/FCI standards, which translates to leakage rates as low as 0.01% of full flow capacity. The precision-engineered seating surfaces, often incorporating advanced materials such as stellite or tungsten carbide, provide exceptional durability and maintain tight shut-off characteristics even after extended service periods. This level of leakage control is essential in applications where even minimal fluid bypass can compromise process efficiency or safety requirements. The enhanced seating technology in Pneumatic Single-Seat Control Valves extends beyond traditional hard-seat designs to include soft-seat options for applications requiring absolute shut-off. The ability to achieve bubble-tight closure makes these valves particularly valuable in critical applications such as emergency shutdown systems, where complete flow isolation is mandatory. Furthermore, the Pneumatic Control Valve design allows for easy maintenance and seat replacement without removing the valve from the pipeline, significantly reducing maintenance costs and downtime. This serviceability advantage, combined with superior leakage control, makes these valves an economical choice for long-term industrial applications where reliability and precision are paramount.

4. Intelligent Diagnostics and Predictive Maintenance Integration

The integration of intelligent diagnostic capabilities represents a revolutionary advancement in pneumatic single-seat control valve technology. Modern Pneumatic Control Valve systems incorporate embedded sensors and microprocessors that continuously monitor critical performance parameters including valve position, actuator pressure, temperature, and vibration signatures. These diagnostic systems can detect developing issues such as seat wear, actuator diaphragm degradation, or positioner calibration drift long before they impact process performance, enabling proactive maintenance strategies that prevent costly unplanned shutdowns. The predictive maintenance capabilities of advanced Pneumatic Single-Seat Control Valves extend to comprehensive data logging and trend analysis functions. These systems can identify patterns in valve performance that indicate impending failures, allowing maintenance teams to schedule repairs during planned outages rather than responding to emergency situations. The diagnostic data can be transmitted wirelessly to central control systems or accessed remotely through secure internet connections, enabling off-site monitoring and support services. This technological advancement not only improves operational reliability but also reduces total cost of ownership by optimizing maintenance intervals and preventing secondary damage that can occur when valve failures go undetected.

5. Modular Construction and Application Versatility

The modular design philosophy employed in modern pneumatic single-seat control valves provides unprecedented flexibility in meeting diverse industrial applications. These Pneumatic Control Valve systems feature interchangeable components including various actuator sizes, trim configurations, and body materials that can be selected to optimize performance for specific process conditions. This modularity allows for standardization of spare parts inventory while maintaining the ability to customize valve performance characteristics for unique applications ranging from high-pressure steam service to corrosive chemical handling. The versatility of Pneumatic Single-Seat Control Valves extends to their ability to accommodate a wide range of process media, temperatures, and pressures without requiring completely different valve designs. Advanced materials science has enabled the development of trim components that can handle aggressive chemicals, high temperatures exceeding 800°F, and pressures up to 2500 PSI while maintaining precise control characteristics. This adaptability makes these valves suitable for applications across multiple industries, from pharmaceutical manufacturing where contamination prevention is critical, to oil and gas production where extreme operating conditions are commonplace. The modular approach also facilitates future upgrades and modifications as process requirements evolve, protecting the initial investment while ensuring continued optimal performance.

​​​​​​​

Conclusion

Pneumatic single-seat control valves have established themselves as indispensable components in modern industrial precision control systems through their superior flow characteristics, advanced actuator technology, enhanced seating capabilities, intelligent diagnostics, and modular versatility. These five key features collectively enable industries to achieve unprecedented levels of process control accuracy, operational reliability, and maintenance efficiency, making them the preferred choice for critical applications across diverse industrial sectors.

Ready to experience the precision and reliability that CEPAI's pneumatic control valves can bring to your operations? As a leading technology multinational company with extensive certifications including API Q1, ISO 9001, and CNAS laboratory recognition, we're committed to delivering exceptional quality products backed by comprehensive technical support and after-sales service. Our team of experts is ready to help you select the perfect valve solution for your specific application requirements. Don't let imprecise flow control compromise your operational efficiency – contact us today at cepai@cepai.com to discuss how our advanced pneumatic single-seat control valves can optimize your industrial processes and boost your bottom line.
