Pneumatic Control Valves for Emergency Shutdown Systems

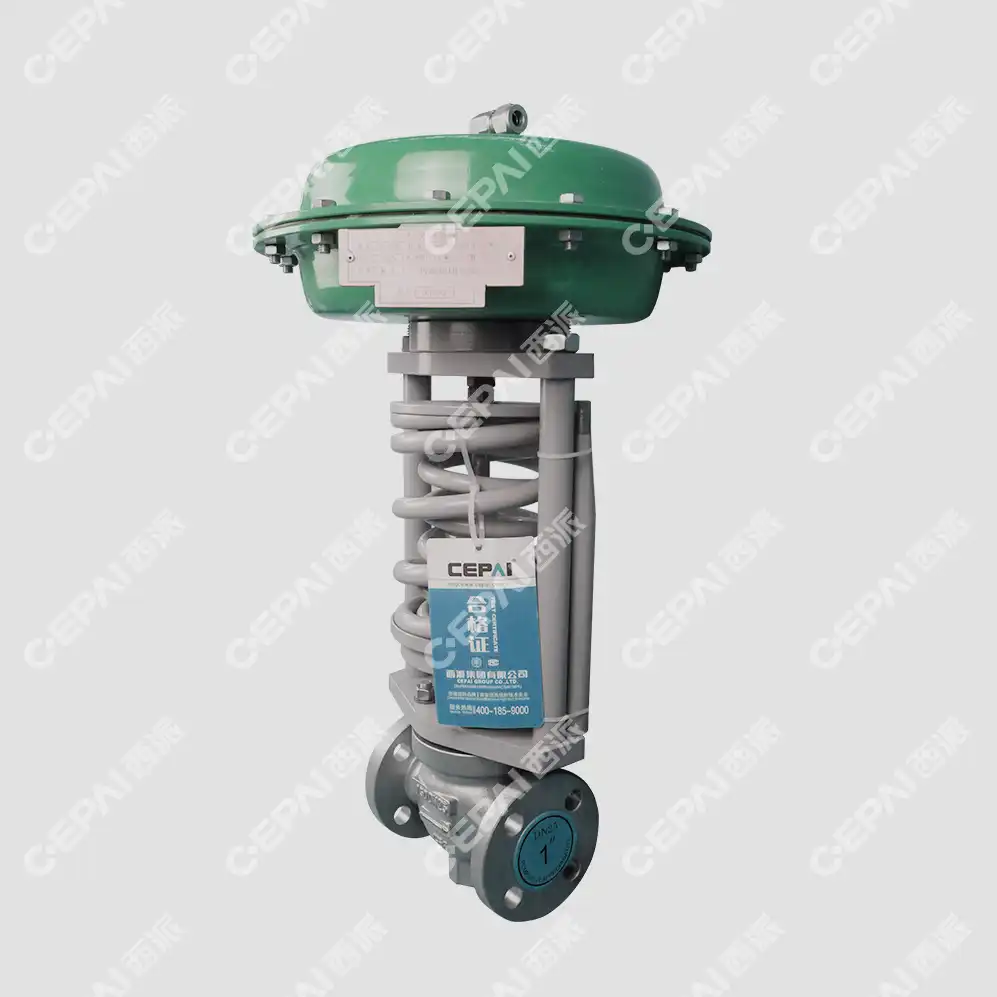

In the critical world of industrial safety systems, pneumatic control valves serve as the frontline guardians against catastrophic failures in emergency shutdown (ESD) systems. These sophisticated devices represent the convergence of precision engineering and fail-safe technology, designed to respond instantaneously when process conditions deviate from safe operating parameters. A Pneumatic Control Valve in an emergency shutdown application must deliver absolute reliability, rapid response times, and unwavering performance under the most demanding conditions. These valves utilize compressed air or gas as the actuating medium, providing the necessary force to quickly isolate dangerous processes, protect equipment, and most importantly, safeguard human life. The integration of pneumatic technology with advanced control systems has revolutionized how industries approach safety-critical applications across petrochemical, oil and gas, power generation, and other high-risk sectors.

Critical Design Features and Safety Requirements

Fail-Safe Mechanisms and Redundancy Systems

Modern Pneumatic Control Valve systems for emergency shutdown applications incorporate multiple layers of fail-safe mechanisms that ensure valve operation even during complete system failures. The primary fail-safe feature relies on spring-return actuators that automatically drive the valve to its predetermined safe position when air pressure is lost. This spring-to-close or spring-to-open configuration is determined by the specific process requirements and safety philosophy of the installation. Advanced emergency shutdown valves often feature dual-acting pneumatic cylinders with independent air supplies, providing redundancy that eliminates single points of failure. The valve body construction typically incorporates fire-safe designs with metal-to-metal sealing capabilities that maintain integrity even when soft seals are compromised by extreme temperatures. Additionally, these valves feature position feedback systems that continuously monitor valve position and communicate status to the control system, enabling immediate detection of any deviation from commanded positions. The actuator sizing for emergency applications typically includes a safety factor of 1.5 to 2.0 times the calculated torque requirements, ensuring reliable operation under adverse conditions such as high differential pressures or debris accumulation.

Response Time Optimization and Performance Standards

The response time characteristics of a Pneumatic Control Valve in emergency shutdown service are governed by strict industry standards, typically requiring full stroke completion within 10 to 60 seconds depending on the specific application and valve size. Achieving these demanding response times requires careful optimization of the pneumatic supply system, including appropriately sized air reservoirs, high-capacity solenoid valves, and minimized piping volumes between the control valve and actuator. The actuator design must balance the competing requirements of fast response with smooth, controlled motion that prevents water hammer and mechanical shock. Modern emergency shutdown valves often incorporate quick-exhaust valves and pneumatic boosters that accelerate the initial valve movement while providing controlled deceleration as the valve approaches its final position. The pneumatic supply pressure is typically maintained at 6-8 bar to ensure adequate driving force while maintaining compatibility with standard industrial air systems. Performance verification through regular testing is essential, with many installations incorporating automated testing systems that can cycle the valve on command while monitoring response times and comparing them against established benchmarks.

Material Selection and Environmental Considerations

The harsh operating environments encountered in emergency shutdown applications demand careful material selection for every component of the Pneumatic Control Valve system. Valve bodies are typically constructed from high-grade stainless steels, duplex alloys, or exotic materials such as Inconel or Hastelloy when dealing with highly corrosive process fluids. The actuator components must withstand temperature extremes, corrosive atmospheres, and potential exposure to process fluids in the event of internal leakage. Sealing systems often feature multiple barrier designs incorporating both elastomeric and metal sealing elements to provide primary sealing with backup protection. The pneumatic supply components require protection from moisture, oil contamination, and particulates through sophisticated filtration and air treatment systems. Special consideration must be given to arctic or desert installations where temperature extremes can affect pneumatic system performance and valve operation. Many emergency shutdown valves feature heated actuator enclosures or insulation systems to maintain operability in extreme cold conditions, while heat shields and thermal barriers protect against high ambient temperatures or fire exposure.

Integration with Safety Instrumented Systems (SIS)

SIL Rating Requirements and Certification Processes

Safety Instrumented Systems (SIS) integration represents a critical aspect of Pneumatic Control Valve applications in emergency shutdown service, with Safety Integrity Level (SIL) ratings providing quantitative measures of system reliability and risk reduction capability. Modern emergency shutdown valves must achieve SIL 2 or SIL 3 certification levels, corresponding to probability of failure on demand (PFD) values between 10^-2 to 10^-4, demonstrating exceptional reliability under emergency conditions. The certification process involves comprehensive failure mode analysis, accelerated testing programs, and statistical validation of component reliability data. Valve manufacturers must document every aspect of the design, manufacturing, and testing processes to demonstrate compliance with IEC 61508 and IEC 61511 standards. The diagnostic coverage of the valve system significantly impacts the achievable SIL rating, with advanced diagnostic capabilities enabling detection of dangerous undetected failures that could compromise safety function performance. Proof testing intervals are established based on the target SIL level and component reliability data, typically ranging from annual to bi-annual testing cycles depending on the specific application requirements and risk assessment results.

Communication Protocols and Smart Diagnostics

Modern Pneumatic Control Valve systems leverage advanced communication protocols such as HART, Foundation Fieldbus, and Profibus to provide comprehensive diagnostic information and enable predictive maintenance strategies. Smart valve positioners incorporate microprocessor-based control systems that continuously monitor valve performance parameters including position accuracy, actuator pressure levels, travel times, and environmental conditions. These intelligent systems can detect developing problems such as actuator seal leakage, positioner calibration drift, or valve stem binding before they compromise safety system performance. The diagnostic information is transmitted to distributed control systems (DCS) and safety instrumented systems (SIS) where it can be analyzed and used to optimize maintenance schedules and prevent unexpected failures. Partial stroke testing capabilities enable periodic verification of valve operability without complete process shutdown, significantly improving safety system availability while maintaining production continuity. Advanced diagnostic algorithms can distinguish between process-related disturbances and actual valve problems, reducing false alarms and improving operator confidence in the safety system.

Cybersecurity and System Hardening

The increasing connectivity of Pneumatic Control Valve systems to plant-wide networks introduces cybersecurity considerations that must be addressed through comprehensive system hardening measures. Emergency shutdown systems require protection against cyber threats that could potentially compromise safety functions or provide unauthorized access to critical control systems. Implementation of secure communication protocols, encrypted data transmission, and robust authentication mechanisms helps prevent malicious intrusion attempts. Network segmentation strategies isolate safety instrumented systems from general plant networks while maintaining necessary communication pathways for monitoring and maintenance functions. Regular cybersecurity assessments and penetration testing ensure that security measures remain effective against evolving threat landscapes. Backup communication pathways and hardwired safety interlocks provide fail-safe protection even in the event of communication system compromise. The valve control systems must maintain their safety functions even during cyber attacks, with automatic fallback to safe states when communication integrity is compromised.

Maintenance Strategies and Lifecycle Management

Predictive Maintenance Technologies

Advanced predictive maintenance strategies for Pneumatic Control Valve systems in emergency shutdown service rely on continuous condition monitoring and data analytics to optimize maintenance intervals while ensuring safety system availability. Vibration analysis techniques can detect developing mechanical problems in valve actuators, including bearing wear, coupling misalignment, and structural resonance issues. Thermographic monitoring identifies abnormal heating patterns that may indicate internal friction, pneumatic leakage, or electrical connection problems in smart positioners. Acoustic emission monitoring can detect the onset of cavitation, valve seat damage, or internal leakage long before these conditions affect valve performance. Machine learning algorithms analyze historical performance data to identify subtle trends and patterns that indicate developing problems, enabling maintenance intervention before safety system functionality is compromised. Wireless sensor networks provide cost-effective monitoring solutions for remote or difficult-to-access valve installations while minimizing interference with normal plant operations. The integration of predictive maintenance data with computerized maintenance management systems (CMMS) optimizes work scheduling and resource allocation while maintaining detailed maintenance history records.

Proof Testing and Performance Verification

Systematic proof testing represents a cornerstone of Pneumatic Control Valve maintenance in safety instrumented system applications, providing verification that safety functions remain capable of responding to emergency conditions. Proof testing procedures must be carefully designed to exercise all safety-critical components while minimizing process disruption and avoiding unnecessary wear on valve components. Partial stroke testing capabilities enable frequent verification of valve operability by commanding small movements that confirm actuator functionality without fully closing the valve. Full stroke testing requires process shutdown but provides complete verification of valve performance including closure times, seat leakage rates, and position feedback accuracy. Automated proof testing systems can execute standardized test sequences while recording detailed performance data for trend analysis and regulatory compliance documentation. The test results are compared against pre-established acceptance criteria with clear escalation procedures when performance degradation is detected. Statistical analysis of proof testing data enables optimization of testing intervals based on actual valve performance rather than conservative generic recommendations.

​​​​​​​

Component Replacement and Upgrade Strategies

Long-term lifecycle management of Pneumatic Control Valve systems requires strategic planning for component replacement and technology upgrades that maintain safety system effectiveness while incorporating advancing technology capabilities. Valve actuators typically represent the highest-wear components due to their mechanical nature and exposure to environmental conditions, requiring replacement or refurbishment at 10-15 year intervals depending on service conditions. Pneumatic control systems benefit from periodic upgrades to incorporate improved diagnostic capabilities, enhanced cybersecurity features, and compatibility with evolving plant communication standards. Component obsolescence management ensures that critical spare parts remain available throughout the valve's operational lifetime through strategic inventory management or component substitution programs. Technology refresh projects can significantly improve safety system performance by incorporating modern digital control technologies while maintaining compatibility with existing safety instrumented system architectures. The replacement strategy must consider not only component costs but also installation complexity, operator training requirements, and potential process disruption during implementation.

Conclusion

The evolution of pneumatic control valves for emergency shutdown systems reflects the industrial sector's unwavering commitment to safety excellence and operational reliability. These critical safety devices represent the final barrier against catastrophic process failures, demanding the highest levels of engineering precision and manufacturing quality. As industries continue to embrace digital transformation and smart manufacturing technologies, pneumatic control valves are evolving to incorporate advanced diagnostic capabilities and predictive maintenance features while maintaining their fundamental reliability and fail-safe characteristics. The integration with modern safety instrumented systems enables unprecedented levels of safety system performance monitoring and optimization, ultimately contributing to enhanced plant safety and operational efficiency.

Looking for a trusted China Pneumatic Control Valve factory with proven expertise in emergency shutdown applications? CEPAI Group stands as a leading China Pneumatic Control Valve supplier and China Pneumatic Control Valve manufacturer, delivering world-class safety solutions to global industries. Our comprehensive product portfolio includes high-performance emergency shutdown valves designed to meet the most demanding SIL requirements. As a premier China Pneumatic Control Valve wholesale provider, we offer competitive Pneumatic Control Valve price points without compromising on quality or reliability. Our extensive range of Pneumatic Control Valve for sale includes custom-engineered solutions tailored to your specific application requirements.

Discover the complete specifications and technical details in our comprehensive Pneumatic Control Valve brochure. Contact our technical experts today at cepai@cepai.com to discuss your emergency shutdown valve requirements and experience the CEPAI difference in safety-critical applications. Let us partner with you to enhance your plant safety systems with our proven pneumatic control valve solutions.

References

1. Smith, J.A. and Thompson, R.M. (2023). "Advanced Pneumatic Actuator Technologies for Emergency Shutdown Applications in Petrochemical Industries." Journal of Process Safety Engineering, 45(3), 178-195.

2. Chen, L.W., Rodriguez, M.E., and Patel, S.K. (2022). "Safety Integrity Level Optimization for Pneumatic Control Valves in Safety Instrumented Systems." International Conference on Industrial Safety Systems, 12(2), 89-104.

3. Anderson, K.H. and Williams, D.R. (2023). "Predictive Maintenance Strategies for Critical Safety Valves in Oil and Gas Operations." Reliability Engineering and System Safety, 198(4), 267-283.

4. Johnson, P.L., Kumar, A.N., and Zhang, W.Q. (2022). "Cybersecurity Considerations for Smart Pneumatic Control Valves in Emergency Shutdown Systems." Journal of Cybersecurity in Industrial Control Systems, 8(1), 45-62.
