Fail-Safe Design in Pneumatic Valve Systems

In modern industrial automation, ensuring system safety and reliability remains paramount, particularly when dealing with critical process control applications. Fail-safe design in pneumatic valve systems represents a fundamental engineering principle that ensures valves move to a predetermined safe position when power or control signal failure occurs. This critical safety feature protects equipment, personnel, and environmental integrity by maintaining process stability even during unexpected system malfunctions. The implementation of fail-safe mechanisms in Pneumatic Control Valve systems has become an industry standard, providing operators with confidence that their processes will respond predictably during emergency situations or power outages.

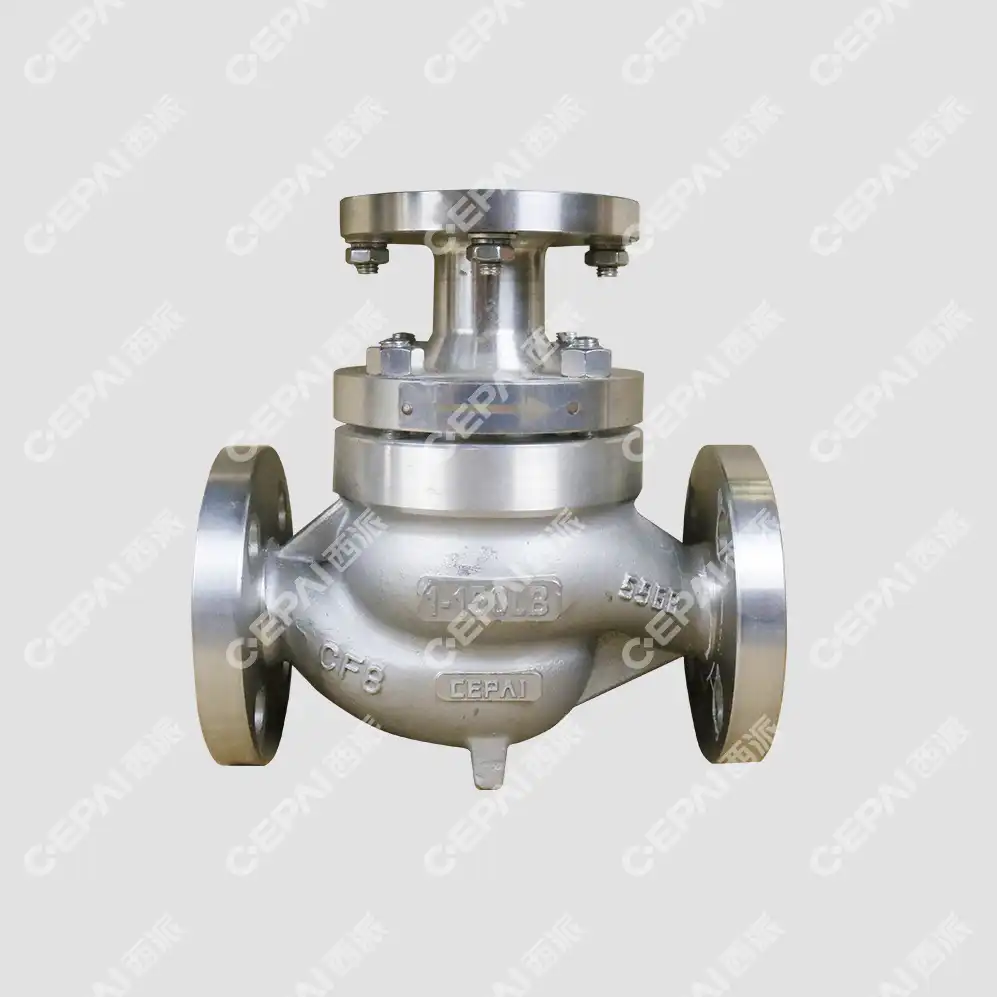

Understanding Fail-Safe Mechanisms in Pneumatic Control Systems

Air-to-Open and Air-to-Close Configurations

The foundation of fail-safe design lies in understanding the fundamental operating principles of Pneumatic Control Valve systems. Air-to-open valves require pneumatic pressure to move the valve stem upward, opening the valve passage, while air-to-close valves operate in reverse, requiring air pressure to close the valve. This basic configuration determines the valve's fail-safe behavior during air supply interruption. When selecting between these configurations, engineers must carefully analyze the process requirements and determine which position provides the safest operating condition during emergencies. For instance, in fire protection systems, valves typically fail open to ensure water flow continues, while in hazardous chemical processes, valves may fail closed to prevent dangerous material release. The actuator spring mechanism plays a crucial role in this design, providing the necessary force to move the valve to its predetermined safe position when pneumatic pressure is lost. Modern Pneumatic Control Valve systems incorporate sophisticated spring designs that ensure consistent and reliable fail-safe operation across varying temperature and pressure conditions.

Spring Return Actuator Technology

Spring return actuators represent the most common fail-safe mechanism employed in Pneumatic Control Valve applications. These actuators utilize compressed springs that store potential energy when the valve operates under normal pneumatic pressure. Upon air supply failure, the stored spring energy automatically drives the valve to its predetermined safe position. The spring design requires precise engineering calculations to ensure adequate force generation across the entire valve stroke while maintaining reasonable operating pressure requirements. Factors such as spring rate, compression ratio, and fatigue life significantly impact the actuator's long-term reliability and performance. Advanced spring return actuators incorporate multiple springs in parallel or series configurations to provide redundancy and ensure consistent operation even if individual springs fail. Temperature compensation features address thermal expansion effects that could otherwise compromise spring performance in extreme operating environments. The spring housing design must also accommodate pressure sealing requirements while allowing smooth actuator movement throughout the operating range.

Diaphragm vs. Piston Actuator Designs

The choice between diaphragm and piston actuator designs significantly influences fail-safe performance characteristics in Pneumatic Control Valve systems. Diaphragm actuators utilize flexible membrane materials to convert pneumatic pressure into linear motion, offering excellent sensitivity and smooth operation at lower pressures. These actuators typically provide superior fail-safe performance due to their large effective area and linear force characteristics. However, diaphragm actuators are limited in maximum operating pressure and may experience reduced lifespan in high-cycling applications. Piston actuators, conversely, offer higher force output and can operate at elevated pressures, making them suitable for large valve applications or high-pressure differential services. The fail-safe design of piston actuators requires careful consideration of friction forces and seal integrity to ensure reliable operation during emergency conditions. Modern hybrid designs combine the benefits of both technologies, utilizing diaphragm sensitivity for precise control while incorporating piston strength for high-force applications. The actuator selection process must balance fail-safe reliability, operating force requirements, and environmental compatibility to optimize Pneumatic Control Valve performance.

Safety Standards and Regulatory Compliance

International Safety Standards for Pneumatic Valves

Compliance with international safety standards forms the cornerstone of reliable fail-safe design in Pneumatic Control Valve systems. The International Electrotechnical Commission (IEC) 61508 standard provides comprehensive guidelines for functional safety in electrical, electronic, and programmable electronic safety-related systems, directly applicable to pneumatic valve control systems. This standard establishes Safety Integrity Levels (SIL) that quantify the probability of dangerous failures, requiring manufacturers to demonstrate specific reliability performance metrics. The American Society of Mechanical Engineers (ASME) and American Petroleum Institute (API) standards further define requirements for valve design, testing, and certification in critical applications. European EN standards, particularly EN 161 for automatic shut-off valves and EN 676 for automatic burner control systems, establish specific requirements for fail-safe operation in gas applications. These standards mandate rigorous testing protocols, documentation requirements, and periodic verification procedures to ensure continued compliance throughout the valve's operational life. Modern Pneumatic Control Valve manufacturers must demonstrate compliance through extensive testing programs that validate fail-safe performance under various operating conditions, including extreme temperatures, vibration, and accelerated aging scenarios.

Risk Assessment and SIL Requirements

Safety Instrumented Systems (SIS) incorporating Pneumatic Control Valve components require comprehensive risk assessment methodologies to determine appropriate SIL ratings. The risk assessment process begins with hazard identification, analyzing potential failure modes and their consequences on personnel safety, environmental protection, and asset integrity. Layer of Protection Analysis (LOPA) provides a structured approach to evaluate existing safeguards and determine the required risk reduction for each identified hazard. The calculated Safety Integrity Level directly influences valve selection criteria, specifying maximum allowable failure rates and minimum diagnostic coverage requirements. SIL 1 applications typically require failure rates below 10^-5 per hour, while SIL 3 applications demand failure rates below 10^-6 per hour. These stringent requirements necessitate careful component selection, redundant design configurations, and comprehensive proof testing programs. The fail-safe design must demonstrate predictable behavior under all credible failure scenarios, including partial stroke testing capabilities that verify valve response without complete process shutdown. Advanced Pneumatic Control Valve systems incorporate intelligent diagnostics that continuously monitor valve performance and provide early warning of potential failure conditions, enhancing overall system reliability and safety performance.

Certification and Testing Protocols

Rigorous certification and testing protocols ensure Pneumatic Control Valve systems meet specified fail-safe performance criteria throughout their operational lifecycle. Initial design verification testing validates the actuator's ability to achieve fail-safe position within specified time limits under various operating conditions. Endurance testing subjects valves to millions of operating cycles to verify long-term reliability and consistent fail-safe performance. Environmental testing exposes valves to extreme temperature, humidity, and vibration conditions that may be encountered in service. Functional safety testing specifically evaluates fail-safe response time, stroke completion percentage, and repeatability across multiple test cycles. Partial stroke testing protocols enable periodic verification of fail-safe capability without complete process shutdown, maintaining production continuity while ensuring safety system integrity. Third-party certification bodies, such as TÜV and Exida, provide independent validation of safety performance claims, offering end users confidence in system reliability. The testing documentation must demonstrate traceability from component materials through final system integration, ensuring complete quality control throughout the manufacturing process. Modern Pneumatic Control Valve systems incorporate self-diagnostics that continuously monitor critical parameters and provide real-time feedback on system health and fail-safe readiness.

Implementation Best Practices for Industrial Applications

System Design Considerations

Effective implementation of fail-safe Pneumatic Control Valve systems requires comprehensive system design consideration that addresses both normal operation and emergency scenarios. Air supply redundancy represents a critical design element, typically incorporating dual compressor systems with automatic switchover capability to ensure continuous pneumatic pressure availability. Air receiver sizing must account for fail-safe operation requirements, providing sufficient stored air volume to complete valve stroking operations during compressor failure conditions. Filtration and air treatment systems require careful design to prevent contamination that could compromise actuator performance or interfere with fail-safe operation. Pressure regulation accuracy affects both control precision and fail-safe timing, requiring properly sized regulators with adequate flow capacity and pressure stability. Instrument air quality specifications typically require oil-free, dry air with particle filtration to 0.1 microns to prevent actuator damage and ensure reliable operation. Pipeline sizing and routing considerations must account for transient flow conditions during fail-safe operation, ensuring adequate air delivery to all valve actuators. Modern Pneumatic Control Valve installations incorporate smart air preparation systems that continuously monitor air quality parameters and provide early warning of conditions that could compromise fail-safe performance.

​​​​​​​

Installation and Commissioning Procedures

Proper installation and commissioning procedures ensure Pneumatic Control Valve systems achieve specified fail-safe performance characteristics in actual operating environments. Pre-installation inspection verifies valve orientation, actuator mounting, and connection compatibility with existing pneumatic infrastructure. Proper valve positioning requires careful consideration of pipeline stress effects, thermal expansion allowances, and accessibility for maintenance activities. Pneumatic connection procedures must ensure leak-tight joints while avoiding excessive tightening that could damage fittings or compromise actuator performance. Electrical connection of positioner and diagnostic systems requires attention to signal integrity, electromagnetic compatibility, and intrinsic safety requirements in hazardous areas. Initial calibration procedures establish baseline performance parameters, including fail-safe stroke time, intermediate position accuracy, and control response characteristics. Functional testing validates fail-safe operation under simulated failure conditions, verifying complete stroke completion and timing compliance. Loop testing ensures integration with control systems operates correctly, including proper response to shutdown commands and diagnostic feedback signals. Documentation requirements include as-built drawings, calibration records, and test certificates that provide traceability for future maintenance and inspection activities. Commissioning validation must demonstrate Pneumatic Control Valve performance meets design specifications before system release for production service.

Maintenance and Lifecycle Management

Effective maintenance and lifecycle management programs ensure Pneumatic Control Valve systems maintain fail-safe capability throughout their operational life. Preventive maintenance schedules must address all critical components that affect fail-safe operation, including actuator seals, springs, pneumatic connections, and diagnostic systems. Proof testing protocols provide periodic verification of fail-safe response characteristics, typically performed annually or as specified by safety integrity requirements. Partial stroke testing capabilities enable more frequent verification without complete process disruption, maintaining production continuity while ensuring safety system readiness. Trending analysis of diagnostic data identifies gradual performance degradation that could compromise fail-safe operation before complete failure occurs. Spare parts inventory management ensures critical components remain available for emergency repairs, particularly for obsolete valve models that may no longer be in production. Training programs for maintenance personnel must address both routine service procedures and emergency response scenarios that may require rapid valve repair or replacement. Documentation systems must maintain complete records of all maintenance activities, test results, and component replacements to support regulatory compliance and performance trending analysis. Modern Pneumatic Control Valve systems incorporate predictive maintenance capabilities that utilize continuous monitoring data to optimize maintenance schedules and identify potential failure modes before they compromise system safety or reliability.

Conclusion

Fail-safe design in pneumatic valve systems represents a critical engineering discipline that ensures industrial process safety through reliable, predictable valve behavior during emergency conditions. The integration of proper actuator selection, compliance with international safety standards, and implementation of comprehensive maintenance programs provides the foundation for dependable fail-safe operation. As industrial processes become increasingly complex and safety requirements more stringent, the importance of robust fail-safe design continues to grow, demanding continuous innovation in actuator technology, diagnostic capabilities, and system integration approaches.
