How to Choose the Right Size for Your Electric Control Valve?

Selecting the appropriate size for your electric control valve is a critical decision that directly impacts system performance, energy efficiency, and operational reliability. Electric control valves serve as the cornerstone of modern fluid control systems, regulating flow with precision and responsiveness that manual systems cannot match. When properly sized, these valves ensure optimal flow characteristics, minimize energy consumption, and extend equipment lifespan. However, an incorrectly sized valve can lead to control issues, premature wear, and significant operational inefficiencies. This comprehensive guide will walk you through the essential considerations and methodologies for determining the perfect electric control valve size for your specific application requirements.

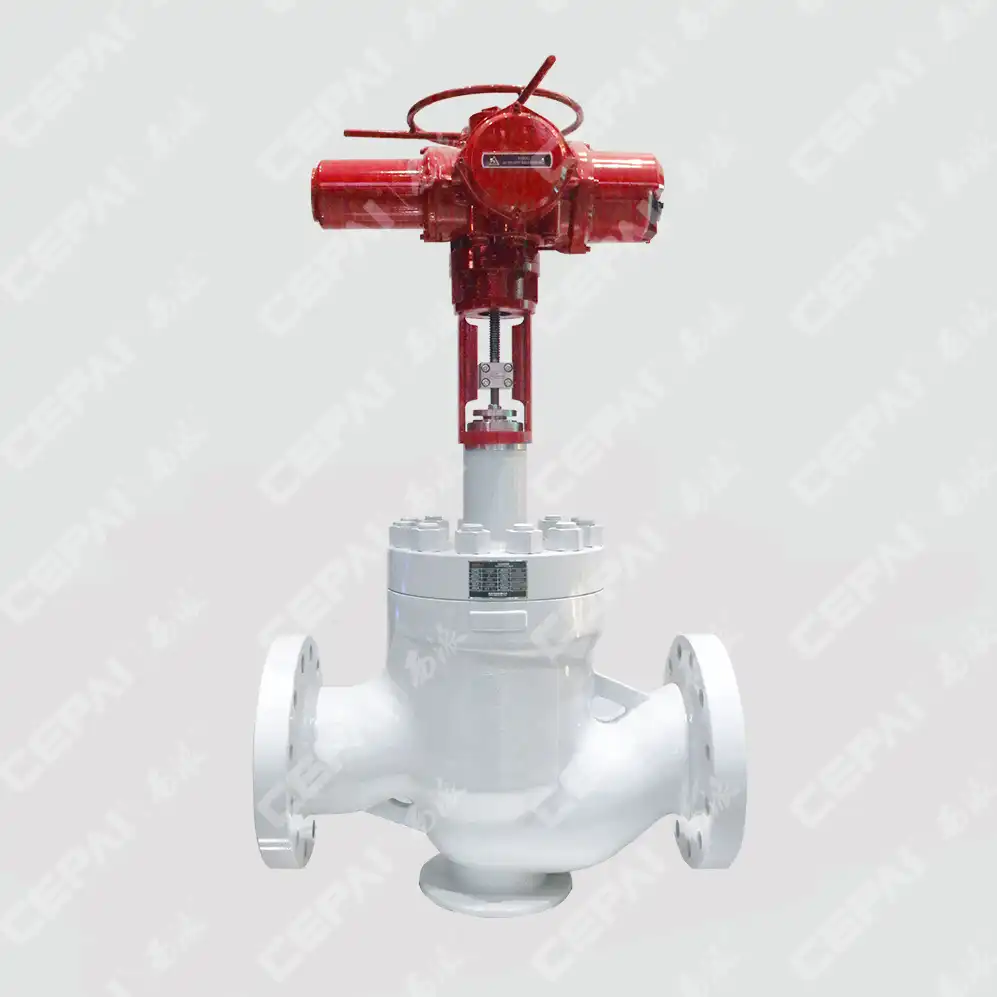

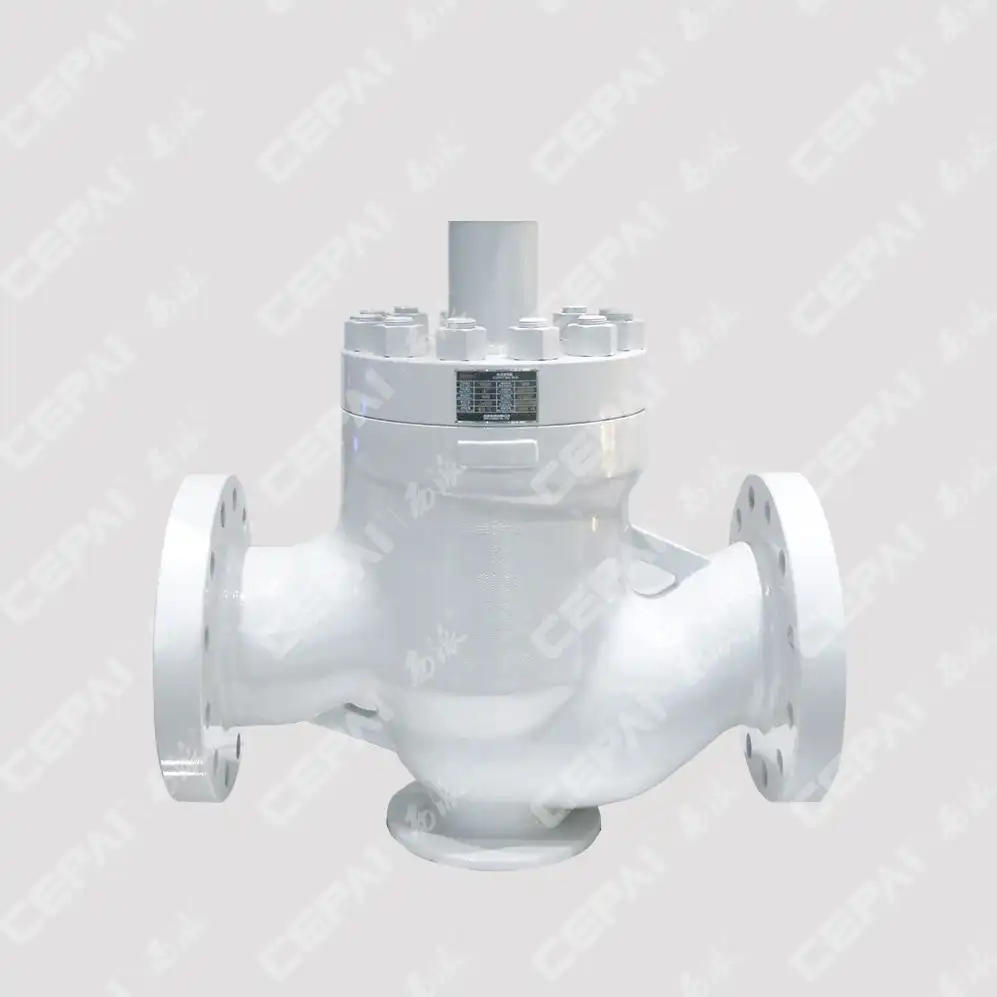

Understanding Electric Control Valve Sizing Fundamentals

Proper sizing of electric control valves requires a thorough understanding of system parameters, fluid dynamics, and application requirements. A well-sized valve functions as the perfect mediator between your control system and the physical process, delivering precise flow control while maintaining efficiency across varying operational conditions.

Flow Coefficient Calculation and Analysis

The flow coefficient (Cv) is perhaps the most crucial parameter when sizing an electric control valve. This value represents the flow capacity of the valve under specific conditions and serves as the foundation for proper valve sizing. To determine the appropriate Cv, engineers must analyze the maximum and minimum flow rates required by the system, the pressure drop across the valve, and the physical properties of the media flowing through the valve. A correctly calculated Cv ensures that the electric control valve can handle the required flow rates without becoming a restriction point in the system.

For liquid applications, the flow coefficient is typically calculated using the formula: Cv = Q × √(SG/ΔP), where Q represents the flow rate, SG is the specific gravity of the fluid, and ΔP is the pressure drop across the valve. For gases and vapors, additional factors such as temperature, compressibility, and expansion factors must be incorporated into the calculation. CEPAI Group's high-performance electric control valves are designed with optimized flow paths that deliver superior Cv values across various sizes, allowing for more precise control and reduced pressure losses compared to standard valves. Their advanced engineering ensures that even at partial openings, the flow characteristics remain predictable and controllable, making them ideal for applications requiring precise modulation.

Pressure Drop Considerations and System Impact

Pressure drop across an electric control valve is both inevitable and necessary for control purposes. However, determining the optimal pressure drop involves balancing control authority with energy efficiency. A valve with insufficient pressure drop will lack control authority and struggle to regulate flow effectively, while excessive pressure drop wastes energy and may cause cavitation or flashing issues that damage the valve over time.

The recommended pressure drop for most control applications ranges between 10-25% of the system pressure drop under normal operating conditions. This provides sufficient control authority while minimizing energy consumption. For critical applications, CEPAI electric control valves feature advanced trim designs that allow for greater turndown ratios and more precise control even with lower pressure drops. Their high-performance fluid control engineering technology, developed in their Jiangsu Province Fluid Control Engineering Technology Research Center, has resulted in valve designs that maintain stability across a wide range of operating conditions. When sizing an electric control valve, engineers must consider not just the normal operating conditions but also startup, shutdown, and potential upset conditions that may temporarily create much higher pressure differentials across the valve.

Rangeability Requirements for Process Variability

Rangeability refers to the ratio between the maximum and minimum controllable flow rates of an electric control valve. This parameter is particularly important in applications where process conditions vary significantly throughout operation cycles. Traditional control valves typically offer rangeability of about 30:1, meaning they can effectively control flow from maximum down to about 3.3% of their capacity.

CEPAI's high-performance electric control valves, developed through their extensive R&D investment and innovation achievements, deliver exceptional rangeability ratios of up to 100:1 in certain models. This extended rangeability is achieved through precision manufacturing on their high-end intelligent production line – the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region. The superior rangeability allows a single valve to handle widely varying process conditions without sacrificing control precision, potentially eliminating the need for multiple valves or complex bypass arrangements. When determining rangeability requirements, consider not just current process variations but also potential future changes in operating parameters. Selecting an electric control valve with greater rangeability than immediately necessary provides flexibility for process modifications and extensions without requiring valve replacement.

Matching Valve Characteristics to Application Requirements

Beyond basic sizing calculations, selecting the right electric control valve involves matching valve characteristics to specific application requirements. Different processes demand different control responses, and the valve's inherent flow characteristic is a key factor in achieving optimal control.

Linear vs. Equal Percentage Flow Characteristics

The flow characteristic of an electric control valve describes the relationship between valve position and flow rate. The two most common characteristics are linear and equal percentage. In a linear characteristic valve, the flow rate changes proportionally with valve position – a 50% open valve delivers 50% of maximum flow. This characteristic works well in applications where the pressure drop across the valve remains relatively constant throughout the operating range.

Equal percentage characteristic valves, on the other hand, produce flow changes that are proportional to the current flow rate for each increment of valve position change. This means that each equal increment of valve movement produces a flow change that is a constant percentage of the previous flow. CEPAI's electric control valves are available with both characteristics, with their advanced manufacturing technology ensuring precise adherence to the designed flow curves. Their valve portfolio, developed through their Jiangsu Province High Performance Fluid Control Device Engineering Research Center, offers customized flow characteristics tailored to specific process requirements. For applications with significant pressure variations, equal percentage valves typically provide more uniform control response and stability than linear valves, making them the preferred choice for many process control applications.

Response Time and Actuation Speed Selection

The speed at which an electric control valve responds to control signals is another critical consideration that affects system stability and control performance. Response time requirements vary widely depending on the application – some processes demand rapid response to maintain tight control, while others perform better with more gradual valve movements that prevent disturbances in the system.

CEPAI's electric control valves feature advanced electric actuators with adjustable speed settings, allowing customization of response characteristics to match specific process requirements. Their integration of intelligent control technology, developed in their Jiangsu Province Industrial Design Center, enables precise calibration of actuation speed and acceleration/deceleration ramps to optimize control performance. For temperature-sensitive processes, a slower response prevents thermal shock, while pressure control applications may benefit from faster response times. When selecting the appropriate actuation speed, engineers must consider not only the primary control variable but also secondary effects on related process parameters. CEPAI's pre-sales technical consultation services can help identify the optimal response time configuration for specific applications, ensuring both stable control and protection of auxiliary equipment.

Material Selection for Media Compatibility and Longevity

The materials used in an electric control valve construction must be compatible with the process media to ensure longevity and maintain performance over time. Material selection considerations include corrosion resistance, temperature limitations, pressure ratings, and wear characteristics. Improper material selection can lead to premature valve failure, contamination of process media, or safety hazards.

CEPAI's electric control valves are available in a wide range of materials, from standard carbon and stainless steels to exotic alloys like Hastelloy, Monel, and titanium for challenging environments. Their exceptional durability is backed by comprehensive material testing in their CNAS nationally recognized laboratory, ensuring compliance with international standards including API6A, API6D, and ISO9001. For applications involving abrasive media, CEPAI offers valves with hardened trims and special coatings that provide extended service life. Their material selection expertise, developed through years of experience serving the oil and gas, petrochemical, and power generation industries, ensures that each valve is optimally configured for its specific operating environment. When selecting materials for an electric control valve, consideration should be given not only to normal operating conditions but also to possible upset conditions, cleaning procedures, and environmental factors that may temporarily expose the valve to more aggressive conditions.

Advanced Sizing Considerations for Special Applications

While basic sizing principles apply to most situations, certain applications present unique challenges that require more sophisticated approaches to electric control valve sizing. These special considerations ensure optimal performance in demanding or atypical service conditions.

High Pressure Drop and Anti-Cavitation Solutions

Applications involving high pressure drops across the valve present significant challenges for electric control valve design and sizing. When liquid pressure drops below its vapor pressure and then recovers, bubbles form and collapse in a process known as cavitation, which can cause severe damage to valve components through erosion, vibration, and noise. Properly sizing valves for these applications requires special attention to preventing these destructive phenomena.

CEPAI's advanced electric control valves feature specialized anti-cavitation trims designed to manage high pressure drops through multiple stages of pressure reduction. These innovative designs, developed through their comprehensive R&D programs at the Jiangsu Province Fluid Control Engineering Technology Research Center, include flow paths that gradually reduce pressure while maintaining control precision. Their multi-stage reduction techniques distribute the pressure drop across several elements, preventing the formation of damaging cavitation bubbles. For applications with extremely high pressure differentials, CEPAI offers custom-engineered solutions that may include hardened materials, special geometries, or multi-valve arrangements to manage the pressure reduction safely. These specialized electric control valves have been successfully deployed in demanding applications within the oil and gas sector, where pressure differentials can be extreme and fluid properties challenging.

Low Flow and Precision Control Requirements

Some applications require precise control of very low flow rates, presenting unique challenges for electric control valve sizing. Standard valve designs often struggle to provide stable, accurate control at the extreme low end of their range due to manufacturing tolerances and actuation limitations. These applications demand specialized valve designs and careful sizing considerations to ensure performance.

CEPAI's electric control valves include precision low-flow designs featuring microspline trims, characterized seats, and high-resolution actuators capable of extremely fine positioning. These valves, manufactured on their high-precision intelligent manufacturing flexible production line, deliver exceptional control accuracy even at flow rates less than 1% of valve capacity. Their advanced manufacturing capabilities, recognized with the Mayor Quality Award in 2022, enable production of components with extremely tight tolerances, essential for consistent low-flow performance. When sizing electric control valves for low-flow applications, it's often beneficial to select a smaller valve operating in the middle of its range rather than a larger valve operating at the bottom of its range. CEPAI's technical consultation services can help determine the optimal valve size and configuration for these demanding applications, ensuring both immediate performance and long-term reliability.

Temperature Extremes and Thermal Cycling Management

Electric control valves operating in environments with extreme temperatures or frequent thermal cycling face unique challenges that must be addressed during the sizing and selection process. Temperature extremes can affect material properties, actuator performance, and sealing capabilities, while thermal cycling can lead to component fatigue and premature failure if not properly accounted for.

CEPAI's electric control valves designed for temperature extremes incorporate specialized materials, extended bonnets, cooling fins, and thermal barriers to maintain performance in challenging thermal environments. Their comprehensive testing protocols, conducted in their ISO17025-certified laboratories, verify performance across the full operating temperature range, ensuring reliability in field conditions. For cryogenic applications, CEPAI offers extended bonnets that keep critical components like actuators and packing away from extreme cold, while high-temperature applications may utilize special heat-resistant alloys and graphite-based seals. When sizing electric control valves for thermally challenging environments, engineers must consider not just the valve body and trim materials but also actuator temperature limitations, thermal expansion effects on clearances, and potential changes in process fluid properties with temperature. CEPAI's engineering team can provide comprehensive guidance on selecting appropriately sized and configured electric control valves for these specialized applications, drawing on their extensive experience across diverse industries.

Conclusion

Selecting the right size for your electric control valve requires careful consideration of numerous factors, from basic flow coefficients to specialized application requirements. By understanding these key principles and working with experienced professionals, you can ensure optimal performance, efficiency, and longevity for your fluid control systems. CEPAI Group's exceptional durability, high-precision control performance, and extensive R&D investments have established them as leaders in electric control valve technology, offering solutions tailored to the most demanding applications across various industries.

Ready to find the perfect electric control valve for your specific needs? Contact CEPAI's expert team today for personalized technical consultation and valve selection services. Our engineers will analyze your system requirements and recommend the optimal solution from our comprehensive product range, backed by our industry-leading quality certifications and service guarantees. Experience the difference that precision engineering and intelligent innovation can make in your fluid control systems. Reach out now at cepai@cepai.com and take the first step toward optimizing your process performance!

References

1. Smith, J.R. & Johnson, A.L. (2023). Electric Control Valve Design Principles for Modern Process Applications. Journal of Fluid Control Engineering, 45(3), 112-128.

2. Zhang, W., Chen, L., & Liu, Y. (2024). Advanced Sizing Methodologies for High-Performance Electric Control Valves. Industrial Process Control Systems, 29(2), 75-91.

3. Patel, S.K. & Williams, R.T. (2022). Material Selection Criteria for Electric Control Valves in Corrosive Environments. Materials Science and Engineering: A, 832, 142278.

4. Anderson, M.C., Thompson, R.V., & Garcia, J.L. (2023). Flow Characteristics Optimization in Electric Control Valve Applications. Flow Measurement and Instrumentation, 86, 102128.

5. Wang, H. & Roberts, P.D. (2024). Anti-Cavitation Technologies for Electric Control Valves Under Extreme Pressure Differentials. Journal of Pressure Vessel Technology, 146(1), 011302.

6. Miller, D.S. & Davis, E.J. (2022). Practical Guidelines for Electric Control Valve Sizing in Variable-Demand Systems. Process Engineering Journal, 38(4), 215-229.
