Selecting the appropriate control valve technology fundamentally depends on evaluating your specific process requirements, environmental conditions, and operational constraints. Pneumatic actuators excel in hazardous environments with explosive atmospheres and offer rapid response times, while electric actuators provide superior precision, energy efficiency, and advanced diagnostic capabilities. The decision hinges on factors including available utilities, maintenance resources, control accuracy demands, and total cost of ownership considerations. Understanding these distinctions enables engineers to optimize system performance while ensuring safety and reliability in industrial automation applications.
Understanding Control Valves and Their Importance
Industrial automation relies heavily on precise flow control mechanisms that regulate pressure, temperature, and flow rates across diverse applications. These sophisticated devices serve as critical components in maintaining process stability and operational safety throughout various industrial sectors.
What Is a Control Valve and How Does It Work?
A control valve speaks to an computerized stream direction gadget that balances liquid entry through variable opening alterations. The principal operation includes an actuator component that positions the valve trim components based on control signals, making particular stream characteristics custom-made to handle requirements. Modern valve gatherings join a few basic components working in concordance. The valve body houses the inside trim components, whereas the actuator gives the rationale drive for situating. Positioners improve control precision by comparing real valve position with craved setpoints, compensating for mechanical varieties and outside disturbances. Flow characteristics decide how valve opening relates to stream coefficient changes. Direct characteristics give corresponding stream changes relative to valve travel, making them reasonable for fluid applications with moderately consistent weight drops. Break even with rate characteristics convey exponential stream increments, perfect for gas applications where weight varieties essentially affect stream behavior.
Key Applications of Control Valves in Industry
Chemical processing facilities utilize these devices for reactor temperature control, distillation column management, and chemical feed regulation. Oil and gas operations depend on valve technology for wellhead pressure control, pipeline flow management, and refinery process optimization. Power generation plants employ control valves in steam systems, cooling water circuits, and fuel control applications. HVAC systems benefit from valve automation in chilled water distribution, heating circuits, and air handling unit control. Water treatment facilities rely on automated valves for chemical dosing, filtration backwash cycles, and distribution pressure management.
Decision Scenarios: Pneumatic vs. Electric Control Valves
Making informed valve selection decisions requires comprehensive analysis of multiple factors that influence long-term performance and operational efficiency. Each application presents unique challenges that favor specific actuator technologies.
Defining Your Process Requirements and Constraints
Process media characteristics significantly impact actuator selection. Corrosive chemicals, high-temperature steam, or cryogenic fluids may require specialized materials and extended bonnet designs to protect actuator components. CEPAI's electric low-temperature control valves operate effectively in temperature ranges from -60°C to -20°C, utilizing extended valve cover configurations to isolate actuator mechanisms from extreme conditions. Pressure ratings and flow capacity requirements determine valve sizing and actuator force calculations. Higher pressure differentials demand more powerful actuators, while precise throttling applications benefit from actuators offering superior resolution and stability. Control accuracy requirements vary significantly between applications, with some processes tolerating ±2% control bands while others demand ±0.5% precision for optimal performance. Response time specifications influence actuator technology selection. Emergency shutdown applications may require pneumatic actuators capable of full stroke completion within seconds, while temperature control loops can accommodate slower electric actuators that provide enhanced positioning accuracy.
Environmental and Safety Considerations
Hazardous area classifications play crucial roles in actuator selection decisions. Explosive atmospheres often favor pneumatic actuators that eliminate electrical ignition sources, though modern electric actuators with appropriate enclosures can operate safely in many classified locations. Ambient temperature extremes affect actuator performance and longevity. CEPAI electric actuators operate reliably in ambient temperatures ranging from -30°C to +70°C, while pneumatic systems may require air supply conditioning in extreme environments to prevent freezing or overheating issues. Noise considerations impact actuator choice in populated areas or noise-sensitive facilities. Electric actuators operate quietly compared to pneumatic systems that may generate significant noise during operation, particularly when equipped with high-capacity air consumption actuators.
Infrastructure and Energy Availability
Existing utility infrastructure often determines practical actuator choices. Facilities with established compressed air systems may favor pneumatic actuators, while locations with reliable electrical power but limited air compression capacity benefit from electric alternatives. Energy efficiency concerns increasingly favor electric actuators that consume power only during positioning movements. Pneumatic systems require continuous air supply for modulating applications, resulting in higher energy consumption through compressor operation. Core Metrics and Comparative Analysis of Pneumatic and Electric Control Valves Detailed performance analysis reveals distinct advantages and limitations associated with each actuator technology, enabling engineers to match capabilities with specific application requirements.
Core Metrics and Comparative Analysis of Pneumatic and Electric Control Valves
Detailed performance analysis reveals distinct advantages and limitations associated with each actuator technology, enabling engineers to match capabilities with specific application requirements.
Actuator Types and Their Performance Characteristics
Pneumatic actuators utilize compressed air pressure acting against spring forces or opposed air chambers to generate positioning force. These systems offer several compelling advantages for industrial applications:
Here are the key benefits of pneumatic actuator technology:
- Rapid Response Times: Pneumatic systems achieve full stroke completion in seconds, making them ideal for emergency shutdown applications and fast-acting process control loops requiring immediate response to process upsets.
- High Force Output: Large pneumatic actuators generate substantial thrust capabilities, enabling operation of large valves against high pressure differentials without requiring complex gear reduction mechanisms.
- Intrinsic Safety: Air-powered operation eliminates electrical ignition sources, providing inherent safety advantages in explosive atmospheres and hazardous chemical processing environments.
- Fail-Safe Operation: Spring return designs ensure predictable valve positioning during utility failures, enhancing process safety through reliable failure mode behavior.
These pneumatic advantages make them particularly suitable for safety-critical applications and environments with strict electrical restrictions. Electric actuators employ motor-driven mechanisms with gear reduction systems to position valve stems with exceptional precision. The technological benefits include: Electric actuator systems deliver several performance advantages:
- Superior Positioning Accuracy: Advanced control electronics provide positioning resolution better than 0.1% of full scale, enabling precise throttling control for critical process applications requiring tight specification compliance.
- Energy Efficiency: Motors consume power only during positioning movements, significantly reducing operational energy costs compared to continuously operating pneumatic systems with air leakage losses.
- Advanced Diagnostics: Integrated electronics monitor actuator performance, valve position, motor current, and system health parameters, enabling predictive maintenance strategies and enhanced troubleshooting capabilities.
- Programmable Control: Digital communication protocols allow remote configuration of control parameters, linearization curves, and alarm setpoints without field calibration procedures.
These electric actuator capabilities excel in applications demanding precision control and comprehensive system integration requirements.
Control Accuracy, Speed, and Maintenance Needs
Control accuracy represents a critical performance parameter distinguishing actuator technologies. Electric actuators typically achieve positioning accuracy within ±0.25% of full scale, while pneumatic systems may exhibit ±1-2% accuracy depending on positioner quality and air supply stability. CEPAI electric control valves utilize 4-20mA current signals for precise positioning control, with optional position feedback capabilities enabling closed-loop verification of valve position accuracy. The opening range specifications of 0-90 degrees or 0-180 degrees accommodate diverse application requirements while maintaining consistent control performance throughout the operating range. Maintenance requirements differ significantly between technologies. Pneumatic systems require regular air filter replacement, moisture removal, and lubrication services to maintain performance. Electric actuators demand periodic gear lubrication and motor maintenance but eliminate air system maintenance requirements entirely. Troubleshooting complexity varies considerably. Pneumatic systems involve mechanical issues related to air leakage, filter contamination, and positioner calibration. Electric systems present electronic diagnostics capabilities that simplify problem identification while requiring specialized electrical expertise for repairs.
Cost Considerations and Total Cost of Ownership
Initial investment comparisons reveal pneumatic actuators typically cost less for basic applications, while electric actuators command premium pricing due to sophisticated electronics and precision manufacturing requirements. However, total ownership costs include energy consumption, maintenance expenses, and operational efficiency impacts. Energy consumption analysis favors electric actuators for modulating service applications. Pneumatic systems consume compressed air continuously during throttling operation, while electric actuators consume power only during positioning movements, resulting in substantial energy savings over operational lifespans. Maintenance cost projections indicate electric actuators often deliver lower long-term expenses due to reduced service frequency and elimination of air system maintenance requirements. Pneumatic systems require regular filter changes, moisture removal, and calibration services that accumulate significant costs over time.
Evaluating Use Cases to Match Valve Selection with Application Needs
Practical application scenarios demonstrate how specific process requirements align with optimal actuator technology choices, providing guidance for informed selection decisions.
Best Control Valve Choices for Various Industrial Applications
Steam applications benefit from pneumatic actuators offering rapid response capabilities essential for temperature control and pressure regulation. High-temperature steam systems often exceed electric actuator ambient temperature limits, making pneumatic technology the preferred choice for these demanding applications. Corrosive chemical processing environments favor electric actuators that eliminate air system contamination risks. Sealed electric enclosures provide superior protection against aggressive chemicals compared to pneumatic systems requiring filtered air supplies that may introduce contaminants into process areas. CEPAI manufactures specialized low-temperature control valves designed for cryogenic applications ranging from -60°C to -20°C. These electric actuators feature extended valve covers and specialized materials including 304, 316, and 316L stainless steel components to withstand extreme temperature conditions while maintaining precise control capabilities. HVAC and cleanroom applications benefit from electric actuators offering quiet operation and elimination of compressed air requirements. These environments often lack compressed air infrastructure while demanding precise temperature and humidity control that electric actuators deliver effectively.
Case Studies: Successful Implementation Stories
A major petrochemical facility recently upgraded their distillation column control valves from pneumatic to electric actuators, achieving 15% improvement in product quality consistency through enhanced positioning accuracy. The installation eliminated air compressor capacity constraints while reducing energy consumption by 25% through elimination of continuous air consumption. A power generation plant implemented pneumatic emergency shutdown valves throughout their steam systems, achieving sub-3-second closure times essential for turbine protection. The pneumatic technology provided reliable fail-safe operation during utility outages while meeting stringent safety requirements for rapid isolation capabilities. ater treatment facilities have successfully deployed electric actuators for chemical feed control, achieving precise dosing accuracy that reduced chemical consumption by 12% while improving water quality consistency. The installation eliminated air system maintenance requirements in corrosive chemical environments.
Customized Solutions and Flexibility Options
Material selection plays crucial roles in valve longevity and performance. CEPAI offers extensive material options including WCB, CF8, and CF8M body materials with specialized internal components utilizing 304, 316, and 316L stainless steel configurations to match specific process media requirements. Actuator integration options accommodate diverse control system architectures. Electric actuators support 220V or 380V power supplies with 4-20mA control signals, while pneumatic systems integrate with existing air supplies ranging from 3-15 PSI or 6-30 PSI signal ranges. Advanced intelligent control systems enhance valve performance through integrated diagnostics, predictive maintenance capabilities, and remote monitoring functions. These features enable proactive maintenance scheduling and comprehensive system optimization.
Company Introduction and Product & Service Information
CEPAI Group stands as a leading technology multinational company specializing in high-precision fluid control solutions for global industrial applications. Since establishment in January 2009, we have evolved into a national high-tech enterprise recognized for exceptional innovation and manufacturing excellence.
Introducing CEPAI – Trusted Leader in Control Valves

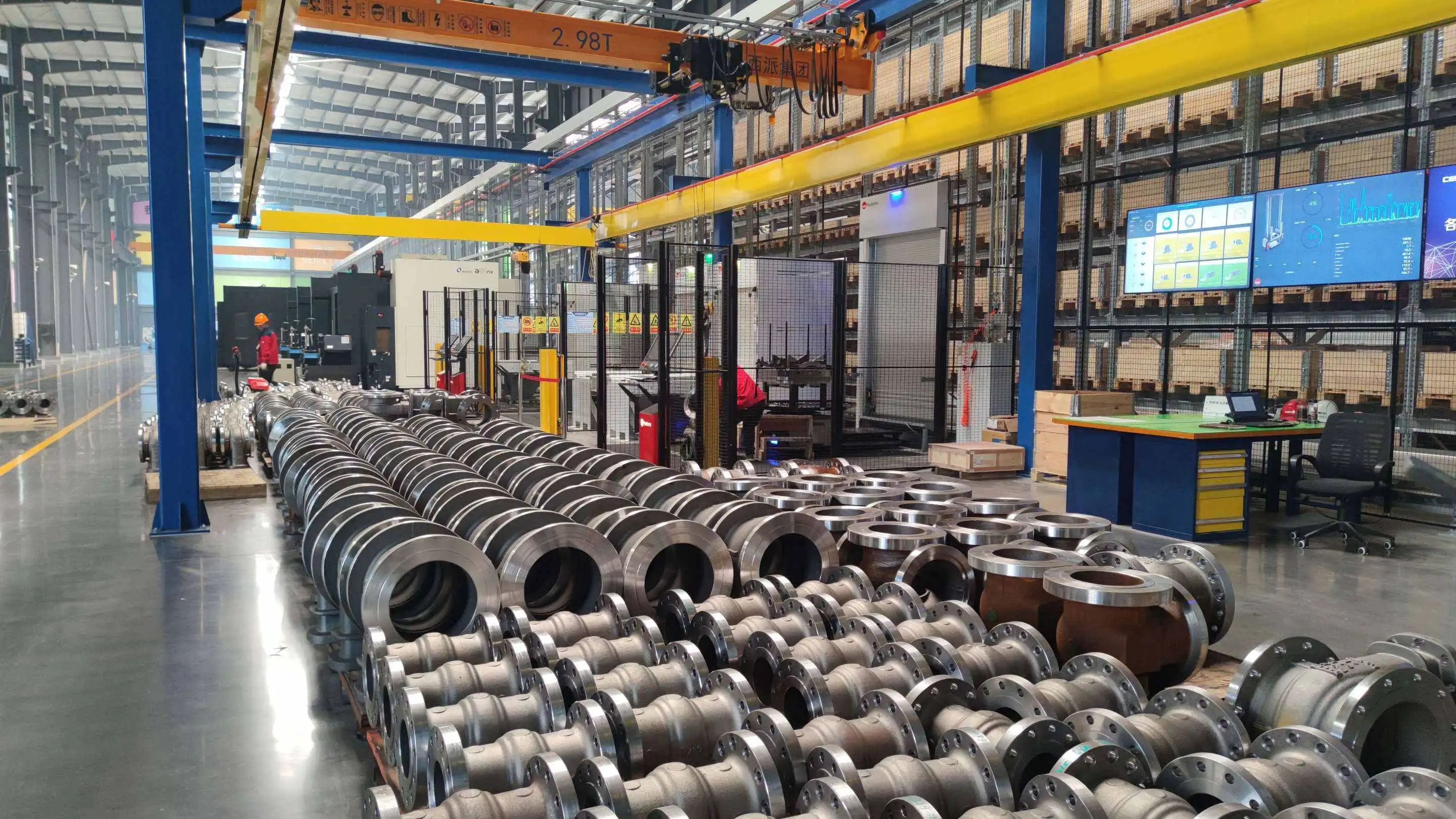

Our comprehensive product portfolio encompasses pneumatic and electric control valves designed for demanding industrial applications. Located in Jiangsu Province with 56,000 square meters of advanced manufacturing facilities, CEPAI maintains industry-leading quality standards through ISO 9001, ISO 14001, and ISO 45001 certifications alongside specialized API certifications including API 6A, API 6D, and API 16C qualifications. CEPAI electric control valves feature straight cage-type ball valve designs with nominal diameters ranging from DN15-400mm and pressure ratings including PN16, PN40, PN64, plus ANSI 150, 300, and 600 classifications. Our electric actuators operate on 220V or 380V power supplies with 4-20mA control signals, delivering precise positioning accuracy for critical process applications. Our manufacturing capabilities extend beyond electric control valves to include pneumatic control valves, ball valves, butterfly valves, and fluorine-lined valve specialties. This comprehensive range enables complete fluid control solutions tailored to specific application requirements.
Tailored Services for Global B2B Procurement Clients
Custom valve design capabilities accommodate unique application requirements through specialized materials, actuator configurations, and performance specifications. Our engineering teams collaborate with clients to optimize valve selections for specific process conditions and performance objectives. Bulk order capabilities support large-scale projects with consistent quality and delivery scheduling. Our logistics network ensures reliable global distribution with comprehensive packaging and shipping coordination to minimize delivery times and transportation risks. After-sales service programs include technical support, maintenance guidance, and spare parts availability to maximize valve operational life and minimize downtime costs. Remote monitoring capabilities enable proactive maintenance scheduling and performance optimization.
How We Support Your Valve Selection and Procurement Process?
Technical consultation services help engineers navigate complex valve selection decisions through comprehensive application analysis and performance modeling. Our experts provide sizing calculations, material recommendations, and actuator selection guidance based on specific process requirements. Quality assurance programs ensure consistent performance through rigorous testing procedures including material analysis, dimensional inspection, and functional testing. Each valve undergoes comprehensive quality verification before shipment to guarantee specification compliance. Delivery options accommodate urgent project schedules through expedited manufacturing and shipping arrangements. Standard warranty coverage provides confidence in long-term performance while comprehensive documentation supports installation and commissioning activities.
Conclusion
Selecting between pneumatic and electric control valves requires careful evaluation of process requirements, safety considerations, and operational constraints. Pneumatic actuators excel in hazardous environments and emergency applications through rapid response capabilities and intrinsic safety features. Electric actuators provide superior precision, energy efficiency, and diagnostic capabilities for demanding process control applications. CEPAI's comprehensive valve portfolio addresses diverse industrial requirements through proven technology, exceptional quality, and dedicated customer support. Making informed decisions based on total cost of ownership, performance requirements, and application-specific factors ensures optimal valve selection for long-term operational success.
Partner with CEPAI for Superior Control Valve Solutions
CEPAI delivers exceptional control valve technology backed by comprehensive engineering expertise and proven manufacturing excellence. Our electric and pneumatic actuator solutions optimize process performance while ensuring reliable operation across diverse industrial applications. With over a decade of innovation leadership and extensive API certifications, CEPAI stands ready to support your critical fluid control requirements.
As a trusted control valve manufacturer, we provide customized solutions ranging from standard configurations to specialized designs for extreme service conditions. Our global B2B clients benefit from competitive pricing, reliable delivery schedules, and comprehensive technical support throughout project lifecycles. Whether specifying pneumatic actuators for safety applications or electric systems for precision control, CEPAI technology delivers measurable performance advantages.
Experience the difference that advanced manufacturing capabilities and rigorous quality standards make in valve performance and reliability. Our technical specialists stand ready to assist with valve selection, application analysis, and custom solution development. Discover how CEPAI control valve solutions can enhance your operational efficiency while reducing total cost of ownership. Contact us at cepai@cepai.com to discuss your specific requirements and receive expert guidance for your next project.
Frequently Asked Questions
Q1: What factors most impact the choice between pneumatic and electric control valves?
A: The primary factors include process safety requirements, available utilities (compressed air vs. electrical power), required control accuracy, response time specifications, and environmental conditions. Pneumatic actuators excel in explosive atmospheres and emergency shutdown applications, while electric actuators provide superior precision and energy efficiency for modulating control applications.
Q2: How do I ensure correct valve sizing for my specific application?
A: Proper valve sizing requires accurate flow coefficient (Cv) calculations based on maximum flow rates, pressure drops, and fluid properties. Consider process conditions, including temperature, pressure, and fluid density variations. CEPAI technical specialists provide comprehensive sizing assistance using industry-standard calculation methods to ensure optimal valve performance.
Q3: What maintenance tips can help prolong control valve life and reduce downtime?
A: Regular maintenance includes periodic position calibration, actuator lubrication, and seal inspection. Electric actuators require minimal maintenance beyond gear lubrication and electrical connection verification. Pneumatic systems need air filter replacement, moisture removal, and supply pressure verification. Implementing predictive maintenance strategies through performance monitoring extends service life significantly.
References
1. Smith, J.R., "Industrial Valve Technology: Pneumatic vs Electric Actuators in Process Control Applications," Journal of Process Automation, Vol. 45, No. 3, 2023.
2. Anderson, M.K., "Control Valve Selection Criteria for Chemical Processing Industries," Chemical Engineering Progress, Vol. 118, No. 8, 2022.
3. Williams, D.A., "Energy Efficiency Analysis of Electric vs Pneumatic Valve Actuators," Industrial Automation Magazine, Vol. 29, No. 4, 2023.
4. Johnson, P.L., "Safety Considerations in Control Valve Actuator Selection for Hazardous Environments," Process Safety and Environmental Protection, Vol. 167, 2022.
5. Brown, S.T., "Total Cost of Ownership Analysis for Industrial Control Valve Systems," Plant Engineering, Vol. 77, No. 6, 2023.
6. Davis, R.M., "Advanced Diagnostics in Modern Electric Valve Actuators: Performance and Maintenance Benefits," Control Engineering, Vol. 70, No. 2, 2023.
