How to Choose Between a High-Temperature and a Low-Temperature Control Valve?

Are you facing critical decisions in your industrial process where a wrong valve selection could result in catastrophic system failures, costly downtime, or safety hazards? Choosing between a High-Temperature Control Valve and low-temperature control valve isn't just about matching specifications - it's about understanding the complex interplay between operating conditions, material compatibility, safety requirements, and long-term operational efficiency. This comprehensive guide will illuminate the critical factors that determine optimal valve selection, helping you navigate the technical challenges and avoid potentially devastating consequences of improper valve choice in temperature-sensitive applications.

Understanding High-Temperature Control Valve Applications and Requirements

High-Temperature Control Valves represent a specialized category of flow control equipment designed to operate reliably in extreme thermal conditions where conventional valves would fail catastrophically. These valves typically handle operating temperatures ranging from 400°F to over 1500°F, making them indispensable in industries such as petrochemical processing, power generation, steel manufacturing, and high-temperature chemical synthesis operations. The fundamental design philosophy behind High-Temperature Control Valve construction centers on material selection and thermal stress management. High-temperature applications demand materials that maintain their mechanical properties, corrosion resistance, and dimensional stability under extreme thermal conditions. Common materials include high-alloy steels, nickel-based superalloys, and specialized ceramic-metallic composites that can withstand thermal cycling without experiencing creep, oxidation, or thermal shock failures.

• Critical Material Considerations for Extreme Temperature Service

Material selection for High-Temperature Control Valve applications extends beyond simple temperature ratings to encompass thermal expansion coefficients, oxidation resistance, and long-term creep properties. Valve bodies constructed from materials such as 316L stainless steel, Inconel 625, or Hastelloy C-276 provide excellent high-temperature performance while maintaining corrosion resistance against aggressive chemical environments. The thermal expansion characteristics of these materials must be carefully matched with actuator components and piping systems to prevent binding, leakage, or mechanical failures during temperature transients. Seat materials represent another critical consideration, as they must maintain sealing integrity throughout temperature cycling while resisting wear and chemical attack. Advanced ceramics, stellite overlays, and specialized metal-to-metal seating arrangements provide superior performance in high-temperature service compared to traditional soft seat designs that would degrade rapidly under extreme thermal conditions.

Low-Temperature Control Valve Design and Cryogenic Applications

Low-temperature control valves serve applications where extreme cold presents unique engineering challenges, including cryogenic liquid handling, refrigeration systems, and specialized chemical processes operating below ambient temperatures. These valves typically function in temperature ranges from ambient down to -320°F (-196°C), requiring specialized design approaches to address material brittleness, thermal shock, and condensation issues. Cryogenic service demands materials that retain ductility and impact resistance at extremely low temperatures. Austenitic stainless steels such as 304L and 316L maintain excellent low-temperature properties, while specialized alloys like 9% nickel steel provide superior fracture toughness in cryogenic applications. The CEPAI low-temperature control valve utilizes advanced materials and design features specifically engineered for reliable operation in temperature ranges from -60°C to -20°C, incorporating pressure-balanced valve designs and specialized packing materials.

• Extended Bonnet Design and Insulation Strategies

Extended bonnet configurations represent a critical design element for low-temperature applications, preventing ice formation and maintaining actuator functionality by positioning temperature-sensitive components away from the cryogenic process medium. The CEPAI valve specifications indicate -40°C to -196°C extended bonnet designs that effectively isolate actuator mechanisms from extreme cold while maintaining responsive control performance. Effective insulation strategies prevent condensation and ice formation on external surfaces while minimizing heat transfer from ambient conditions to the process medium. Specialized vacuum jacketing, multilayer insulation systems, and engineered thermal barriers maintain process temperatures while preventing external condensation that could interfere with valve operation or create safety hazards in industrial environments.

Temperature Range Analysis and Material Compatibility

Temperature range determination requires comprehensive analysis of both steady-state operating conditions and transient thermal events that occur during startup, shutdown, and emergency scenarios. A High-Temperature Control Valve rated for continuous service at 800°F must accommodate occasional temperature excursions during process upsets while maintaining structural integrity and sealing performance throughout its design life. Material compatibility extends beyond simple temperature ratings to encompass thermal cycling effects, differential expansion between components, and long-term metallurgical stability. Bimetallic corrosion, carbide precipitation, and sigma phase formation represent potential failure modes in high-temperature service that require careful material selection and heat treatment protocols to prevent premature valve failures. The CEPAI product specifications demonstrate comprehensive temperature range coverage through specialized valve designs optimized for specific operating conditions. Their low-temperature control valves operate effectively in the -60°C to -20°C range while maintaining precise control characteristics and reliable sealing performance throughout extended operating cycles.

• Process Medium Characteristics and Thermal Properties

Process medium characteristics significantly influence valve selection decisions, as different fluids exhibit varying thermal properties, corrosion potential, and phase change behavior that affect valve performance. High-temperature steam service requires different design approaches compared to high-temperature liquid hydrocarbons or molten metal applications, each presenting unique challenges related to erosion, corrosion, and thermal shock. Fluid thermal properties including specific heat, thermal conductivity, and expansion coefficients determine heat transfer rates through valve components and influence thermal stress distributions during operation. These properties must be carefully considered during valve sizing and material selection to ensure long-term reliability and optimal control performance under varying operating conditions.

Actuator Selection and Control Signal Requirements

Actuator selection for temperature-extreme applications requires careful consideration of ambient operating conditions, control signal requirements, and mechanical interface compatibility with the valve assembly. High-temperature applications may subject actuators to elevated ambient temperatures that affect electronic components, while low-temperature service can impact actuator response times and mechanical performance. The CEPAI electric actuator specifications indicate 220V and 380V voltage options with 4-20mA control signals, providing precise positioning control suitable for both high and low-temperature applications. The -30°C to +70°C ambient temperature rating ensures reliable actuator performance across a wide range of installation conditions while maintaining accurate position feedback and control response characteristics.

• Signal Processing and Environmental Protection

Control signal integrity becomes critically important in temperature-extreme applications where electromagnetic interference, thermal effects, and condensation can affect signal transmission. The 4-20mA current loop standard provides excellent noise immunity and signal integrity over extended transmission distances, making it ideal for industrial temperature control applications where valve positioning accuracy directly impacts process performance. Environmental protection requirements vary significantly between high and low-temperature applications, with high-temperature service requiring heat shields and thermal barriers while cryogenic service demands condensation prevention and thermal isolation. Actuator enclosures must provide appropriate environmental protection while allowing for thermal expansion and contraction during operating cycles.

Sealing Technology and Leakage Prevention

Sealing performance represents one of the most challenging aspects of temperature-extreme valve applications, as traditional elastomeric seals lose effectiveness at temperature extremes while mechanical sealing systems must accommodate thermal expansion and contraction throughout operating cycles. High-Temperature Control Valve applications often employ metal-to-metal seating arrangements or specialized high-temperature elastomers that maintain sealing integrity under extreme thermal conditions. The CEPAI valve specifications indicate compliance with ANSI B16.104 Level IV standards for metal valve seats and Level VI performance for non-metallic seat applications, demonstrating superior leakage control appropriate for critical service applications. These leakage classifications ensure minimal process medium loss while maintaining environmental compliance and operational safety throughout extended service life.

• Packing Systems and Stem Sealing

Packing system design must accommodate stem movement while preventing process medium leakage throughout temperature cycling and operational transients. Flexible graphite packing systems provide excellent high-temperature performance while PTFE-based systems offer superior chemical compatibility in moderate temperature applications. The selection of appropriate packing materials and configurations directly impacts valve maintenance requirements and operational reliability. Advanced packing designs incorporate live-loading systems that maintain sealing force throughout thermal cycling, reducing maintenance requirements while ensuring consistent sealing performance. These systems automatically compensate for thermal expansion and packing consolidation, extending service intervals and improving overall valve reliability.

Control Characteristics and Flow Management

Control valve characteristics determine how changes in valve position affect flow rate through the valve assembly, with equal percentage and linear characteristics providing different control responses suitable for various applications. High-Temperature Control Valve applications often benefit from equal percentage characteristics that provide fine control at low flow rates while maintaining stability at higher flow conditions. The CEPAI valve design incorporates both equal percentage and linear flow characteristics, allowing optimization for specific application requirements. The pressure-balanced spool design minimizes actuator force requirements while providing stable control performance throughout the operating range, particularly important in high-pressure differential applications common in temperature-extreme service.

• Cavitation and Erosion Considerations

Cavitation and erosion phenomena become particularly problematic in temperature-extreme applications where fluid properties and pressure-temperature relationships create conditions conducive to destructive flow patterns. High-temperature applications may experience flash vaporization while low-temperature service can involve two-phase flow conditions that accelerate valve component wear through erosive mechanisms. Specialized valve trim designs incorporating anti-cavitation features help mitigate these destructive phenomena while maintaining precise control performance. Hardened trim materials, tortuous flow paths, and pressure-staging techniques reduce cavitation intensity and associated noise levels while extending valve service life in demanding applications.

Installation and Maintenance Considerations

Installation requirements for temperature-extreme control valves encompass proper piping design, thermal expansion accommodation, and accessibility for maintenance activities. High-temperature installations require careful attention to pipe stress analysis and support design to prevent thermal stress transfer to valve components, while low-temperature applications demand proper insulation and condensation management strategies. The CEPAI valve packaging specifications indicate standard shipping configurations suitable for industrial installations, with single package dimensions of 100cm x 50cm x 50cm and gross weight of 50kg representing typical handling requirements for moderate-size control valves. Proper installation planning must account for valve accessibility, actuator power connections, and instrumentation interfaces required for optimal system performance.

• Predictive Maintenance and Performance Monitoring

Modern control valve installations increasingly incorporate condition monitoring systems that provide early warning of potential problems while optimizing maintenance scheduling. Valve position feedback, actuator current monitoring, and process parameter trending enable predictive maintenance strategies that minimize unplanned downtime while ensuring optimal valve performance throughout extended service periods. Advanced diagnostic capabilities built into modern actuator systems provide detailed performance data including valve signature analysis, partial stroke testing, and trend monitoring that enable maintenance personnel to identify potential issues before they result in process disruptions or safety incidents.

Conclusion

Selecting between high-temperature and low-temperature control valves requires comprehensive analysis of operating conditions, material compatibility, and long-term performance requirements. The critical factors include temperature range, process medium characteristics, actuator requirements, sealing performance, and maintenance considerations that collectively determine optimal valve selection for specific applications.

Cooperate with CEPAI Group Co., LTD.

As a leading China High-Temperature Control Valve manufacturer and China High-Temperature Control Valve supplier, CEPAI Group Co., LTD. offers comprehensive solutions for temperature-extreme control valve applications. Established in 2009 with 200 million yuan registered capital and 56,000 square meters of manufacturing facilities, CEPAI combines advanced intelligent manufacturing capabilities with decades of specialized engineering expertise.

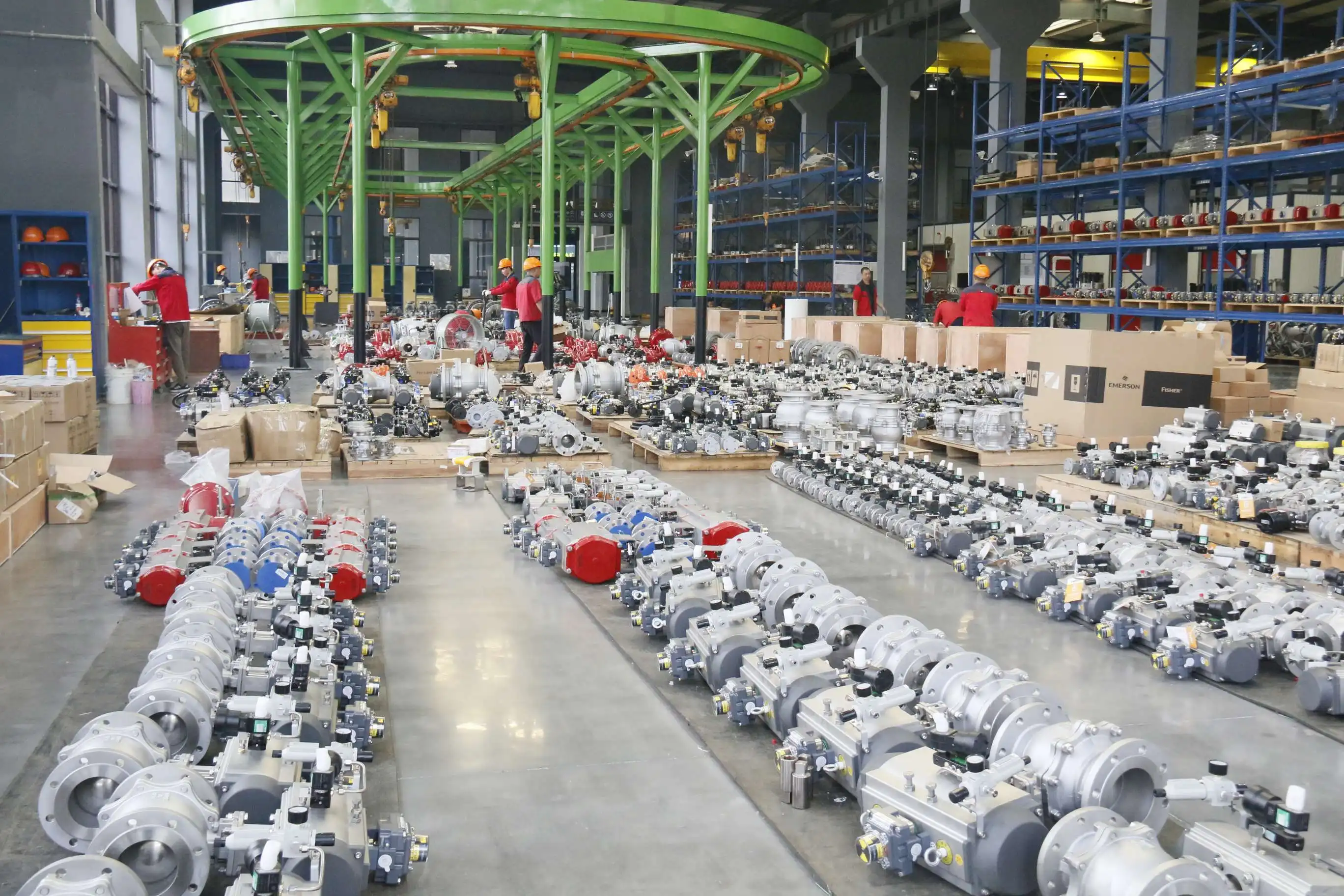

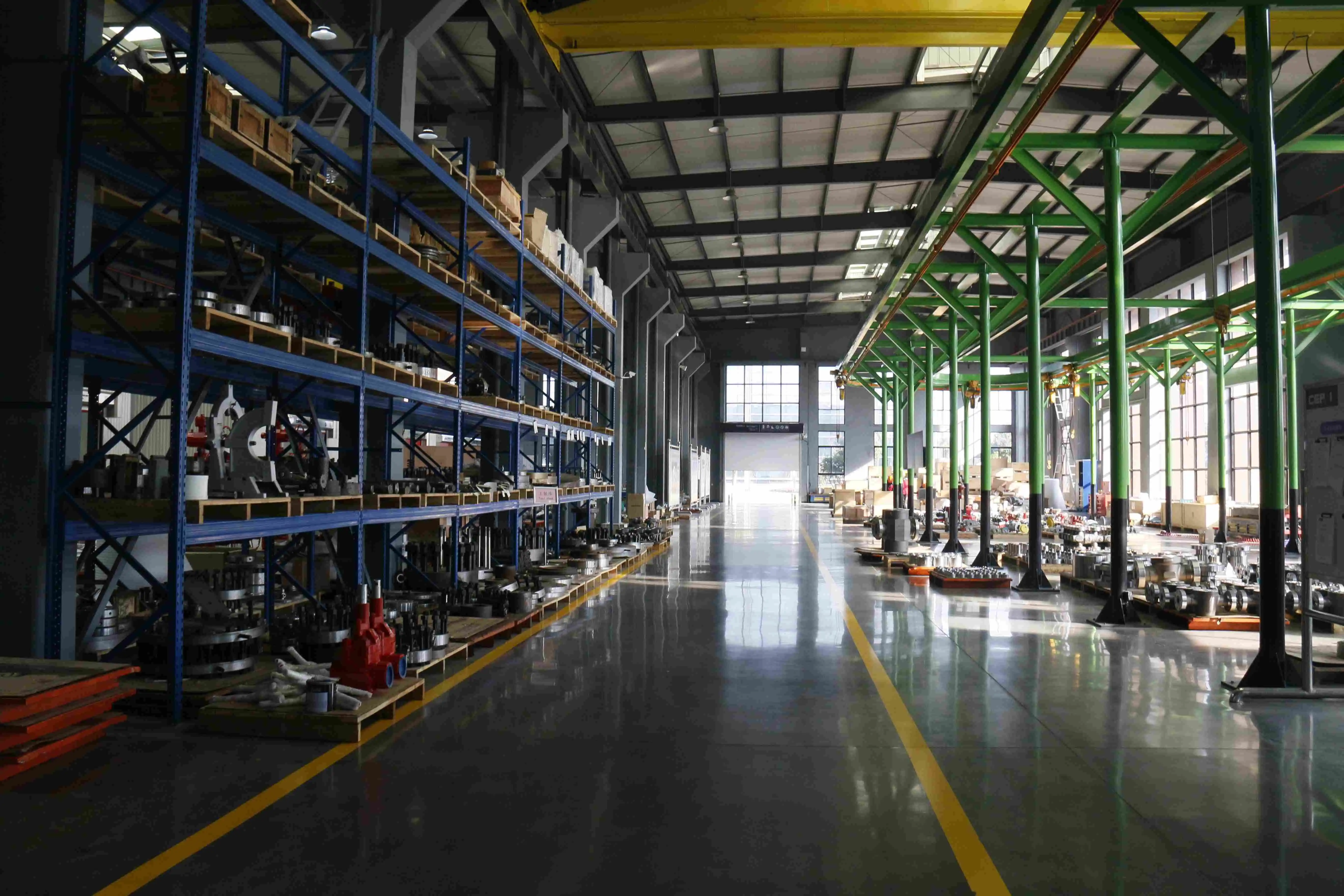

Our China High-Temperature Control Valve factory utilizes the Asia Pacific region's longest high-precision intelligent manufacturing production line, ensuring exceptional quality and precision in every valve assembly. As a national high-tech enterprise and specialized "little giant" company, CEPAI maintains comprehensive certifications including ISO 9001, API Q1, and CE marking, guaranteeing compliance with international standards.

Whether you need High-Temperature Control Valve for sale or require customized solutions for extreme temperature applications, CEPAI provides complete technical support from initial consultation through installation and ongoing maintenance. Our High Quality High-Temperature Control Valve products deliver reliable performance while our competitive High-Temperature Control Valve price ensures excellent value for industrial applications.

For expert consultation and competitive quotations on High-Temperature Control Valve wholesale opportunities, contact CEPAI today at cepai@cepai.com. Save this page for easy reference when facing temperature control challenges in your industrial processes.

FAQ

Q: What temperature range defines high-temperature vs low-temperature control valve applications?

A: High-temperature control valves typically operate above 400°F (204°C), while low-temperature valves handle applications below ambient temperature, often down to cryogenic conditions around -320°F (-196°C).

Q: How do material requirements differ between high and low-temperature control valve applications?

A: High-temperature valves require materials that resist creep, oxidation, and thermal stress, such as superalloys and high-alloy steels. Low-temperature valves need materials that maintain ductility and impact resistance, typically austenitic stainless steels.

Q: What are the key sealing challenges in temperature-extreme control valve applications?

A: High-temperature applications require metal-to-metal seating or specialized high-temperature elastomers, while low-temperature service demands materials that remain flexible and don't become brittle at cryogenic temperatures.

Q: How does actuator selection differ for high versus low-temperature control valve applications?

A: High-temperature applications may require heat shields and thermal barriers for actuators, while low-temperature service needs condensation prevention and thermal isolation to maintain proper actuator function.
