How Pneumatic Bellows Control Valves Work:Full Breakdown?

Understanding the intricate mechanisms behind pneumatic bellows control valves is essential for professionals working in industrial fluid control systems. These sophisticated devices represent a critical advancement in valve technology, combining precision engineering with reliable performance across diverse industrial applications. The fundamental operation of pneumatic bellows control valves involves a unique integration of pneumatic actuation and bellows-sealed construction, creating a leak-proof solution that maintains exceptional control accuracy. Modern Pneumatic Sleeve Control Valve designs have revolutionized how industries approach fluid regulation, offering enhanced safety features and operational efficiency that traditional valve configurations cannot match.

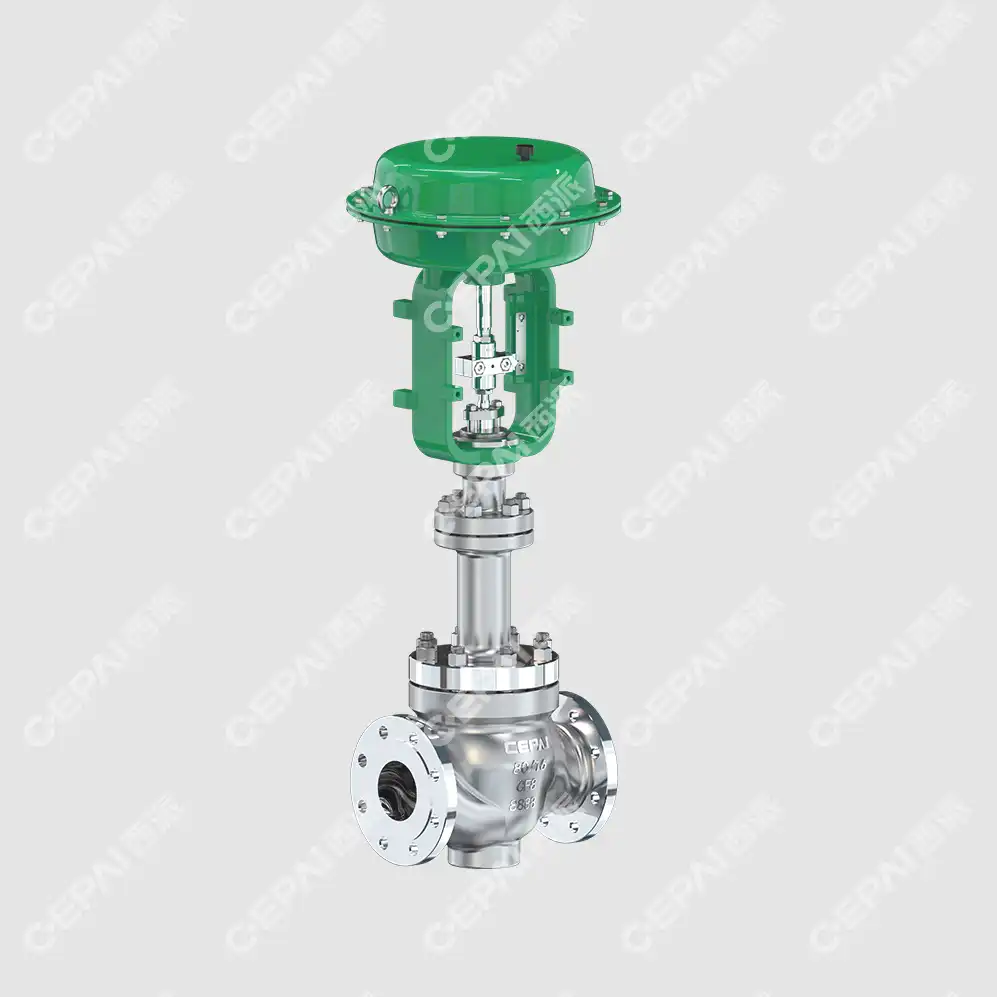

Essential Components and Operating Mechanisms

Pneumatic Actuator Configuration and Function

The pneumatic actuator serves as the driving force behind pneumatic bellows control valves, utilizing compressed air to generate precise linear motion. This diaphragm-type actuator employs ethylene-propylene rubber sandwiched with nylon, creating a robust membrane capable of withstanding pressures ranging from 140KPa to 400KPa. The spring range configuration, available in 20-100KPa, 40-200KPa, and 80-240KPa options, provides versatility for different operational requirements. The Pneumatic Sleeve Control Valve actuator operates through either air-opening (reaction) or air-closing (direct action) modes, allowing engineers to select the fail-safe position based on process safety requirements. Air supply connections utilize standard Rc1/4 and Rc3/8 fittings, ensuring compatibility with existing pneumatic infrastructure while maintaining reliable air delivery to the actuator chamber.

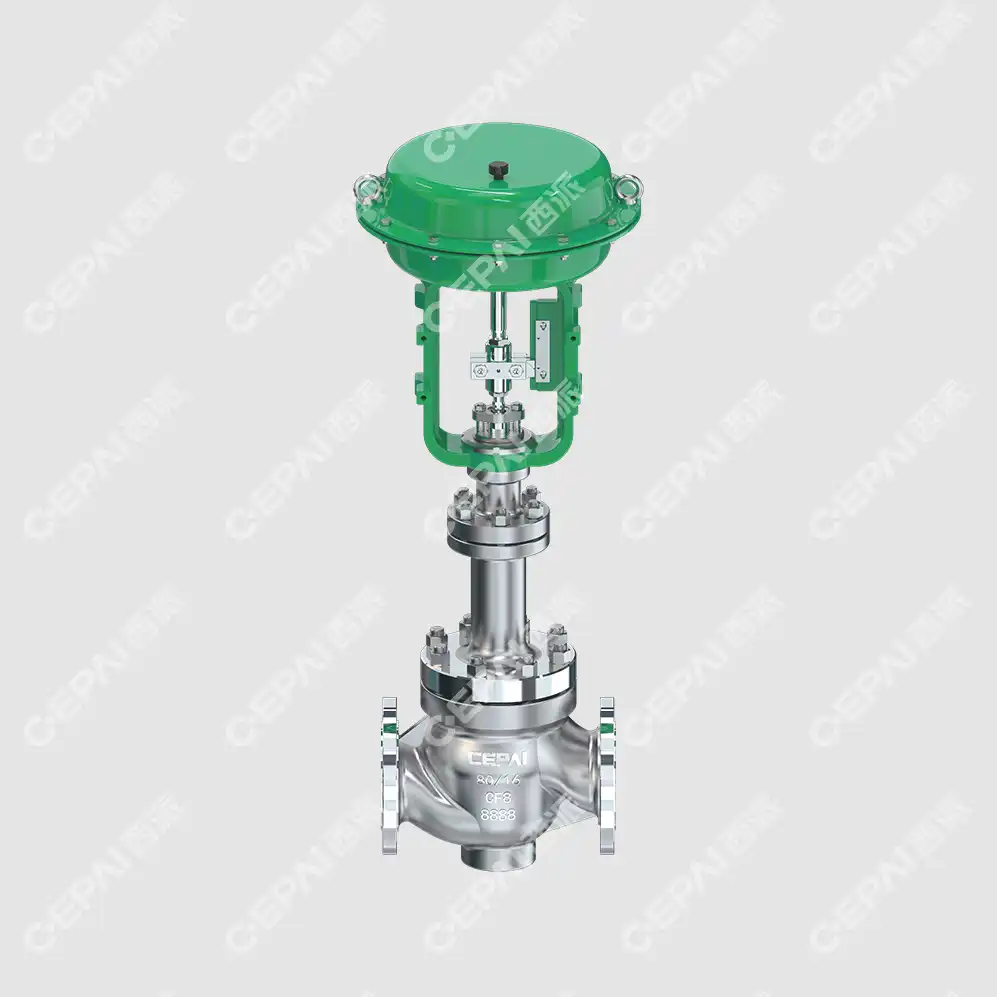

Bellows Assembly Construction and Materials

The bellows assembly represents the heart of these control valves, featuring precision-engineered metal bellows constructed from materials such as 304L, 316L, and specialized Harbin C alloy. These bellows provide complete stem isolation from the process medium, eliminating the potential for fugitive emissions that plague traditional packed valves. The bellows design accommodates thermal expansion and contraction while maintaining structural integrity across temperature ranges from -30°C to +70°C. Material selection for the bellows depends on process conditions, with 316L stainless steel offering superior corrosion resistance for aggressive chemical applications. The Pneumatic Sleeve Control Valve bellows configuration ensures zero leakage performance, meeting stringent environmental regulations and safety standards in critical process applications.

Valve Body and Internal Component Design

The valve body construction employs straight-through cage ball valve design with nominal diameters ranging from DN15 to DN400mm, accommodating diverse flow requirements across industrial applications. Body materials include WCB, WC6, WC9, LCB, LC2, LC3, CF8, and CF8M, providing options for various temperature and corrosion resistance requirements. The pressure-balanced valve core design minimizes actuator sizing requirements while ensuring stable control performance across varying differential pressures. Internal materials featuring 304, 316, and specialized cladding configurations offer enhanced durability and chemical compatibility. The Pneumatic Sleeve Control Valve internal design incorporates PTFE V-shaped packing and flexible graphite sealing arrangements, providing reliable sealing performance while accommodating thermal cycling and mechanical wear over extended service periods.

Technical Specifications and Performance Parameters

Pressure Rating and Flow Characteristics

The pneumatic bellows control valves operate across nominal pressure ratings of PN16, PN40, PN64, and ANSI Class 150, 300, 600, providing flexibility for various system pressure requirements. Flow characteristics are available in equal percentage, linear, and quick opening configurations, allowing precise matching to specific process control requirements. The equal percentage characteristic provides enhanced control stability at low flow rates, while linear characteristics offer proportional flow response across the entire valve travel range. Quick opening characteristics deliver maximum flow capacity for applications requiring rapid system response. The Pneumatic Sleeve Control Valve design ensures consistent flow coefficient (Cv) values across the operating range, maintaining predictable performance under varying process conditions and enabling accurate process modeling and control system tuning.

Temperature and Environmental Operating Conditions

These control valves operate effectively across standard temperature ranges from -17°C to +230°C, with specialized configurations available for extreme temperature applications. Environmental operating conditions accommodate ambient temperatures from -30°C to +70°C, ensuring reliable actuator performance in diverse installation environments. The valve body materials and internal components are selected to maintain mechanical properties and dimensional stability across the specified temperature range. Special consideration for low-temperature applications below -30°C requires consultation with technical specialists to ensure proper material selection and actuator configuration. The Pneumatic Sleeve Control Valve construction incorporates thermal barrier features and specialized sealing arrangements to maintain performance integrity under thermal cycling conditions common in process industry applications.

Leakage Performance and Safety Standards

Leakage performance meets stringent industry standards, with metal valve seats conforming to ANSI B16.104 Level IV requirements and non-metallic seats achieving ANSI B16.104 Class VI zero leakage performance. The bellows-sealed construction eliminates stem leakage completely, providing environmental protection and process safety beyond traditional packed valve designs. Safety integrity level (SIL) certifications for butterfly, ball, and control valve configurations ensure compliance with functional safety standards in critical process applications. The zero-emission design supports environmental compliance initiatives and reduces maintenance requirements associated with packing adjustments and replacements. The Pneumatic Sleeve Control Valve safety features include fail-safe actuator positioning, overpressure protection, and emergency shutdown capabilities, providing multiple layers of process protection and operational safety assurance.

​​​​​​​

Industrial Applications and System Integration

Process Industry Applications and Requirements

Pneumatic bellows control valves find extensive application in chemical processing, petroleum refining, power generation, and pharmaceutical manufacturing industries. These applications demand precise flow control, zero emissions, and reliable performance under challenging process conditions. Chemical processing applications utilize the corrosion-resistant materials and zero-leakage design to handle aggressive chemicals safely while maintaining process control accuracy. Petroleum refining operations benefit from the fire-safe design and emergency shutdown capabilities essential for hydrocarbon processing safety. Power generation applications require the high-temperature capabilities and rapid response characteristics for steam and feedwater control systems. The Pneumatic Sleeve Control Valve design accommodates the stringent purity requirements of pharmaceutical applications while providing the control precision necessary for batch processing operations and continuous manufacturing processes.

Automation System Integration and Control Strategies

Modern automation systems require seamless integration of control valves with distributed control systems (DCS) and programmable logic controllers (PLC). The pneumatic bellows control valves integrate with standard 4-20mA control signals through electro-pneumatic positioners, providing precise valve positioning and feedback capabilities. Smart positioner technology enables advanced diagnostic capabilities, including valve signature analysis, partial stroke testing, and predictive maintenance scheduling. Communication protocols such as HART, Foundation Fieldbus, and Profibus support comprehensive asset management and process optimization strategies. The Pneumatic Sleeve Control Valve integration capabilities include remote monitoring, performance trending, and automated calibration features that enhance operational efficiency and reduce maintenance costs while improving overall system reliability and process control performance.

Maintenance Strategies and Service Life Optimization

Effective maintenance strategies for pneumatic bellows control valves focus on preventive measures and condition-based monitoring to maximize service life and reliability. The bellows-sealed design eliminates packing maintenance requirements while reducing the frequency of internal component replacements. Regular inspection of actuator diaphragms, spring assemblies, and air supply systems ensures consistent performance and prevents unexpected failures. Predictive maintenance techniques utilizing vibration analysis, thermal imaging, and performance trending identify potential issues before they impact process operations. The Pneumatic Sleeve Control Valve maintenance program includes comprehensive documentation of operating conditions, performance parameters, and component replacement histories to optimize maintenance scheduling and component selection. Training programs for maintenance personnel ensure proper procedures and safety protocols are followed during valve servicing and emergency response situations.

Conclusion

Pneumatic bellows control valves represent a significant advancement in industrial flow control technology, offering unparalleled performance through their unique combination of bellows sealing and pneumatic actuation. The comprehensive technical specifications, diverse material options, and advanced safety features make these valves ideal for critical process applications where reliability and environmental protection are paramount. Their ability to provide zero-emission operation while maintaining precise control accuracy addresses both regulatory requirements and operational excellence objectives across multiple industries.

Ready to experience the superior performance of CEPAI's Pneumatic Sleeve Control Valve solutions? Our expert engineering team stands ready to provide customized valve solutions tailored to your specific process requirements. With our comprehensive pre-sales technical consultation, customized design services, and complete after-sales support, we ensure optimal valve performance throughout your system's operational life. Our ISO quality management system guarantees that every valve meets the highest international standards, backed by our commitment to zero defects and customer satisfaction. Contact us today at cepai@cepai.com to discuss your pneumatic bellows control valve requirements and discover how CEPAI's innovative solutions can enhance your process control capabilities while ensuring environmental compliance and operational safety.
