How Does a Pneumatic Low Temperature Flow Control Valve Work?

Cryogenic and sub-zero processes drive flow control equipment well beyond the typical valve, and this is precisely why a Pneumatic Low Temperature Flow Control Valve is a separate technical category and not just another variant of general-purpose designs. This sort of valve must retain sealing integrity and control precision from liquefied natural gas terminals to industrial refrigeration systems, even when temperatures plummet far below freezing and metals, seals, and lubricants act quite differently from the way they do at ambient temperature. At CEPAI Group, we have decades of valve engineering experience applied to this specialised product category. In this article, we will walk through exactly how a Pneumatic Low Temperature Flow Control Valve is built, how its pneumatic actuation works in extreme cold, what materials make cryogenic performance possible, where it gets used across industry, and what to check before purchasing one.

What Is a Pneumatic Low-Temperature Flow Control Valve?

​​​​​​​

Before getting into the mechanics, it is worth defining precisely what makes a valve a true low-temperature valve and not simply a marketing name on a common design.

Definition and Core Purpose

A Pneumatic Low Temperature Flow Control Valve is a control valve designed and built particularly to regulate the flow of cryogenic or sub-zero fluids, utilising compressed air to drive the valve stem and control the flow accurately throughout a wide variety of operating conditions. The main objective is to control low-temperature fluids with accuracy without compromising the efficiency of production, product quality, and, most importantly, the safety and stability of the industrial process it supports. Unlike valves modified on an informal basis for cold duty, a professionally developed Pneumatic Low Temperature Flow Control Valve addresses the whole spectrum of thermal, mechanical, and sealing issues imposed by severe cold from the very beginning of the design process.

How It Differs from General-Purpose Control Valves

The main difference between a Pneumatic Low Temperature Flow Control Valve and a general-use control valve is in the way each accommodates the behaviour of metals, seals, and lubricants at very low temperatures. Cold circumstances tend to make standard materials brittle or cause them to lose their sealing qualities altogether, so a typical valve merely marked "suitable for cold service" without further material testing will typically fail prematurely. A true Pneumatic Low Temperature Flow Control Valve is designed from the bottom up with materials and shape that are specially chosen to prevent these failure scenarios.

Key Design Considerations for Cryogenic Service

When designing a Pneumatic Low Temperature Flow Control Valve, thermal contraction effects, material brittleness at sub-zero temperatures, and the requirement to separate sensitive actuator components from the coldest areas of the process must be considered. All of these concerns influence practically every aspect of the valve, from bonnet length to seal material selection, and set apart a well-engineered cryogenic valve from a generic design that just tolerates freezing temperatures for short or infrequent exposure instead of continuous cryogenic service.

Design Aspect	General-Purpose Control Valve	Pneumatic Low Temperature Flow Control Valve
Bonnet design	Standard length	Extended bonnet to isolate actuator
Trim material	General alloy steel	Austenitic stainless steel
Seal behavior at extreme cold	Risk of brittleness	Engineered cryogenic-rated seals

The Working Principle: How Pneumatic Actuation Drives the Valve

A better understanding of the actuation system itself helps explain why pneumatic power is especially well suited to cryogenic flow control applications.

Compressed Air Actuation Mechanism

The pneumatic low-temperature flow control valve employs the compressed air supplied to the actuator to provide the mechanical force required to move the valve stem. The change in the control signal causes a change in air pressure in the chamber of the actuator. This causes a diaphragm or piston to move, which results in linear or rotational motion at the stem. The Pneumatic Low Temperature Flow Control Valve uses a compressed air-powered mechanism that delivers dependable and repeatable actuation force independent of electrical components, working well in the cold, immediate area of the cryogenic operation.

Stem and Plug Movement for Flow Modulation

As the actuator starts to move the stem, that movement is transferred all the way down to the valve plug. The flow is controlled by changing the position of the valve plug in relation to the valve seat. In a Pneumatic Low Temperature Flow Control Valve, this stem-to-plug connection is often made via an expanded bonnet to keep the coldest process temperatures away from the actuator and packing components above. This physical separation is crucial, as the high cold might soon damage control precision and long-term dependability in typical actuator seals or lubricants.

Why Pneumatic Actuation Suits Extreme Cold

Compressed air systems continue to operate at severe temperatures when electric motors and their accompanying electronics may have problems with condensation, freezing moisture, or the brittleness of exposed wire and components. In a truly cryogenic environment, this is one of the main reasons a Pneumatic Low Temperature Flow Control Valve prefers air-driven actuation over electric options. The pneumatic supply system, properly designed with dried and conditioned air, keeps on providing consistent actuation force even as the process fluid itself is at temperatures as low as -253°C in extreme LNG or liquid nitrogen applications.

Materials and Construction That Enable Low-Temperature Performance

This actuation mechanism is only functional if the surrounding material and structure can withstand extended exposure to cryogenic temperatures without collapse.

Extended Bonnet Design

An expanded bonnet is a key structural element of the Pneumatic Low Temperature Flow Control Valve that isolates the actuator and stem packing from the cryogenic fluid within the valve body. The longer length permits a natural temperature gradient to form along the bonnet, insulating the standard temperature components above from the intense cold below. Without this feature, a traditional control valve would leave its actuator and packing directly exposed to the cryogenic environment, which would soon lead to seal failure and loss of control precision.

Cryogenic-Rated Trim and Seals

The internal trim and seal materials used in a Pneumatic Low Temperature Flow Control Valve must be specially certified for cryogenic use as regular elastomers and common alloy trim might break, shrink, or lose sealing efficacy once temperatures drop deep below freezing. The Pneumatic Low Temperature Flow Control Valve provides leak-tight sealing and precise flow control by employing proprietary seal compounds and precisely engineered trim clearances, which compensate for thermal contraction over the entire range of the process fluid cycle from ambient conditions to cryogenic conditions during start-up and shut-down.

Austenitic Stainless Steel and Brittle Fracture Resistance

Austenitic stainless steel is a popular option for a Pneumatic Low Temperature Flow Control Valve as many carbon steels become brittle at very low temperatures, and austenitic stainless steel resists brittle fracture behaviour. Standard carbon steel may lose ductility and be prone to rapid breaking under stress when the temperature falls far below freezing. So material selection is a real safety concern, not just a matter of performance. The whole pressure-retaining parts are made from austenitic grades to guarantee the structural integrity of the valve in the entire working temperature range.

Sealing and Control Accuracy at Sub-Zero Temperatures

Beyond surviving cold exposure structurally, a Pneumatic Low Temperature Flow Control Valve also has to keep performing its actual job — sealing tightly and controlling flow accurately — throughout sustained cryogenic operation.

Maintaining Leak-Tight Sealing in Cryogenic Conditions

Achieving reliable sealing at cryogenic temperatures requires seal materials and geometries engineered specifically for the contraction and stiffening that occur as temperature drops. A well-designed Pneumatic Low Temperature Flow Control Valve accounts for this behavior in its seat and seal design, maintaining consistent contact pressure even as materials shrink slightly under extreme cold. Failing to account for this contraction is one of the most common reasons a standard valve, even one built from reasonably cold-tolerant materials, still leaks once placed into genuine cryogenic service.

Flow Control Precision Under Thermal Contraction

Thermal contraction doesn't just affect sealing — it can also shift the precise geometry of the flow path itself, which is why a Pneumatic Low Temperature Flow Control Valve is engineered with tolerances that account for this dimensional change across its operating temperature range. Without this careful engineering, flow coefficient values calibrated at ambient temperature could drift once the valve reaches full cryogenic operating conditions, undermining the process control accuracy the valve is meant to provide in applications like LNG regasification or industrial gas processing.

Preventing Ice Formation and Contamination

External ice formation around a valve operating in cryogenic service can interfere with actuator movement and create inspection or maintenance hazards, so a properly engineered Pneumatic Low Temperature Flow Control Valve often incorporates design features intended to manage this risk, such as insulation or careful bonnet configuration. Internally, contamination from moisture or particulates becomes especially problematic at cryogenic temperatures, since even small amounts of moisture can freeze and interfere with precise flow modulation, making clean, dry process conditions and proper filtration important companions to good valve design.

Sub-Zero Challenge	Design Response in a Pneumatic Low-Temperature Flow Control Valve
Seal contraction	Engineered seat/seal geometry and materials
Flow path dimensional shift	Tolerances calculated for cryogenic operation
External ice formation	Insulation and bonnet configuration

Where Pneumatic Low Temperature Flow Control Valves Are Used

Understanding real-world applications helps clarify why this level of specialized engineering is genuinely necessary rather than simply a marketing distinction.

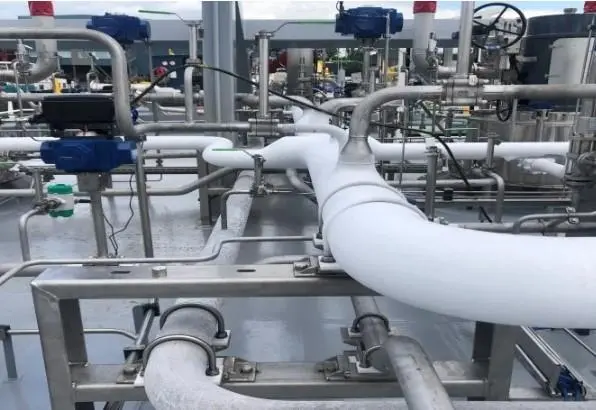

LNG Storage and Regasification Terminals

Liquefied natural gas storage and regasification facilities depend heavily on a Pneumatic Low Temperature Flow Control Valve to regulate flow as LNG moves between storage, vaporization, and distribution stages. These processes operate at extremely low temperatures continuously, making reliable, accurate flow control absolutely essential both for operational efficiency and for preventing dangerous pressure or temperature excursions within the system during normal operation and during transient conditions like startup or emergency shutdown.

Industrial Refrigeration Systems

Large-scale industrial refrigeration systems, used across food processing, cold storage, and various manufacturing sectors, rely on a Pneumatic Low Temperature Flow Control Valve to precisely manage refrigerant flow under sustained sub-zero conditions. Consistent, accurate control in these systems directly affects energy efficiency and product quality, particularly in food-grade cold chain applications where temperature stability has direct regulatory and safety implications throughout the storage and distribution process.

Liquid Nitrogen and Industrial Gas Handling

Facilities handling liquid nitrogen and other industrial gases at cryogenic temperatures also depend on a Pneumatic Low Temperature Flow Control Valve to maintain precise, safe flow regulation throughout their processes. Because these gases often support critical applications such as medical, laboratory, or specialized manufacturing processes, the reliability and accuracy of the valve controlling their flow have consequences that extend well beyond the immediate industrial facility itself.

What to Look for When Selecting a Pneumatic Low-Temperature Flow Control Valve

When selecting the proper valve for a true cryogenic application, there are a number of essential parameters to be confirmed before engaging a provider or product.

Temperature Rating and Material Verification

Buyers are advised to validate the exact minimum working temperature for which a Pneumatic Low Temperature Flow Control Valve has been rated and documented material test data that supports that rating, rather than taking broad marketing claims of cold-service capability at face value. Extended bonnet length, trim material certification, and seal compound parameters should be given great attention. A standard control valve, merely marked cryogenic-rated, without the verification of these design details, is not likely to be reliable in actual sub-zero use.

Certification and Manufacturer Experience

A failure in cryogenic service can have serious safety and financial consequences. So, working with a manufacturer that has recognised certifications such as API6D, API602, ISO9001 and CE marking, and has the backing of a CNAS-accredited testing laboratory, provides meaningful assurance that a Pneumatic Low Temperature Flow Control Valve has been properly designed and independently verified, rather than simply assembled from generic components without adequate cryogenic testing.

Customization for Unique Process Conditions

Many applications for cryogenic use have special criteria for pressure, temperature, or chemical compatibility that are not entirely satisfied by typical catalogue configurations. Offering the ability to customise a Pneumatic Low Temperature Flow Control Valve to these specific conditions, a manufacturer with proven fluid control engineering research capability can customise bonnet length, trim material and seal selection to the exact requirements of your LNG, refrigeration or industrial gas application, rather than having to adapt a generic product to a specialised need.

Conclusion

A Pneumatic Low Temperature Flow Control Valve offers accurate, leak-proof flow control down to -253°C using cryogenic-certified materials and long bonnet construction with compressed air actuation. With decades of fluid control engineering expertise and laboratory testing certified to APIQ1, API6D, ISO9001, and CNAS, CEPAI Group is able to provide dependable valves to LNG, industrial gas, and refrigeration applications across the globe. PetroChina, Sinopec, and CNOOC supplier credentials, and our staff are ready to assist you in specifying the correct cryogenic solution. We will discuss your project needs together. Contact us at sales@cepai.com today to discuss your project and receive a tailored technical recommendation.

FAQ

Q1: What temperature range can a Pneumatic Low Temperature Flow Control Valve handle?

Depending on the design, these valves can operate reliably down to temperatures as low as -253°C in extreme cryogenic applications.

Q2: Why is an extended bonnet used in this valve type?

It separates the actuator and packing from the cryogenic fluid, protecting standard-temperature components from extreme cold exposure.

Q3: Why is pneumatic actuation preferred over electric actuation for cryogenic service?

Compressed air systems remain functional in extreme cold, avoiding the condensation and brittleness risks that can affect electric components.

Q4: What materials are commonly used in the trim and body?

Austenitic stainless steel and cryogenic-rated seal compounds are common choices to resist brittle fracture and maintain sealing.

Q5: Can CEPAI customize a valve for specific cryogenic process conditions?

Yes, we tailor bonnet length, trim material, and seal selection to match specific LNG, refrigeration, or industrial gas requirements.
