What are the main four functions of a control valve?

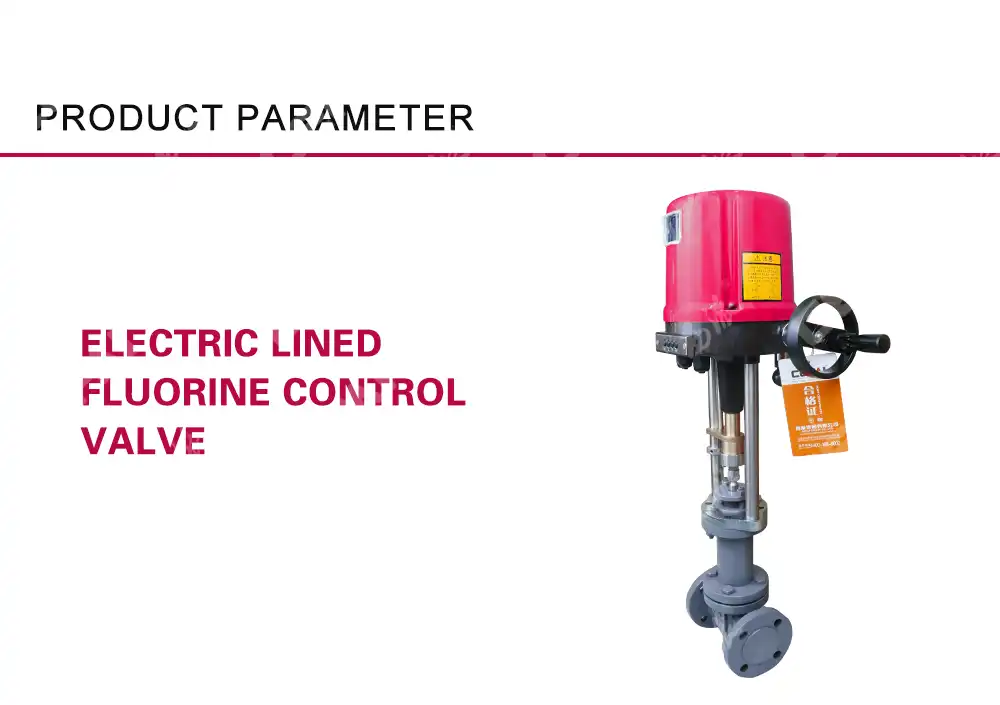

are critical components in industrial process systems, serving as the final control element in fluid control loops. These sophisticated devices are designed to manipulate flow rates of liquids or gases to maintain process variables at desired setpoints. Control Valves perform four essential functions that make them indispensable in various industries: flow regulation, pressure control, level management, and temperature regulation. Each function plays a vital role in ensuring efficient and safe operation of industrial processes, from oil and gas production to chemical manufacturing, power generation, and water treatment. Understanding these core functions is essential for engineers and technical professionals seeking to optimize their fluid control systems.

Flow Regulation: The Primary Function of Control Valves

Precise Flow Modulation Capabilities

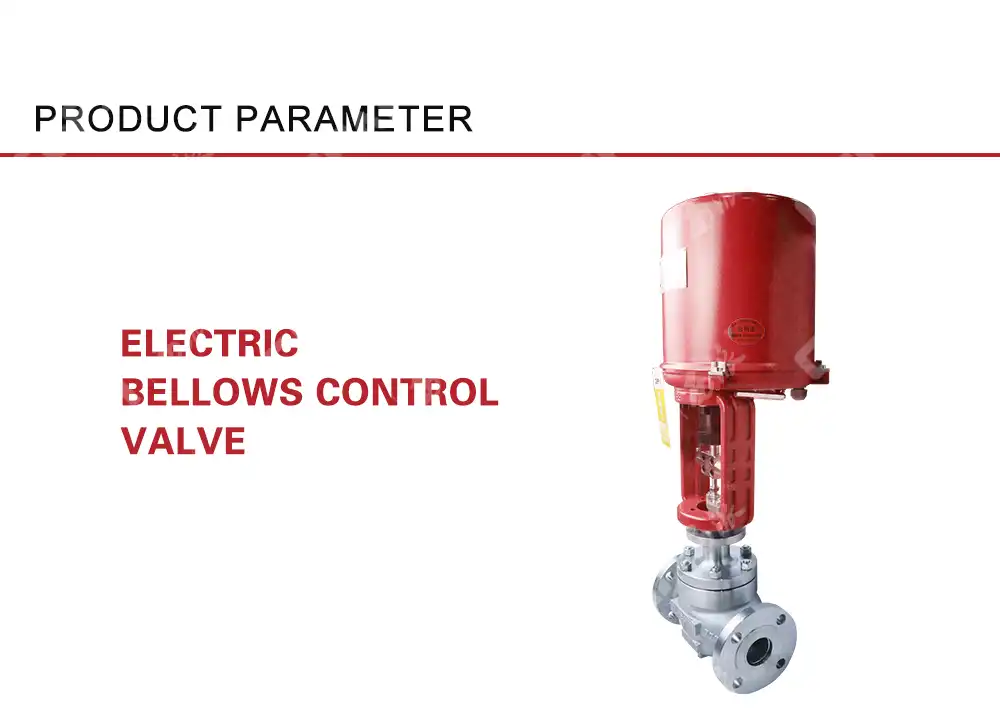

The foremost function of Control Valves is precise flow regulation, which is achieved through sophisticated mechanisms that adjust the valve opening in response to control signals. Control Valves utilize various technologies to ensure accurate flow control, including linear and rotary actuators that can position the valve trim with remarkable precision. Advanced Control Valves, like those manufactured by CEPAI Group, incorporate high-performance positioners that can respond to incremental signal changes as small as 0.1%, allowing for exceptional resolution in flow management. This precision is particularly crucial in processes where even minor flow variations can significantly impact product quality or process efficiency. The ability to maintain consistent flow rates despite upstream pressure fluctuations is what distinguishes high-quality Control Valves from standard shut-off valves, making them essential components in applications requiring stringent flow regulation such as catalyst injection, chemical dosing, and blending operations.

Dynamic Response to System Demands

Control Valves excel at responding dynamically to changing system demands, a capability that's increasingly important in modern industrial environments where process conditions frequently fluctuate. When integrated with process control systems, Control Valves can automatically adjust their position based on real-time feedback from flow meters, pressure transmitters, or other process instruments. This closed-loop control allows for rapid response to disturbances, maintaining process stability even under challenging conditions. CEPAI's intelligent Control Valves feature fast-response actuators and advanced digital positioners that minimize dead time and hysteresis, enabling response times as fast as 0.5 seconds for full stroke operation. This dynamic responsiveness is crucial in critical applications such as emergency shutdown systems, where Control Valves must rapidly achieve their fail-safe position to prevent equipment damage or safety incidents. The ability to smoothly transition between operating points without causing water hammer or other hydraulic transients further demonstrates the sophisticated flow regulation capabilities of modern Control Valves.

Flow Characteristic Engineering

Control Valves can be engineered with specific flow characteristics tailored to process requirements, enhancing their flow regulation function across varying operating conditions. These characteristics—linear, equal percentage, or quick opening—determine the relationship between valve stroke position and flow capacity. Control Valves with linear characteristics provide uniform flow increment for each unit of valve travel, ideal for level control applications where process gain remains constant. Equal percentage characteristics, where each increment of valve stroke produces a flow change proportional to the flow just before the change, are preferred for pressure and temperature control loops where process gain varies with load. CEPAI's Control Valves feature interchangeable trim designs that allow engineers to select the optimal flow characteristic for specific applications, improving control stability and reducing process variability. Furthermore, custom-engineered trims can address challenging flow conditions such as high-pressure drops, cavitation, and noise, extending valve life while maintaining precise flow regulation. This capability to engineer specific flow behaviors represents a significant advancement over basic valves and contributes to the overall efficiency and effectiveness of industrial processes.

Pressure Control: Ensuring System Stability and Safety

Upstream Pressure Reduction and Regulation

A critical function of Control Valves is managing pressure differentials across industrial systems, particularly in high-pressure environments where controlled pressure reduction is essential. Control Valves accomplish this by creating a variable restriction that dissipates energy and reduces pressure to manageable levels for downstream equipment. In high-pressure applications, special anti-cavitation and low-noise trim designs prevent damage from cavitation and excessive noise that can occur during pressure reduction. CEPAI Group specializes in manufacturing severe service Control Valves capable of handling pressure drops exceeding 300 bar while maintaining precise control and extended service life. These valves incorporate hardened materials, multi-stage pressure reduction trims, and optimized flow paths that distribute pressure reduction across multiple points, preventing localized damage and ensuring stable operation. The ability to reliably reduce pressure while maintaining control is particularly valuable in natural gas processing, steam systems, and high-pressure water applications where uncontrolled pressure can lead to significant equipment damage or safety hazards.

Back Pressure Control and System Protection

Control Valves serve an equally important role in maintaining minimum required pressures in upstream systems, a function known as back pressure control. This capability protects equipment that requires minimum operating pressures, such as pumps that might experience cavitation or boilers that need specific pressure for efficient steam generation. Control Valves configured for back pressure control open only when upstream pressure exceeds the setpoint, effectively functioning as intelligent relief devices that maintain process integrity. CEPAI's back pressure Control Valves feature specialized pilot-operated designs that provide exceptional pressure stability with minimal overshoot, maintaining upstream pressures within ±1% of setpoint despite varying flow conditions. These valves often incorporate pilot systems that amplify sensing capabilities while maintaining rapid response characteristics. The pressure-control function of Control Valves extends beyond simple relief valve functionality by providing modulating control that maintains precise pressure levels rather than simply preventing system overpressure, making them ideal for applications requiring tight pressure regulation such as compressor recycle loops, pump protection systems, and steam header pressure control.

Pressure Differential Maintenance for Process Optimization

Advanced Control Valves maintain specific pressure differentials across system components to optimize process efficiency and equipment performance. This sophisticated pressure control function is particularly important in applications like filtration systems, heat exchangers, and chemical reactors where specific pressure drops are required for optimal operation. Control Valves equipped with differential pressure controllers can automatically adjust their position to maintain the required pressure drop regardless of flow rate variations or changes in system conditions. CEPAI's intelligent Control Valves integrate differential pressure sensing with advanced control algorithms to provide stable pressure differential control even in challenging applications with wide turndown requirements or frequent disturbances. These valves can be programmed with multiple operating profiles to accommodate different process modes or production rates, ensuring consistent performance across various operating conditions. The ability to maintain precise pressure differentials contributes significantly to energy efficiency by preventing excessive throttling, optimizing pump and compressor operation, and ensuring that system components operate within their design parameters. This level of pressure control sophistication illustrates why advanced Control Valves are essential components in modern industrial processes seeking to maximize efficiency and reliability.

Level Control: Maintaining Process Stability

Precise Liquid Level Regulation

Control Valves play a fundamental role in maintaining liquid levels in tanks, vessels, and separators across various industrial processes. These valves respond to level measurement signals by adjusting flow rates into or out of vessels, ensuring that liquid levels remain within operational limits. Control Valves in level control applications must provide stable, precise response to avoid hunting or oscillation that could disrupt process stability. CEPAI's level control valve solutions incorporate specialized trims and actuator configurations designed to handle the specific challenges of level control loops, including the need for high rangeability to accommodate varying process flows and the ability to handle two-phase flow conditions often encountered in level control applications. High-performance positioners with adaptive control algorithms compensate for varying process conditions, friction, and deadband, delivering positioning accuracy within ±0.25% of setpoint. This precision is particularly important in interface level control applications, such as oil-water separation, where maintaining clean separation boundaries directly impacts product quality and environmental compliance. The level control function of Control Valves extends beyond simple on-off control, providing the modulating capability necessary to maintain stable levels despite variations in inflow or outflow rates.

Buffer Volume Management

Control Valves manage buffer volumes within process systems, a critical function that ensures continuous operation despite fluctuations in upstream or downstream processes. By regulating flow rates into and out of buffer tanks, Control Valves help balance production rates between interconnected processes that may operate at different capacities or experience periodic interruptions. This function is particularly important in batch processing operations where maintaining adequate buffer volumes prevents downstream starvation or upstream backup. CEPAI's Control Valves for buffer management applications feature specialized characterization that provides fine control at critical level points while allowing faster response when levels approach operational limits. These valves often incorporate split-range control strategies, where multiple Control Valves work in coordination to handle normal variations while providing additional capacity during upset conditions. The ability to maintain appropriate buffer volumes enhances overall plant reliability by isolating disturbances and preventing them from propagating throughout the system. Control Valves in these applications must respond predictably across wide operating ranges, as buffer tanks may experience significant level variations during normal operation. CEPAI's high-rangeability valves, with turndown ratios exceeding 100:1, ensure accurate control throughout the entire operating range, maximizing process stability and equipment utilization.

Preventing Process Upsets Through Level Stability

Advanced Control Valves maintain system stability by preventing process upsets related to level variations, protecting both upstream and downstream equipment. Control Valves in level control applications must respond appropriately to both normal and abnormal conditions, providing smooth control during routine operation while offering fast response during potential overflow or dry-running scenarios. CEPAI Group's Control Valves incorporate fail-safe designs that automatically move to predetermined positions upon loss of control signal or actuator power, preventing tank overflow or pump damage due to low levels. Multi-variable control strategies, where Control Valves consider both level measurements and rate-of-change information, provide anticipatory response that prevents level excursions before they become problematic. This proactive control approach is particularly valuable in critical applications such as boiler drum level control, where maintaining proper water levels is essential for safe operation. The level stability provided by properly selected and configured Control Valves contributes significantly to process safety, equipment longevity, and product quality by eliminating the stress and variations associated with unstable level control. CEPAI's engineering team provides comprehensive support for level control applications, including dynamic simulation services that predict valve performance under various operating scenarios, ensuring optimal valve selection and configuration for stable level control in even the most challenging applications.

Temperature Regulation: Optimizing Thermal Processes

Heat Transfer Medium Control

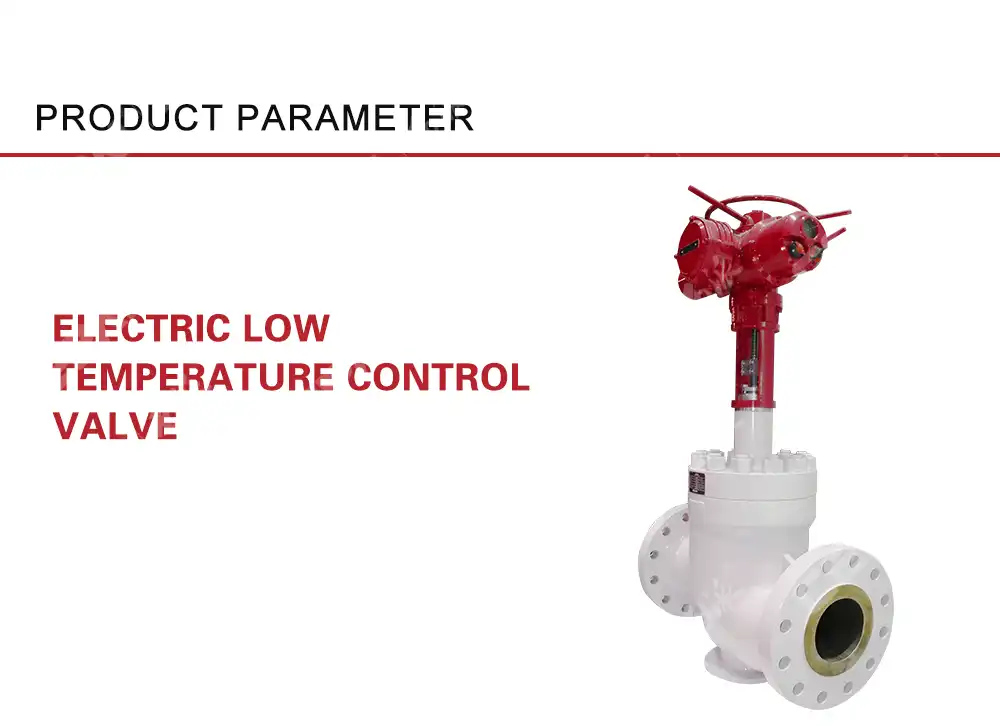

Control Valves serve a crucial function in regulating the flow of heating and cooling media in heat exchangers, jacketed vessels, and other thermal equipment. By precisely controlling the flow of steam, hot oil, cooling water, or refrigerants, Control Valves directly influence heat transfer rates and, consequently, process temperatures. This capability is essential in industries ranging from food processing to chemical manufacturing, where temperature precision directly impacts product quality and safety. CEPAI's thermal control valves feature specialized trim designs that provide exceptional control stability even under variable pressure conditions, ensuring consistent temperature control regardless of plant steam pressure fluctuations or cooling water demand from other processes. These Control Valves incorporate materials selected specifically for thermal applications, capable of withstanding thermal cycling, high temperatures, and the corrosive conditions often associated with heating and cooling systems. Advanced positioners with temperature compensation ensure consistent performance despite ambient temperature variations or radiant heat from adjacent equipment. The ability to precisely modulate heat transfer media flow rates allows for tight temperature control, with capabilities to maintain process temperatures within ±0.5°C of setpoint in properly designed systems, a level of precision that is critical for temperature-sensitive processes such as pharmaceutical manufacturing and polymer production.

Energy Efficiency Optimization

Advanced Control Valves optimize energy efficiency in thermal processes by precisely matching heating or cooling input to process demands. Control Valves equipped with high-performance positioners eliminate wasteful overheating or overcooling by responding quickly and accurately to small setpoint changes, avoiding the energy losses associated with overshooting and correction. CEPAI's energy-efficient Control Valves feature low-friction packing systems and balanced trim designs that minimize the actuator force required for operation, allowing smaller actuators and reducing compressed air consumption in pneumatic systems. These valves incorporate characterized trim designs that provide optimized control response throughout the operating range, ensuring precise energy input proportional to process needs. In batch heating applications, where temperature setpoints change according to recipe requirements, CEPAI's Control Valves deliver precise ramp rates that maximize heating efficiency while preventing product damage from excessive temperature gradients. The energy savings provided by properly selected Control Valves can be substantial, particularly in large-scale operations with significant heating or cooling requirements. Beyond direct energy savings, the precise temperature control provided by advanced Control Valves improves product consistency and reduces reject rates, further enhancing overall operational efficiency. CEPAI offers comprehensive energy audits and valve selection services to help customers identify opportunities for improved temperature control and energy efficiency through optimized valve configuration.

Thermal Runaway Prevention and Process Safety

Control Valves provide critical safeguards against thermal runaway reactions and overheating scenarios, a vital function in reactive chemical processes and exothermic operations. These valves respond rapidly to temperature excursions by increasing cooling media flow or reducing heating media supply, serving as the first line of defense against potentially dangerous temperature escalations. CEPAI's safety-rated Control Valves feature fail-safe designs that automatically move to their predetermined safe position upon detection of abnormal conditions or loss of control signal, ensuring that heating is minimized or cooling is maximized during emergencies. In particularly critical applications, these valves incorporate redundant components and SIL-certified designs that ensure reliable operation even under upset conditions. The precision control offered by advanced Control Valves allows operators to safely run closer to optimal temperature conditions, maximizing productivity while maintaining adequate safety margins. This capability is particularly valuable in polymerization reactions, oxidation processes, and other operations where temperature control directly impacts both safety and product quality. CEPAI's Control Valves with quick-change trim designs facilitate regular maintenance and inspection of these critical components, ensuring continued reliable operation throughout the equipment lifecycle. By providing reliable temperature control even during transient conditions such as startup, shutdown, and product grade transitions, these valves contribute significantly to overall process safety and operational flexibility.

Conclusion

Control Valves stand as critical components in modern industrial systems, performing the four essential functions of flow regulation, pressure control, level management, and temperature regulation with precision and reliability. As demonstrated throughout this article, these sophisticated devices do far more than simply turn flow on or off—they provide the fine control necessary for process optimization, energy efficiency, and safety. CEPAI Group, with its comprehensive range of high-performance Control Valves, cutting-edge manufacturing facilities, and extensive technical expertise, offers superior solutions tailored to the most demanding applications across various industries. Ready to optimize your fluid control systems with industry-leading technology? Contact our technical experts at cepai@cepai.com to discuss your specific requirements and discover how our exceptional durability, high-precision control performance, and comprehensive service support can transform your operations.
