Using Pneumatic Control Valves in HVAC Systems: What You Need to Know

In the complex world of HVAC system optimization, understanding the role and application of pneumatic control valves is crucial for achieving efficient climate control and energy management. These sophisticated devices serve as the backbone of modern heating, ventilation, and air conditioning systems, providing precise flow regulation and temperature control across various commercial and industrial applications. A Pneumatic Control Valve operates through compressed air signals to modulate fluid flow, offering superior reliability and response times compared to traditional mechanical alternatives. This comprehensive guide explores the essential aspects of implementing pneumatic control valves in HVAC systems, covering their operational principles, installation considerations, and maintenance requirements to help engineers and facility managers make informed decisions for their climate control infrastructure.

How Pneumatic Control Valves Function in HVAC Applications?

Operational Principles and Mechanisms

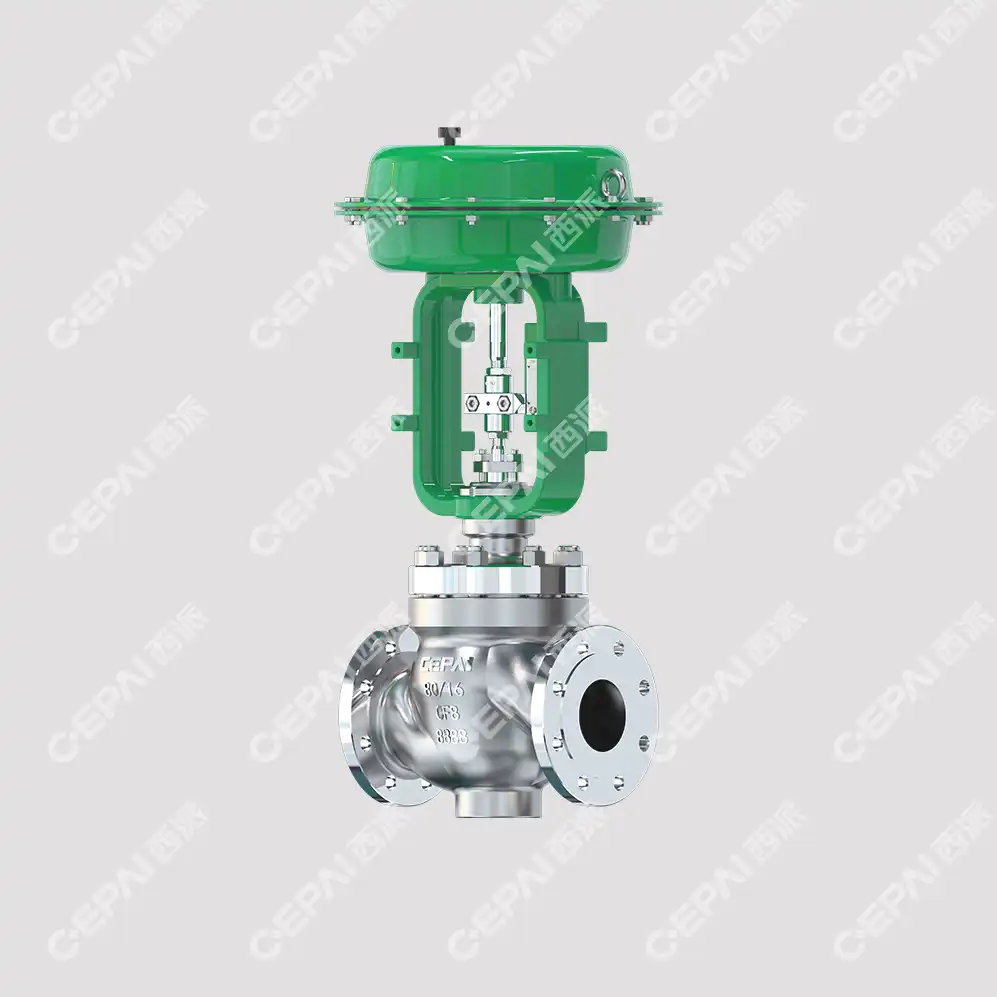

The fundamental operation of a Pneumatic Control Valve in HVAC systems relies on the precise conversion of compressed air signals into mechanical valve positioning. These valves utilize pneumatic actuators that respond to air pressure variations, typically ranging from 3 to 15 PSI, to control the valve stem position and consequently the flow rate through the valve body. The actuator assembly consists of a diaphragm or piston mechanism that translates air pressure changes into linear or rotary motion, depending on the valve configuration. Modern pneumatic control valves incorporate sophisticated feedback systems that continuously monitor valve position and provide real-time adjustments to maintain optimal flow conditions. The integration of positioners enhances accuracy by comparing the control signal with actual valve position, automatically correcting any deviations to ensure precise flow modulation. This closed-loop control system is particularly beneficial in HVAC applications where temperature fluctuations and varying load conditions require constant valve adjustments to maintain comfort levels and energy efficiency.

Signal Processing and Control Integration

Advanced Pneumatic Control Valve systems in HVAC applications utilize intelligent signal processing capabilities that enable seamless integration with building automation systems and energy management platforms. The valve controller processes input signals from temperature sensors, pressure transmitters, and flow meters to determine the optimal valve position for current operating conditions. Digital communication protocols such as Foundation Fieldbus or HART allow these valves to transmit diagnostic information and operational data to central control systems, facilitating predictive maintenance and performance optimization. The signal processing algorithms account for system dynamics, including dead time and process delays, to provide smooth and stable control responses that prevent oscillations and hunting behaviors common in less sophisticated control systems. Modern pneumatic control valves also feature adaptive control capabilities that automatically adjust control parameters based on changing process conditions, ensuring consistent performance across varying operational scenarios typical in HVAC applications.

Actuator Technology and Performance Characteristics

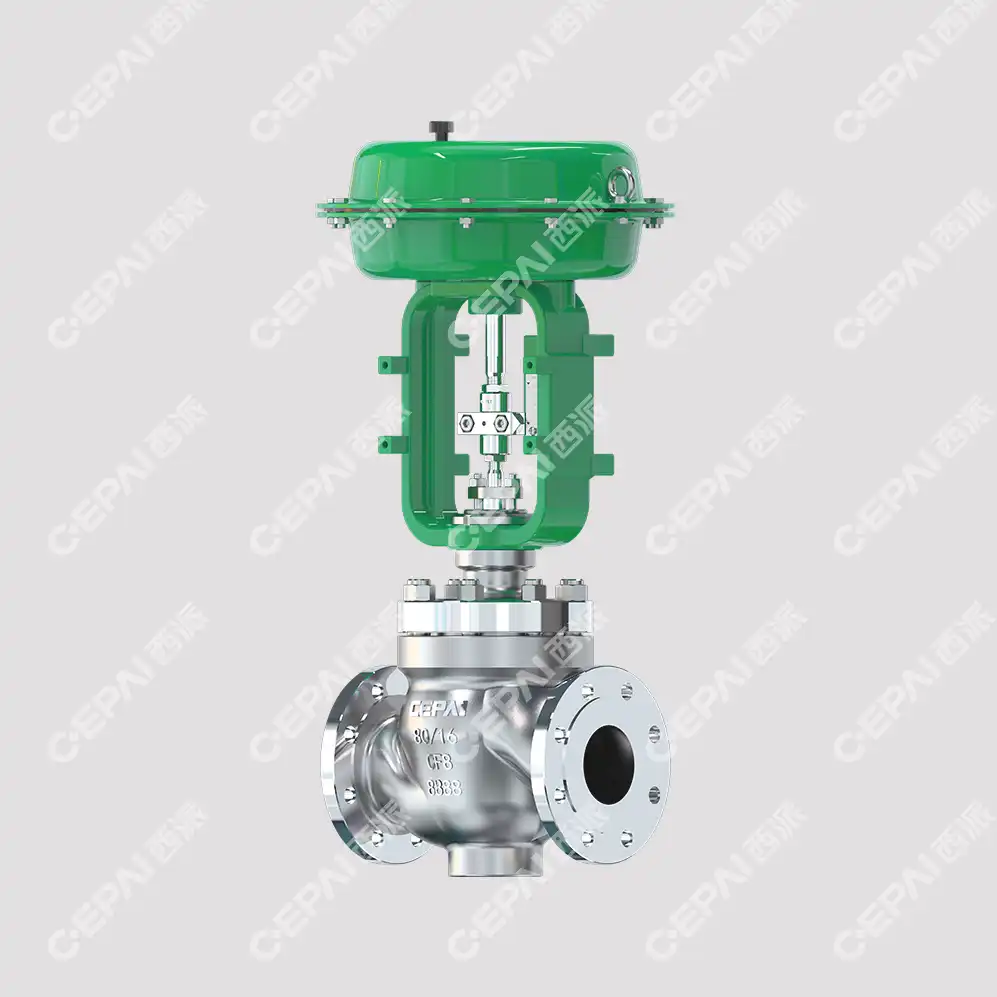

The actuator technology employed in Pneumatic Control Valve systems significantly impacts their performance in HVAC applications, with modern designs offering enhanced reliability and precision compared to traditional alternatives. Spring-and-diaphragm actuators provide fail-safe operation by automatically positioning the valve to a predetermined safe position upon loss of air supply, which is critical for maintaining system safety and preventing equipment damage during power outages or maintenance procedures. Piston actuators offer higher force output and faster response times, making them ideal for high-pressure applications and large valve sizes commonly found in central HVAC systems serving large commercial buildings. The selection of actuator type depends on specific application requirements, including operating pressure, temperature ranges, and required flow coefficients. Advanced actuator designs incorporate position feedback devices such as linear variable differential transformers (LVDTs) or potentiometric sensors that provide precise position indication and enable closed-loop control with exceptional accuracy, typically achieving positioning repeatability within ±0.25% of full scale.

Installation Requirements and System Design Considerations

Piping Configuration and Valve Sizing

Proper installation of Pneumatic Control Valve systems in HVAC applications requires careful attention to piping configuration and valve sizing to ensure optimal performance and longevity. The valve sizing process involves calculating the required flow coefficient (Cv) based on maximum flow rates, pressure drops, and fluid characteristics specific to the HVAC application. Engineers must consider the relationship between valve size and control range, as oversized valves may exhibit poor control characteristics at low flow conditions, while undersized valves may not provide adequate flow capacity during peak demand periods. Installation guidelines recommend maintaining straight pipe runs of at least five pipe diameters upstream and two pipe diameters downstream of the valve to minimize turbulence and ensure accurate flow measurement. The piping arrangement should accommodate thermal expansion and contraction, particularly in hot water and steam applications, by incorporating expansion joints or flexible connections that prevent stress transmission to the valve body and actuator assembly.

Air Supply Systems and Quality Requirements

The pneumatic supply system for Pneumatic Control Valve installations requires careful design to ensure consistent air quality and pressure stability throughout the HVAC system. Clean, dry compressed air is essential for reliable valve operation, necessitating the installation of air filtration, regulation, and drying equipment upstream of the valve controllers. The air supply pressure should be regulated to provide consistent operation regardless of variations in the main air system, typically maintained at 20-25 PSI to ensure adequate operating margin above the maximum required signal pressure. Air distribution networks must be properly sized to minimize pressure drop and ensure rapid response times, with consideration given to the total air consumption of all connected valves during simultaneous operation. Regular maintenance of air supply systems includes monitoring air quality parameters such as moisture content, particle count, and oil contamination levels that could adversely affect valve performance and reliability over time.

Environmental Protection and Mounting Considerations

Environmental protection measures for Pneumatic Control Valve installations in HVAC systems must address exposure to temperature extremes, humidity variations, and potential contaminants that could impact valve performance and service life. Actuator housings should be selected with appropriate ingress protection ratings (IP ratings) based on installation location and environmental conditions, with outdoor installations requiring weather-resistant enclosures and heating elements to prevent freezing of condensed moisture. Mounting arrangements must provide adequate support for the combined weight of the valve and actuator assembly while allowing for thermal expansion and routine maintenance access. Vibration isolation may be necessary in applications where mechanical equipment or fluid flow generates significant vibration that could affect valve positioning accuracy or accelerate component wear. The installation location should facilitate easy access for maintenance personnel while protecting sensitive control components from physical damage and unauthorized tampering.

Maintenance Strategies and Performance Optimization

Preventive Maintenance Protocols

Implementing comprehensive preventive maintenance protocols for Pneumatic Control Valve systems in HVAC applications is essential for ensuring reliable operation and maximizing equipment service life. Regular inspection schedules should include visual examination of valve exteriors for signs of corrosion, leakage, or physical damage, with particular attention to actuator connections and pneumatic supply lines. Calibration verification procedures should be performed at predetermined intervals to confirm that valve positioning accuracy remains within acceptable tolerances, typically requiring comparison of control signal input with actual valve position feedback. Lubrication of moving components, including valve stems and actuator linkages, should follow manufacturer recommendations and consider operating environment factors such as temperature extremes and contamination exposure. Pneumatic supply system maintenance includes regular inspection and replacement of air filters, drainage of moisture separators, and verification of supply pressure stability across all operating conditions typical in HVAC applications.

​​​​​​​

Diagnostic Capabilities and Troubleshooting

Modern Pneumatic Control Valve systems incorporate advanced diagnostic capabilities that enable proactive identification of potential performance issues before they result in system failures or inefficient operation. Intelligent valve controllers continuously monitor operational parameters such as actuator travel time, supply pressure variations, and positioning accuracy to detect developing problems that may indicate wear or component degradation. Diagnostic algorithms can identify common failure modes including actuator diaphragm leakage, positioner drift, and supply pressure instability, providing maintenance personnel with specific guidance for corrective actions. Remote monitoring capabilities allow facility managers to track valve performance trends over time and schedule maintenance activities based on actual equipment condition rather than arbitrary time intervals. Troubleshooting procedures should address common HVAC-specific issues such as hunting behavior caused by improper tuning parameters, sluggish response due to pneumatic supply restrictions, and positioning errors resulting from temperature-induced changes in system characteristics.

Performance Optimization and Energy Efficiency

Optimizing Pneumatic Control Valve performance in HVAC systems requires ongoing attention to control loop tuning and system integration parameters that directly impact energy efficiency and occupant comfort. Regular analysis of valve cycling frequency and positioning patterns can reveal opportunities for improving control stability and reducing energy consumption through optimized tuning parameters. The implementation of advanced control strategies such as cascade control loops and feedforward compensation can significantly enhance system performance by reducing the impact of disturbances and improving response to changing load conditions. Energy efficiency optimization includes evaluating valve authority and pressure drop relationships to ensure that control valves operate within their most efficient range while maintaining adequate control capability. Periodic review of valve sizing and selection criteria may reveal opportunities for upgrades to more efficient valve technologies or configurations that better match current system operating conditions and performance requirements.

Conclusion

The successful implementation of pneumatic control valves in HVAC systems requires comprehensive understanding of their operational principles, proper installation practices, and ongoing maintenance requirements. These sophisticated devices offer superior control precision and reliability when properly selected, installed, and maintained according to industry best practices and manufacturer recommendations.
