Understanding the Internal Structure of Pneumatic vs Self-Operated Control Valves

In industrial automation and process control, understanding the fundamental differences between pneumatic and self-operated control valves is crucial for selecting the right solution for your application. The internal structure of these valve types determines their operational characteristics, performance capabilities, and suitability for specific industrial processes. Pneumatic Control Valve systems utilize compressed air to actuate valve movements, offering precise control and rapid response times, while self-operated control valves rely on process conditions such as pressure or temperature for automatic operation without external power sources.

Core Structural Components and Operating Mechanisms

Pneumatic Control Valve Internal Architecture

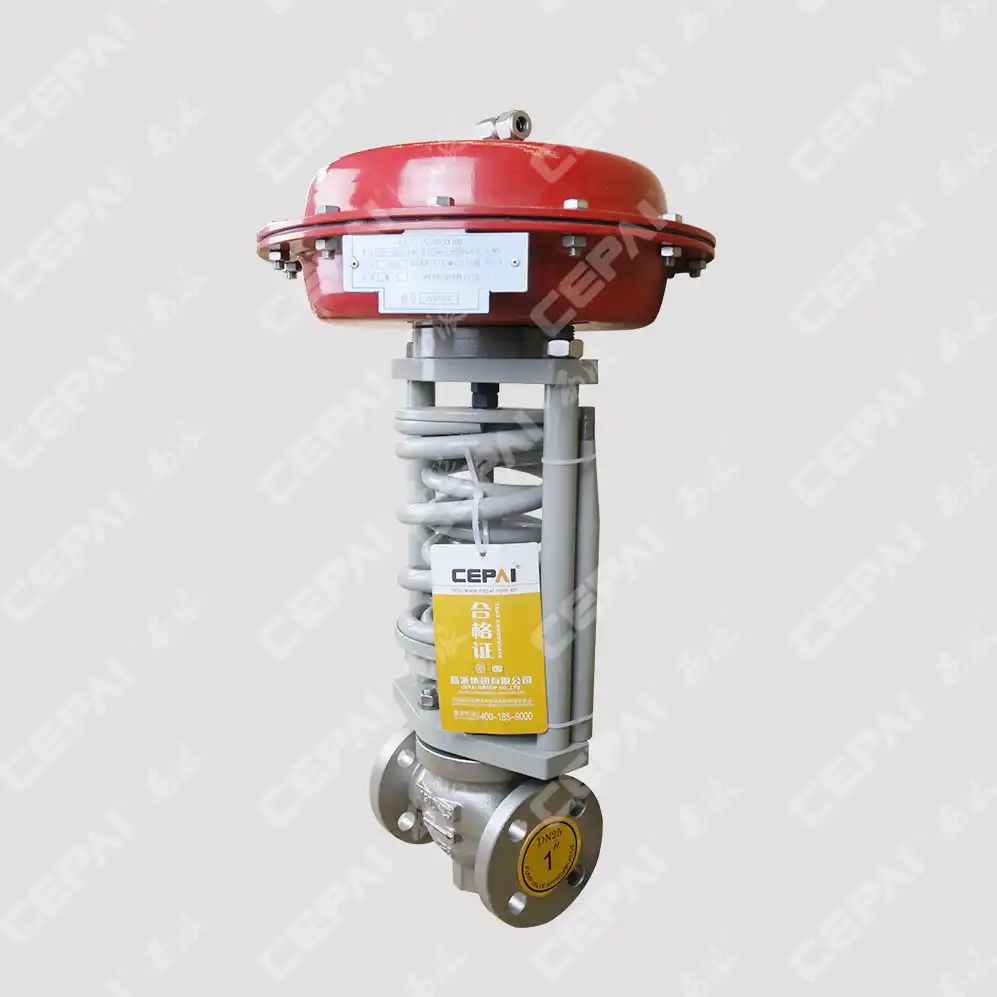

The internal structure of a Pneumatic Control Valve consists of several critical components that work together to achieve precise flow control. The actuator assembly forms the heart of the system, typically featuring a diaphragm or piston mechanism that responds to pneumatic signals. Within the actuator housing, a flexible diaphragm separates the upper and lower chambers, with the upper chamber receiving the control signal pressure. The diaphragm connects to an actuator stem that extends through a packing box to the valve plug assembly. Spring mechanisms provide fail-safe positioning, ensuring the valve moves to a predetermined safe position during power loss or signal failure. The valve body houses the flow control elements, including the valve seat, plug, and trim components. These elements are precisely machined to ensure tight shutoff and accurate flow characteristics. The internal flow path design varies according to application requirements, with options including linear, equal percentage, or quick opening characteristics. Pneumatic Control Valve systems often incorporate positioner feedback mechanisms that compare actual valve position with the desired setpoint, enabling closed-loop control for enhanced accuracy. The packing assembly creates a seal between the moving stem and stationary body, preventing process fluid leakage while allowing smooth stem movement.

Self-Operated Control Valve Mechanical Design

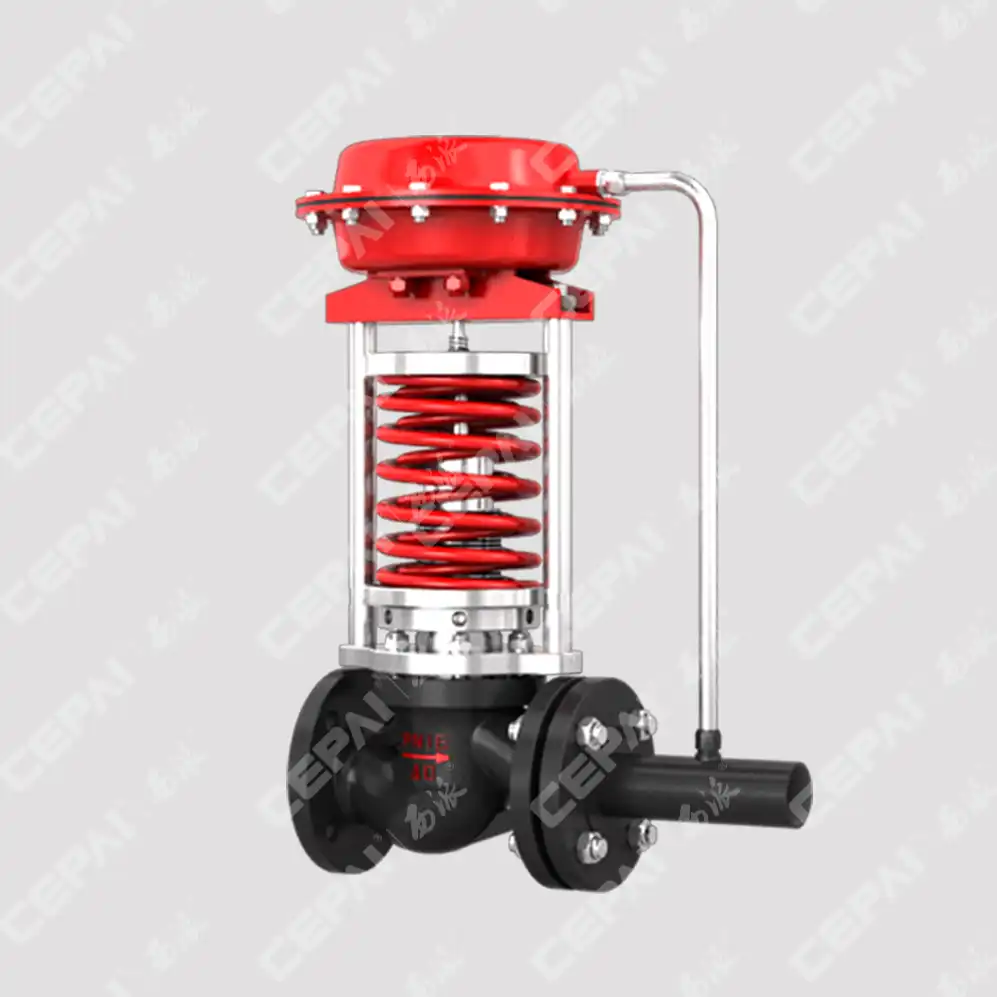

Self-operated Control Valve systems feature fundamentally different internal structures designed for autonomous operation based on process conditions. The sensing element, typically a bellows, diaphragm, or thermal expansion device, directly responds to process variables such as pressure, temperature, or differential pressure. In pressure-reducing applications, the sensing diaphragm experiences downstream pressure on one side while being opposed by a calibrated spring force. This mechanical balance determines valve positioning without requiring external control signals or power sources. The internal mechanism includes a pilot valve system that modulates the main valve operation. The pilot valve responds to small changes in the sensed variable, amplifying these signals to control the main valve actuator. Self-operated Control Valve designs often incorporate dampening mechanisms to prevent oscillation and ensure stable operation. The valve trim geometry is specifically selected to provide the required flow characteristics while maintaining stable operation across varying process conditions. These valves feature robust construction with minimal moving parts, reducing maintenance requirements and improving reliability in demanding industrial applications.

Comparative Analysis of Structural Differences

The structural differences between Pneumatic Control Valve and Self-operated Control Valve systems reflect their distinct operational philosophies. Pneumatic systems require external instrumentation including controllers, transmitters, and air supply systems, while self-operated valves integrate sensing and control functions within a single device. The pneumatic valve's modular design allows for component replacement and upgrading, whereas self-operated valves feature integrated construction optimized for specific applications. Material selection differs significantly between these valve types, with Pneumatic Control Valve systems often utilizing lighter materials in the actuator assembly due to external power assistance. Self-operated Control Valve construction typically employs heavier-duty materials to withstand the mechanical stresses of direct process response. The internal flow passages may vary in design complexity, with pneumatic valves offering more sophisticated trim options due to their precise positioning capabilities. Understanding these structural differences enables engineers to select the optimal valve technology for specific process requirements, considering factors such as control accuracy, response time, reliability, and maintenance accessibility.

Performance Characteristics and Control Precision

Dynamic Response and Accuracy Capabilities

Pneumatic Control Valve systems demonstrate superior dynamic response characteristics due to their external actuation mechanism and feedback control capabilities. The pneumatic actuator can respond rapidly to control signals, typically achieving 90% of stroke movement within seconds depending on valve size and air supply pressure. This rapid response enables precise process control in applications requiring quick adjustments to maintain optimal operating conditions. The integration of valve positioners enhances accuracy by providing closed-loop feedback, ensuring actual valve position matches the desired setpoint within tight tolerances. The control precision of Pneumatic Control Valve systems typically ranges from 0.25% to 1% of full scale, depending on the quality of instrumentation and calibration procedures. Advanced positioner technologies, including digital communication protocols, enable sophisticated control algorithms and diagnostic capabilities. These systems can compensate for hysteresis, dead band, and other non-linearities that affect control accuracy. Self-operated Control Valve systems exhibit different dynamic characteristics, with response times determined by the thermal or pressure dynamics of the sensing element rather than external actuation speed.

Stability and Repeatability Performance

Self-operated Control Valve systems excel in stability and repeatability applications where consistent performance without external intervention is paramount. The mechanical nature of the control mechanism eliminates issues associated with signal transmission, electrical interference, or instrument calibration drift. Once properly sized and calibrated, these valves maintain consistent performance characteristics over extended periods. The inherent stability results from the direct mechanical relationship between process conditions and valve position, eliminating intermediate signal processing that could introduce variability. Pneumatic Control Valve systems offer excellent repeatability when properly maintained and calibrated, with typical repeatability specifications ranging from 0.1% to 0.5% of full scale. However, this performance depends on maintaining consistent air supply quality, proper instrument calibration, and regular maintenance of pneumatic components. The modular nature of pneumatic systems allows for component upgrades and performance optimization, but also introduces potential failure points that could affect overall system reliability. Self-operated Control Valve repeatability depends primarily on mechanical component integrity and process condition stability, offering long-term consistency with minimal maintenance requirements.

Operating Range and Turndown Capabilities

The operating range and turndown capabilities differ significantly between Pneumatic Control Valve and Self-operated Control Valve technologies. Pneumatic systems typically offer superior turndown ratios, often exceeding 100:1 with appropriate trim selection and positioner feedback. This wide operating range results from precise positioning control and the ability to maintain stability at very low flow rates. The external control system can implement advanced algorithms to optimize performance across the entire operating range, including special trim designs for high turndown applications. Self-operated Control Valve systems generally provide more limited turndown capabilities, typically ranging from 10:1 to 30:1 depending on the specific design and application. The mechanical sensing and actuation mechanism constrains the minimum controllable flow rate due to spring force requirements and mechanical friction. However, these valves excel in applications requiring consistent performance at or near design conditions, where their inherent stability compensates for reduced turndown capability. The selection between these technologies often depends on whether the application prioritizes wide operating range flexibility or long-term stability at specific operating points.

Application Considerations and Selection Criteria

Process Environment and Safety Requirements

Industrial process environments significantly influence the selection between Pneumatic Control Valve and Self-operated Control Valve technologies. In hazardous area classifications where electrical equipment requires special certification, self-operated valves offer inherent safety advantages due to their purely mechanical operation. These valves eliminate ignition sources associated with electrical instruments and controls, making them suitable for explosive atmosphere applications without requiring expensive intrinsically safe or explosion-proof instrumentation. The mechanical nature of self-operated control also provides fail-safe operation during power outages or instrument air supply failures. Pneumatic Control Valve systems require careful consideration of safety requirements, particularly in hazardous locations where control signals and power supplies must comply with area classification standards. However, modern pneumatic systems offer advanced safety features including redundant controls, emergency shutdown capabilities, and sophisticated diagnostic functions that enhance overall system safety. The external control architecture enables integration with plant safety systems, providing coordinated responses to emergency conditions. Self-operated Control Valve applications in safety-critical services benefit from their simplicity and mechanical reliability, reducing the complexity of safety analysis and certification processes.

Maintenance Requirements and Lifecycle Costs

The maintenance requirements and lifecycle costs present important considerations when selecting between Pneumatic Control Valve and Self-operated Control Valve technologies. Pneumatic systems typically require more frequent maintenance due to their complexity and multiple components, including instrument air systems, controllers, transmitters, and actuators. Regular calibration, air filter replacement, and component inspection are necessary to maintain optimal performance. However, the modular design facilitates maintenance activities and allows for component replacement without complete valve replacement. Self-operated Control Valve systems generally require less frequent maintenance due to their mechanical simplicity and fewer components. The absence of external instrumentation eliminates many potential failure points and reduces ongoing maintenance costs. However, when maintenance is required, it often involves complete valve replacement or major component overhaul rather than simple adjustments. The lifecycle cost analysis must consider initial equipment costs, installation complexity, ongoing maintenance requirements, and expected service life. Pneumatic Control Valve systems typically have higher initial costs but offer greater flexibility for performance optimization and component upgrades throughout their service life.

Integration with Control Systems and Automation

Modern industrial automation systems increasingly rely on digital communication and advanced control strategies, favoring Pneumatic Control Valve integration capabilities. These systems readily interface with distributed control systems (DCS), programmable logic controllers (PLC), and supervisory control and data acquisition (SCADA) systems through standard communication protocols. Digital valve controllers provide extensive diagnostic information, enabling predictive maintenance strategies and optimized asset management. The ability to remotely monitor valve performance, adjust control parameters, and diagnose problems enhances operational efficiency and reduces unplanned downtime. Self-operated Control Valve systems present challenges for integration with modern automation architectures due to their purely mechanical operation. While these valves offer excellent standalone performance, they provide limited feedback to control systems and cannot participate in advanced control strategies requiring real-time communication. Some hybrid designs incorporate position feedback transmitters to provide basic integration capabilities while maintaining the inherent reliability of mechanical control. The selection between these technologies often depends on whether the application prioritizes autonomous operation or integration with comprehensive plant automation systems.

Conclusion

The choice between Pneumatic Control Valve and Self-operated Control Valve technologies depends on specific application requirements, process conditions, and operational priorities. Pneumatic systems excel in applications requiring precise control, wide operating ranges, and integration with modern automation systems, while self-operated valves provide reliable, autonomous operation in safety-critical applications where simplicity and mechanical reliability are paramount. Understanding the internal structural differences enables informed decision-making for optimal valve selection.
