Solving Actuator Problems on Your Pneumatic Bellows Control Valve

When your production line suddenly grinds to a halt because your Pneumatic Bellows Control Valve actuator has failed, every minute of downtime costs money. Whether you're dealing with erratic valve positioning, complete actuator failure, or inconsistent pressure responses, these actuator problems can cripple your entire industrial process. Understanding how to diagnose and resolve these critical issues is essential for maintaining optimal system performance and avoiding costly production delays in chemical, petroleum, and power generation applications.

Understanding Pneumatic Bellows Control Valve Actuator Fundamentals

• Core Components and Operating Principles

Pneumatic Bellows Control Valve actuators represent sophisticated engineering solutions designed to provide precise control in demanding industrial environments. The actuator system consists of several critical components working in harmony: the diaphragm assembly, spring mechanism, air chamber, and positioning hardware. The diaphragm, typically constructed from ethylene-propylene rubber sandwiched with nylon for enhanced durability, serves as the primary interface between compressed air pressure and mechanical force transmission. This component must withstand continuous pressure cycling while maintaining its structural integrity across wide temperature ranges from -30°C to +70°C. The spring range variations of 20-100KPa, 40-200KPa, and 80-240KPa provide different operating characteristics depending on your specific application requirements. The air supply pressure options of 140KPa, 160KPa, 280KPa, and 400KPa ensure compatibility with various pneumatic systems. Understanding these fundamental aspects enables maintenance personnel to identify potential failure points and implement preventive measures effectively.

• Actuator Action Types and Selection Criteria

The choice between air-opening (reaction) and air-closing (direct action) configurations significantly impacts system performance and troubleshooting approaches. Air-opening actuators require compressed air to open the valve, with spring force providing the closing action during air supply failure. This fail-closed configuration offers inherent safety benefits in many process applications where valve closure during emergency situations prevents potential hazards. Conversely, air-closing actuators utilize compressed air for valve closure, with spring force opening the valve when air pressure is removed. This fail-open configuration suits applications requiring continued flow during pneumatic system failures. The selection criteria involve careful consideration of process safety requirements, fail-safe positioning needs, and emergency shutdown protocols. Pneumatic Bellows Control Valve actuators must match the specific demands of your process conditions while providing reliable operation under normal and emergency circumstances.

Common Actuator Problems and Root Cause Analysis

• Mechanical Failure Modes

Actuator mechanical failures manifest in various ways that can severely impact Pneumatic Bellows Control Valve performance. Diaphragm rupture represents one of the most serious mechanical failures, typically caused by excessive pressure differentials, chemical incompatibility, or age-related material degradation. When the diaphragm fails, you'll observe immediate loss of positioning control, with the valve defaulting to its spring-loaded fail-safe position. Spring fatigue or breakage creates positioning inconsistencies, causing the valve to exhibit sluggish response or complete failure to return to the normal position. Stem binding occurs when mechanical components become misaligned or contaminated, preventing smooth actuator movement and creating excessive wear on associated components. Thread wear on adjustment mechanisms leads to calibration drift and positioning inaccuracies that compound over time. These mechanical issues require systematic inspection protocols and preventive maintenance strategies to minimize unexpected failures and extend service life.

• Pneumatic System Malfunctions

Air supply problems constitute the majority of Pneumatic Bellows Control Valve actuator malfunctions encountered in industrial settings. Insufficient air pressure delivery prevents the actuator from developing adequate force to position the valve against process pressure and spring resistance. This condition often results from upstream pressure regulation failures, air compressor inadequacies, or distribution system leakages. Contaminated air supply introduces moisture, oil particles, and debris into the actuator chamber, causing corrosion, seal deterioration, and mechanical interference. Air leakage from fittings, tubing connections, or internal seals creates pressure loss that degrades positioning accuracy and response time. Filter blockages in the air supply line restrict flow rates below minimum SCFM requirements, causing sluggish actuator response or complete operational failure. Solenoid valve malfunctions interrupt air supply control, preventing proper actuator positioning regardless of control signal accuracy.

• Control Signal and Positioning Issues

Electronic and pneumatic control signal problems create complex troubleshooting scenarios that require systematic diagnostic approaches. I/P (current-to-pressure) converter failures interrupt the translation between electronic control signals and pneumatic actuator pressure, causing erratic valve positioning or complete loss of control. Positioner calibration drift results in systematic positioning errors that affect process control loop stability and product quality. Feedback mechanism failures prevent accurate position reporting, creating control system instability and potential safety hazards. Signal interference from electrical noise sources can cause positioning oscillations and control loop hunting behaviors. Temperature effects on electronic components create seasonal performance variations that require compensation through calibration adjustments. These control-related issues often require specialized test equipment and technical expertise to diagnose accurately and resolve effectively.

Systematic Troubleshooting Methodology

• Initial Assessment and Safety Procedures

Effective troubleshooting of Pneumatic Bellows Control Valve actuator problems begins with comprehensive safety assessment and systematic documentation of symptoms. Before beginning any diagnostic work, ensure proper lockout/tagout procedures are implemented to prevent accidental valve operation during maintenance activities. Document the valve's current position, control system status, and any unusual noises or visual indicators of malfunction. Check the air supply gauge readings and compare them against design specifications to identify obvious pressure-related issues. Verify that all safety systems remain functional and that emergency shutdown capabilities are available throughout the troubleshooting process. Review recent maintenance records, process condition changes, and operational events that might contribute to the current problem. This preliminary assessment provides essential context for focused diagnostic efforts and helps prioritize potential root causes.

• Pressure Testing and Air System Evaluation

Systematic pressure testing reveals the majority of Pneumatic Bellows Control Valve actuator problems through methodical evaluation of the pneumatic supply system. Begin by measuring supply pressure at the actuator inlet using calibrated pressure gauges to verify adequate pressure delivery. Perform leak testing using soap solution or ultrasonic leak detection equipment to identify external air leakages from fittings, tubing, and actuator housing. Test the air supply quality by checking for moisture, oil contamination, and particulate matter that could damage internal components. Evaluate air consumption rates by measuring SCFM requirements during actuator cycling to ensure adequate supply capacity. Check pressure regulation stability by monitoring supply pressure variations during system load changes. These systematic pressure evaluations provide objective data for diagnostic decisions and corrective action planning.

• Component-Specific Diagnostic Procedures

Individual component testing isolates specific failure modes within the Pneumatic Bellows Control Valve actuator assembly. Diaphragm integrity testing involves careful visual inspection for cracks, tears, or chemical degradation, supplemented by pressure decay testing to identify small leakages. Spring force measurements using calibrated force gauges verify proper spring tension and identify fatigue-related deterioration. Stem alignment checks using dial indicators detect binding conditions and mechanical wear patterns. Positioner calibration verification involves input signal testing across the full operating range to identify drift or nonlinearity issues. Solenoid valve function testing includes electrical continuity checks, coil resistance measurements, and flow testing to ensure proper operation. These component-specific diagnostics provide the detailed information necessary for targeted repairs and preventive maintenance planning.

Advanced Troubleshooting Techniques

• Electronic Diagnostics and Signal Analysis

Modern Pneumatic Bellows Control Valve systems integrate sophisticated electronic components that require specialized diagnostic approaches. Oscilloscope analysis of control signals reveals timing issues, signal degradation, and electrical noise problems that affect actuator performance. Multi-meter testing of I/P converters includes input current verification, output pressure measurement, and linearity assessment across the operating range. Loop resistance measurements identify wiring problems, connection issues, and component degradation in the control circuit. Signal isolation testing helps differentiate between control system problems and actuator mechanical issues by substituting known good signals during diagnostic procedures. Temperature cycling tests expose intermittent electronic failures that occur under varying environmental conditions. These advanced electronic diagnostic techniques provide comprehensive evaluation of the control system components that interface with the pneumatic actuator assembly.

• Performance Mapping and Calibration Analysis

Comprehensive performance mapping establishes baseline actuator characteristics and identifies degradation trends over time. Response time measurements across the full stroke range reveal mechanical binding, pneumatic restrictions, and control system limitations. Positioning accuracy testing at multiple setpoints identifies nonlinearity, hysteresis, and deadband issues that affect process control performance. Force output measurements verify adequate actuator sizing for the application and identify capability degradation. Leak rate quantification provides objective measures of seal condition and maintenance requirements. Frequency response analysis identifies resonance conditions and dynamic limitations that could affect control loop stability. This systematic performance mapping approach enables predictive maintenance strategies and optimization of Pneumatic Bellows Control Valve system performance.

Preventive Maintenance Strategies

• Scheduled Inspection and Component Replacement

Proactive maintenance programs significantly reduce unexpected Pneumatic Bellows Control Valve actuator failures through systematic inspection and component replacement schedules. Monthly visual inspections should include checking for air leaks, corrosion signs, and mechanical wear indicators. Quarterly air filter replacement prevents contamination accumulation that causes internal component damage. Annual diaphragm inspection and replacement scheduling prevents catastrophic failures that could damage associated equipment. Lubrication of mechanical components according to manufacturer specifications reduces friction and extends service life. Calibration verification on semi-annual schedules maintains positioning accuracy and prevents process control problems. Documentation of all maintenance activities creates valuable trend data for optimizing maintenance intervals and identifying recurring problems.

• Air System Quality Management

Superior air quality management prevents the majority of Pneumatic Bellows Control Valve actuator problems through contamination control and proper system design. Installation of high-efficiency air filters removes particulate matter that causes wear and jamming of internal components. Moisture removal systems including refrigerated dryers and desiccant units prevent corrosion and seal deterioration. Oil removal filtration eliminates lubricant contamination that attracts dirt and causes seal swelling. Pressure regulation stability through properly sized and maintained pressure reducing valves ensures consistent actuator performance. Regular air quality testing validates filtration system effectiveness and identifies maintenance requirements. These air system quality initiatives provide the foundation for reliable long-term actuator operation.

CEPAI's Engineering Solutions and Technical Support

• Intelligent Manufacturing and Quality Assurance

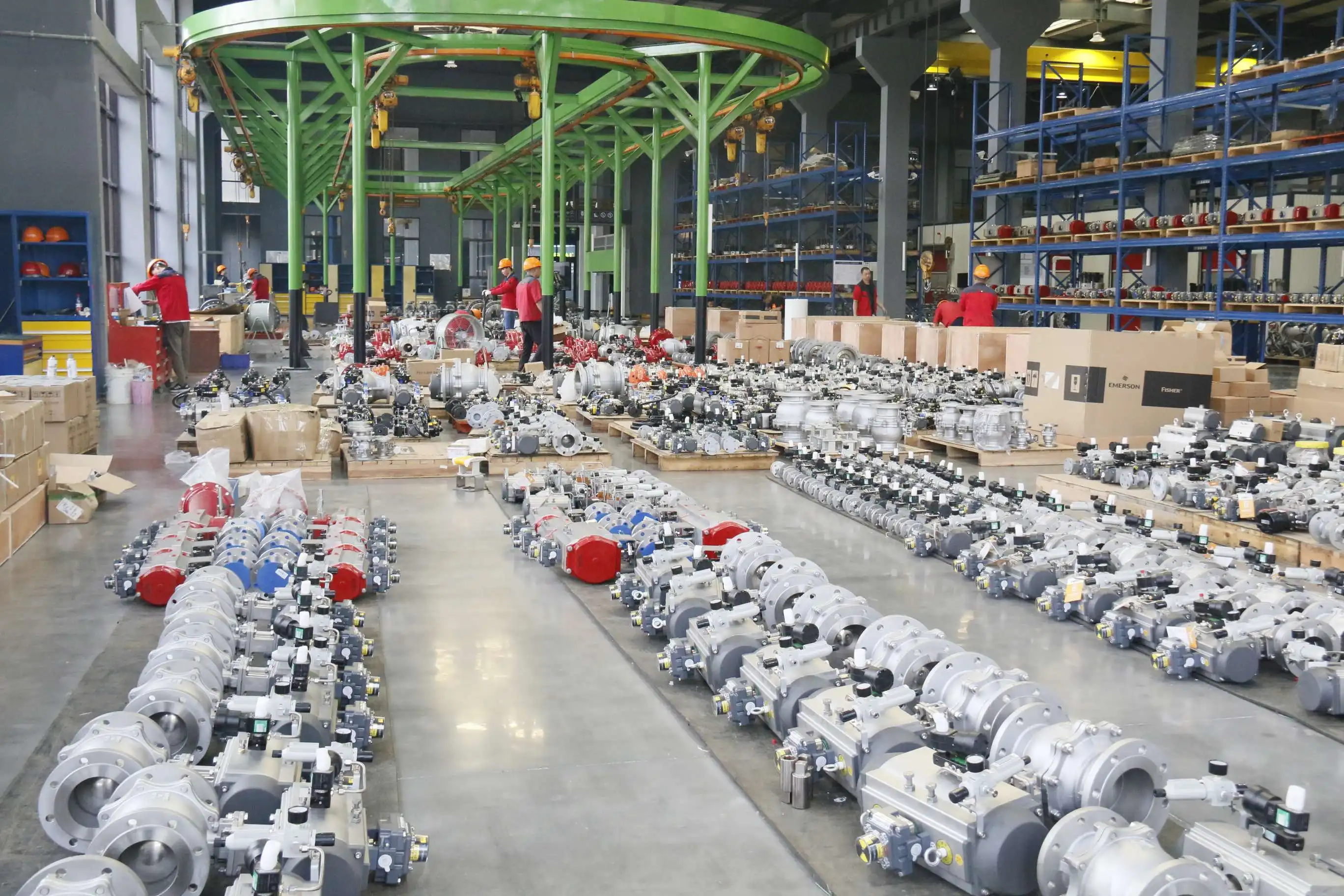

CEPAI Group's commitment to solving Pneumatic Bellows Control Valve actuator problems extends beyond manufacturing to comprehensive technical support and engineering solutions. Our intelligent manufacturing facility, featuring the longest high-precision flexible production line in the Asia Pacific region, ensures consistent quality and dimensional accuracy that minimizes field problems. The 156 million yuan investment in intelligent transformation has created manufacturing capabilities that exceed traditional quality standards and provide superior product reliability. Our ISO 9001 quality management system implementation includes rigorous testing protocols from raw materials through final product delivery. Each Pneumatic Bellows Control Valve undergoes comprehensive factory testing including pressure testing, stroke verification, and performance mapping before shipment. CNAS national laboratory accreditation ensures our testing equipment and procedures meet international standards for accuracy and reliability.

• Remote Monitoring and Diagnostic Support

Advanced remote monitoring capabilities enable proactive identification and resolution of Pneumatic Bellows Control Valve actuator problems before they cause production disruptions. Our AR remote operation and maintenance guidance system provides real-time technical support directly to your facility, reducing troubleshooting time and improving repair accuracy. Cloud-based diagnostic platforms collect performance data from installed valves, enabling predictive maintenance recommendations and early problem detection. Technical support teams with specialized expertise in actuator systems provide consultation services for complex troubleshooting scenarios and performance optimization projects. Training programs for maintenance personnel ensure your team has the knowledge and skills necessary to maintain peak system performance. This comprehensive support infrastructure demonstrates CEPAI's commitment to customer success beyond initial equipment delivery.

Conclusion

Effective resolution of Pneumatic Bellows Control Valve actuator problems requires systematic diagnostic approaches, comprehensive understanding of failure modes, and proactive maintenance strategies. Success depends on combining technical expertise with quality components and reliable support systems to ensure optimal performance.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group stands as your premier China Pneumatic Bellows Control Valve manufacturer, combining cutting-edge intelligent manufacturing with comprehensive technical support. As a leading China Pneumatic Bellows Control Valve supplier, we offer high-quality Pneumatic Bellows Control Valve solutions at competitive prices. Our China Pneumatic Bellows Control Valve factory features advanced production capabilities and rigorous quality control systems ensuring superior product reliability. Whether you need Pneumatic Bellows Control Valve for sale or require China Pneumatic Bellows Control Valve wholesale quantities, our experienced team provides customized solutions for your specific applications. Contact us at cepai@cepai.com to discuss your requirements and discover why industry leaders choose CEPAI for their most demanding fluid control applications.

FAQ

Q: What causes sudden loss of positioning control in pneumatic bellows control valve actuators?

A: Common causes include diaphragm rupture, air supply failure, or severe air leakage from internal seals requiring immediate inspection and repair.

Q: How can I identify if my actuator problem is mechanical or pneumatic in nature?

A: Test air supply pressure first - if pressure is adequate but positioning fails, the problem is likely mechanical; if pressure is low or unstable, focus on pneumatic system diagnosis.

Q: What maintenance interval should I follow for pneumatic actuator components?

A: Monthly visual inspections, quarterly filter replacements, and annual diaphragm inspections provide optimal preventive maintenance coverage for most industrial applications.

Q: When should I consider upgrading my existing pneumatic actuator system?

A: Consider upgrades when experiencing frequent failures, inability to maintain calibration, or when process requirements exceed current actuator capabilities or response times.
