Simple Maintenance for Complex Valves: A Guide to the Pneumatic Sleeve Valve

In industrial operations where fluid control precision meets cost-efficiency demands, maintenance engineers face a recurring challenge: complex valve systems that require extensive downtime and specialized expertise for servicing. The Pneumatic Sleeve Valve emerges as a solution that combines sophisticated control capabilities with surprisingly straightforward maintenance requirements. This comprehensive guide addresses the critical pain points experienced by facility managers and maintenance teams who struggle with traditional valve systems that demand frequent, costly interventions and specialized technician skills for routine upkeep.

Understanding Pneumatic Sleeve Valve Architecture and Components

• Core Structural Elements of Pneumatic Sleeve Control Systems

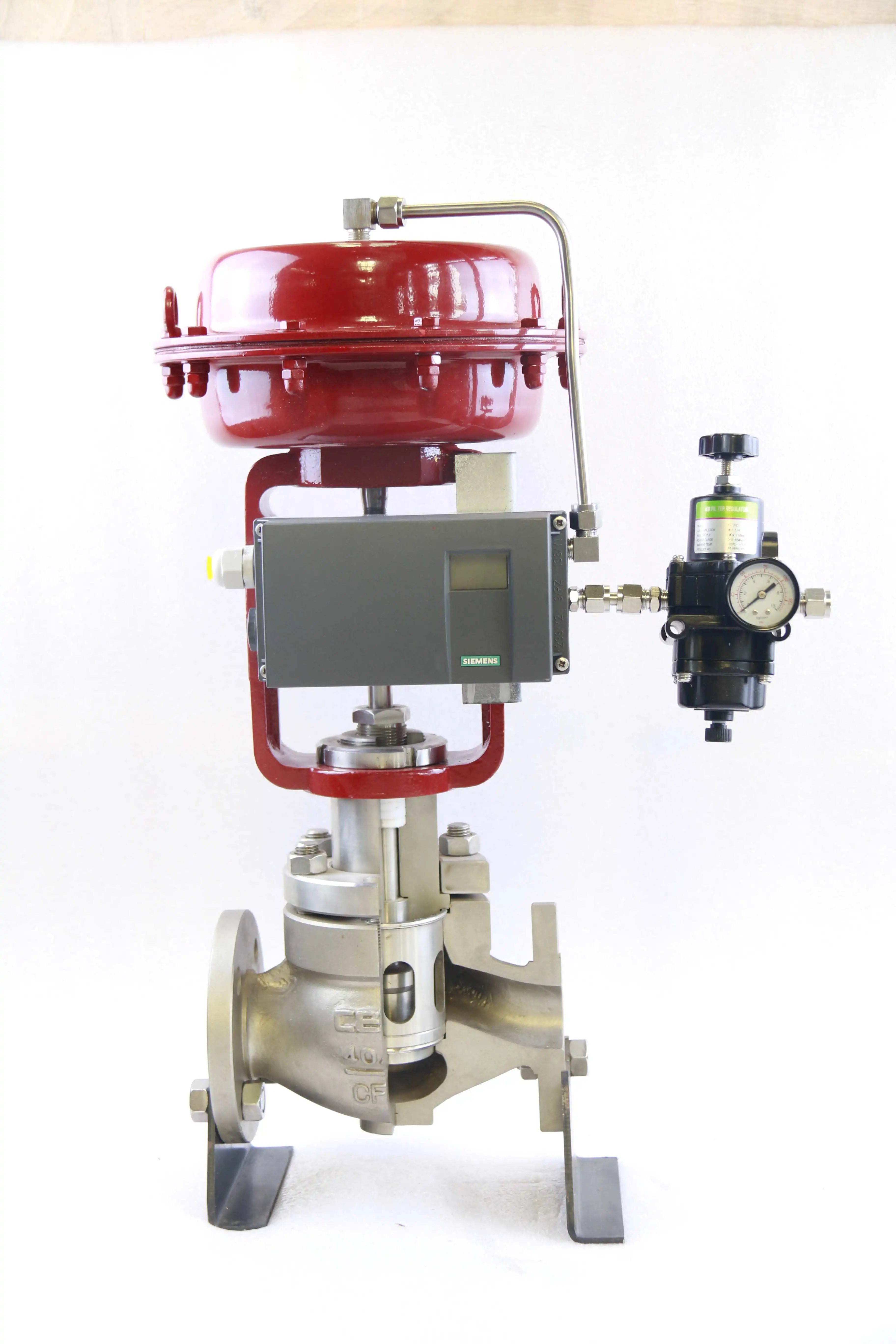

The Pneumatic Sleeve Valve represents an advanced fluid control solution that integrates precision engineering with practical maintenance accessibility. The fundamental architecture consists of five primary components: the valve body, valve cover, valve core, sleeve assembly, and pneumatic actuator system. Each component contributes to the valve's exceptional performance characteristics while maintaining service-friendly design principles. The valve body and bonnet construction typically utilizes cast iron or steel materials engineered for high-pressure resistance applications. These materials provide exceptional durability while ensuring compatibility with diverse industrial environments. The valve core and sleeve components are manufactured from stainless steel grades, offering superior corrosion resistance that extends operational lifespan and reduces maintenance frequency requirements.

• Pneumatic Sleeve Valve Operating Principles and Control Mechanisms

The operational methodology of Pneumatic Sleeve Valve systems centers on precise valve core movement control through pneumatic actuation technology. The pneumatic actuator receives control signals and responds by adjusting internal pressure dynamics, which drives piston movement within the actuator assembly. This piston movement directly controls valve core positioning relative to the sleeve assembly, creating variable gap configurations that regulate fluid flow characteristics with exceptional precision. The control signal processing enables both air-opening (reaction) and air-closing (direct action) operational modes, providing versatility for diverse application requirements. The pressure-balanced valve core design ensures consistent performance across varying system pressure conditions while minimizing actuator force requirements. This design approach significantly reduces mechanical stress on system components, contributing to extended service intervals and simplified maintenance procedures.

Essential Maintenance Protocols for Pneumatic Sleeve Valve Systems

• Preventive Maintenance Scheduling and Inspection Procedures

Effective Pneumatic Sleeve Valve maintenance begins with establishing comprehensive preventive maintenance schedules tailored to specific operational environments and duty cycles. Regular inspection protocols should encompass visual examination of valve body integrity, actuator housing condition, and connection integrity assessment. The inspection process should include verification of pneumatic supply pressure consistency, actuator response characteristics, and control signal processing accuracy. Critical maintenance intervals typically range from quarterly inspections for high-duty cycle applications to semi-annual assessments for standard industrial operations. During inspection procedures, maintenance personnel should document valve performance parameters, actuator response times, and any deviation from baseline operational characteristics. This documentation provides valuable trending data that enables predictive maintenance strategies and helps identify potential issues before they impact system performance. The Pneumatic Sleeve Valve design incorporates accessible service points that facilitate routine maintenance without requiring complete system shutdown. Service procedures can often be completed using standard industrial tools, eliminating the need for specialized equipment or extensive technician training. This accessibility significantly reduces maintenance costs and minimizes production downtime compared to traditional valve systems.

• Actuator System Servicing and Component Replacement

The pneumatic actuator assembly requires specific attention to diaphragm condition, spring mechanism functionality, and air supply system integrity. The diaphragm material, typically constructed from ethylene-propylene rubber sandwiched with nylon reinforcement, provides excellent service life under normal operating conditions. Regular inspection should focus on diaphragm surface condition, edge seal integrity, and mounting interface condition. Spring range specifications for Pneumatic Sleeve Valve systems typically encompass 20-100KPa, 40-200KPa, and 80-240KPa configurations, depending on application requirements. Spring mechanism inspection should verify consistent force characteristics and proper seating within the actuator housing. Any indication of spring fatigue, corrosion, or mechanical damage requires immediate attention to maintain consistent valve control response. Air supply pressure maintenance involves verifying supply pressure consistency at 140KPa, 160KPa, 280KPa, or 400KPa levels as specified for the particular installation. Air source connectors in Rc1/4 or Rc3/8 configurations require periodic cleaning and seal replacement to prevent contamination-related performance degradation. The ambient temperature operating range of -30°C to +70°C requires consideration of environmental factors that may affect actuator performance and maintenance scheduling.

Troubleshooting Common Pneumatic Sleeve Valve Performance Issues

• Identifying and Resolving Flow Control Anomalies

Flow control precision represents a critical performance parameter for Pneumatic Sleeve Valve applications, and deviation from expected performance characteristics often indicates maintenance requirements. Common flow control issues include inconsistent flow regulation, excessive pressure drop, or inadequate shut-off capability. These symptoms typically originate from valve core positioning problems, sleeve wear, or actuator response degradation. Diagnostic procedures should begin with verification of control signal integrity and actuator response characteristics. The Pneumatic Sleeve Valve system's pressure-balanced valve core design minimizes the impact of upstream pressure variations on control accuracy, but actuator problems can compromise this advantage. Systematic testing of actuator response to control signals helps isolate actuator-related issues from other system problems. Valve seat leakage assessment requires attention to both metal valve seat configurations complying with ANSI B16.104 Level IV standards and non-metallic valve seat systems meeting ANSI B16.104 Class VI requirements. The superior sealing performance of modern Pneumatic Sleeve Valve designs significantly reduces maintenance requirements compared to traditional valve technologies, but periodic verification ensures continued compliance with system requirements.

• Addressing Pneumatic System Component Failures

Pneumatic system component failures in Pneumatic Sleeve Valve installations often manifest as sluggish actuator response, inconsistent positioning, or complete loss of control capability. The modular design of these valve systems enables targeted component replacement without complete valve replacement, significantly reducing maintenance costs and downtime requirements. Positioner system maintenance involves calibration verification, signal processing accuracy assessment, and mechanical linkage inspection. Advanced Pneumatic Sleeve Valve systems incorporate digital positioners that provide diagnostic capabilities and self-calibration features. These advanced systems simplify maintenance procedures while providing enhanced performance monitoring capabilities that support predictive maintenance strategies. Filter pressure reducing valve maintenance requires attention to filter element condition, pressure regulation accuracy, and internal seal integrity. Contamination in pneumatic supply systems can significantly impact Pneumatic Sleeve Valve performance, making proper filtration system maintenance critical for optimal valve operation. Regular filter element replacement and pressure regulator calibration ensure consistent actuator performance and extend valve service life.

Advanced Maintenance Techniques and Performance Optimization

• Precision Calibration Methods for Enhanced Control Accuracy

Advanced maintenance procedures for Pneumatic Sleeve Valve systems encompass precision calibration techniques that optimize control accuracy and system responsiveness. Calibration procedures must address both air-opening (reaction) and air-closing (direct action) operational modes, ensuring consistent performance across the complete operational range. The equal percentage and linear adjustment characteristics available in modern designs require specific calibration approaches to maintain optimal performance. Valve position transmitter calibration involves verification of position feedback accuracy, signal processing integrity, and mechanical linkage condition. The integration of digital communication protocols in advanced Pneumatic Sleeve Valve systems provides enhanced diagnostic capabilities and simplified calibration procedures. These systems enable remote calibration verification and automatic compensation for operational parameter drift. The straight-through double-seat ball valve design of modern Pneumatic Sleeve Valve systems incorporates advanced flow characteristics that require specific calibration techniques. The DN15-DN400mm nominal diameter range and PN16, 40, 64, ANSI150, 300, 600 pressure ratings demand calibration procedures tailored to specific installation requirements. Professional calibration ensures optimal performance across the complete operational envelope.

​​​​​​​

• Material Compatibility and Corrosion Prevention Strategies

Material selection and compatibility assessment represent critical aspects of Pneumatic Sleeve Valve maintenance planning. The valve body materials including WCB, WC6, WC9, LCB, LC2, LC3, CF8, and CF8M provide compatibility with diverse process fluids while maintaining structural integrity under demanding operational conditions. Understanding material characteristics enables development of targeted maintenance strategies that address specific corrosion mechanisms and wear patterns. Internal component materials such as 304, 304 surfacing STL, 316, 316 surfacing STL, and 316L stainless steel grades offer exceptional corrosion resistance and mechanical durability. The selection of appropriate internal component materials based on process fluid characteristics and operational conditions significantly impacts maintenance requirements and service intervals. Regular assessment of component condition enables proactive replacement before performance degradation occurs. PTFE V-shaped packing, PTFE asbestos, and flexible graphite sealing systems require specific maintenance approaches based on process conditions and temperature requirements. The standard temperature range of -17°C to +230°C encompasses most industrial applications, but extreme conditions may require specialized maintenance procedures. Proper sealing system maintenance ensures leak-free operation and compliance with environmental regulations.

Conclusion

Pneumatic Sleeve Valve systems represent an optimal balance between sophisticated control capabilities and maintenance accessibility. The combination of advanced engineering design with service-friendly architecture enables maintenance teams to achieve exceptional system reliability while minimizing operational costs and downtime requirements.

Cooperate with CEPAI Group Co., LTD.

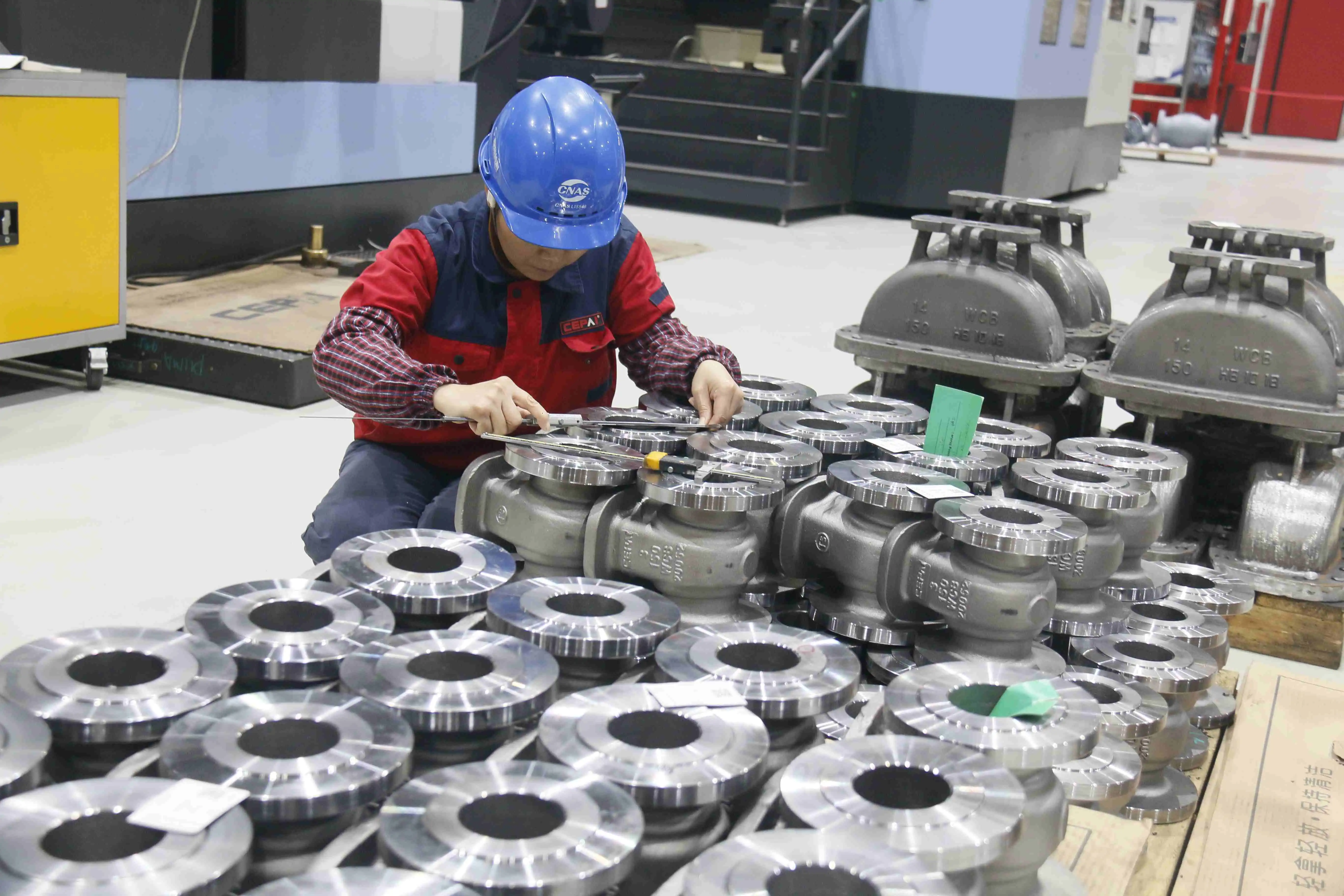

CEPAI Group Co., LTD., established in January 2009 with a registered capital of 200 million yuan, stands as a leading China Pneumatic Sleeve Valve manufacturer and China Pneumatic Sleeve Valve supplier. Located at 333 Jianshe West Road, Jinhu Economic Development Zone, Jiangsu Province, our 56,000 square meter facility represents the pinnacle of intelligent manufacturing excellence. As a national high-tech enterprise and specialized "little giant" company, CEPAI has earned recognition as a Jiangsu Smart Factory and Internet benchmarking facility.

Our commitment to quality and innovation has earned supplier qualifications from major industry leaders including PetroChina, Sinopec, and CNOOC. The company's certified enterprise Technology Center, Fluid Control Engineering Technology Research Center, and CNAS nationally recognized laboratory ensure continuous advancement in Pneumatic Sleeve Valve technology. With comprehensive certifications including API, ISO, and CE standards, CEPAI delivers High Quality Pneumatic Sleeve Valve solutions that exceed international specifications.

As your trusted China Pneumatic Sleeve Valve factory, we offer competitive Pneumatic Sleeve Valve price structures with China Pneumatic Sleeve Valve wholesale options for volume requirements. Our extensive product portfolio includes Pneumatic Sleeve Valve for sale configurations from DN15-DN400mm with pressure ratings up to ANSI 600. Contact our technical experts at cepai@cepai.com for customized solutions and comprehensive support services that ensure optimal system performance.

FAQ

Q: What are the typical maintenance intervals for Pneumatic Sleeve Valve systems in industrial applications?

A: Maintenance intervals typically range from quarterly inspections for high-duty cycle applications to semi-annual assessments for standard industrial operations, depending on operational environment and process conditions.

Q: How does the pressure-balanced valve core design affect maintenance requirements?

A: The pressure-balanced design reduces mechanical stress on components, extends service intervals, and simplifies maintenance procedures by minimizing actuator force requirements and improving operational stability.

Q: What are the key indicators that suggest Pneumatic Sleeve Valve maintenance is required?

A: Key indicators include inconsistent flow regulation, sluggish actuator response, excessive pressure drop, inadequate shut-off capability, or deviation from baseline control signal response characteristics.

Q: Can Pneumatic Sleeve Valve maintenance be performed without complete system shutdown?

A: Yes, the accessible service point design enables routine maintenance procedures using standard industrial tools, often without requiring complete system shutdown, significantly reducing production downtime.
