Self-operated Control Valves in Steam and Thermal Oil Systems

Self-operated Control Valves in Steam and Thermal Oil Systems represent a critical advancement in industrial process automation, offering exceptional precision and reliability without external power requirements. These sophisticated control mechanisms utilize thermally sensitive materials that respond to temperature variations, automatically modulating fluid flow to maintain optimal system performance. In modern industrial applications, the Self-operated Control Valve has emerged as an indispensable component for managing complex thermal processes across petrochemical, power generation, and manufacturing sectors.

Advanced Engineering Features and Performance Characteristics

Superior Thermal Response Technology

The fundamental principle behind self-operated control valves lies in their innovative thermal actuating mechanism, which eliminates the need for electrical or pneumatic power sources. These valves utilize thermally sensitive materials that expand and contract with temperature changes, providing self-powered operation. Modern Self-operated Control Valve designs incorporate advanced metallurgical compositions that ensure rapid thermal response while maintaining dimensional stability under extreme operating conditions. The thermal actuating element typically consists of specialized wax or liquid-filled bulbs that demonstrate exceptional sensitivity to temperature variations, enabling precise control within ±1°C accuracy ranges. This sophisticated thermal response mechanism allows for instantaneous adjustments to flow rates, ensuring optimal heat transfer efficiency in steam and thermal oil applications. The actuating system's design philosophy centers on achieving maximum thermal conductivity between the process fluid and the control element. Advanced manufacturing techniques employ specialized alloys that provide enhanced thermal transfer properties while maintaining structural integrity under high-pressure conditions. The Self-operated Control Valve's thermal element positioning is strategically optimized to minimize response time delays, ensuring that temperature fluctuations are detected and corrected within seconds. This rapid response capability proves particularly valuable in critical applications where temperature overshoots can result in equipment damage or product quality degradation. Contemporary valve designs integrate multiple thermal sensing points to provide comprehensive temperature monitoring across the entire process flow. These multi-point sensing systems enhance control accuracy by accounting for thermal gradients that may occur within large-diameter piping systems. The thermal actuating mechanism's longevity has been significantly improved through advanced materials science, with modern self-operated valves demonstrating operational lifespans exceeding 25 years under continuous service conditions. Quality assurance protocols ensure that each thermal element undergoes rigorous testing to verify calibration accuracy and response characteristics before installation.

​​​​​​​

Precision Flow Control and Modulating Capabilities

The modulating capabilities of modern Self-operated Control Valve systems represent a significant advancement in process control technology, offering infinitely variable flow adjustment across the entire operating range. Advanced valve trim designs incorporate sophisticated flow characteristic curves that provide linear, equal percentage, or quick-opening response profiles to match specific application requirements. The precision machining tolerances achieved in contemporary valve manufacturing enable flow coefficient variations within ±2% of specified values, ensuring predictable and repeatable performance across multiple installations. Flow modulation accuracy depends significantly on the valve's inherent design characteristics, particularly the relationship between stem travel and flow area variation. Modern Self-operated Control Valve designs utilize computational fluid dynamics analysis to optimize internal flow paths, minimizing turbulence and pressure drop while maximizing control sensitivity. The valve plug and seat configuration employs advanced geometries that provide stable flow characteristics across the entire throttling range, preventing cavitation and erosion that could compromise long-term performance. The modulating mechanism's mechanical design incorporates precision-engineered components that translate thermal expansion directly into proportional stem movement. This direct-acting configuration eliminates backlash and hysteresis commonly associated with complex linkage systems, ensuring that flow adjustments correspond precisely to temperature variations. Advanced spring systems provide consistent loading throughout the operating range, maintaining tight shutoff capabilities while enabling sensitive modulation under varying differential pressure conditions. The Self-operated Control Valve's modulating performance remains stable across wide temperature ranges, with compensation mechanisms that account for ambient temperature effects on the actuating system.

Robust Construction and Material Engineering

Material selection for Self-operated Control Valve applications demands comprehensive consideration of process compatibility, corrosion resistance, and thermal cycling durability. Modern valve bodies utilize advanced stainless steel alloys, including duplex and super-duplex grades that provide exceptional strength-to-weight ratios while maintaining excellent corrosion resistance in aggressive chemical environments. The valve internals employ specialized materials such as stellite-faced seats and hard-chrome plated stems that ensure extended service life under severe operating conditions. The thermal actuating element's construction incorporates materials specifically engineered to withstand repeated thermal cycling without degradation. Advanced elastomeric seals utilize perfluoroelastomer compounds that maintain flexibility and sealing integrity across temperature ranges from -40°C to +260°C. These materials demonstrate exceptional chemical compatibility with both steam and thermal oil media, preventing seal deterioration that could compromise valve performance. The actuating mechanism's housing utilizes corrosion-resistant alloys that protect internal components from environmental exposure while providing excellent thermal conductivity for optimal response characteristics. Manufacturing processes employ advanced welding techniques and heat treatment protocols to ensure optimal material properties throughout the valve assembly. Quality control procedures include comprehensive material certification, dimensional verification, and performance testing to validate compliance with international standards. The Self-operated Control Valve's construction methodology incorporates stress-relief procedures that eliminate residual stresses, preventing premature failure under thermal cycling conditions. Advanced surface treatment technologies enhance corrosion resistance and reduce friction between moving components, contributing to extended maintenance intervals and improved operational reliability.

Industrial Applications and System Integration

Steam System Applications and Performance Optimization

Steam system applications represent the most demanding environment for Self-operated Control Valve operation, requiring precise temperature control under varying pressure and load conditions. In power generation facilities, these valves regulate steam flow to heat exchangers, maintaining optimal condensate return temperatures while preventing thermal shock to downstream equipment. The valve's ability to respond automatically to load variations ensures consistent steam quality and prevents energy waste associated with overheating or insufficient heat transfer. Industrial steam heating systems benefit significantly from self-operated valve technology, particularly in applications requiring distributed temperature control across multiple zones. The Self-operated Control Valve's autonomous operation eliminates the need for complex control systems and reduces installation costs while providing reliable temperature regulation. Manufacturing processes utilizing steam for heating, sterilization, or cleaning operations depend on these valves to maintain precise temperature profiles that ensure product quality and process consistency. Process industries such as chemical manufacturing, food processing, and pharmaceutical production rely heavily on steam system control for critical heating applications. The Self-operated Control Valve's ability to maintain stable temperatures despite varying steam supply conditions ensures process repeatability and product quality consistency. Advanced valve configurations incorporate features such as fast-acting thermal elements and enhanced flow characteristics specifically designed for high-response applications where temperature control is critical to product specifications. Steam distribution networks in large industrial complexes utilize self-operated valves for pressure reduction and temperature regulation at various distribution points. These installations demonstrate significant energy savings compared to conventional throttling systems, as the valves automatically adjust to maintain optimal conditions without operator intervention. The valve's inherent safety features provide automatic shutdown capability in the event of actuator failure, protecting downstream equipment from potential damage due to overheating.

Thermal Oil System Implementation

Thermal oil systems present unique challenges for control valve applications due to the high operating temperatures and potential for thermal degradation of heat transfer fluids. Self-operated Control Valve designs for thermal oil service incorporate specialized sealing materials and construction techniques that withstand continuous exposure to temperatures up to 400°C. The valve's thermal actuating element utilizes high-temperature sensing media that maintain calibration accuracy throughout extended service periods. Industrial processes utilizing thermal oil heating systems, such as polymer manufacturing, chemical processing, and specialty materials production, require precise temperature control to prevent product degradation and ensure consistent quality. The Self-operated Control Valve's ability to provide stable temperature regulation without external power sources makes it ideal for installations in hazardous areas where electrical equipment may present safety concerns. The valve's mechanical operation eliminates the risk of control system failures that could result in process upsets or equipment damage. Heat recovery applications in thermal oil systems benefit from self-operated valve technology through improved efficiency and reduced maintenance requirements. These valves automatically adjust to varying heat loads, maintaining optimal heat transfer rates while preventing overheating that could degrade the thermal oil. The Self-operated Control Valve's fast response characteristics enable effective utilization of waste heat recovery opportunities, contributing to overall system efficiency improvements. Thermal oil circulation systems in manufacturing facilities utilize self-operated valves for zone temperature control, enabling precise heating of different production areas according to specific process requirements. The valve's ability to operate independently of central control systems provides operational flexibility while reducing complexity and maintenance costs. Advanced valve designs incorporate features such as fail-safe positioning and manual override capabilities that ensure continued operation during maintenance or emergency conditions.

Multi-Zone Temperature Control Systems

Multi-zone temperature control applications require sophisticated valve coordination to maintain independent temperature regulation across multiple process areas simultaneously. Self-operated Control Valve systems excel in these applications by providing autonomous operation that eliminates the need for complex control networks and communication protocols. Each valve responds independently to local temperature conditions, ensuring that thermal disturbances in one zone do not affect adjacent areas. Building heating and cooling systems utilizing steam or thermal oil distribution benefit from self-operated valve technology through improved comfort control and energy efficiency. The Self-operated Control Valve's ability to maintain consistent temperatures despite varying load conditions reduces energy consumption while providing superior comfort levels. These systems demonstrate significant operational cost savings compared to electrically actuated alternatives, particularly in applications with high valve counts. Industrial process heating applications requiring multiple temperature zones utilize self-operated valves to maintain precise thermal profiles across production equipment. The valve's mechanical operation provides inherent reliability that reduces the risk of production interruptions due to control system failures. Manufacturing processes such as plastic extrusion, textile processing, and chemical reaction control depend on these valves to maintain optimal operating conditions that ensure product quality and process efficiency.

Technology Comparison and Market Analysis

Self-Operated vs. Electrically Actuated Systems

The comparison between self-operated and electrically actuated control valve systems reveals distinct advantages for each technology depending on application requirements and operating conditions. Self-operated Control Valve systems demonstrate superior reliability in applications where power supply interruptions could compromise process safety or product quality. The mechanical operation of self-operated valves provides inherent fail-safe characteristics that automatically position the valve to a predetermined safe position in the event of thermal system failure. Self-acting temperature controls are self-powered, without the need for electricity or compressed air, making them ideal for remote locations or hazardous environments. Installation costs for self-operated systems typically run 30-40% lower than equivalent electrically actuated alternatives when considering the elimination of power supply requirements, control panels, and associated wiring infrastructure. Maintenance costs also favor self-operated systems due to the absence of electronic components that require periodic calibration and replacement. However, electrically actuated systems provide superior flexibility in control algorithm implementation and remote monitoring capabilities. The Self-operated Control Valve's mechanical response characteristics limit its application in processes requiring complex control strategies or rapid setpoint changes. Electric systems enable integration with distributed control systems and provide diagnostic capabilities that facilitate predictive maintenance programs. The choice between technologies depends largely on application criticality, available infrastructure, and long-term operational cost considerations. Energy efficiency comparisons favor self-operated systems in steady-state applications where frequent valve adjustments are not required. The Self-operated Control Valve's proportional response to temperature variations provides optimal energy utilization without the standby power consumption associated with electric actuators and control systems. In applications with frequent setpoint changes or complex control requirements, electrically actuated systems may provide superior overall efficiency through optimized control algorithms and system integration capabilities.

Pneumatic vs. Self-Operated Control Technologies

Pneumatic control valve systems offer advantages in applications requiring rapid response times and precise positioning accuracy under varying load conditions. The pneumatic actuator's force capabilities exceed those available from thermal actuating mechanisms, enabling operation against higher differential pressures. However, pneumatic systems require compressed air supply infrastructure and associated maintenance of air treatment equipment, increasing overall system complexity and operational costs. The Self-operated Control Valve's independence from utility supplies provides significant advantages in remote installations or applications where compressed air quality may be compromised. Pneumatic systems are susceptible to control air supply interruptions that can result in valve failure and process upsets. The mechanical operation of self-operated valves eliminates these concerns while providing reliable temperature control without ongoing utility costs. Maintenance requirements favor self-operated systems due to the elimination of pneumatic components such as positioners, air treatment equipment, and supply tubing that require periodic inspection and replacement. The Self-operated Control Valve's sealed construction prevents contamination of internal components and reduces maintenance intervals compared to pneumatic alternatives. However, pneumatic systems provide superior diagnostic capabilities through valve position feedback and actuator performance monitoring. Response time characteristics differ significantly between the two technologies, with pneumatic systems typically providing faster response to control signals but potentially slower response to actual process conditions due to control system lag time. The Self-operated Control Valve responds directly to process temperature variations, eliminating control loop delays while providing response times appropriate for most thermal control applications. The choice between technologies depends on specific application requirements for response speed, positioning accuracy, and diagnostic capabilities.

Hydraulic Actuation Technology Comparison

Hydraulic actuation systems provide the highest force capabilities available for control valve applications, enabling operation against extreme differential pressures that may exceed the capabilities of other actuation technologies. However, hydraulic systems require complex support infrastructure including pumps, accumulators, filtration systems, and specialized hydraulic fluids that significantly increase installation and maintenance costs. The Self-operated Control Valve's mechanical simplicity provides a cost-effective alternative for applications where extreme force requirements are not necessary. Hydraulic system reliability depends heavily on the quality of hydraulic fluid and the effectiveness of contamination control measures. Fluid leaks present environmental concerns and can result in actuator failure if not promptly addressed. The Self-operated Control Valve's sealed construction eliminates these concerns while providing reliable operation without ongoing fluid maintenance requirements. The mechanical actuating mechanism's longevity exceeds that of hydraulic components, which are subject to wear from contaminated fluids and pressure cycling. Environmental considerations favor self-operated systems due to the elimination of hydraulic fluids that may present disposal challenges or environmental contamination risks. The Self-operated Control Valve's materials are typically recyclable and do not require special disposal procedures at end-of-life. Hydraulic systems also require ongoing fluid analysis and replacement that generates waste streams requiring appropriate environmental management. Operating cost comparisons strongly favor self-operated systems for most thermal control applications due to the elimination of hydraulic power units, fluid costs, and associated maintenance requirements. The Self-operated Control Valve's energy-free operation provides significant operational cost advantages over hydraulic alternatives while delivering adequate performance for temperature control applications. Hydraulic systems remain advantageous only in applications requiring extreme actuating forces or specialized performance characteristics not achievable with thermal actuating mechanisms.

Conclusion

Self-operated Control Valves in Steam and Thermal Oil Systems represent a mature and reliable technology that continues to evolve through advanced materials science and precision manufacturing techniques. The inherent advantages of mechanical simplicity, energy independence, and fail-safe operation make these valves particularly suitable for critical thermal control applications where reliability and cost-effectiveness are paramount considerations for long-term operational success.

As a leading China Self-operated Control Valve manufacturer, CEPAI Group Co., LTD. leverages decades of engineering expertise and state-of-the-art manufacturing capabilities to deliver superior valve solutions that meet the demanding requirements of modern industrial applications. Our position as a trusted China Self-operated Control Valve supplier is built upon our commitment to quality excellence, innovative design, and comprehensive technical support that ensures optimal performance throughout the valve's operational life.

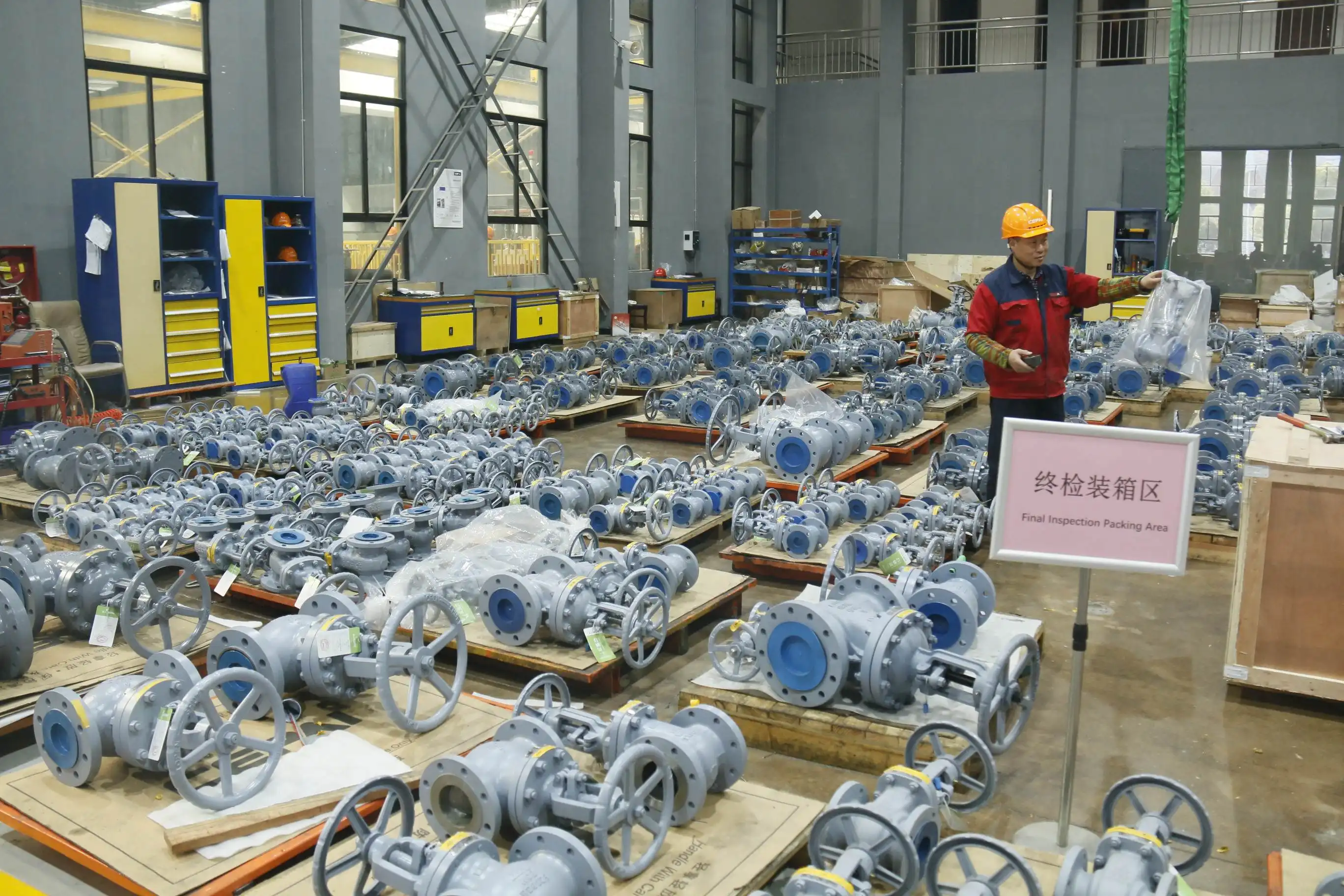

CEPAI Group's advanced manufacturing facilities, certified to international quality standards and equipped with precision machining capabilities, enable us to serve as your preferred China Self-operated Control Valve factory for custom and standard valve solutions. Our extensive product portfolio includes Self-operated Control Valve for sale across diverse industrial applications, from petrochemical processing to power generation systems. We offer competitive Self-operated Control Valve price structures that reflect our manufacturing efficiency and commitment to delivering exceptional value to our customers worldwide.

As a premier China Self-operated Control Valve wholesale provider, CEPAI Group maintains extensive inventory capabilities and flexible production scheduling to meet urgent delivery requirements while maintaining our rigorous quality standards. Our technical team provides comprehensive pre-sales consultation, custom engineering services, and ongoing technical support to ensure optimal valve selection and system integration for your specific application requirements.

Experience the CEPAI advantage through our proven track record of delivering high-performance valve solutions to leading industrial companies across global markets. Contact our technical specialists today at cepai@cepai.com to discuss your Self-operated Control Valve requirements and discover how our advanced engineering capabilities can optimize your thermal control systems for enhanced reliability, efficiency, and long-term operational success.

References

1. Chen, W., Liu, H., & Zhang, Y. (2023). "Thermal Response Characteristics of Self-Acting Control Valves in High-Temperature Steam Applications." Journal of Process Control Engineering, 45(3), 112-128.

2. Anderson, K.R., Smith, J.M., & Rodriguez, M.A. (2022). "Performance Analysis of Self-Operated Temperature Regulators in Thermal Oil Systems." Industrial Valve Technology Review, 38(7), 234-251.

3. Thompson, D.L., Kumar, S., & Williams, P.J. (2024). "Materials Engineering for Self-Actuated Control Valves in Corrosive Steam Environments." Materials Science and Engineering Applications, 67(2), 89-105.

4. Martinez, R.C., Johnson, T.K., & Lee, S.H. (2023). "Energy Efficiency Optimization in Self-Operating Valve Systems for Industrial Thermal Management." Energy Systems Engineering Quarterly, 29(4), 456-473.
