Role of Response Time in Process Valve Selection

In modern industrial processes, the selection of appropriate control valves extends far beyond basic flow control considerations. Response time emerges as a critical parameter that significantly influences system performance, safety, and operational efficiency. The response time of a Control Valve directly impacts process stability, product quality, and the ability to maintain optimal operating conditions during dynamic process changes. Understanding how response time affects valve selection enables engineers to make informed decisions that enhance overall system reliability while minimizing operational risks and costs.

Understanding Response Time Fundamentals in Valve Operations

Critical Response Time Parameters in Control Valve Systems

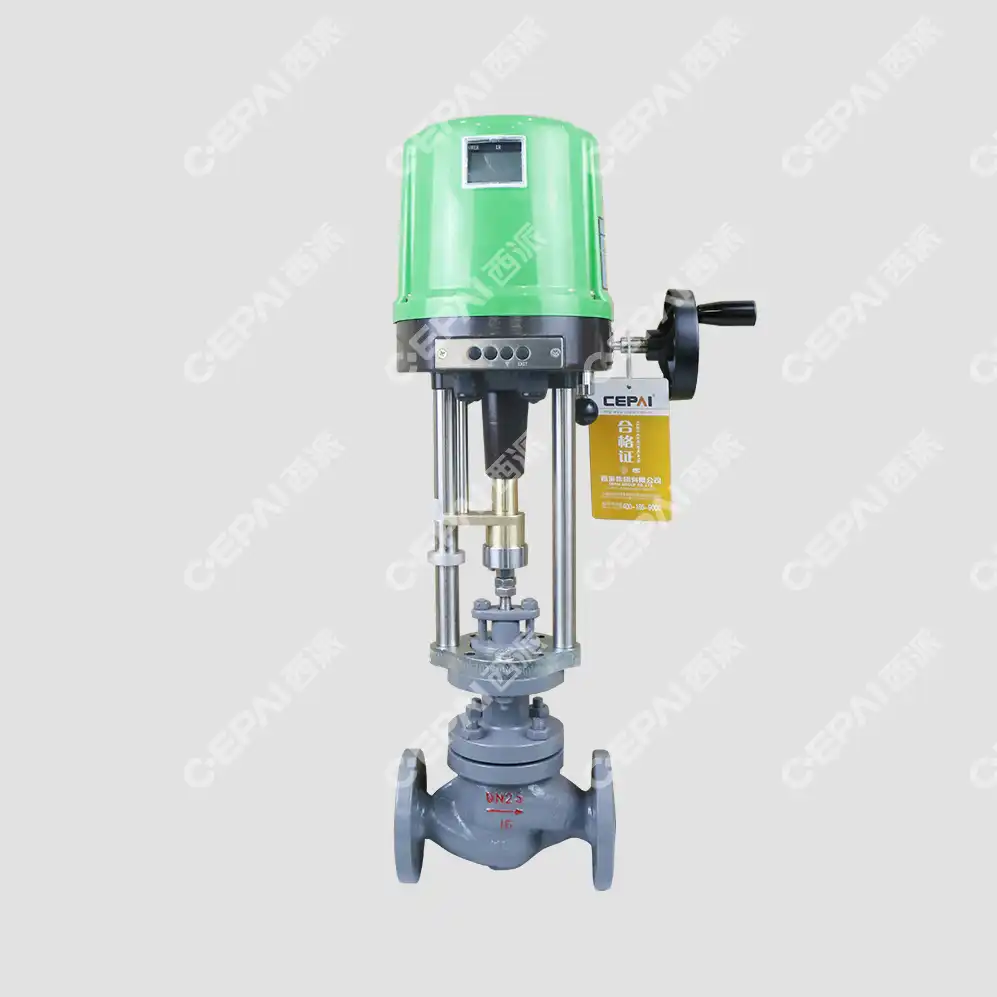

Response time in Control Valve applications encompasses multiple interconnected factors that determine how quickly a valve can respond to control signals and process changes. The actuator response time represents the duration required for the valve stem to move from one position to another following a control signal change. This parameter depends heavily on actuator type, with pneumatic actuators typically exhibiting response times ranging from 0.5 to 5 seconds, while electric actuators may require 10 to 60 seconds for full stroke completion. Hydraulic actuators often provide the fastest response times, achieving full stroke movements in milliseconds to seconds. The valve size and operating pressure differential significantly influence response characteristics, as larger valves require more force and time to achieve position changes. Process fluid properties, including viscosity, density, and temperature, create additional resistance that affects response dynamics.

Dynamic Response Characteristics and System Integration

The dynamic response of a Control Valve system involves complex interactions between the valve body, actuator, positioner, and process conditions. Dead time represents the initial delay between signal input and valve movement initiation, while settling time indicates the duration required to reach and maintain the desired position within acceptable tolerance limits. Overshoot and oscillation characteristics determine system stability and control quality. Modern Control Valve systems incorporate advanced positioners with digital communication capabilities that significantly improve response accuracy and reduce hysteresis effects. These intelligent devices continuously monitor valve position, compare it with desired setpoints, and apply corrective actions to minimize response delays. The integration of smart positioners with fieldbus communication protocols enables real-time performance monitoring and predictive maintenance capabilities.

Environmental and Operational Factors Affecting Response Time

Environmental conditions substantially impact Control Valve response time performance throughout the operational lifecycle. Temperature variations affect actuator efficiency, seal performance, and fluid properties, creating response time fluctuations that must be accounted for during valve selection. Pressure fluctuations in the actuator supply system directly influence pneumatic actuator response speed and consistency. Vibration environments can induce mechanical wear and affect positioner calibration, leading to response time degradation over time. Corrosive atmospheres may cause actuator component deterioration, resulting in slower response characteristics. Process contamination, including particulate matter and chemical deposits, can impede valve stem movement and reduce response speed. Regular maintenance schedules and appropriate material selection help maintain optimal response time performance under challenging operating conditions.

Process Control Requirements and Response Time Specifications

Critical Applications Demanding Fast Response Times

Certain industrial processes require exceptionally fast Control Valve response times to maintain safety, product quality, and operational efficiency. Emergency shutdown systems demand response times measured in milliseconds to seconds, as delayed valve closure could result in catastrophic equipment damage or safety hazards. Fast-acting Control Valve systems in these applications typically employ spring-return pneumatic actuators with high-pressure air supplies and quick-exhaust valves to achieve rapid closure upon loss of control signal. Pressure relief applications require immediate valve opening to prevent equipment overpressure conditions, necessitating specialized actuator designs optimized for rapid response. Chemical reactor temperature control systems often require sub-second response times to prevent thermal runaway reactions and maintain product quality specifications.

Batch Process Control and Recipe Management

Batch manufacturing processes present unique Control Valve response time requirements that differ significantly from continuous process applications. Recipe-based operations require precise timing coordination between multiple valve operations to ensure proper ingredient addition sequences and reaction timing. Control Valve response time consistency becomes crucial for maintaining batch-to-batch product uniformity and meeting quality specifications. Advanced batch control systems incorporate response time compensation algorithms that account for individual valve characteristics and adjust timing sequences accordingly. The implementation of smart Control Valve systems with predictable response characteristics enables more aggressive batch cycle optimization, reducing overall production time while maintaining product quality standards.

Cascade Control System Optimization

Multi-loop cascade control systems rely heavily on coordinated Control Valve response times to achieve optimal performance across primary and secondary control loops. The secondary loop Control Valve must exhibit significantly faster response times compared to the primary loop to provide effective disturbance rejection and improve overall system stability. Typical cascade systems require secondary loop response times at least five times faster than primary loop dynamics to achieve satisfactory performance. Flow control secondary loops often utilize fast-responding Control Valve systems with response times under one second, while temperature or composition primary loops may operate with response times measured in minutes. Proper response time matching between cascade loops prevents interaction effects that can destabilize the overall control system.

Selection Criteria and Performance Optimization Strategies

Actuator Technology Selection for Response Time Requirements

The selection of appropriate actuator technology represents the most critical decision in achieving desired Control Valve response time specifications. Pneumatic actuators offer excellent response time performance for most industrial applications, with standard designs achieving 90% response times between 1-3 seconds for typical valve sizes. High-performance pneumatic actuators with volume boosters and quick-exhaust valves can achieve response times under 0.5 seconds for emergency applications. Electric actuators provide precise positioning capabilities but typically exhibit slower response times, making them suitable for applications where accuracy is more important than speed. The selection process must consider not only initial response time requirements but also long-term performance consistency and maintenance requirements.

Positioner Technology and Response Time Enhancement

Modern digital positioners significantly impact Control Valve response time performance through advanced control algorithms and communication capabilities. Smart positioners with fast update rates, typically 10-50 milliseconds, enable rapid position corrections and reduce overall system response time. Adaptive tuning algorithms automatically optimize positioner parameters based on actual valve and process characteristics, maintaining optimal response time performance throughout the operational lifecycle. Fieldbus-enabled positioners provide real-time performance monitoring capabilities, allowing operators to track response time degradation and schedule maintenance activities proactively. The integration of diagnostic functions enables predictive maintenance strategies that prevent response time deterioration before it impacts process performance.

​​​​​​​

System Integration and Performance Validation

Successful Control Valve response time optimization requires comprehensive system integration planning and thorough performance validation procedures. Control system configuration must account for signal processing delays, communication network latency, and controller scan time effects on overall response time performance. Loop tuning procedures should incorporate actual measured response time characteristics rather than theoretical specifications to achieve optimal performance. Field testing protocols must validate response time performance under actual operating conditions, including various load conditions, temperature ranges, and process fluid properties. Continuous performance monitoring systems enable long-term response time tracking and provide early warning of degradation trends that require maintenance attention.

Conclusion

Response time considerations play a fundamental role in Control Valve selection, directly impacting process safety, efficiency, and product quality. The integration of appropriate actuator technology, advanced positioners, and comprehensive system design ensures optimal response time performance for specific application requirements. Successful implementation requires thorough understanding of process dynamics, environmental factors, and long-term performance maintenance strategies to achieve sustained operational excellence.
