Pneumatic vs Electric Control Valves:Which One Wins

In the world of industrial automation and process control, the debate between pneumatic and electric control valves continues to shape engineering decisions across countless applications. This fundamental choice affects everything from system efficiency and maintenance costs to operational reliability and environmental impact. Understanding the distinct advantages and limitations of each technology is crucial for engineers, plant managers, and procurement specialists who must balance performance requirements with budget constraints and long-term operational goals.

The question of whether pneumatic or electric control valves reign supreme doesn't have a simple answer. Each technology excels in specific applications while facing unique challenges in others. Pneumatic control valves have dominated industrial processes for decades, offering proven reliability and straightforward operation, while electric actuators bring precision, intelligence, and energy efficiency to modern control systems. The choice between these technologies ultimately depends on your specific application requirements, environmental conditions, and operational priorities.

Key Performance Differences Between Pneumatic and Electric Control Valves

Speed and Response Characteristics

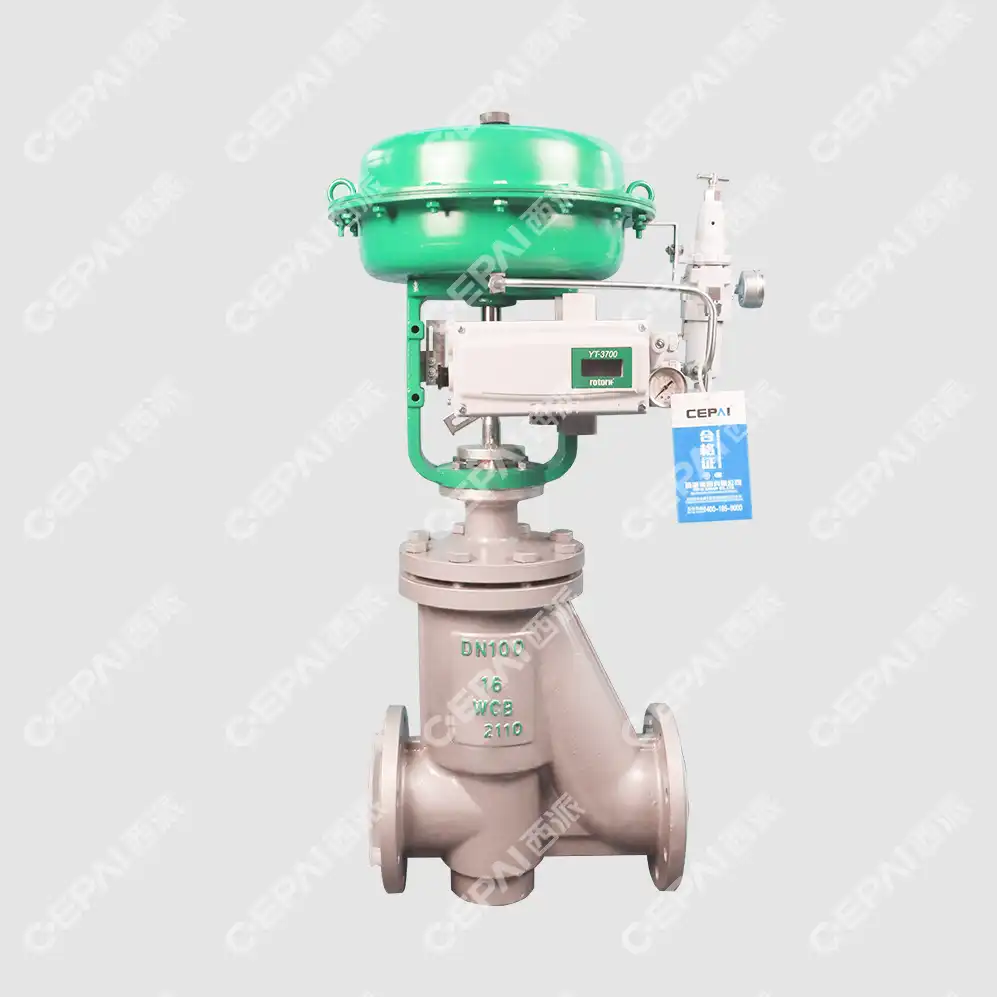

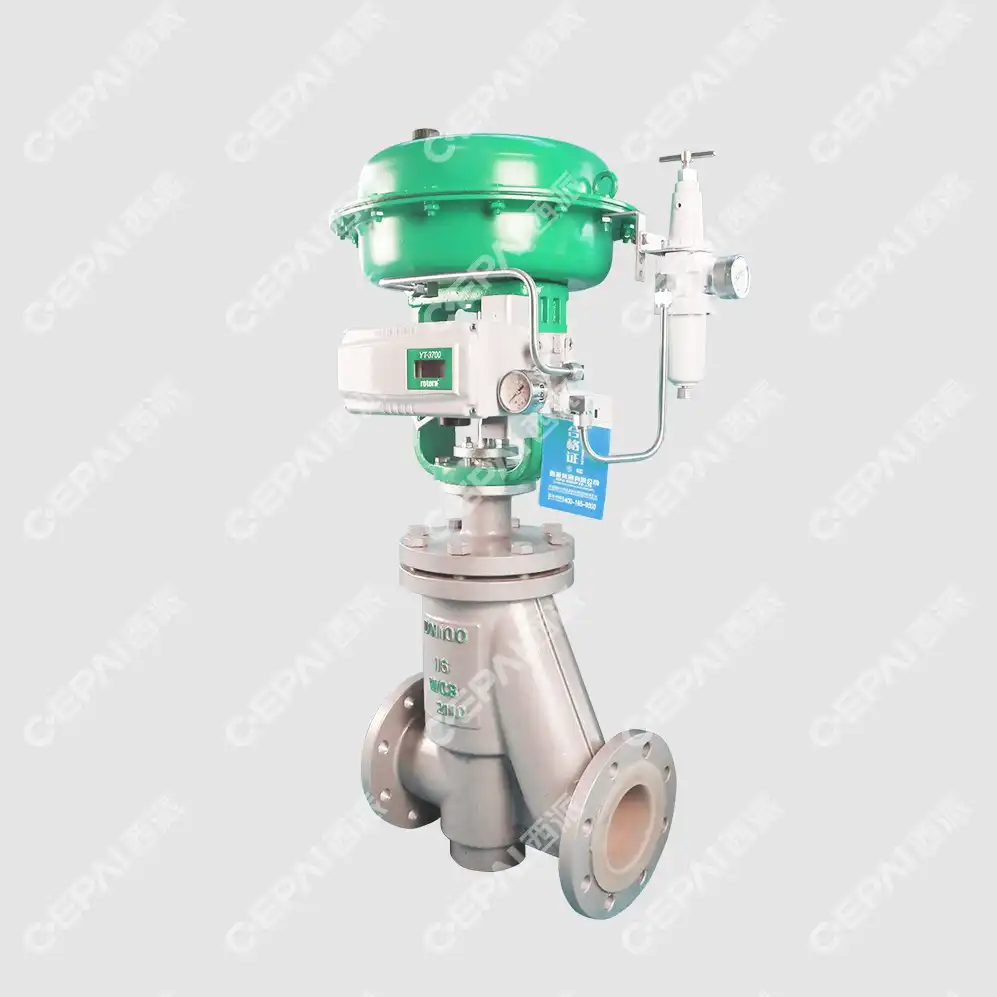

Pneumatic control valves excel in applications requiring rapid response times and high-speed operation. The compressible nature of air allows these systems to achieve exceptionally fast actuation speeds, making them ideal for emergency shutdown applications and processes requiring quick valve cycling. A typical pneumatic control valve can complete a full stroke in under one second, with some specialized designs achieving even faster response times. This rapid response capability stems from the inherent properties of compressed air, which can be quickly released or supplied to create immediate pressure differentials across the actuator diaphragm or piston.The speed advantage of pneumatic systems becomes particularly pronounced in safety-critical applications where fail-safe operation is paramount. When air supply is lost, pneumatic control valves can be designed to automatically return to their safe position using spring return mechanisms, providing an inherent safety feature that doesn't rely on external power sources. This fail-safe characteristic, combined with rapid response times, makes pneumatic control valves the preferred choice for emergency shutdown valves, pressure relief applications, and other safety-instrumented systems where split-second response can prevent catastrophic failures.However, the speed of pneumatic systems can also present challenges in applications requiring precise positioning or gradual transitions. The compressible nature of air can lead to overshooting and oscillation, particularly in applications with varying loads or when precise positioning is critical. While modern pneumatic positioners and volume boosters can mitigate some of these issues, the fundamental physics of gas compression means that achieving ultra-precise positioning remains more challenging with pneumatic systems compared to their electric counterparts.

Precision and Control Accuracy

Electric control valves demonstrate superior precision and repeatability compared to pneumatic systems, making them the preferred choice for applications requiring exact positioning and consistent performance. Modern electric actuators can achieve positioning accuracy within 0.1% of full scale, with some high-end models reaching even tighter tolerances. This exceptional precision stems from the direct mechanical coupling between the electric motor and valve stem, eliminating the compliance and hysteresis effects inherent in pneumatic systems. The digital nature of electric control systems also enables sophisticated feedback mechanisms and advanced control algorithms that continuously monitor and adjust valve position.The precision advantage of electric control valves extends beyond simple positioning accuracy to include superior flow control characteristics. In applications where maintaining exact flow rates is critical, such as chemical dosing, pharmaceutical manufacturing, or precision blending operations, electric actuators provide the consistent, repeatable performance necessary for quality control and regulatory compliance. The ability to program complex positioning profiles and implement advanced control strategies like adaptive control and predictive maintenance algorithms further enhances the precision capabilities of electric systems.Temperature compensation and environmental stability represent additional areas where electric control valves excel. Unlike pneumatic systems, which can be affected by temperature variations that alter air density and pressure relationships, electric actuators maintain consistent performance across wide temperature ranges. This stability is particularly important in outdoor applications or processes with significant temperature variations, where pneumatic systems might require frequent recalibration or compensation adjustments to maintain accuracy.

Power Requirements and Infrastructure

The infrastructure requirements for pneumatic and electric control valves differ significantly, with each system presenting distinct advantages and challenges. Pneumatic control valves require a reliable compressed air supply, typically maintained at 20-100 PSI depending on the application. This necessitates air compressors, distribution networks, filtration systems, and regular maintenance to ensure clean, dry air supply. While the initial infrastructure investment can be substantial, many industrial facilities already have compressed air systems in place, making pneumatic valves a natural choice for integration into existing processes.Electric control valves require electrical power infrastructure, including appropriate voltage levels, control wiring, and protection systems. The power requirements vary significantly based on valve size and application, with smaller valves consuming minimal power during operation and larger valves requiring substantial electrical infrastructure for high-torque applications. However, electric systems offer the advantage of utilizing existing electrical distribution networks, which are typically more widespread and easier to extend than pneumatic systems. The growing emphasis on smart manufacturing and Industry 4.0 initiatives also favors electric systems, which can more easily integrate with digital control networks and provide detailed operational data.

Environmental Impact and Energy Efficiency Considerations

Energy Consumption Analysis

The energy efficiency debate between pneumatic and electric control valves reveals significant differences in operational costs and environmental impact. Pneumatic systems consume energy continuously through compressed air generation, even when valves are in static positions. Air compressors typically operate at 20-25% efficiency, meaning that for every unit of energy consumed at the valve, approximately four to five units of electrical energy are consumed at the compressor. This energy loss occurs through heat generation during compression, pressure drops in distribution systems, and inevitable air leaks throughout the pneumatic network.Electric control valves, in contrast, consume energy primarily during movement and positioning operations. Modern electric actuators equipped with servo motors and advanced control electronics can achieve overall system efficiencies exceeding 90%. When the valve is in a steady-state position, power consumption drops to minimal levels required only for position monitoring and control system operation. This fundamental difference in energy consumption patterns makes electric systems significantly more energy-efficient for applications with infrequent valve movement or where valves spend extended periods in fixed positions.The total cost of ownership analysis must also consider the energy required for auxiliary systems. Pneumatic systems require continuous operation of air compressors, dryers, and filtration equipment, while electric systems may require periodic operation of cooling systems for high-duty-cycle applications. However, the overall energy consumption of electric control valve systems typically proves lower than pneumatic equivalents, particularly in applications where valves don't require frequent cycling or where energy costs represent a significant operational expense.

Maintenance and Reliability Factors

Maintenance requirements and reliability characteristics differ substantially between pneumatic and electric control valve systems. Pneumatic systems benefit from relatively simple mechanical designs with fewer moving parts exposed to the process environment. The air supply provides inherent cooling and cleaning effects, which can extend component life in certain applications. However, pneumatic systems require regular maintenance of the air supply infrastructure, including compressor maintenance, filter replacement, moisture removal, and leak detection throughout the distribution network.Electric control valves typically require less routine maintenance of the actuation system itself, as electric motors and gear reducers are generally more robust and require less frequent service than pneumatic components. However, electric systems can be more sensitive to environmental conditions, requiring protection from moisture, dust, and temperature extremes. The electronic components in electric actuators may also be more susceptible to electromagnetic interference and require periodic calibration or software updates to maintain optimal performance.Long-term reliability depends heavily on application-specific factors and environmental conditions. Pneumatic systems excel in harsh environments where explosion-proof operation is required, as they don't generate electrical sparks and can be designed for use in hazardous areas with minimal additional protection. Electric systems require careful consideration of hazardous area classifications and may need specialized enclosures or intrinsically safe designs for operation in explosive atmospheres.

Application-Specific Performance Analysis

Industrial Process Suitability

The selection between pneumatic and electric control valves often depends on specific industrial process requirements and operating conditions. In the petrochemical industry, pneumatic control valves dominate due to their inherent safety characteristics and ability to operate reliably in hazardous environments. The fail-safe operation of pneumatic systems, combined with their spark-free operation, makes them ideal for applications involving flammable or explosive materials. Additionally, the rapid response times of pneumatic systems align well with the safety requirements of emergency shutdown systems commonly found in oil and gas processing facilities.Power generation applications present mixed requirements that favor different technologies depending on the specific application. Steam control valves in power plants often utilize pneumatic actuators due to the high temperatures and pressures involved, where the robust mechanical design of pneumatic systems provides reliable operation. However, feed water control and other precision applications increasingly favor electric actuators for their superior accuracy and ability to integrate with digital control systems. The trend toward increased automation and remote monitoring in power generation also favors electric systems for their superior diagnostic capabilities and integration with plant-wide control networks.Water and wastewater treatment facilities represent another application area where both technologies find extensive use. Pneumatic control valves excel in applications requiring frequent cycling and where compressed air infrastructure already exists for other process equipment. Electric actuators prove advantageous in remote locations where extending electrical power is more practical than installing compressed air systems, and in applications requiring precise flow control for chemical dosing or pH adjustment processes.

Cost-Benefit Analysis in Different Scenarios

The economic comparison between pneumatic and electric control valves requires comprehensive analysis of initial costs, installation expenses, operational costs, and long-term maintenance requirements. Initial purchase costs for pneumatic control valves are typically lower than electric equivalents, particularly for larger valve sizes where the mechanical simplicity of pneumatic actuators provides cost advantages. However, this initial cost advantage must be weighed against the infrastructure requirements and ongoing operational expenses associated with compressed air systems.Installation costs vary significantly depending on existing infrastructure and application requirements. Facilities with established compressed air systems may find pneumatic installations more cost-effective, while new construction projects or remote locations might favor electric systems to avoid the complexity and expense of compressed air distribution. The installation of electric systems may also require less physical space and fewer auxiliary components, potentially reducing overall installation costs in space-constrained applications.Operational cost analysis reveals significant differences in energy consumption and maintenance expenses. While pneumatic systems may have higher energy costs due to compressed air inefficiencies, they often demonstrate lower maintenance costs for the valve actuator itself. Electric systems typically provide lower energy costs but may require more specialized maintenance and periodic component replacement. The total cost of ownership analysis must consider the specific duty cycle, energy costs, maintenance capabilities, and expected system lifespan to determine the most economical choice for each application.

Conclusion

The choice between pneumatic and electric control valves ultimately depends on your specific application requirements, operational priorities, and long-term strategic goals. Pneumatic systems excel in safety-critical applications requiring rapid response times and fail-safe operation, while electric systems provide superior precision, energy efficiency, and integration capabilities for modern automated processes. Rather than declaring a universal winner, successful engineers recognize that each technology has its optimal applications and select the appropriate solution based on comprehensive analysis of performance requirements, environmental conditions, and total cost of ownership considerations.
