The industrial automation landscape continues to evolve rapidly, and pneumatic control valves remain at the forefront of precision flow control technology. As we advance through 2025, understanding the intricate mechanisms, applications, and innovations surrounding pneumatic control valve systems becomes crucial for engineers, procurement specialists, and industry professionals. These sophisticated devices serve as the backbone of countless industrial processes, from petrochemical refineries to power generation facilities, offering unparalleled reliability and control precision that modern industries demand for optimal operational efficiency.

Understanding the Fundamentals of Pneumatic Control Valve Technology

Core Operating Principles and Mechanisms

The pneumatic control valve operates on the fundamental principle of using compressed air as the driving force to position valve components and regulate fluid flow. Unlike their electric or hydraulic counterparts, pneumatic control valve systems leverage the inherent advantages of compressed air, including rapid response times, intrinsic safety in hazardous environments, and simplified maintenance requirements. The actuator assembly receives pneumatic signals, typically ranging from 3 to 15 PSI or 6 to 30 PSI, which correspond directly to valve positioning from fully closed to fully open states. This linear relationship between air pressure and valve position enables precise flow control across various industrial applications. The diaphragm or piston within the actuator converts pneumatic pressure into mechanical force, which then moves the valve plug or disc to achieve the desired flow coefficient. Advanced pneumatic control valve designs incorporate positioner feedback systems that continuously monitor actual valve position against the desired setpoint, ensuring accuracy within ±0.5% of full scale range under normal operating conditions.

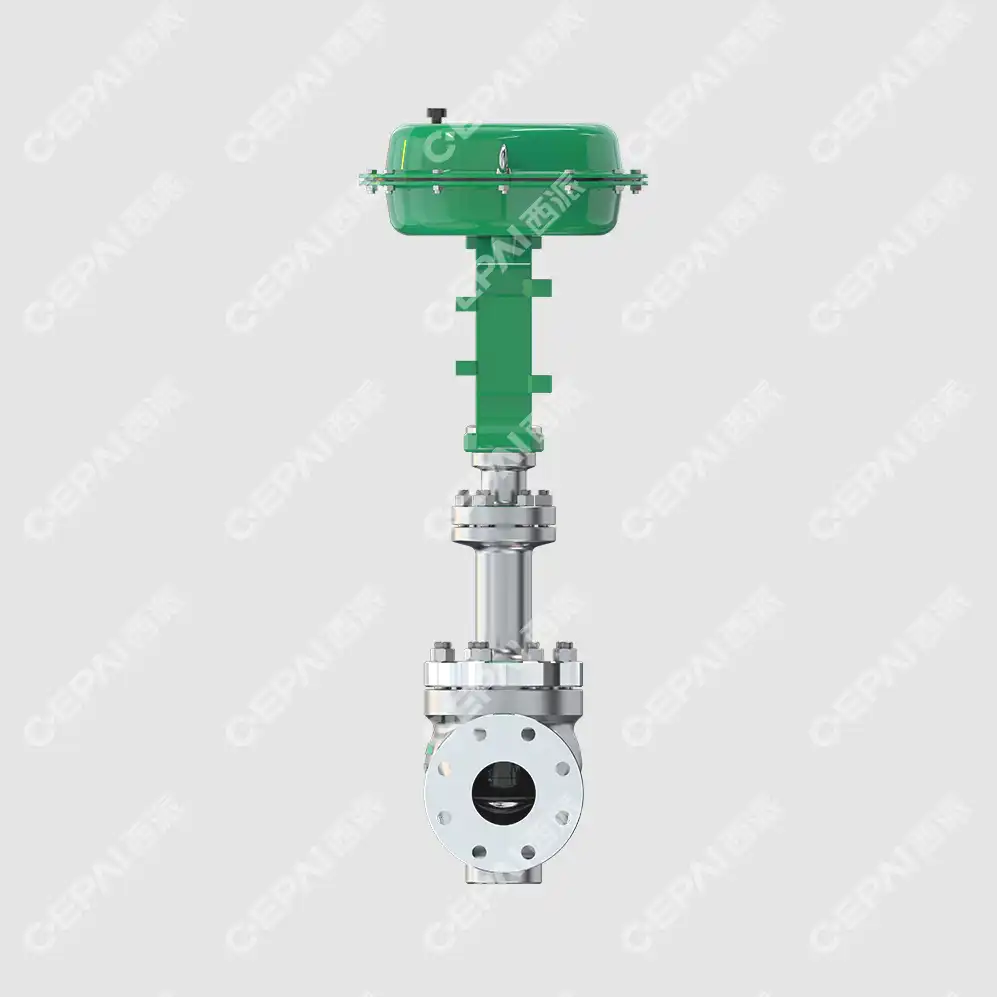

Essential Components and Construction Details

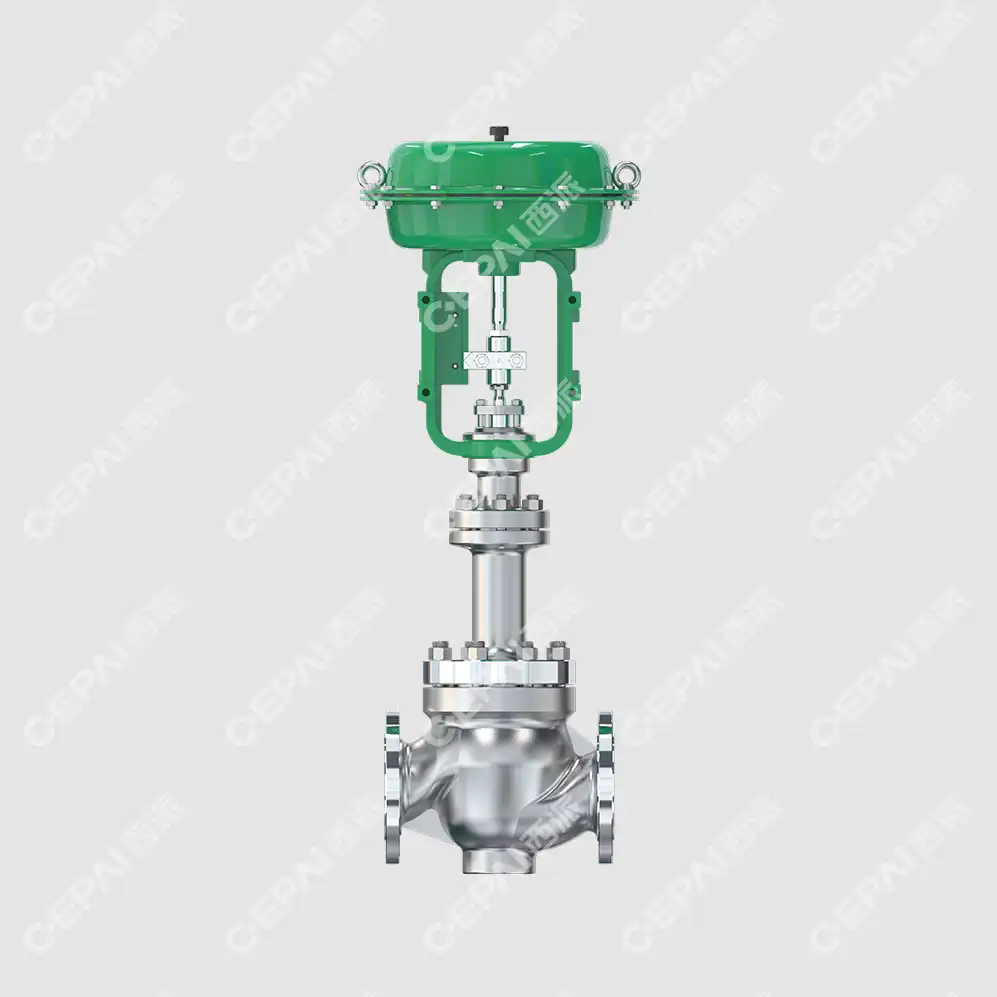

Modern pneumatic control valve assemblies consist of several critical components working in harmony to deliver reliable performance. The valve body, typically manufactured from high-grade stainless steel, carbon steel, or specialized alloys, houses the internal flow control elements and provides the pressure boundary for the process fluid. The trim assembly, including the plug, seat, and cage, determines the valve's flow characteristics and pressure drop capabilities. Pneumatic control valve actuators feature robust diaphragm or piston mechanisms designed to withstand millions of operational cycles while maintaining consistent performance. The spring mechanism provides fail-safe operation, automatically positioning the valve to a predetermined safe state upon loss of air supply. Positioner devices, increasingly incorporating smart technology with digital communication protocols, enhance control accuracy and provide valuable diagnostic information for predictive maintenance strategies. Auxiliary components such as air filters, regulators, and quick-exhaust valves optimize actuator response and protect internal components from contamination, ensuring long-term reliability in demanding industrial environments.

Material Selection and Design Considerations

The selection of appropriate materials for pneumatic control valve construction directly impacts performance, longevity, and total cost of ownership. Body materials must withstand process pressures, temperatures, and corrosive media while maintaining structural integrity throughout the service life. Stainless steel grades 316/316L offer excellent corrosion resistance for most chemical applications, while exotic alloys like Hastelloy C-276 or Inconel 625 address severely corrosive environments. Trim materials require careful consideration of erosion resistance, cavitation potential, and thermal cycling effects. Hardened stainless steel, stellite overlays, or ceramic coatings extend service life in erosive applications. The pneumatic control valve seat design significantly influences shutoff capability and service life, with metal-to-metal, soft-seated, or composite seat configurations available to match specific application requirements. Actuator materials focus on corrosion resistance and temperature stability, with aluminum, stainless steel, or carbon steel housings depending on environmental conditions. Elastomeric components, including diaphragms and O-rings, utilize materials compatible with both process fluids and atmospheric conditions, ensuring reliable sealing performance across the operating temperature range.

Advanced Applications and Industry-Specific Requirements

Petrochemical and Oil Refining Applications

The petrochemical industry demands exceptional performance from pneumatic control valve systems due to extreme operating conditions and stringent safety requirements. High-pressure, high-temperature applications require specialized valve designs capable of handling pressures exceeding 2500 PSI and temperatures reaching 1000°F while maintaining precise control accuracy. Pneumatic control valve installations in hydrocarbon processing units must comply with API 602, API 6D, and other industry standards ensuring safe operation in potentially explosive atmospheres. Anti-static designs prevent static electricity buildup during operation, while fire-safe construction maintains integrity during emergency conditions. Fugitive emission requirements necessitate advanced packing designs and stem sealing technologies to minimize environmental impact. The pneumatic control valve sizing calculations for hydrocarbon applications consider fluid properties including viscosity variations, two-phase flow conditions, and flashing potential to ensure optimal performance across all operating scenarios. Specialized trim designs accommodate high-pressure drop applications while minimizing cavitation and noise generation that could compromise system integrity or worker safety.

Power Generation and Steam Service

Power generation facilities rely heavily on pneumatic control valve technology for steam service applications ranging from main steam control to auxiliary system regulation. Steam service presents unique challenges including rapid temperature changes, high differential pressures, and the potential for water hammer events. Pneumatic control valve designs for steam applications incorporate balanced trim configurations to minimize actuator sizing requirements and improve control stability. The valve body geometry considers thermal expansion effects and provides adequate wall thickness to withstand thermal stress cycling throughout plant startup and shutdown procedures. Specialized pneumatic control valve actuators for steam service feature high-temperature construction materials and often include thermal barriers to protect sensitive components from excessive heat exposure. The control algorithms for steam applications account for the compressible nature of steam and potential choking conditions that affect flow calculations. Emergency shutdown capabilities ensure immediate valve closure upon detection of abnormal conditions, protecting expensive turbine equipment and maintaining plant safety. Advanced monitoring systems track valve performance parameters including stem position, actuator air pressure, and body temperature to optimize maintenance scheduling and prevent unexpected failures.

Chemical Processing and Specialty Manufacturing

Chemical processing industries require pneumatic control valve solutions that address corrosive media, precise composition control, and batch processing requirements. The pneumatic control valve selection process for chemical applications begins with comprehensive material compatibility analysis, considering not only the primary process fluid but also potential reaction byproducts and cleaning chemicals. Hygienic design requirements for pharmaceutical and food processing applications necessitate special surface finishes, crevice-free construction, and validation documentation supporting regulatory compliance. The pneumatic control valve control algorithms for batch processing incorporate advanced features including recipe management, automated sequencing, and data logging capabilities essential for quality assurance and regulatory reporting. Specialty coatings and lining materials extend service life in highly corrosive environments while maintaining the precision control required for chemical reactions and product quality consistency. Clean-in-place (CIP) and sterilize-in-place (SIP) compatibility ensures efficient maintenance procedures without compromising product integrity or production schedules. Temperature control applications in chemical processing demand rapid thermal response and precise temperature regulation to optimize reaction conditions and product yield.

Future Innovations and Smart Technology Integration

Digital Communication and IIoT Connectivity

The integration of Industrial Internet of Things (IIoT) technology transforms traditional pneumatic control valve systems into intelligent assets capable of predictive maintenance and performance optimization. Digital communication protocols such as HART, Foundation Fieldbus, and Profibus enable bidirectional data exchange between pneumatic control valve positioners and distributed control systems. Smart positioners collect and transmit critical operational data including valve position, actuator pressure, temperature, and diagnostic information that supports condition-based maintenance strategies. Machine learning algorithms analyze historical performance data to predict potential failures before they occur, reducing unplanned downtime and maintenance costs. The pneumatic control valve diagnostic capabilities extend beyond basic position feedback to include partial stroke testing, signature analysis, and wear monitoring that quantify remaining service life. Cloud-based analytics platforms aggregate data from multiple valve installations to identify performance trends and optimize maintenance schedules across entire facilities. Cybersecurity considerations become paramount as pneumatic control valve systems integrate with plant networks, requiring robust authentication protocols and encrypted communication channels to prevent unauthorized access or manipulation.

Advanced Materials and Manufacturing Technologies

Additive manufacturing technologies revolutionize pneumatic control valve design and production, enabling complex geometries previously impossible with traditional machining methods. 3D printing of valve components allows for optimized flow passages, integrated cooling channels, and customized trim designs tailored to specific application requirements. Advanced ceramic materials offer superior wear resistance and corrosion immunity compared to traditional metallic options, extending service life in severe service applications. The pneumatic control valve manufacturing processes increasingly incorporate precision casting, powder metallurgy, and surface engineering techniques that enhance component durability and performance consistency. Nanotechnology applications include self-healing coatings that automatically repair minor surface damage and antimicrobial treatments for sanitary applications. Quality assurance procedures utilize advanced inspection technologies including computed tomography scanning, laser metrology, and automated surface finish measurement to ensure component compliance with increasingly stringent specifications. Sustainable manufacturing practices focus on material recycling, energy efficiency, and waste reduction throughout the pneumatic control valve production lifecycle, supporting corporate environmental responsibility initiatives while maintaining product quality and performance standards.

​​​​​​​

Artificial Intelligence and Autonomous Operation

Artificial intelligence integration enables pneumatic control valve systems to adapt automatically to changing process conditions and optimize performance without human intervention. Machine learning algorithms analyze real-time process data to adjust control parameters, compensating for equipment aging, fouling, or seasonal variations in operating conditions. The pneumatic control valve control systems incorporate predictive modeling capabilities that anticipate process disturbances and proactively adjust valve positions to maintain optimal control performance. Autonomous calibration features eliminate the need for manual adjustments, continuously optimizing control loop performance based on measured process variables and control objectives. Advanced fault detection algorithms distinguish between normal process variations and actual equipment malfunctions, reducing false alarms while ensuring rapid response to genuine emergency conditions. Digital twins of pneumatic control valve installations enable virtual testing of control strategies and maintenance procedures before implementation in actual plant operations. The integration of augmented reality technologies supports field maintenance activities by overlaying diagnostic information and maintenance instructions directly onto technician field-of-view through smart glasses or mobile devices, improving maintenance efficiency and reducing human error potential.

Conclusion

Pneumatic control valves continue to evolve as essential components in modern industrial automation, combining proven reliability with cutting-edge digital technologies. The integration of smart diagnostics, advanced materials, and AI-driven optimization represents the future of flow control technology, offering unprecedented performance and operational insights for industrial applications across diverse sectors.
