Master the Art of Accurate Control Valve Sizing

Proper control valve sizing is a critical yet often overlooked aspect of fluid processing systems that directly impacts operational efficiency, safety, and cost-effectiveness. The science of accurately sizing Control Valves requires deep technical knowledge, methodical calculation, and practical experience to achieve optimal performance in diverse industrial applications. This comprehensive guide will walk you through the essential principles, methodologies, and considerations necessary to master the art of control valve sizing, helping you make informed decisions that enhance system reliability while avoiding common pitfalls that lead to unnecessary expenses and operational issues.

Understanding Control Valve Fundamentals for Accurate Sizing

The Role of Flow Characteristics in Control Valve Selection

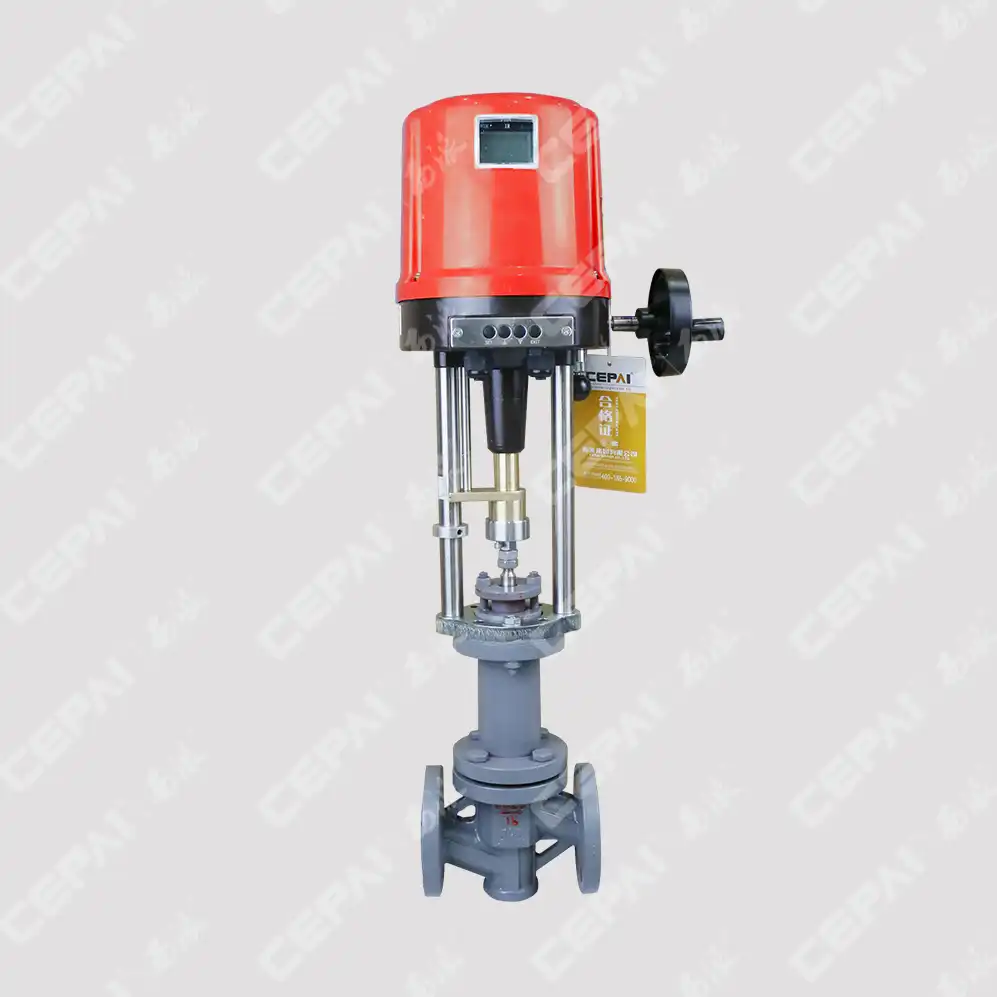

Control Valves are the workhorses of any fluid control system, regulating flow rates, pressure, temperature, and fluid levels with precision. Understanding flow characteristics is fundamental to proper valve sizing. Equal percentage, linear, and quick-opening are the three primary flow characteristics that define how the flow rate through a valve changes in relation to valve position. Equal percentage valves produce flow changes that are proportional to the previous flow rate for equal increments of valve travel, making them ideal for processes requiring precise control at low flow rates. Linear valves, in contrast, create equal flow changes for equal changes in valve position, suitable for applications where the pressure drop across the valve remains relatively constant. Quick-opening valves deliver maximum flow with minimal stem travel, making them excellent for on-off applications but less suitable for precise control. Selecting the appropriate flow characteristic based on your specific application requirements ensures that Control Valves operate efficiently across their entire range, preventing issues such as hunting, overshooting, or undershooting that can destabilize your system and reduce component lifespan.

Critical Factors Affecting Control Valve Sizing Accuracy

Achieving precision in control valve sizing requires careful consideration of multiple interrelated factors. Pressure conditions—including inlet pressure, outlet pressure, and the resulting differential—directly influence flow capacity and must be accurately determined. Temperature affects fluid density and viscosity, which in turn impacts flow behavior and valve capacity. Flow rate requirements across various operating conditions, not just design conditions, must be thoroughly analyzed. The physical properties of process fluids, including viscosity, specific gravity, vapor pressure, and compressibility for gases, dramatically alter how Control Valves perform. Systems with varying pressure drops or those prone to cavitation, flashing, or choked flow require special attention. Additionally, the installed characteristics of Control Valves often differ from their inherent characteristics due to system effects, making it necessary to consider the entire system's response. Rangeability requirements—the ratio between maximum and minimum controllable flow—must align with process needs. Noise and vibration constraints, especially in high-pressure applications, might necessitate special trim designs. Neglecting any of these factors can result in a valve that performs adequately under some conditions but fails to provide stable control across the entire operating spectrum, leading to inefficiency, increased maintenance, and potential safety risks.

Common Sizing Mistakes and Their Performance Implications

Many engineers fall prey to common sizing errors that compromise control valve performance. Oversizing—perhaps the most prevalent mistake—occurs when engineers add excessive safety margins or fail to consider actual operating conditions rather than maximum design flows. Oversized Control Valves operate mostly near closed positions, causing excessive wear on one side of the trim, increasing sensitivity to small stem movements, and potentially leading to hunting or instability. Undersizing, while less common, restricts system capacity and may create excessive noise and vibration by forcing the valve to operate at high differential pressures. Failure to account for varying process conditions across seasons or production campaigns can result in valves that perform well under some conditions but poorly under others. Ignoring system effects such as pump curves, pipe friction, and elevation changes leads to incorrect estimates of actual pressure drops available across the valve. Control engineers often overlook signal characterization requirements, failing to match the inherent valve characteristic to the process requirement. Neglecting the effects of installed accessories such as reducers, expanders, or silencers can significantly alter performance. Inappropriate material selection for trim components relative to process conditions accelerates wear and corrosion. Finally, using outdated or simplified calculation methods instead of comprehensive sizing software that incorporates contemporary flow equations and correction factors introduces unnecessary inaccuracies. Each of these errors compounds system inefficiency, reduces equipment lifespan, and ultimately increases total cost of ownership of Control Valves and associated equipment.

Advanced Sizing Techniques for Optimal Performance

Liquid Service Control Valve Sizing Methodology

Sizing Control Valves for liquid service demands a systematic approach that accounts for the unique behaviors of incompressible fluids under various conditions. The process begins with determining the valve flow coefficient (Cv), which represents the flow capacity of the valve and serves as the cornerstone of liquid valve sizing. This coefficient measures the number of US gallons per minute of water that will flow through a valve with a pressure drop of 1 psi. For accurate sizing, engineers must first establish the maximum and minimum flow requirements, normal operating conditions, and available pressure drop across the valve. The calculation must incorporate liquid-specific factors including specific gravity, viscosity corrections for non-Newtonian fluids, and adjustments for solutions or slurries with different properties than water. Special consideration must be given to cavitation and flashing potential, which occur when liquid pressure drops below vapor pressure, leading to vapor bubble formation and subsequent implosion that can severely damage Control Valves through erosion, vibration, and noise. Advanced sizing techniques employ specialized anti-cavitation trims, staged pressure drop designs, or hardened materials in applications prone to these phenomena. Additionally, engineers must consider velocity limitations to prevent erosion in high-flow applications, particularly with abrasive fluids. Proper valve authority—the ratio of valve pressure drop to system pressure drop—should typically range between 0.3 and 0.5 for stable control. Incorporating these factors into comprehensive sizing calculations using industry-standard equations like IEC 60534 or ISA-75.01 ensures that Control Valves deliver consistent performance throughout their operational lifespan while minimizing maintenance requirements and unexpected failures.

Gas and Steam Control Valve Sizing Considerations

Gas and steam applications present unique challenges that require specialized sizing approaches for Control Valves. Unlike liquids, gases and steam are compressible fluids whose density changes significantly with pressure variations, requiring different calculation methodologies. When sizing these valves, engineers must account for gas molecular weight, compressibility factor (Z), specific heat ratio (k), and temperature effects on density. The critical pressure ratio—the point at which flow becomes choked and no longer increases despite decreasing downstream pressure—becomes a crucial consideration in high-pressure drop applications. For natural gas, hydrogen, steam and other gaseous services, proper sizing must incorporate expansion factors and compressibility corrections to account for density changes through the valve. Engineers must determine whether flow conditions are subcritical or critical (choked), as this fundamentally affects the sizing equations used. Noise generation presents another significant concern in gas applications, as high-velocity gas flow can produce sound pressure levels exceeding 100 dBA, potentially causing hearing damage and mechanical vibration problems. Advanced noise abatement technologies including multi-stage pressure reduction, special trims with flow division elements, attenuators, and diffusers may be necessary to meet environmental and safety requirements. Steam applications introduce additional considerations including superheat conditions, condensate handling, and thermal stress management. Properly sized Control Valves for steam service must handle the specific volume changes and phase transitions potentially occurring within the valve. Industry standards such as ANSI/ISA-75.01, IEC 60534-2, and specialized sizing software developed by valve manufacturers provide the necessary frameworks and calculations to address these complexities while ensuring reliable performance across varying process conditions.

Smart Sizing: Leveraging Technology and Software Solutions

The evolution of valve sizing has advanced significantly with the integration of sophisticated software tools that minimize calculation errors while optimizing selection processes for Control Valves. Modern valve sizing programs incorporate comprehensive fluid property databases, advanced thermodynamic models, and complex flow equations that would be impractical to solve manually. These software solutions can rapidly evaluate multiple valve configurations across various operating scenarios, enabling engineers to identify the optimal solution for challenging applications. Leading manufacturers like CEPAI offer proprietary sizing programs that integrate seamlessly with their product specifications, ensuring accurate results that account for the unique characteristics of their Control Valves, including specific flow coefficients, pressure recovery factors, and noise prediction algorithms. Beyond basic sizing, these tools often provide visualization of valve performance across the entire operating range, generating flow characteristic curves, control rangeability analysis, and installed gain predictions that help engineers anticipate control stability issues before installation. Advanced features may include dynamic simulation capabilities that model Control Valves' response to changing process conditions, helping identify potential instability, waterhammer effects, or control loop interaction problems. Integration with wider process design software enables whole-system modeling where valve performance is evaluated within the context of surrounding equipment, piping configurations, and control strategies. Additionally, many contemporary sizing applications incorporate machine learning algorithms that can suggest valve configurations based on successful implementations in similar applications, drawing from vast databases of field performance data. By leveraging these technological advancements, engineers can achieve unprecedented accuracy in control valve sizing while significantly reducing the time required for selection and validation, ultimately delivering systems that provide precise control with minimal maintenance requirements throughout their operational lifespan.

Application-Specific Sizing Guidelines

High-Pressure Differential and Critical Service Applications

Extreme pressure applications present unique challenges that demand specialized sizing methodologies for Control Valves. When pressure differentials exceed 300 psi or when the ratio of inlet to outlet pressure is greater than 1.7 for gases, flow typically becomes choked, fundamentally altering valve behavior. In such conditions, traditional sizing equations must be supplemented with specialized calculations that account for sonic velocity limitations, extreme pressure recovery factors, and potential mechanical stress on trim components. High-pressure applications often generate excessive noise levels—sometimes exceeding 110 dBA—requiring multi-stage pressure reduction technologies, specialized flow paths that divide the stream into multiple channels, or special body designs that incorporate expansion chambers and attenuators. Materials selection becomes critically important as high-velocity flow combined with any entrained particles can cause rapid erosion of standard trim materials. Control Valves for these services typically incorporate hardened components such as tungsten carbide, ceramic inserts, or specialized stellite overlays to extend operational life. Thermal effects must also be carefully considered, as rapid pressure reduction in gases can cause significant temperature drops through the Joule-Thomson effect, potentially bringing components below their ductile-to-brittle transition temperature. Cryogenic applications require special consideration for thermal contraction and material brittleness. Cage-guided globe valves with balanced trim designs typically offer the best performance in high-pressure differential applications, providing stability across varying process conditions while minimizing actuator size requirements. CEPAI's specialized Control Valves for severe service incorporate proprietary anti-cavitation technologies, noise abatement features, and hardened materials specifically engineered to withstand extreme pressure differentials while maintaining precise control and extended service life even in the most demanding industrial environments.

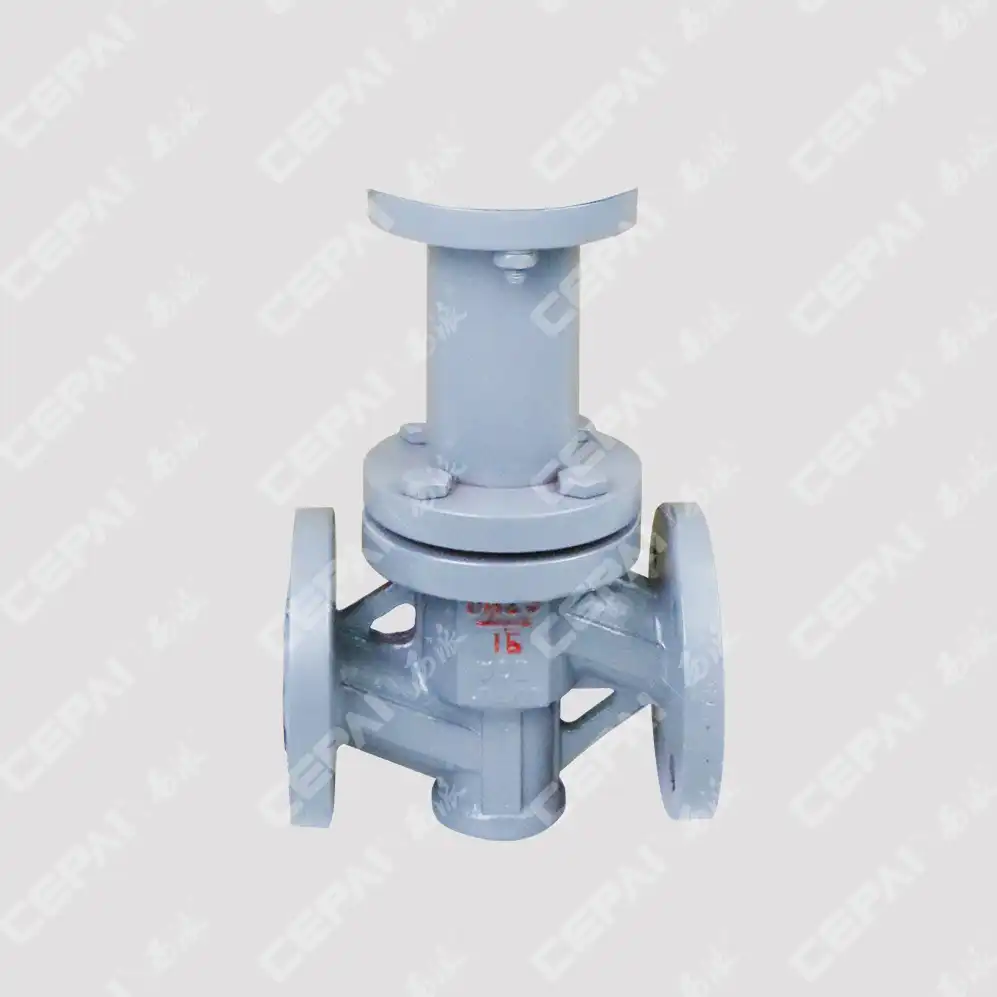

Unique Considerations for Control Valves in Slurry and High-Viscosity Services

Abrasive slurries and high-viscosity fluids introduce complex challenges that significantly impact control valve sizing and selection. When handling slurries—mixtures of solids suspended in liquids—conventional sizing calculations must be modified to account for the effective increase in specific gravity, non-Newtonian flow behaviors, and the erosive nature of entrained particles. Engineers must typically oversize the valve Cv by 15-30% compared to clear liquid service while simultaneously ensuring flow velocities remain below critical thresholds to minimize erosion. Valve geometry becomes particularly important, with full-bore designs, streamlined flow paths, and minimal flow direction changes preferred to reduce wear points. For optimal performance with slurries, Control Valves should incorporate hardened materials such as chrome carbide overlays, ceramics, or elastomer linings depending on the specific abrasive characteristics of the medium. High-viscosity applications present different challenges, requiring corrections to standard liquid sizing equations as Reynolds numbers decrease into the transitional or laminar flow regimes. These corrections can significantly increase the required Cv, sometimes by factors of 1.5 to 4 compared to water service calculations. Viscous fluids typically benefit from valves with larger flow passages and reduced internal surfaces, making eccentric plug valves or full-port ball valves preferable to globe valves in many cases. Control rangeability often diminishes in high-viscosity applications, requiring careful evaluation of minimum controllable flow rates. Special attention must also be given to actuator sizing, as high-viscosity media can create substantial dynamic torque requirements that exceed standard specifications. CEPAI's specialized Control Valves for difficult media incorporate specially engineered internal geometries, optimized flow paths, and application-specific materials that maintain precise control while resisting erosion, minimizing pressure drop, and delivering extended service life in these challenging applications.

Achieving Precision Control in Low-Flow Applications

Low-flow applications present some of the most challenging scenarios for accurate control valve sizing and selection. When flow rates fall below 5% of a valve's rated capacity, traditional sizing methods often prove inadequate as small manufacturing variations can create significant performance deviations. Successful low-flow Control Valves require specialized reduced-capacity trims, often incorporating multiple stages of pressure reduction to provide stable control without sacrificing rangeability. Engineers must carefully evaluate the minimum controllable flow (MCF) specification of potential valves, which is determined by factors including trim design, actuator resolution, packing friction, and the valve's ability to overcome stiction at small opening positions. Low-flow applications typically benefit from micro-flow trim designs that incorporate precision-machined flow passages, sometimes as small as 0.1mm in diameter. These specialized trims maintain Reynolds numbers in the turbulent range even at minimal flows, ensuring predictable control response. For applications requiring both low minimum flow and higher maximum capacities, Control Valves with exchangeable reduced-capacity trims offer versatility without sacrificing performance at either extreme. Actuator selection becomes particularly critical in these applications, with high-resolution positioners capable of responding to signal changes as small as 0.1% often necessary for stable control. Digital positioners with customizable characterization capabilities can compensate for nonlinearities in the installed flow characteristic. Additional considerations include enhanced stem guiding to minimize hysteresis, live-loaded packing to maintain consistent friction forces, and specialized seat designs to ensure tight shutoff despite the extremely small flow passages. CEPAI's micro-flow Control Valves incorporate precision-machined multi-stage trim designs, high-resolution digital positioners, and specialized materials that deliver consistent performance with turndown ratios exceeding 300:1, making them ideal for laboratory applications, catalyst injection systems, chemical additive metering, and other precision processes where accurate control at extremely low flow rates is essential for product quality and process efficiency.

Conclusion

Mastering accurate control valve sizing is essential for achieving optimal system performance, energy efficiency, and extended equipment life. By understanding fundamental principles, utilizing advanced sizing techniques, and applying application-specific guidelines, engineers can select and implement Control Valves that deliver precise, reliable operation across varying conditions. CEPAI Group's commitment to innovation, quality, and technical excellence makes us the ideal partner for your fluid control challenges.

With our exceptional durability, high-precision control performance, and extensive R&D investments, CEPAI stands at the forefront of control valve technology. Our comprehensive services include expert pre-sales consultation, customized solutions, professional installation support, and responsive after-sales service. Why struggle with valve sizing challenges alone? Partner with our team of specialists who bring decades of experience to your most demanding applications. Contact us today at cepai@cepai.com to discuss how our ISO-certified quality management system and advanced testing capabilities can help you achieve flawless control in your operations. Your success is our commitment—let's perfect your flow control together.
