Lightweight vs. Heavy Duty Control Valves: What Should You Choose

When selecting control valves for industrial applications, engineers and procurement specialists face a critical decision between lightweight and heavy-duty solutions. This choice significantly impacts system performance, operational costs, and long-term reliability. The selection between lightweight and heavy-duty control valves depends on specific application requirements, operational conditions, and performance expectations. Application requirements are paramount, but don't overspend when a less expensive option will do, and with so many control valve options available, it's important to know how to choose the right body style for a particular application. For applications requiring precision flow control in moderate conditions, pneumatic single seat control valve solutions offer an optimal balance between performance and cost-effectiveness, making them suitable for diverse industrial processes.

Key Performance Characteristics and Design Differences

Material Construction and Durability Features

The fundamental distinction between lightweight and heavy-duty control valves begins with their material construction and engineering design philosophy. Lightweight control valves typically utilize advanced materials such as engineered polymers, aluminum alloys, or lightweight steel compositions that prioritize weight reduction without compromising essential functionality. These valves often feature streamlined body designs with optimized wall thickness that maintains structural integrity while reducing overall mass. The use of lightweight valves allows the use of weaker springs and consequently a reduction in the load of contacts between valves and their seat inserts. In contrast, heavy-duty control valves are constructed using robust materials such as carbon steel, stainless steel, or specialized alloys designed to withstand extreme pressures, temperatures, and corrosive environments. Pneumatic single seat control valve designs in the heavy-duty category typically incorporate reinforced body construction, thicker wall sections, and enhanced sealing mechanisms to ensure reliable operation under demanding conditions. The material selection directly impacts not only the valve's weight but also its resistance to wear, corrosion, and thermal stress, making this a crucial consideration for long-term operational success.

Operational Performance and Control Precision

The operational characteristics of lightweight versus heavy-duty control valves reveal significant differences in control precision, response time, and overall system performance. Lightweight valves generally offer faster response times due to their reduced mass, which allows for quicker actuation and more rapid flow adjustments. This characteristic makes them particularly suitable for applications requiring frequent operation cycles or precise control in dynamic systems. The reduced inertia in lightweight designs enables more accurate positioning and improved control sensitivity, especially in pneumatic single seat control valve configurations where precise flow modulation is essential. Heavy-duty valves, while potentially slower in response due to their increased mass, provide superior stability and resistance to external vibrations or pressure fluctuations. They maintain consistent performance under high-stress conditions and offer enhanced reliability in critical process applications. The most common and versatile types of control valves are sliding-stem globe, V-notch ball, butterfly and angle types. Their popularity derives from rugged construction and the many options available that make them suitable for a variety of process applications. The choice between these performance characteristics depends on whether your application prioritizes rapid response and precision control or long-term stability and reliability under challenging operating conditions.

Maintenance Requirements and Service Life

The maintenance demands and expected service life represent critical factors when comparing lightweight and heavy-duty control valve options. Lightweight valves often feature simplified designs with fewer components, potentially reducing maintenance complexity and associated costs. However, their lighter construction may result in more frequent component replacement or overhaul requirements, particularly in demanding applications. The reduced material thickness and potentially less robust sealing systems in lightweight designs may necessitate more regular inspection and maintenance intervals. Conversely, heavy-duty control valves are engineered for extended service life with minimal maintenance requirements, making them cost-effective for critical applications where downtime must be minimized. These valves typically incorporate replaceable trim components, robust packing systems, and enhanced bearing surfaces that extend operational life significantly. Pneumatic single seat control valve systems in heavy-duty configurations often feature modular designs that facilitate maintenance without complete valve removal, reducing downtime and maintenance costs over the valve's operational lifetime. The initial higher investment in heavy-duty valves often proves economical when considering the total cost of ownership, including maintenance, replacement, and operational reliability factors.

Industrial Applications and Sector-Specific Requirements

Oil and Gas Industry Applications

The oil and gas sector presents unique challenges that significantly influence control valve selection between lightweight and heavy-duty options. In upstream applications, including wellhead operations and drilling processes, heavy-duty control valves are typically preferred due to the extreme pressures, corrosive environments, and safety-critical nature of these applications. Industrial control valves are used in many different industries (primarily oil and gas) to control operating conditions such as flow, pressure, temperature, and liquid levels. The harsh operating conditions, including high hydrogen sulfide concentrations, extreme temperatures, and abrasive particle content, demand robust construction that only heavy-duty valves can provide. Pneumatic single seat control valve systems in these applications must withstand pressures exceeding 10,000 psi while maintaining tight shutoff capabilities and precise flow control. Downstream operations, such as refining and petrochemical processing, may utilize both lightweight and heavy-duty valves depending on specific service requirements. Lightweight valves find application in auxiliary systems, instrumentation air services, and less critical process streams where their faster response times and lower installation costs provide advantages. However, critical process control applications, emergency shutdown systems, and high-temperature catalytic processes typically require heavy-duty valve solutions to ensure operational safety and reliability.

Power Generation and Utilities Sector

Power generation facilities, including thermal, nuclear, and renewable energy systems, present diverse requirements that influence control valve selection strategies. Control, safety & isolation valves help power generation & process plants manage steam applications efficiently, with valves, desuperheaters & pump protection solutions for heavy-duty performance and optimal steam distribution. Steam applications in thermal power plants require heavy-duty control valves capable of handling superheated steam at pressures up to 4,500 psi and temperatures exceeding 1,100°F. These extreme conditions demand robust materials, specialized trim designs, and enhanced sealing systems that only heavy-duty valves can provide. Pneumatic single seat control valve configurations in steam service must incorporate anti-cavitation trim, hardened seating surfaces, and thermal barrier designs to prevent damage from flashing and cavitation. In contrast, auxiliary systems such as cooling water circulation, instrument air, and plant utility services may effectively utilize lightweight control valves. These applications typically operate under moderate conditions where the cost savings and installation advantages of lightweight valves outweigh their limitations. Nuclear power facilities require special consideration, as all safety-related applications mandate heavy-duty valves with nuclear-qualified materials and seismic resistance capabilities, while non-safety systems may utilize lightweight alternatives for improved economic efficiency.

Chemical and Petrochemical Processing Industries

The chemical and petrochemical industries encompass a broad spectrum of applications with varying severity levels that influence optimal control valve selection. Highly corrosive processes, high-temperature reactions, and toxic material handling typically require heavy-duty control valves with specialized materials and enhanced safety features. Industrial valves enable the regulation of the flow of liquids, gases, as well as slurries through opening, closing, and partially obstructing the connected pipe or passageway. Processes involving concentrated acids, caustic solutions, or organic solvents demand robust construction materials such as Hastelloy, Inconel, or specialized polymer linings that are typically available only in heavy-duty valve designs. Pneumatic single seat control valve systems in chemical service must often incorporate fire-safe designs, fugitive emission controls, and redundant sealing systems to meet stringent environmental and safety regulations. However, many chemical processes involve moderate conditions where lightweight valves provide adequate performance at reduced costs. Water treatment systems, dilute chemical solutions, and process utility services often benefit from lightweight valve installations that offer faster response times and simplified maintenance procedures. The key is matching valve robustness to actual service severity rather than over-specifying based on industry reputation alone.

​​​​​​​

Technology Comparison and Selection Guidelines

Actuator Integration and Control System Compatibility

The integration of actuators with lightweight versus heavy-duty control valves presents distinct considerations that significantly impact overall system performance and installation requirements. Most industrial valves have parts that share common duties, including the actuator, body, bonnet, trim, stem, and obturator. An actuator provides the force to open and close the valve and can be manual, pneumatic, or electric. Lightweight control valves typically require smaller, less powerful actuators due to their reduced operating forces, resulting in lower air consumption for pneumatic systems or reduced electrical power requirements for electric actuators. This characteristic enables the use of more compact actuator packages and simplified mounting arrangements, reducing overall installation space requirements and system complexity. Pneumatic single seat control valve assemblies in lightweight configurations often feature integrated positioner designs that enhance control accuracy while minimizing installation footprint. The reduced actuator requirements also translate to lower initial costs and simplified control system integration, making lightweight valves attractive for applications with budget constraints or space limitations. Heavy-duty control valves, conversely, require more powerful actuators capable of overcoming higher stem forces and providing reliable operation under adverse conditions. These actuator systems typically incorporate enhanced position feedback, redundant control circuits, and fail-safe mechanisms that ensure reliable operation in critical applications.

Advanced Control Technologies and Smart Valve Integration

Modern control valve technology incorporates sophisticated digital communication capabilities and intelligent diagnostic features that influence selection between lightweight and heavy-duty options. Heavy-duty control valves often feature advanced smart valve technologies including digital positioners, valve signature diagnostics, and predictive maintenance capabilities that provide enhanced operational insights and maintenance optimization. These systems utilize protocols such as HART, Foundation Fieldbus, or Profibus to enable real-time communication with distributed control systems, providing continuous monitoring of valve performance parameters. Electric control methods provide a high level of precision with an efficient control system, with digital or analog signals to administrate the valve position. This control system is ideal for heavy-duty valves in industries and sensitive applications where precise flow rate regulation is highly significant. Pneumatic single seat control valve systems equipped with smart technology can detect performance degradation, predict maintenance requirements, and optimize control loop performance automatically. Lightweight valves may incorporate simplified versions of these technologies, focusing on essential diagnostic functions while maintaining cost effectiveness. The selection between advanced and basic smart valve capabilities should align with plant maintenance strategies, criticality of the application, and available technical resources for system management and maintenance.

Environmental and Safety Considerations

Environmental regulations and safety requirements increasingly influence control valve selection, with heavy-duty valves often providing superior compliance capabilities compared to lightweight alternatives. Fugitive emission requirements, mandated by environmental agencies worldwide, typically favor heavy-duty valve designs with enhanced packing systems, low-emission seals, and certified emission performance. Heavy-duty valve designs ensure essential performance with compact and light piston configurations ideal for chemically aggressive applications, combining strength for optimal choice in demanding applications. Heavy-duty control valves can accommodate specialized sealing systems such as live-loaded packing, bellows seals, or magnetic coupling drives that eliminate potential leak paths entirely. Fire-safe requirements in hydrocarbon applications mandate robust construction and materials that maintain integrity during extreme temperature exposure, capabilities typically found only in heavy-duty valve designs. Pneumatic single seat control valve systems must often meet stringent safety integrity level (SIL) requirements for process safety applications, requiring enhanced design validation and reliability demonstration. While lightweight valves can achieve environmental and safety compliance in many applications, the additional features and testing required may diminish their cost advantages compared to proven heavy-duty solutions.

Conclusion

The selection between lightweight and heavy-duty control valves requires careful evaluation of application-specific requirements, operational conditions, and long-term performance expectations. Lightweight valves excel in moderate service conditions where rapid response, lower installation costs, and simplified maintenance are priorities, while heavy-duty valves provide superior reliability and performance in demanding applications requiring robust construction and extended service life.

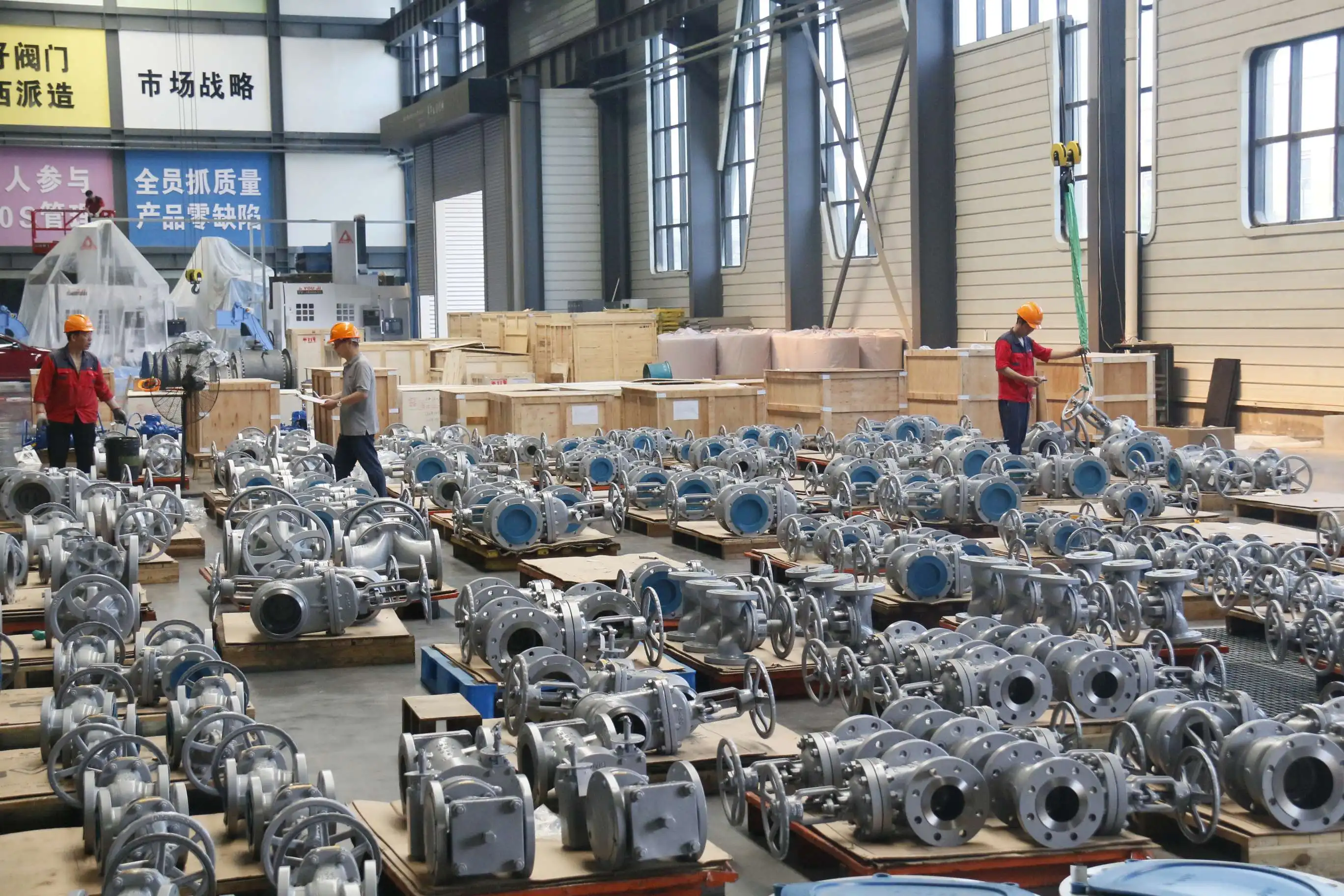

As a leading manufacturer with over 15 years of experience in valve innovation, CEPAI Group combines advanced intelligent manufacturing capabilities with comprehensive quality management systems to deliver exceptional pneumatic single seat control valve solutions. Our state-of-the-art production facility, spanning 56,000 square meters with the longest high-precision intelligent manufacturing line in the Asia-Pacific region, ensures superior product quality and reliability. With certifications including API, ISO, and CE standards, plus recognition as a national high-tech enterprise and winner of the Mayor Quality Award, CEPAI demonstrates unwavering commitment to excellence in valve manufacturing.
