Selecting the right Electric Control Valve for your industrial project requires careful consideration of multiple technical and operational factors that directly impact system performance, safety, and efficiency. The proper selection process involves analyzing flow characteristics, pressure requirements, temperature ranges, and control precision needs, while ensuring compatibility with your existing automation systems. Electric Control Valve technology has evolved significantly, offering superior precision and remote operation capabilities compared to traditional pneumatic alternatives. Understanding the fundamental selection criteria, from valve sizing and material compatibility to actuator specifications and control signal requirements, enables engineers to make informed decisions that optimize process control performance while minimizing operational costs and maintenance requirements throughout the valve's service life.

Understanding Electric Control Valve Fundamentals

Core Components and Operating Principles

Electric Control Valve systems consist of three primary components that work in harmony to achieve precise flow regulation. The valve body houses the flow control mechanism, while the electric actuator provides the motive power for positioning, and the control electronics interpret input signals to maintain desired flow conditions. Electric control valves are essentially control valve assemblies equipped with electric actuators that convert electrical signals into mechanical motion. The electric actuator eliminates the need for compressed air systems, making these valves ideal for remote locations or applications where pneumatic infrastructure is impractical. Modern Electric Control Valve designs incorporate sophisticated feedback mechanisms that provide real-time position indication and enable closed-loop control strategies. The integration of digital communication protocols allows these valves to interface seamlessly with distributed control systems, providing enhanced diagnostic capabilities and predictive maintenance features that significantly improve overall system reliability.

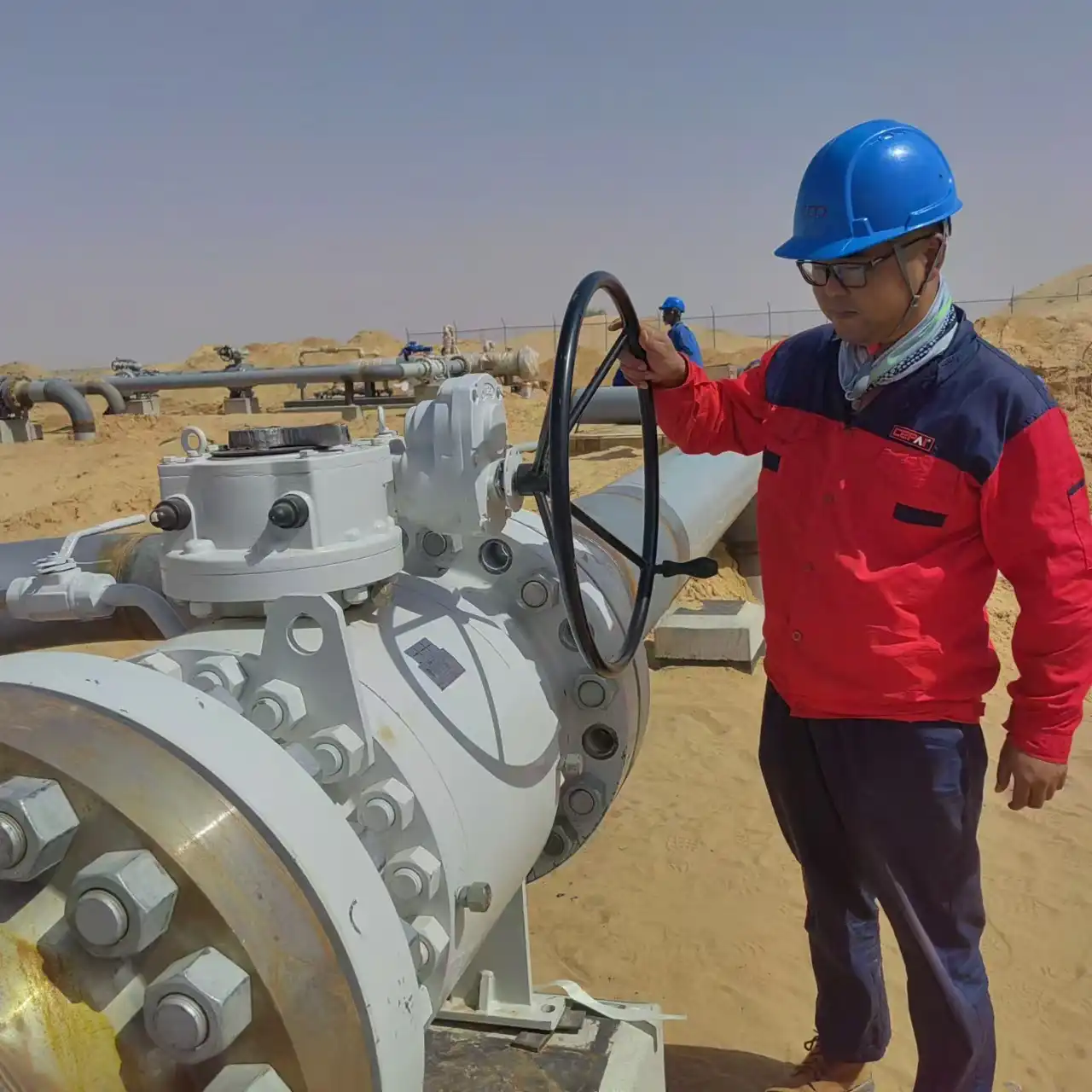

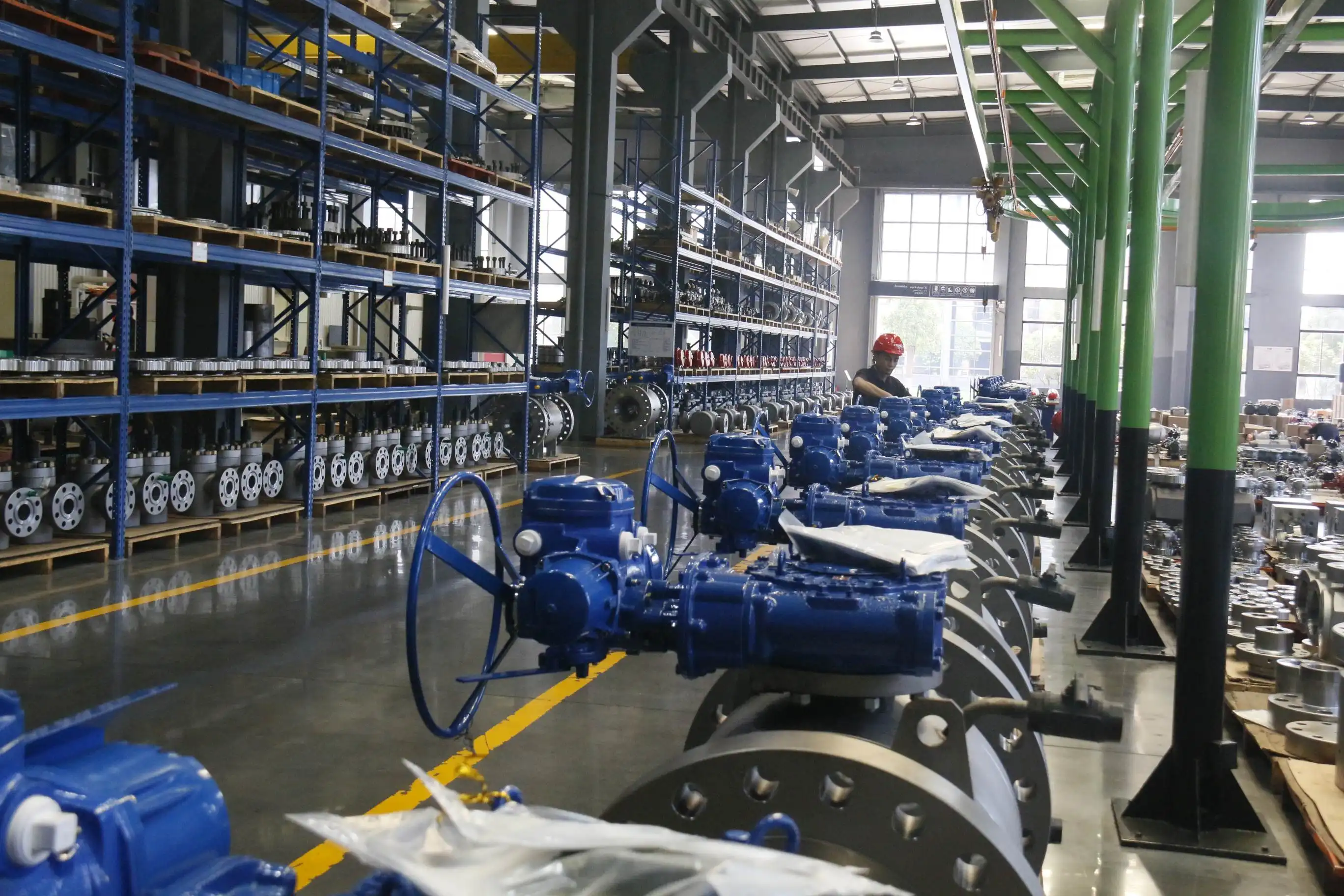

Cepai on site valves

Advantages of Electric Actuation Technology

Electric actuation offers numerous advantages over traditional pneumatic systems, particularly in applications requiring high precision and reliability. The absence of air supply requirements eliminates concerns about moisture, contamination, and pressure variations that can affect pneumatic system performance. Electric Control Valve systems provide superior positioning accuracy, typically achieving ±1% of span compared to ±3-5% for pneumatic systems. The inherent fail-safe capabilities can be customized through programming, allowing valves to move to any predetermined position upon power loss. Energy efficiency represents another significant advantage, as electric actuators consume power only during positioning movements, unlike pneumatic systems that require continuous air supply. Advanced diagnostic capabilities enable predictive maintenance strategies, monitoring actuator performance parameters such as torque profiles, travel times, and power consumption to identify potential issues before failure occurs. These diagnostic features significantly reduce unplanned downtime and maintenance costs while extending valve service life.

Application Scope and Industry Standards

Electric Control Valve applications span numerous industries, from petrochemical processing and power generation to water treatment and pharmaceutical manufacturing. These valves prove particularly valuable in water and wastewater treatment, HVAC systems, oil and gas operations, chemical processing, and food and beverage industries. Industry standards such as IEC 60534 for control valve sizing, API 602 for compact steel gate valves, and ISA-75 series for control valve testing ensure consistent performance and safety across applications. The versatility of Electric Control Valve technology enables deployment in extreme temperature environments, with specialized designs capable of operating from cryogenic conditions of -196°C to high-temperature applications exceeding 500°C. Compliance with international standards such as CE marking, SIL certification levels, and explosion-proof ratings ensures safe operation in hazardous environments. Manufacturing quality standards like ISO 9001 and specialized certifications such as API 6A for wellhead equipment guarantee product reliability and performance consistency across diverse operating conditions.

Critical Selection Parameters for Electric Control Valves

Flow Capacity and Sizing Calculations

Accurate flow capacity determination forms the foundation of proper Electric Control Valve selection, requiring detailed analysis of system hydraulic characteristics and process requirements. Proper valve sizing involves selecting the appropriate flow coefficient (Cv) range, ensuring adequate capacity above maximum flow while maintaining controllability at minimum flow conditions. The flow coefficient calculation must account for fluid properties including density, viscosity, and vapor pressure, as well as system pressure drops and temperature variations. Electric Control Valve sizing methodologies typically employ the ISA-75.01 standard, which provides comprehensive guidelines for liquid, gas, and steam applications. Oversizing valves leads to poor control stability and increased costs, while undersizing results in insufficient capacity and potential system limitations. Modern sizing software incorporates advanced algorithms that consider Reynolds number effects, critical pressure ratios, and choked flow conditions to ensure optimal valve selection. The selected valve should operate within 20-80% of its travel range during normal conditions, providing adequate rangeability while maintaining precise control characteristics throughout the operating envelope.

Pressure and Temperature Considerations

Operating pressure and temperature parameters directly influence Electric Control Valve material selection, design configuration, and safety factor requirements. Pressure class selection must accommodate maximum system pressure with appropriate safety margins, typically following ANSI B16.34 or API standards for pressure-temperature ratings. Temperature considerations extend beyond simple material compatibility to include thermal expansion effects, actuator temperature limits, and potential thermal cycling impacts on valve performance. Cryogenic applications below -29°C require specialized materials such as stainless steel or special alloys, along with extended bonnet designs to protect actuator components from extreme temperatures. High-temperature applications above 232°C necessitate heat-resistant sealing materials and may require external cooling systems for actuator protection. Pressure drop calculations must account for upstream and downstream piping effects, as excessive pressure drops can cause cavitation in liquid applications or critical flow conditions in gas service. The valve pressure rating should exceed maximum system pressure by at least 25% to ensure safe operation and accommodate pressure transients during system startup or emergency conditions.

Material Compatibility and Environmental Factors

Material selection for Electric Control Valve components requires comprehensive analysis of fluid chemistry, environmental conditions, and service life expectations. Valve body materials range from carbon steel for general service to exotic alloys for corrosive applications, with each material offering specific advantages and limitations. Wetted component materials must demonstrate chemical compatibility with process fluids throughout the expected temperature and pressure range, while also considering potential contamination or cleaning chemical exposure. Environmental factors such as ambient temperature extremes, humidity, vibration, and electromagnetic interference influence actuator selection and enclosure requirements. Marine environments require special attention to corrosion protection, often necessitating duplex stainless steel construction or specialized coatings. The selection process must evaluate long-term material degradation mechanisms including stress corrosion cracking, erosion, and fatigue to ensure reliable operation throughout the valve's design life. Sealing material compatibility becomes critical in applications involving aggressive chemicals or extreme temperatures, with options ranging from PTFE for chemical resistance to specialized elastomers for high-temperature service.

Technical Specifications and Performance Requirements

Actuator Sizing and Control Signal Integration

Electric actuator sizing requires careful analysis of valve torque requirements, operating speed specifications, and control signal compatibility with existing automation systems. Torque calculations must account for packing friction, stem thrust requirements, and differential pressure forces acting on the valve closure member. Control valve selection requires specific consideration of capacity requirements, system operating pressure ranges, and various other factors including actuator performance characteristics. Modern Electric Control Valve actuators typically accept 4-20mA analog signals or digital communication protocols such as HART, Foundation Fieldbus, or Profibus for enhanced functionality. Speed requirements vary significantly between applications, with some processes requiring rapid response times under one second, while others prioritize smooth, gradual positioning over several minutes. Actuator selection must also consider fail-safe requirements, determining whether the valve should fail open, closed, or remain in the last position upon power loss. Advanced actuator features include position feedback, torque monitoring, and diagnostic capabilities that provide valuable operational data for maintenance planning and performance optimization.

Control Characteristics and Rangeability

Flow control characteristics define the relationship between valve position and flow rate, with options including linear, equal percentage, and quick opening profiles to match specific process requirements. Equal percentage characteristics provide consistent control sensitivity across the operating range, making them suitable for applications with varying pressure drops or load conditions. Linear characteristics offer proportional flow response to valve position changes, ideal for applications with relatively constant pressure differentials. Electric Control Valve rangeability, typically 50:1 or higher, significantly exceeds pneumatic valve capabilities, enabling precise control across wide flow ranges. The inherent valve characteristic must be combined with system characteristics to achieve the desired installed characteristic, requiring careful analysis of piping configuration and pressure drop distribution. Control stability depends on proper characteristic selection, with mismatched characteristics leading to hunting, overshooting, or poor response to setpoint changes. Modern Electric Control Valve technology enables characteristic modification through actuator programming, providing flexibility to optimize control performance for varying operating conditions without physical valve modifications.

Safety and Reliability Standards

Safety considerations for Electric Control Valve applications encompass multiple aspects including pressure containment, fire safety, emission control, and functional safety requirements. SIL (Safety Integrity Level) certification ensures valves meet specific reliability standards for safety instrumented systems, with Electric Control Valve designs achieving SIL 2 or SIL 3 ratings through redundant components and proven failure mode analysis. Fire testing according to API 607 or ISO 10497 standards validates valve performance during fire exposure, ensuring continued operation or safe failure modes in emergency conditions. Fugitive emission testing per ISO 15848 or API 641 standards demonstrates environmental compliance and worker safety protection. Reliability engineering principles guide Electric Control Valve design, incorporating features such as self-diagnostic capabilities, predictive maintenance algorithms, and robust construction to minimize failure probability. Quality assurance programs following ISO 9001 standards ensure consistent manufacturing processes and material traceability. Professional installation, commissioning, and maintenance procedures further enhance system reliability and safety performance throughout the valve's operational life.

Conclusion

Selecting the right Electric Control Valve for your project demands a systematic approach that balances technical requirements, economic considerations, and long-term operational goals. The comprehensive evaluation of flow characteristics, pressure-temperature parameters, material compatibility, and control system integration ensures optimal valve performance while minimizing lifecycle costs. As industrial automation continues advancing toward digitization and remote operation capabilities, Electric Control Valve technology represents a strategic investment in future-ready process control infrastructure that delivers superior precision, reliability, and diagnostic capabilities compared to traditional alternatives.
