Selecting an Electric Control Valve for exact stream control requires cautious thought of different specialized parameters and operational necessities. These robotized valves combine electric actuators with accuracy valve bodies to convey remarkable precision in stream tweak over mechanical applications. The choice handle includes analyzing stream characteristics, weight evaluations, temperature ranges, and control flag compatibility to guarantee ideal execution. Understanding these basics empowers engineers and acquirement experts to make educated choices that upgrade framework unwavering quality and operational efficiency.
Understanding Electric Control Valves and Their Working Principles
Electric control valves speak to advanced building arrangements that coordinated electric actuators with precision-engineered valve bodies to accomplish precise stream control. The crucial operation depends on electrical signals changing over to mechanical movement through servo engines or stepper engines, which position valve stems with exceptional exactness. These frameworks regularly utilize 4-20mA current signals or 0-10V voltage signals for control input, empowering consistent integration with present day robotization systems. The center components incorporate the valve body, electric actuator, positioner, and control hardware. Globe valves, especially straight cage sort arrangements, offer predominant throttling characteristics due to their adjusted weight plan and exact stream ways. Materials determination gets to be basic for low-temperature applications, where components must keep up basic keenness and fixing execution over extraordinary temperature variations. CEPAI's electric incited valves illustrate these standards through progressed plan highlights counting weight adjust spools and flexible stream characteristics. The integration of stainless steel internals with materials like 304, 316, and 316L surfacing guarantees life span in requesting situations whereas keeping up exact control accuracy.
Essential Criteria for Selecting an Electric Control Valve
The valve choice handle requests comprehensive assessment of operational parameters to guarantee ideal execution. Stream medium characteristics essentially impact fabric compatibility and valve plan necessities. Gas, water, and oil applications each show interesting challenges with respect to thickness, corrosiveness, and temperature affectability that specifically affect valve life span and control precision. Pressure appraisals constitute another principal thought, with standard alternatives counting PN16, PN40, PN64, and ANSI 150, 300, 600 classifications. These determinations must adjust with framework working weights whereas giving satisfactory security edges. Temperature ranges especially matter for specialized applications, with low-temperature frameworks requiring expanded cap plans and specialized fixing materials to avoid warm bridging and keep up operational reliability. The taking after specialized determinations speak to basic determination criteria that engineers must evaluate:
- Nominal diameter range (DN15-400mm): Sizing calculations must account for maximum and minimum flow requirements while maintaining controllability across the operational range. Oversized valves reduce control accuracy at low flows, while undersized units create excessive pressure drops.
- Control signal compatibility: Modern electric actuators accommodate various input signals, with 4-20mADC representing the industry standard for analog control. Signal feedback capabilities enable closed-loop control systems to verify valve position accuracy continuously.
- Environmental operating conditions: Ambient temperature ranges from -30°C to +70°C affect actuator electronics and mechanical components. Proper environmental protection ratings ensure reliable operation in harsh industrial environments.
These technical parameters work synergistically to determine overall valve performance and reliability. Proper selection requires balancing these factors against specific application requirements and long-term maintenance considerations.
Comparing Electric Control Valves to Other Valve Types
Electric incited valves offer unmistakable focal points over pneumatic, pressure driven, and manual choices in terms of accuracy, reaction time, and integration capabilities. Pneumatic frameworks require compressed discuss foundation and display slower reaction times due to discuss compressibility, whereas electric frameworks give immediate situating with predominant exactness. This exactness gets to be especially profitable in forms requiring tight stream control resiliences or visit setpoint adjustments. Energy proficiency speaks to another noteworthy differentiator, as electric actuators devour control as it were amid situating developments, not at all like pneumatic frameworks that require persistent discuss supply. Support prerequisites moreover favor electric frameworks, which dispense with the require for discuss filtration, grease, and dampness evacuation frameworks related with pneumatic operations. Electric control valves exceed expectations in applications requiring:
- Remote operation capabilities: Electric actuators enable centralized control through digital communication protocols, supporting Industry 4.0 initiatives and smart manufacturing concepts. Remote monitoring and diagnostic capabilities reduce maintenance costs and improve system reliability.
- Precise positioning accuracy: Servo-controlled electric actuators achieve positioning accuracies within ±1% of span, significantly exceeding pneumatic valve capabilities. This precision proves essential for chemical processing, pharmaceutical manufacturing, and other applications requiring exact flow control.
- Environmental compliance: Electric systems eliminate compressed air emissions and reduce overall facility energy consumption, supporting sustainability initiatives while maintaining operational excellence.
These operational advantages translate to measurable improvements in process stability, energy consumption, and maintenance costs across diverse industrial applications.
Procurement Insights: How to Buy the Right Electric Control Valve?
Successful valve obtainment requires setting up clear specialized details and merchant capability criteria some time recently starting provider assessments. Industry certifications such as API, ANSI, and ISO benchmarks give objective benchmarks for comparing producer capabilities and item quality. CEPAI's comprehensive certification portfolio, counting API Q1, API 6A, API 6D, and numerous ISO measures, illustrates commitment to fabricating brilliance and administrative compliance. Supplier assessment ought to envelop specialized capabilities, fabricating framework, and after-sales bolster administrations. Progressed fabricating offices utilizing shrewdly generation lines and quality control frameworks guarantee steady item quality and conveyance unwavering quality. CEPAI's 156 million yuan speculation in brilliantly fabricating change has made the longest high-precision fabricating line in the Asia Pacific locale, illustrating innovative authority and generation capability. The acquirement prepare benefits from considering these key factors:
- Customization capabilities: OEM customization services enable valve specifications tailored to unique application requirements. This flexibility proves valuable for specialized applications requiring non-standard materials, connection types, or control features not available in standard product lines.
- Technical support and engineering services: Comprehensive pre-sales engineering support helps optimize valve selection and system integration. Post-sales support including installation guidance, commissioning assistance, and maintenance training ensures successful project outcomes.
- Supply chain reliability: Global manufacturing capabilities and established supplier relationships ensure consistent material availability and production scheduling. CEPAI's qualification as an approved supplier for major energy companies demonstrates supply chain reliability and quality consistency.
These procurement considerations help minimize project risks while maximizing long-term value through reliable supplier partnerships and optimized product selection.
Maintenance and Troubleshooting for Optimal Valve Performance
Preventive upkeep programs essentially expand electric control valve benefit life whereas keeping up ideal execution characteristics. Customary review plans ought to center on basic components counting actuator components, valve pressing frameworks, and electrical associations. Legitimate support hones anticipate minor issues from creating into exorbitant disappointments that disturb generation operations. Common investigating scenarios include control flag abnormalities, mechanical official, and calibration float. Understanding these disappointment modes empowers upkeep groups to analyze issues effectively and execute suitable remedial activities. Electric actuators advantage from intermittent calibration confirmation to guarantee position criticism precision remains inside determination limits. Effective upkeep methodologies join both planned mediations and condition-based observing approaches. Present day electric actuators regularly incorporate symptomatic capabilities that screen working parameters and give early caution of creating issues. These progressed highlights empower prescient upkeep planning that minimizes impromptu downtime whereas optimizing support asset allocation.
Conclusion
Selecting the optimal electric control valve requires systematic evaluation of technical specifications, operational requirements, and supplier capabilities. Understanding valve design principles, comparing actuator technologies, and establishing comprehensive procurement criteria enables informed decision-making that maximizes system performance and reliability. CEPAI's proven expertise in electric valve manufacturing, combined with advanced production capabilities and comprehensive support services, provides the foundation for successful flow control solutions across diverse industrial applications. Proper maintenance and troubleshooting practices ensure long-term reliability and optimal return on investment for these critical process control components.
Partner with CEPAI for Superior Electric Control Valve Solutions
CEPAI stands as a leading Electric Control Valve manufacturer with over a decade of experience delivering precision flow control solutions to global industrial markets. Our comprehensive product portfolio encompasses globe valves, gate valves, ball valves, and specialized low-temperature control valves engineered for demanding applications across petrochemical, pharmaceutical, and energy sectors.

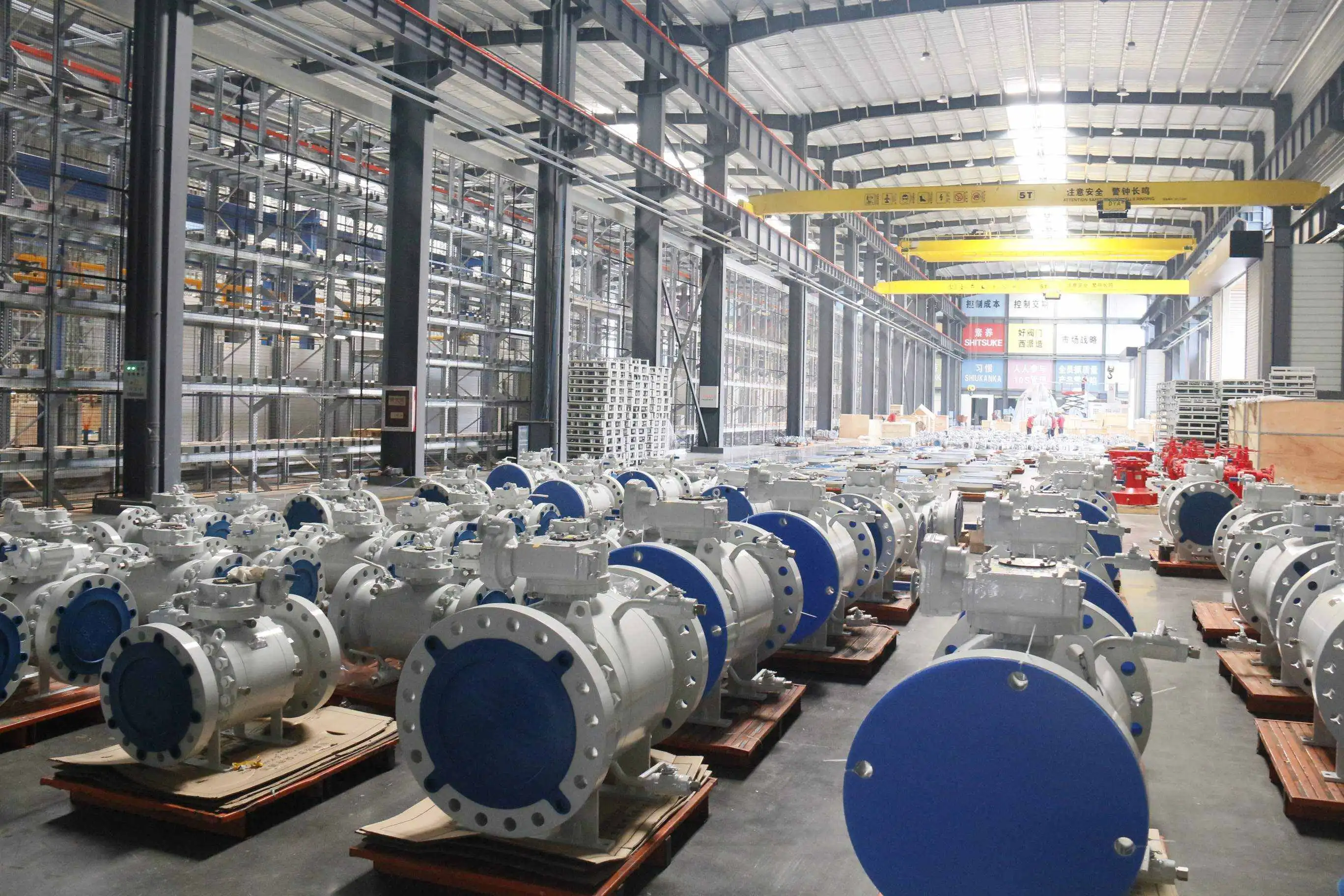

Our intelligent manufacturing capabilities, certified through multiple ISO quality systems and industry-specific standards, ensure consistent product quality and reliable performance. The company's 56,000 square meter manufacturing facility houses advanced testing laboratories and production equipment that support both standard and customized valve solutions. CEPAI's engineering team provides comprehensive technical support throughout the project lifecycle, from initial valve selection through commissioning and ongoing maintenance support.
Experience the advantages of partnering with a certified valve manufacturer committed to technological innovation and customer success. Our electric control valves feature advanced materials, precision manufacturing, and comprehensive quality testing to ensure reliable performance in your critical applications. Contact us at cepai@cepai.com to discuss your specific flow control requirements and discover how CEPAI's expertise can optimize your process performance.
Frequently Asked Questions
Q1: How do I determine the correct sizing for an electric control valve in my system?
A: Valve sizing requires calculating flow coefficients (Cv) based on maximum flow rates, pressure drops, and fluid properties. Consider both maximum and minimum flow requirements to ensure adequate controllability across the operating range. CEPAI's engineering team provides sizing calculations and recommendations based on your specific application parameters.
Q2: What are the main advantages of electric actuators compared to pneumatic alternatives?
A: Electric actuators offer superior positioning accuracy, faster response times, and eliminate the need for compressed air infrastructure. They consume power only during movement, provide better environmental compliance, and enable advanced diagnostic capabilities for predictive maintenance scheduling.
Q3: Can electric control valves operate reliably in low-temperature applications?
A: Yes, properly designed electric control valves excel in low-temperature service from -60°C to -20°C. Extended bonnet designs prevent thermal bridging, while specialized materials maintain sealing integrity and mechanical properties throughout extreme temperature cycles. CEPAI's low-temperature valves feature proven designs for cryogenic applications.
