How to Prevent and Reduce Control Valve Noise?

Imagine walking through your industrial facility when suddenly, a deafening roar erupts from your control valve system, forcing workers to cover their ears and disrupting critical operations. Control valve noise is one of the most persistent challenges facing engineers today, with sound levels often exceeding 85 decibels and creating safety hazards, regulatory compliance issues, and costly operational disruptions. This comprehensive guide reveals proven strategies to prevent and reduce control valve noise effectively, helping you maintain optimal system performance while ensuring workplace safety and regulatory compliance.

Understanding Control Valve Noise Generation Mechanisms

Control valve noise originates from complex fluid dynamic phenomena that occur when pressurized fluids pass through valve restrictions. The primary noise generation mechanisms include turbulent flow, cavitation, and flashing, each contributing to different frequency ranges and intensity levels. When high-pressure fluid encounters the valve's internal geometry, rapid velocity changes create turbulent eddies that generate broadband noise. The control valve design significantly influences these mechanisms, with factors such as trim configuration, seat geometry, and internal flow paths determining the overall acoustic signature. The relationship between pressure drop and noise generation follows logarithmic patterns, meaning small increases in pressure differential can result in dramatic noise level increases. Modern control valve manufacturers have developed sophisticated prediction models to estimate noise levels during the design phase, allowing engineers to select appropriate noise reduction strategies before installation. Understanding these fundamental mechanisms enables more effective noise control strategies and helps engineers make informed decisions about valve selection and system design.

• Aerodynamic Noise Sources in Control Valves

Aerodynamic noise represents the most common source of control valve noise, particularly in gas and steam applications. When fluid accelerates through the valve's restriction, velocity increases dramatically, creating high-frequency pressure fluctuations that propagate as sound waves. The intensity of aerodynamic noise correlates directly with fluid velocity, making proper valve sizing crucial for noise control. Control valve manufacturers typically use the Mach number as a key parameter for predicting aerodynamic noise levels, with higher Mach numbers indicating greater noise potential. The geometry of the control valve trim plays a critical role in aerodynamic noise generation. Sharp edges, sudden expansions, and discontinuous flow paths create additional turbulence and noise. Advanced trim designs incorporate gradual transitions, streamlined surfaces, and carefully engineered flow passages to minimize these effects. Multi-stage pressure reduction trims divide the total pressure drop into smaller increments, reducing the velocity at each stage and significantly decreasing overall noise levels.

• Hydrodynamic Noise from Cavitation and Flashing

Hydrodynamic noise occurs when liquid control valves experience cavitation or flashing conditions, creating intense low-frequency noise that can damage equipment and create safety hazards. Cavitation develops when local pressure drops below the fluid's vapor pressure, forming vapor bubbles that subsequently collapse violently when pressure increases downstream. The bubble collapse generates shock waves with frequencies typically ranging from 100 Hz to 10 kHz, creating the characteristic "gravel-in-a-can" sound associated with cavitating valves. Flashing occurs when pressure reduction causes permanent vapor formation, typically producing less intense but more sustained noise compared to cavitation. Both phenomena can cause severe damage to control valve internals, with cavitation being particularly destructive due to the erosive nature of bubble collapse. Proper valve selection and sizing can prevent these conditions by maintaining adequate pressure margins and selecting appropriate trim designs that minimize local pressure drops.

Source Treatment Methods for Control Valve Noise Reduction

Source treatment methods focus on modifying the control valve itself to reduce noise generation at its origin, representing the most effective approach for long-term noise control. These techniques address the fundamental fluid dynamic processes that create noise, offering superior performance compared to path treatment methods. Source treatment strategies include specialized trim designs, multi-stage pressure reduction, and optimized internal flow paths that minimize turbulence and pressure fluctuations. The effectiveness of source treatment depends on proper application of engineering principles and careful consideration of process conditions. Modern control valve manufacturers offer extensive noise reduction trim options, each designed for specific applications and operating conditions. Selection criteria include fluid properties, pressure differentials, flow rates, and acceptable noise levels. Proper implementation of source treatment methods can achieve noise reductions of 10-20 decibels or more, often eliminating the need for additional noise control measures.

• Multi-Stage Pressure Reduction Trim Design

Multi-stage pressure reduction represents one of the most effective source treatment methods for control valve noise reduction. This approach divides the total pressure drop across multiple restriction stages, reducing the velocity and pressure differential at each stage. Pressure-drop staging reduces the overall sound by dividing a single pressure drop into a number of smaller steps. Each stage operates at lower velocities and pressure differentials, significantly reducing noise generation compared to single-stage designs. Advanced multi-stage trims incorporate sophisticated flow path geometries that promote gradual pressure recovery and minimize turbulence. The number of stages and their configuration depends on the total pressure drop, fluid properties, and desired noise reduction. Typical multi-stage designs can achieve noise reductions of 15-25 decibels compared to conventional single-stage trims, making them ideal for high-pressure drop applications where noise control is critical.

• Flow Division and Velocity Reduction Techniques

Flow division breaks up a single flow path into multiple ones, reducing flow-stream velocity and associated noise generation. This technique distributes the total flow across multiple parallel passages, each operating at reduced velocity and pressure differential. Flow division can be implemented through various trim configurations, including drilled-hole designs, tortuous path geometries, and disk-and-cylinder arrangements. The effectiveness of flow division depends on the number of flow paths and their individual characteristics. More flow paths generally result in greater noise reduction, but practical considerations such as manufacturing complexity and cost must be balanced. Control valve manufacturers offer standardized flow division trims for common applications, with custom designs available for specialized requirements. Proper implementation can achieve noise reductions of 10-15 decibels while maintaining excellent control characteristics.

Advanced Trim Technologies for Noise Control

Modern control valve manufacturers have developed sophisticated trim technologies specifically designed for noise reduction applications. These advanced designs incorporate decades of research in fluid dynamics and acoustics, offering superior performance compared to conventional trim options. Advanced trim technologies include tortuous path designs, anti-cavitation trims, and specialized low-noise configurations that address specific noise generation mechanisms. The selection of appropriate trim technology requires careful analysis of process conditions, noise requirements, and performance specifications. Factors such as rangeability, control accuracy, and maintenance requirements must be considered alongside noise reduction performance. Advanced trims often provide additional benefits such as improved cavitation resistance, reduced erosion, and enhanced control stability, making them attractive solutions for challenging applications.

• Tortuous Path and Labyrinth Trim Designs

Tortuous path trims create complex flow geometries that promote gradual pressure reduction and velocity control. These designs incorporate multiple turns, restrictions, and expansions that force the fluid through an extended flow path, allowing for controlled energy dissipation. The extended path length provides numerous opportunities for pressure recovery, reducing the local velocities and associated noise generation. Control valve applications with extreme pressure differentials particularly benefit from tortuous path designs. Labyrinth trims represent a specialized form of tortuous path design, incorporating multiple chambers connected by small orifices. Each chamber allows for pressure recovery and velocity reduction before the fluid enters the next stage. The chamber design promotes turbulence decay and pressure stabilization, further reducing noise generation. Modern labyrinth trims can achieve noise reductions of 20-30 decibels in appropriate applications, making them suitable for the most demanding noise control requirements.

• Anti-Cavitation and Low-Noise Trim Configurations

Anti-cavitation trims specifically address hydrodynamic noise sources in liquid control valve applications. These designs maintain pressure levels above the fluid's vapor pressure throughout the flow path, preventing cavitation and associated noise generation. Anti-cavitation trims typically incorporate pressure recovery chambers, streamlined flow paths, and carefully controlled velocity profiles that minimize local pressure drops. Low-noise trim configurations combine multiple noise reduction principles in optimized designs for specific applications. These trims may incorporate elements of multi-stage pressure reduction, flow division, and tortuous path design in a single assembly. The integrated approach maximizes noise reduction while maintaining acceptable control performance and rangeability. Custom low-noise trims can be designed for unique applications where standard options are insufficient.

Path Treatment Strategies and Implementation

Path treatment focuses on preventing noise from reaching people who would be affected by it, offering solutions when source treatment alone is insufficient. These methods address noise transmission rather than generation, providing flexibility in retrofit applications and situations where control valve modifications are impractical. Path treatment strategies include acoustic insulation, silencers, enclosures, and piping modifications that attenuate sound transmission. The effectiveness of path treatment depends on proper understanding of noise transmission mechanisms and careful selection of appropriate materials and configurations. Acoustic treatments must consider frequency content, transmission paths, and environmental conditions to achieve optimal performance. Path treatment solutions often provide immediate benefits and can be implemented without process interruption, making them attractive for existing installations.

​​​​​​​

• Acoustic Insulation and Barrier Systems

Acoustic insulation systems provide effective noise reduction by absorbing sound energy and blocking transmission paths. Modern insulation materials incorporate advanced fiber technologies and barrier layers that address both airborne and structure-borne noise transmission. The selection of insulation materials depends on temperature limits, environmental conditions, and required performance levels. High-temperature applications may require specialized ceramic fiber or mineral wool insulation, while standard applications can use more economical glass fiber materials. Barrier systems combine sound absorption with reflective surfaces to maximize noise reduction effectiveness. These systems typically incorporate dense materials such as loaded vinyl or metal barriers combined with absorbent materials. The barrier layer prevents sound transmission while the absorbent layer reduces reflections and standing wave formation. Properly designed barrier systems can achieve noise reductions of 15-25 decibels across a broad frequency range.

• Silencer Design and Installation Principles

Industrial silencers provide targeted noise reduction for control valve applications through specialized acoustic designs. Reactive silencers use chamber resonance and expansion principles to attenuate specific frequency ranges, while absorptive silencers incorporate sound-absorbing materials to reduce broadband noise. Combination silencers integrate both principles for maximum effectiveness across a wide frequency range. Acoustic enclosures, silencers, or diffusers can mitigate control valve noise by absorbing or redirecting noise energy. Proper silencer design requires accurate noise source characterization and careful consideration of pressure drop limitations. Installation location significantly affects silencer performance, with positioning close to the noise source generally providing superior results. Modern silencer designs can achieve noise reductions of 20-40 decibels while maintaining acceptable pressure drop characteristics.

System Design Considerations for Noise Prevention

Effective noise control begins during the system design phase, where proper valve selection, sizing, and installation practices can prevent noise problems before they occur. System design considerations include piping layout, support structures, valve orientation, and process parameter optimization. These factors significantly influence noise generation and transmission, making early consideration essential for successful noise control. The integration of noise control measures into system design requires collaboration between process engineers, acoustics specialists, and equipment suppliers. Design specifications should include noise level requirements, measurement criteria, and verification procedures. Early involvement of noise control specialists can identify potential problems and implement cost-effective solutions before equipment procurement and installation.

• Proper Valve Sizing and Selection Criteria

Correct control valve sizing represents one of the most critical factors in noise prevention. Oversized valves operate at low openings where flow control is poor and noise generation is maximized. Undersized valves create excessive pressure drops and high velocities that generate significant noise. Proper sizing requires accurate process data, including flow rates, pressures, temperatures, and fluid properties. Control valve selection criteria must balance performance requirements with noise control objectives. Factors such as inherent flow characteristics, rangeability, and control accuracy affect both performance and noise generation. Modern valve selection software incorporates noise prediction algorithms that help engineers evaluate different options and select optimal configurations for specific applications.

• Piping Configuration and Support Design

Piping configuration significantly affects control valve noise transmission and system performance. Proper piping design includes adequate straight pipe runs upstream and downstream of the valve, appropriate pipe sizing, and optimized support locations. Vibration isolation and damping systems can reduce structure-borne noise transmission while maintaining proper pipe support and alignment. Support design considerations include material selection, mounting methods, and isolation techniques. Rigid supports can transmit vibration and noise to building structures, while inadequate support can cause pipe stress and alignment problems. Modern vibration isolation systems incorporate elastomeric materials and mechanical damping elements that reduce transmission while maintaining structural integrity.

Monitoring and Maintenance for Long-Term Noise Control

Effective noise control requires ongoing monitoring and maintenance programs to ensure continued performance and identify developing problems. Regular noise measurements, equipment inspections, and predictive maintenance techniques can prevent noise-related issues and optimize system performance. Monitoring programs should include baseline measurements, periodic surveys, and trend analysis to identify changes in acoustic performance. Maintenance considerations include inspection schedules, component replacement criteria, and performance verification procedures. Control valve trim components may experience wear or damage that affects noise generation, requiring periodic evaluation and replacement. Acoustic treatment materials can degrade over time, particularly in harsh environmental conditions, necessitating regular inspection and maintenance.

• Noise Measurement and Assessment Techniques

Professional noise measurement requires specialized equipment and techniques to obtain accurate and meaningful results. Sound level meters, frequency analyzers, and data logging systems provide the tools necessary for comprehensive noise assessment. Measurement procedures should follow established standards such as ANSI/ISA-75.17 for control valve noise evaluation. Assessment techniques include octave band analysis, frequency spectrum evaluation, and statistical analysis of noise data. These methods help identify noise sources, evaluate treatment effectiveness, and predict potential problems. Regular measurement programs provide baseline data for performance trending and help optimize maintenance schedules and treatment strategies.

• Predictive Maintenance and Performance Optimization

Predictive maintenance techniques can identify developing noise problems before they become critical issues. Vibration analysis, acoustic emission monitoring, and thermal imaging can detect component wear, cavitation, and other conditions that contribute to noise generation. Early detection allows for planned maintenance activities that minimize process disruption and optimize equipment performance. Performance optimization involves continuous evaluation of system operation and identification of improvement opportunities. Process parameter adjustments, control strategy modifications, and equipment upgrades can enhance noise control while improving overall system performance. Regular performance reviews ensure that noise control systems continue to meet requirements and identify opportunities for enhancement.

Conclusion

Control valve noise presents significant challenges for industrial operations, but comprehensive understanding of noise generation mechanisms and proven reduction strategies can effectively address these issues. Successful noise control requires careful evaluation of source and path treatment options, proper system design practices, and ongoing maintenance programs. The combination of advanced trim technologies, acoustic treatments, and optimized system design can achieve substantial noise reductions while maintaining excellent control performance and reliability.

Cooperate with CEPAI Group Co., LTD.

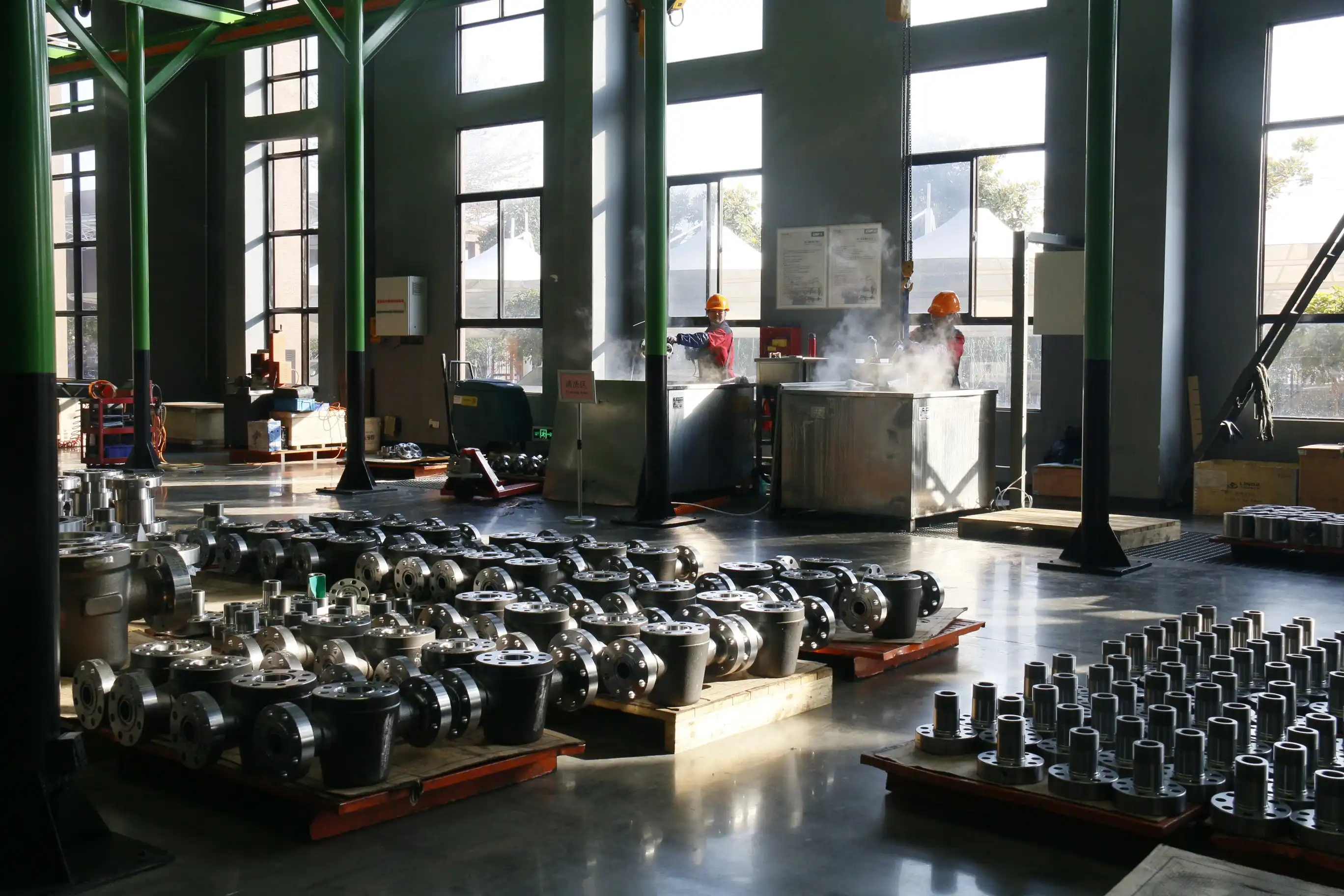

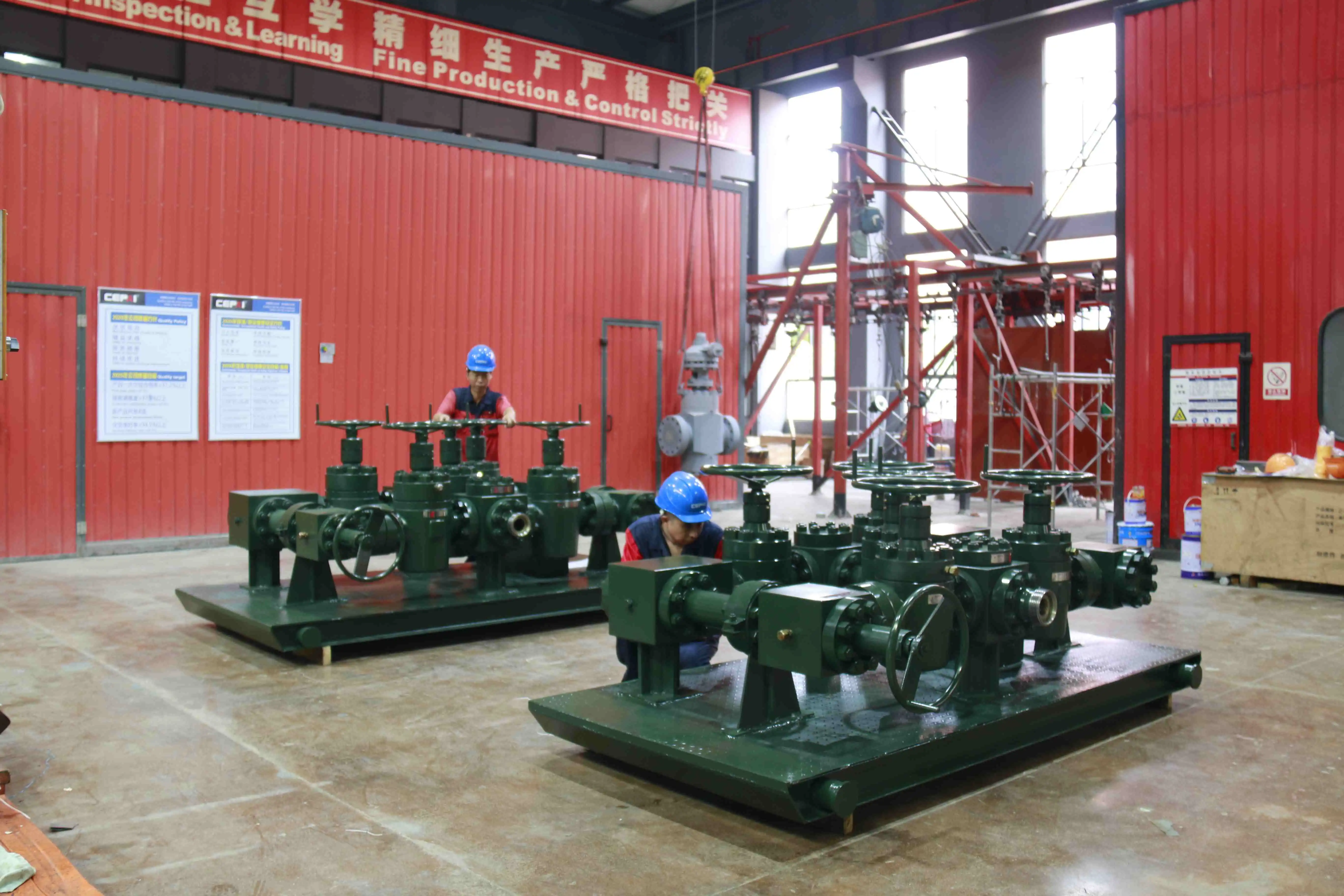

CEPAI Group Co., Ltd. stands as a leading China Control Valve manufacturer with over 15 years of specialized expertise in high-end energy valve manufacturing. Located in Jiangsu Province with a total plant area of 56,000 square meters, our company has invested 156 million yuan in intelligent transformation, building the longest high-precision intelligent manufacturing flexible production line in the Asia Pacific region. As a national high-tech enterprise and specialized "little giant" company, CEPAI has earned recognition as a Jiangsu Smart Factory and won the Mayor Quality Award in 2022.

Our comprehensive product portfolio includes sleeve type regulating valves, throttle valves, high-pressure double disc check valves, and emergency cut-off valves, all manufactured with API Q1, API 6A, API 6D, and other international certifications. We serve major clients including PetroChina, Sinopec, CNOOC, and China Datang Group, demonstrating our position as a trusted China Control Valve supplier in the global market.

As your preferred China Control Valve wholesale partner, we offer competitive Control Valve prices without compromising on quality. Our High Quality Control Valve products incorporate advanced noise reduction technologies and intelligent manufacturing processes. Whether you need standard Control Valve for sale or customized solutions, our team of experts provides comprehensive pre-sales technical consultation, installation support, and after-sales service guarantee.

Ready to experience superior noise control solutions? Contact our technical experts at cepai@cepai.com for immediate assistance with your Control Valve requirements. Click to save this guide for future reference and discover how CEPAI's innovative solutions can transform your operations today!

FAQ

Q: What are the main causes of control valve noise?

A: Control valve noise primarily results from turbulent flow, cavitation, and flashing phenomena. High-velocity fluid creates aerodynamic noise, while cavitation generates intense hydrodynamic noise.

Q: How much noise reduction can multi-stage trim designs achieve?

A: Multi-stage pressure reduction trims can achieve noise reductions of 15-25 decibels compared to conventional single-stage designs, depending on application conditions.

Q: What is the difference between source treatment and path treatment for noise control?

A: Source treatment modifies the valve to reduce noise generation, while path treatment uses insulation, silencers, or enclosures to prevent noise transmission.

Q: How do I select the right control valve size to minimize noise?

A: Proper sizing requires accurate process data and should avoid oversizing. Use valve sizing software with noise prediction capabilities and consult manufacturer guidelines for optimal selection.
