How Is Pneumatic Cylinder Speed Controlled?

Pneumatic cylinders are widely used in industrial automation equipment. Gripper extension, material pushing, positioning fixtures, lifting platforms, stopping devices, and many repetitive linear movements are powered by pneumatic cylinders.

For people who are new to pneumatic systems, one common question is:

How can the speed of a pneumatic cylinder be controlled if it extends immediately after compressed air is supplied?

In fact, the operating speed of a pneumatic cylinder is not determined by the cylinder alone. It mainly depends on how quickly compressed air enters and leaves the cylinder chamber.

In other words, the key to pneumatic cylinder speed control is airflow regulation.

This article explains the working principle of pneumatic cylinders, common speed control methods, the difference between meter-in and meter-out control, major factors affecting cylinder speed, and solutions to common speed adjustment problems.

Why Does a Pneumatic Cylinder Move?

A pneumatic cylinder mainly consists of a cylinder barrel, piston, piston rod, end covers, and sealing components.

When compressed air enters one side of the cylinder, the air pressure acts on the piston surface and pushes the piston toward the opposite side. At the same time, air inside the other chamber is discharged through the exhaust port.

When the directional control valve changes the airflow direction, compressed air enters the opposite chamber, causing the piston to move in the reverse direction.

This movement allows the piston rod to extend and retract.

Therefore, the movement of a pneumatic cylinder is essentially caused by compressed air pushing the piston to produce linear displacement.

Two main factors influence cylinder movement:

Compressed Air Pressure

Air pressure determines the amount of force that the cylinder can generate.

For a cylinder with a fixed piston area, higher pressure normally produces greater theoretical output force.

However, pressure mainly affects the load capacity of the cylinder. It is not the primary parameter used to control cylinder speed.

Compressed Air Flow Rate

Airflow determines how much compressed air enters or leaves the cylinder within a certain period.

When air enters the cylinder quickly, the piston usually moves faster. When the airflow is restricted, the piston moves more slowly.

Therefore, pneumatic cylinder speed is mainly controlled by airflow rather than simply by reducing air pressure.

The Most Common Pneumatic Cylinder Speed Control Method

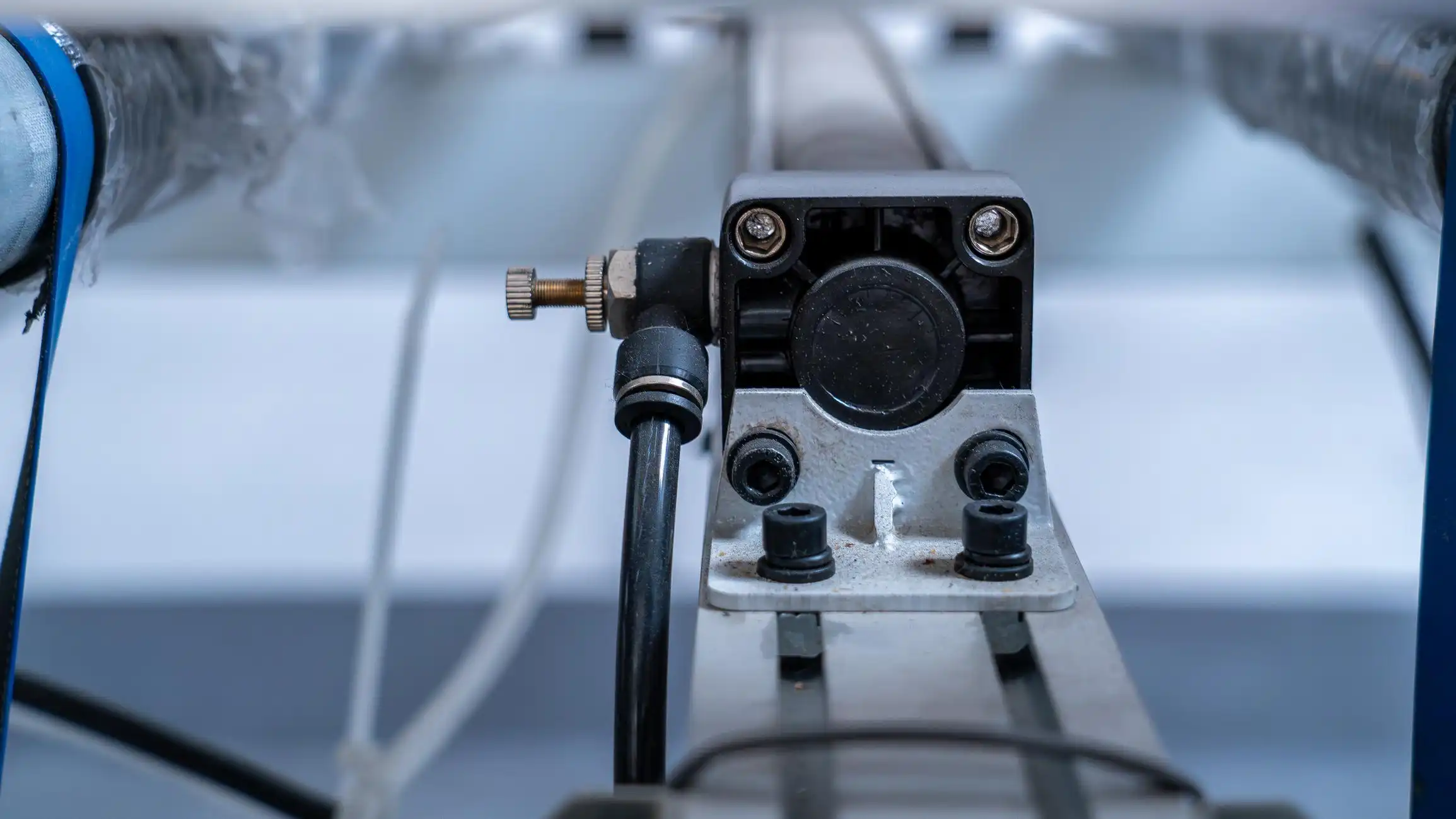

The most common method of controlling pneumatic cylinder speed is to install a speed controller at the cylinder port.

A pneumatic speed controller may also be called:

• A pneumatic flow control valve;
• A one-way flow control valve;
• A pneumatic throttle valve;
• A cylinder speed control valve.

The speed controller changes the size of the internal airflow passage and restricts the amount of compressed air flowing through the valve.

Its working principle is similar to partially closing the end of a water hose.

When the passage is fully open, a large amount of air can pass through, and the cylinder moves quickly.

When the passage is partially closed, airflow decreases, and the cylinder moves more slowly.

The basic principle can be summarized as:

Pneumatic cylinder speed control = airflow regulation = piston speed control

A typical pneumatic speed controller combines a throttle valve and a check valve.

Air can flow freely in one direction, while flow is restricted in the opposite direction. This allows the extension and retraction speeds of the pneumatic cylinder to be adjusted separately.

What Is the Difference Between Meter-In and Meter-Out Control?

According to the location of the flow restriction, pneumatic cylinder speed control can be divided into two main methods:

• Meter-in control;
• Meter-out control.

Meter-In Speed Control

Meter-in control restricts the compressed air entering the working chamber of the cylinder.

When the incoming airflow is reduced, the pressure inside the cylinder chamber builds more slowly, reducing the piston speed.

Although the principle appears simple, compressed air is compressible and can store energy inside the cylinder chamber.

When the load or friction changes, meter-in control may cause:

• Unstable cylinder startup;
• Stick-slip motion at low speed;
• Sudden changes in speed;
• Cylinder surging under light loads;
• Poor response to load changes.

Meter-in control may be suitable for applications with relatively constant loads, low resistance, or limited requirements for smooth movement.

However, it is not the preferred method for most industrial cylinder applications.

Meter-Out Speed Control

Meter-out control does not restrict the air entering the cylinder. Instead, it restricts the air leaving the opposite chamber.

For example, when the piston rod extends, compressed air enters the cap-end chamber, while air in the rod-end chamber is discharged.

If the exhaust airflow from the rod-end chamber is restricted, the air cannot leave immediately. This creates back pressure inside the chamber.

The back pressure acts as pneumatic resistance and prevents the piston from moving too quickly.

Meter-out control provides several advantages:

• Smoother cylinder movement;
• Reduced sudden acceleration;
• Better low-speed control;
• Improved resistance to load changes;
• More stable operating speed.

For these reasons, meter-out control is the most commonly used speed control method in industrial pneumatic systems.

Where Should a Pneumatic Speed Controller Be Installed?

For a double-acting pneumatic cylinder, one speed controller is normally installed at each cylinder port.

This allows the extension speed and retraction speed to be adjusted independently.

Under meter-out control:

• Restricting exhaust from the rod-end chamber controls the cylinder extension speed;
• Restricting exhaust from the cap-end chamber controls the cylinder retraction speed.

The airflow direction of the speed controller must be installed correctly.

Most one-way flow control valves indicate the free-flow direction and the restricted-flow direction.

If the valve is installed in the wrong direction, the system may operate as meter-in control instead of meter-out control.

This can result in unstable cylinder movement or ineffective speed adjustment.

During initial adjustment, the speed controller should be opened sufficiently and then gradually closed until the desired speed is reached.

The valve should not be closed too much at once, as this may prevent the cylinder from starting.

What Factors Affect Pneumatic Cylinder Speed?

Pneumatic cylinder speed is not determined by the speed controller alone.

It is affected by the entire pneumatic system, including pressure, piping, valves, load, cylinder size, and exhaust conditions.

Air Supply Pressure

When the air supply pressure is too low, the cylinder output force decreases.

The pressure inside the cylinder also builds more slowly, which may cause delayed or weak movement.

If several cylinders operate at the same time, the main air supply pressure may drop significantly when the compressor capacity or piping size is insufficient.

However, reducing pressure is not an ideal way to control cylinder speed.

If the pressure becomes too low, the cylinder may fail to overcome the load or seal friction.

Pneumatic Tube Diameter

The internal diameter of the pneumatic tubing directly affects airflow capacity.

A large cylinder, long-stroke cylinder, or high-frequency cylinder requires a relatively large airflow volume.

If the pneumatic tube is too small, airflow will be restricted, and the cylinder will not reach the required speed.

In high-speed pneumatic systems, both the actual internal diameter and the length of the tube should be considered.

Longer and narrower tubing normally causes greater pressure loss.

Fitting and Silencer Flow Capacity

Pneumatic fittings, speed controllers, solenoid valves, and exhaust silencers can all restrict airflow.

Even if the pneumatic tube is large enough, a fitting with a small internal passage may become the main flow restriction in the system.

Exhaust silencers can also become blocked by oil mist, moisture, and contamination.

A blocked silencer reduces exhaust flow and causes slow cylinder movement.

Therefore, when checking a slow pneumatic cylinder, the entire airflow path should be inspected.

Solenoid Valve Flow Capacity

The solenoid valve controls the direction of airflow entering and leaving the cylinder.

Its port size, effective flow area, and flow coefficient directly affect cylinder speed.

If a large cylinder is connected to an undersized solenoid valve, the valve may become the main airflow bottleneck.

Even when the speed controller is fully open, the cylinder cannot move faster because the solenoid valve cannot supply or discharge enough air.

Solenoid valve selection should be based on:

• Cylinder bore;
• Cylinder stroke;
• Required operating speed;
• Operating frequency;
• Required airflow capacity.

Load Weight

A heavier load requires more force and produces greater inertia.

Under the same pressure and flow settings, a heavily loaded cylinder normally moves more slowly than a lightly loaded cylinder.

The effect is more obvious in vertically installed cylinders.

Gravity may accelerate downward movement and cause the load to drop too quickly.

In these applications, meter-out control, counterbalance devices, locking cylinders, or other safety components may be required.

Cylinder Bore and Stroke

A larger cylinder bore requires a greater volume of compressed air for each movement.

If the available airflow remains unchanged, a large-bore cylinder will normally move more slowly than a small-bore cylinder.

A longer stroke also increases the time required to complete one operating cycle.

Cylinder selection should therefore consider:

• Output force;
• Stroke length;
• Target speed;
• Air consumption;
• Operating frequency.

The cylinder bore should not be selected only according to the required force.

Cylinder Cushioning

​​​​​​​

Many pneumatic cylinders are equipped with adjustable air cushioning or mechanical cushioning at the end of the stroke.

When the piston approaches the end cover, the exhaust passage becomes smaller, and the piston automatically slows down.

This reduces mechanical impact, noise, and damage to the cylinder.

Therefore, a cylinder may move quickly during most of the stroke and then slow down near the end.

This is normally a result of the cushioning mechanism rather than a malfunction.

If the cushioning adjustment is too small, the piston may strike the end cover heavily.

If it is too large, the cylinder may take too long to complete the final part of the stroke or may fail to reach the end position.

Why Is Pneumatic Cylinder Speed Sometimes Unstable?

Common cylinder speed problems include:

• The cylinder moves fast and then slow;
• The cylinder does not move when the valve is slightly closed;
• The cylinder suddenly surges when the valve is opened;
• Extension and retraction speeds are inconsistent;
• Low-speed movement is unstable.

These problems do not always mean that the cylinder is damaged.

Several common causes should be considered.

Poor-Quality Speed Controller

Some low-quality flow control valves have poor adjustment linearity.

A small change in valve opening may cause a large airflow change, making accurate speed control difficult.

For low-speed or high-precision applications, a speed controller with good adjustment accuracy and repeatability should be selected.

Air Leakage

Air leakage may occur at fittings, tubes, seals, solenoid valves, or inside the pneumatic cylinder.

Leakage causes pressure and airflow fluctuations.

It can also increase compressed air consumption and prevent the cylinder from holding its position.

Undersized Solenoid Valve

An undersized solenoid valve limits the maximum airflow of the system.

In this condition, opening the speed controller further will not significantly increase cylinder speed.

Blocked Exhaust Silencer

Oil mist, moisture, and contamination can gradually block an exhaust silencer.

A blocked silencer restricts exhaust airflow and causes the cylinder to move slowly or inconsistently.

Changing Load Conditions

If the weight of the handled workpiece changes, or if machine friction varies during operation, the cylinder speed may also change.

Standard throttle control is an open-loop control method and cannot fully compensate for major load variations.

Incorrect Cylinder Sizing

If the cylinder bore is too small, the cylinder may not generate enough force and may move slowly or stop.

If the cylinder bore is unnecessarily large, air consumption increases, and high-speed operation becomes more difficult.

A suitable safety factor should be included during cylinder sizing, but the cylinder should not be oversized without reason.

Internal Wear or Insufficient Lubrication

Worn piston seals, a bent piston rod, damaged guide bushings, or insufficient internal lubrication can increase friction.

This may cause irregular movement, stick-slip behavior, or inconsistent speed.

If the air supply and control components are normal, the cylinder itself should be inspected.

How to Reduce Pneumatic Cylinder Speed

When a pneumatic cylinder moves too quickly, first confirm that the system is using meter-out control.

Check whether the speed controller is installed in the correct direction.

Then gradually reduce the opening of the exhaust-side speed controller.

Each adjustment should be small, and the cylinder should complete several cycles before further adjustment is made.

If the speed controller is almost closed but the cylinder still surges forward, check the following:

• Whether the speed controller is installed backward;
• Whether there is an airflow bypass;
• Whether the load is too light;
• Whether the speed controller is damaged;
• Whether the cylinder is moving downward vertically;
• Whether the exhaust control method is suitable.

For high-speed, heavy-load, or vertical applications, an ordinary speed controller may not provide sufficient safety.

Additional components may be required, such as:

• Hydraulic shock absorbers;
• Air-oil converters;
• Locking cylinders;
• Counterbalance valves;
• Mechanical braking systems.

How to Increase Pneumatic Cylinder Speed

When a pneumatic cylinder moves too slowly, inspect the following items:

1. Check whether the speed controller opening is too small;
2. Confirm that the air supply pressure meets the design requirement;
3. Inspect the air filter and pressure regulator for blockage;
4. Check whether the pneumatic tubing is too small;
5. Confirm that the fittings have sufficient internal diameter;
6. Check whether the solenoid valve flow capacity is adequate;
7. Inspect the exhaust silencer for blockage;
8. Check whether the piping is too long or contains too many bends;
9. Confirm that the load is within the cylinder capacity;
10. Inspect the cylinder for internal wear or sticking.

To significantly increase cylinder speed, consider:

• Increasing the pneumatic tube diameter;
• Using larger-flow fittings;
• Selecting a higher-capacity solenoid valve;
• Shortening the piping length;
• Installing a quick exhaust valve near the cylinder.

A quick exhaust valve allows air to leave the cylinder chamber directly into the atmosphere instead of returning through a long tube and directional valve.

This can significantly improve exhaust efficiency and increase cylinder speed.

Important Precautions for Pneumatic Cylinder Speed Adjustment

Do Not Use a Pressure Regulator as a Speed Controller

A pressure regulator controls air pressure, while a speed controller controls airflow.

These two components serve different purposes.

Reducing air pressure may decrease cylinder force and cause unstable movement, but it may not provide stable speed control.

Do Not Completely Close the Speed Controller

If the speed controller is fully closed, air cannot enter or leave the cylinder chamber properly.

This may prevent the cylinder from moving and may create abnormal pressure inside the system.

Adjust Extension and Retraction Speeds Separately

The extension speed and retraction speed of a double-acting cylinder should normally be adjusted independently.

The rod-end and cap-end chambers have different effective piston areas.

Therefore, even if both speed controllers have the same opening, the extension and retraction speeds may still be different.

9.4 Check Impact and End Position After Adjustment

Excessive cylinder speed increases mechanical shock and component wear.

A speed that is too low may reduce machine productivity.

After adjustment, confirm that the cylinder:

• Starts smoothly;
• Moves at a stable speed;
• Reaches the required end position;
• Does not produce excessive impact;
• Meets the required operating cycle time.

Conclusion

Pneumatic cylinder speed is not controlled by directly changing the cylinder itself.

It is controlled by regulating the movement of compressed air entering and leaving the cylinder chambers.

Airflow mainly determines cylinder speed, while air pressure mainly determines cylinder output force.

The most common speed control component is the one-way flow control valve, also known as a pneumatic speed controller.

In most industrial pneumatic systems, meter-out control is preferred because it creates back pressure in the exhaust chamber and provides smoother, more stable cylinder movement.

When cylinder speed cannot be adjusted properly, the entire pneumatic system should be checked, including:

• Air supply pressure;
• Tube diameter;
• Fitting flow capacity;
• Solenoid valve size;
• Exhaust silencer condition;
• Load variation;
• Cylinder bore and stroke;
• Cylinder wear and lubrication.

The basic principle of pneumatic cylinder speed control can be summarized as:

Control the airflow, stabilize the exhaust process, and regulate the piston movement speed.

FAQ

Is pneumatic cylinder speed controlled by pressure or airflow?

Pneumatic cylinder speed is mainly controlled by airflow. Air pressure mainly determines the output force of the cylinder.

Simply reducing air pressure may cause insufficient force and unstable movement.

Should a pneumatic speed controller be installed on the inlet or exhaust side?

Most industrial pneumatic cylinders use meter-out control.

The speed controller should restrict the air leaving the cylinder chamber rather than the air entering it.

Why does a pneumatic cylinder experience stick-slip motion at low speed?

Low-speed stick-slip may be caused by compressed air elasticity, changing seal friction, poor flow control valve accuracy, changing loads, or insufficient lubrication.
