How Do Pneumatic Control Valves Manage Airflow?

Pneumatic control valves represent one of the most sophisticated and reliable methods for managing airflow in industrial applications. These precision-engineered devices utilize compressed air or gas to control the flow rate, pressure, and direction of various media through pipeline systems. A pneumatic control valve operates through a pneumatic actuator that receives control signals, converting them into mechanical motion to adjust the valve's position. This automated control mechanism enables precise flow regulation across diverse industries, from petrochemical plants to power generation facilities, ensuring optimal system performance and safety.

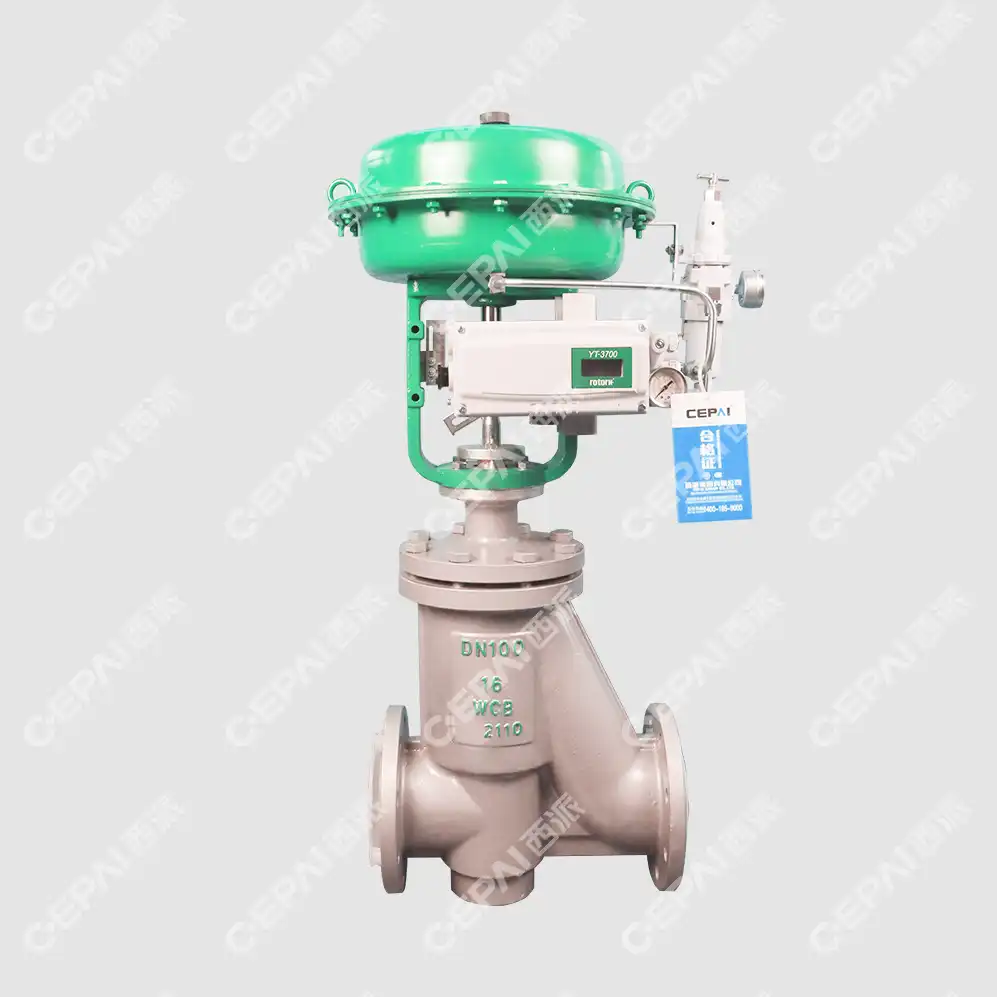

Understanding Pneumatic Control Valve Operations

Fundamental Working Principles of Pneumatic Control Systems

The operation of a pneumatic control valve centers on the conversion of pneumatic energy into mechanical motion. When a control signal is transmitted to the pneumatic actuator, it creates a pressure differential across a diaphragm or piston mechanism. This pressure difference generates the force necessary to move the valve stem, which in turn adjusts the position of the valve disc or plug relative to the valve seat. The pneumatic control valve's response time and accuracy depend on several factors, including actuator size, air supply pressure, and the valve's inherent flow characteristics. Modern pneumatic systems typically operate at pressures ranging from 3 to 15 PSI for control signals, while the actuator supply pressure usually ranges from 15 to 100 PSI, providing sufficient force for reliable valve operation even under challenging process conditions.

Air Supply Systems and Pressure Regulation

Effective airflow management through pneumatic control valves requires a well-designed air supply system that maintains consistent pressure and quality. The air supply system typically includes compressors, air treatment equipment, pressure regulators, and distribution networks. Clean, dry air is essential for reliable pneumatic control valve operation, as moisture and contaminants can cause actuator malfunction and reduce system lifespan. Pressure regulation within the air supply system ensures that the pneumatic control valve receives consistent operating pressure, which directly affects the valve's response characteristics and positioning accuracy. Advanced air treatment systems incorporate filters, dryers, and lubricators to condition the air supply, removing particles, moisture, and adding controlled lubrication where necessary. The air supply pressure must be carefully matched to the actuator's specifications to ensure adequate force generation while preventing over-pressurization that could damage internal components.

Signal Processing and Control Integration

Modern pneumatic control valves integrate sophisticated signal processing capabilities that enable precise airflow management in complex industrial systems. The control signal, typically a 4-20 mA electrical signal or a 3-15 PSI pneumatic signal, is processed by positioners or controllers that translate the input into appropriate actuator commands. These devices incorporate feedback mechanisms that continuously monitor valve position and adjust the air supply to the actuator accordingly. Digital positioners offer enhanced functionality, including diagnostics, configuration capabilities, and communication protocols that integrate with distributed control systems. The pneumatic control valve's ability to process and respond to control signals determines its effectiveness in managing airflow within specified tolerances. Advanced control algorithms compensate for process variations, valve wear, and environmental factors, ensuring consistent performance throughout the valve's operational life.

Types and Applications of Pneumatic Control Valves

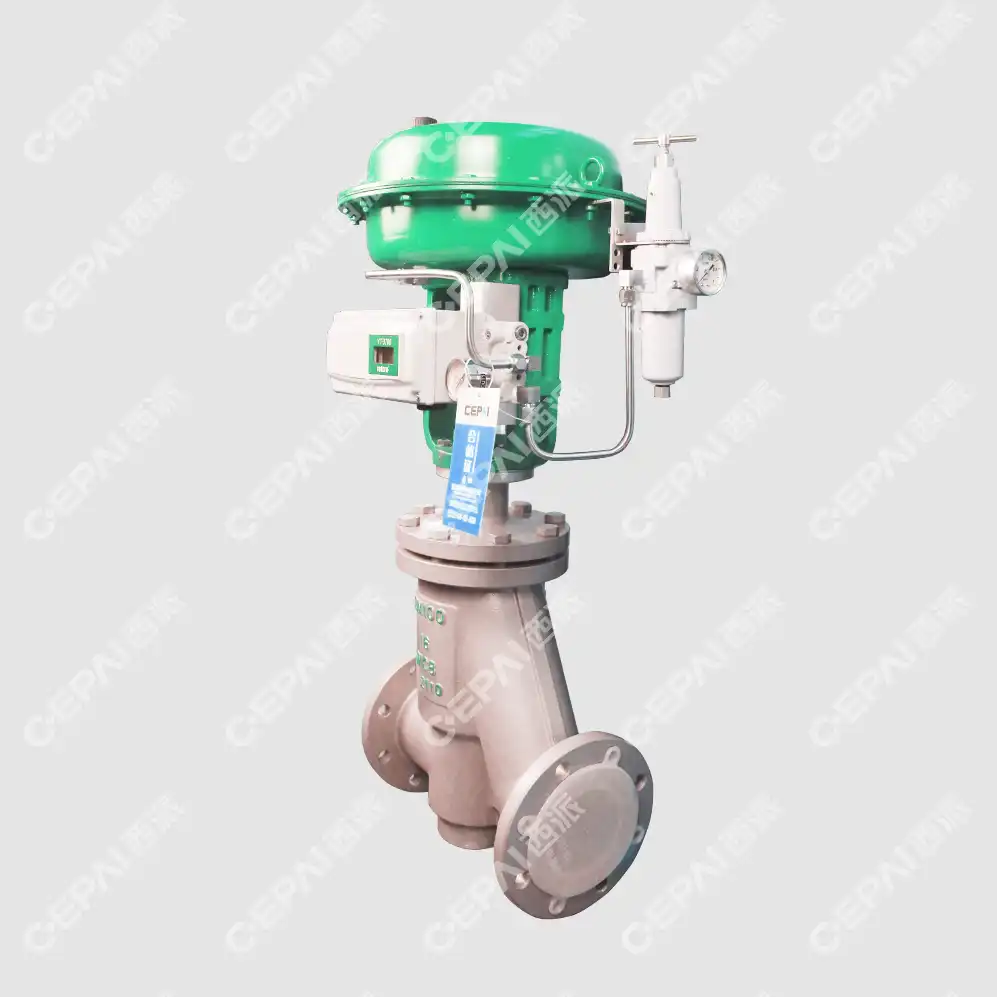

Globe Valves for Precision Flow Control

Globe-style pneumatic control valves excel in applications requiring precise flow control and tight shut-off capabilities. The globe valve design features a movable disc that approaches a stationary seat in a direction parallel to the flow path, creating a variable orifice that controls flow rate. This configuration provides excellent control characteristics, particularly in throttling applications where precise flow modulation is essential. Pneumatic control valve globe designs offer superior rangeability, typically 50:1 or higher, enabling accurate control across a wide range of flow conditions. The linear flow characteristic of most globe valves makes them ideal for applications where proportional control is required. Industrial applications commonly utilize globe-style pneumatic control valves in steam systems, chemical processing, and HVAC applications where precise temperature and pressure control are critical for process efficiency and safety.

Ball and Butterfly Valves for High-Flow Applications

Ball and butterfly pneumatic control valves are specifically designed for high-flow applications where low pressure drop and quick response times are priorities. Ball valves utilize a spherical closure element with a bore through its center, providing excellent flow capacity and minimal pressure loss when fully open. The quarter-turn operation of ball-style pneumatic control valves enables rapid response to control signals, making them suitable for emergency shutdown applications and processes requiring fast flow isolation. Butterfly valves employ a disc that rotates within the flow stream, offering compact design and lightweight construction advantages. These pneumatic control valve designs are particularly effective in large-diameter pipeline applications where space constraints and weight considerations are important factors. Both ball and butterfly configurations can be equipped with advanced positioners that enable precise positioning at intermediate positions, expanding their applicability beyond simple on-off service to include throttling control applications.

Specialized Valves for Critical Applications

Specialized pneumatic control valves address unique requirements in critical applications where standard valve designs may not provide adequate performance or safety margins. These include high-temperature valves for steam and thermal oil systems, cryogenic valves for liquefied gas applications, and corrosion-resistant valves for chemical processing environments. Fire-safe pneumatic control valves incorporate special design features and materials that maintain functionality during fire exposure, ensuring system integrity in emergency situations. Multi-port valves enable complex flow routing and mixing applications, while characterized control valves provide specific flow characteristics optimized for particular process requirements. The development of specialized pneumatic control valve designs reflects the diverse needs of modern industrial applications, where standard solutions may not adequately address specific operational challenges or safety requirements.

Advantages and Implementation Strategies

Performance Benefits in Industrial Systems

Pneumatic control valves offer numerous performance advantages that make them the preferred choice for many industrial airflow management applications. The inherent safety of pneumatic systems, which fail to a safe position upon air supply loss, provides built-in protection against process upsets and equipment damage. Response speed is another significant advantage, as pneumatic control valves can achieve full stroke times as fast as one second, enabling rapid response to process changes. The high force output capability of pneumatic actuators allows these valves to operate effectively even under high differential pressure conditions, maintaining precise control throughout varying process conditions. Temperature tolerance is exceptional, with pneumatic control valves capable of operating in environments ranging from cryogenic temperatures to several hundred degrees Celsius without performance degradation.

​​​​​​​

Installation and Maintenance Considerations

Successful implementation of pneumatic control valves requires careful attention to installation practices and ongoing maintenance requirements. Proper valve sizing ensures optimal performance and longevity, requiring accurate determination of flow requirements, pressure conditions, and fluid properties. Installation orientation affects valve performance, with vertical installations requiring consideration of actuator weight and potential effects on valve seating. Air supply quality is critical for long-term reliability, necessitating proper filtration, pressure regulation, and moisture removal. Regular maintenance schedules should include actuator lubrication, positioner calibration, and valve packing adjustment to maintain optimal performance. Predictive maintenance techniques, including vibration analysis and performance monitoring, can identify potential issues before they result in system failures. The modular design of most pneumatic control valves facilitates field maintenance and component replacement, minimizing downtime and maintenance costs.

Integration with Modern Control Systems

The integration of pneumatic control valves with modern distributed control systems and smart instrumentation represents a significant advancement in airflow management capabilities. Digital communication protocols enable real-time monitoring of valve position, actuator pressure, and diagnostic information, providing operators with comprehensive system visibility. Advanced diagnostics capabilities can identify developing problems such as actuator leakage, positioner drift, or valve seat wear before they affect process performance. Remote monitoring and control capabilities allow operators to adjust valve parameters and respond to alarms from centralized control rooms, improving operational efficiency and safety. The integration of artificial intelligence and machine learning algorithms with pneumatic control valve systems enables predictive maintenance scheduling and optimization of control parameters based on historical performance data and process conditions.

Conclusion

Pneumatic control valves demonstrate exceptional versatility and reliability in managing airflow across diverse industrial applications. Their combination of precise control capabilities, inherent safety features, and robust construction makes them indispensable components in modern process control systems. The continuous evolution of pneumatic control valve technology, incorporating advanced materials, digital communication, and intelligent diagnostics, ensures their continued relevance in increasingly sophisticated industrial environments.
