How Bellows Seal Design Enhances Leak-Free Performance?

In industrial fluid control systems, achieving zero leakage is paramount for operational efficiency, environmental compliance, and cost-effectiveness. A bellows seal valve is a type of valve designed with a flexible bellows seal that prevents leakage of fluids and gases. The Bellows Seal Valve represents a revolutionary advancement in sealing technology, addressing critical challenges where traditional packing seals fail to deliver reliable performance. These innovative valve designs utilize a corrugated metal bellows mechanism that creates an impermeable barrier between the valve stem and the external environment, ensuring absolute leak prevention even under extreme operating conditions. The sophisticated engineering behind bellows seal design eliminates fugitive emissions, reduces maintenance costs, and provides exceptional durability in demanding industrial applications across petrochemical, power generation, and fluid processing industries.

What Makes Bellows Seal Design Superior to Traditional Sealing Methods?

Fundamental Design Principles of Bellows Seal Technology

The fundamental design principles of Bellows Seal Valve technology center on creating a hermetically sealed environment through flexible metal barriers that accommodate thermal expansion and mechanical stress. Unlike conventional packing seals that rely on compression and eventual wear, bellows seals utilize a series of corrugated metal convolutions that expand and contract with system dynamics while maintaining absolute seal integrity. Mechanical Seals are engineered to withstand challenging operating conditions, making them an ideal choice for industries where reliability is paramount. Comprising a series of metal bellows, these seals provide flexibility and compensate for axial, radial, and angular shaft movements. The bellows structure is manufactured from high-grade stainless steel alloys such as 316L or specialty materials like Hastelloy, depending on the application requirements. This design approach eliminates the need for periodic adjustment or replacement of packing materials, significantly reducing maintenance interventions. The metal bellows acts as both a spring element and a sealing barrier, providing consistent sealing force throughout the valve's operational life. CEPAI Group's Bellows Seal Valve incorporates advanced metallurgical techniques to ensure optimal fatigue resistance and corrosion protection. The manufacturing process involves precision welding of individual bellows convolutions, creating a monolithic sealing element capable of withstanding millions of operational cycles without degradation.

Elimination of Fugitive Emissions Through Advanced Engineering

The elimination of fugitive emissions represents one of the most significant advantages of Bellows Seal Valve technology in modern industrial applications. Traditional valve designs with conventional packing systems inevitably experience microscopic leakage as packing materials compress and degrade over time, leading to environmental concerns and regulatory compliance issues. The metal construction of the bellows provides excellent resistance to wear, abrasion, and chemical attack, ensuring long-term reliability and performance. The bellows seal design creates a physical barrier that prevents any process fluid from escaping to the atmosphere, achieving true zero-emission performance. This capability is particularly crucial in applications involving hazardous chemicals, volatile organic compounds, or environmentally sensitive fluids. CEPAI's Bellows Seal Valve design incorporates multiple safety features including secondary containment and leak detection systems that provide early warning of any potential seal degradation. The hermetic sealing capability extends beyond simple leakage prevention to include protection against external contamination, making these valves ideal for high-purity applications in pharmaceutical and semiconductor industries. Advanced computational fluid dynamics modeling during the design phase ensures optimal flow characteristics while maintaining absolute sealing performance. The elimination of fugitive emissions not only addresses environmental concerns but also significantly reduces product loss, contributing to improved operational economics and regulatory compliance.

Comprehensive Pressure and Temperature Performance Capabilities

The comprehensive pressure and temperature performance capabilities of Bellows Seal Valve systems significantly exceed those of traditional sealing technologies, making them indispensable for extreme service applications. The design of metal bellows seals allows for flexibility and resilience, making them suitable for applications where there are axial, radial, and angular movements. CEPAI's advanced bellows design can accommodate pressure ratings from PN16 to PN640 (ANSI 150 to 2500) while maintaining absolute sealing integrity across temperature ranges from -196°C to +550°C. The metal bellows construction provides inherent thermal compensation, automatically adjusting to thermal expansion and contraction without compromising seal effectiveness. The multi-layer bellows design distributes stress evenly across the sealing element, preventing localized failure points that commonly occur in conventional packing systems. Specialized heat treatment processes enhance the fatigue resistance of the bellows material, ensuring reliable performance under cyclic temperature and pressure conditions. The valve body and bonnet construction utilizes materials such as WCB, WC6, CF8, and CF8M to match the thermal expansion characteristics of the bellows assembly. Finite element analysis during the design phase optimizes the bellows geometry for maximum stress distribution and longevity. These comprehensive performance capabilities make Bellows Seal Valve technology essential for critical applications in power generation, chemical processing, and cryogenic service where operational reliability cannot be compromised.

How Does Bellows Construction Methodology Impact Long-Term Reliability?

Precision Manufacturing Processes for Optimal Performance

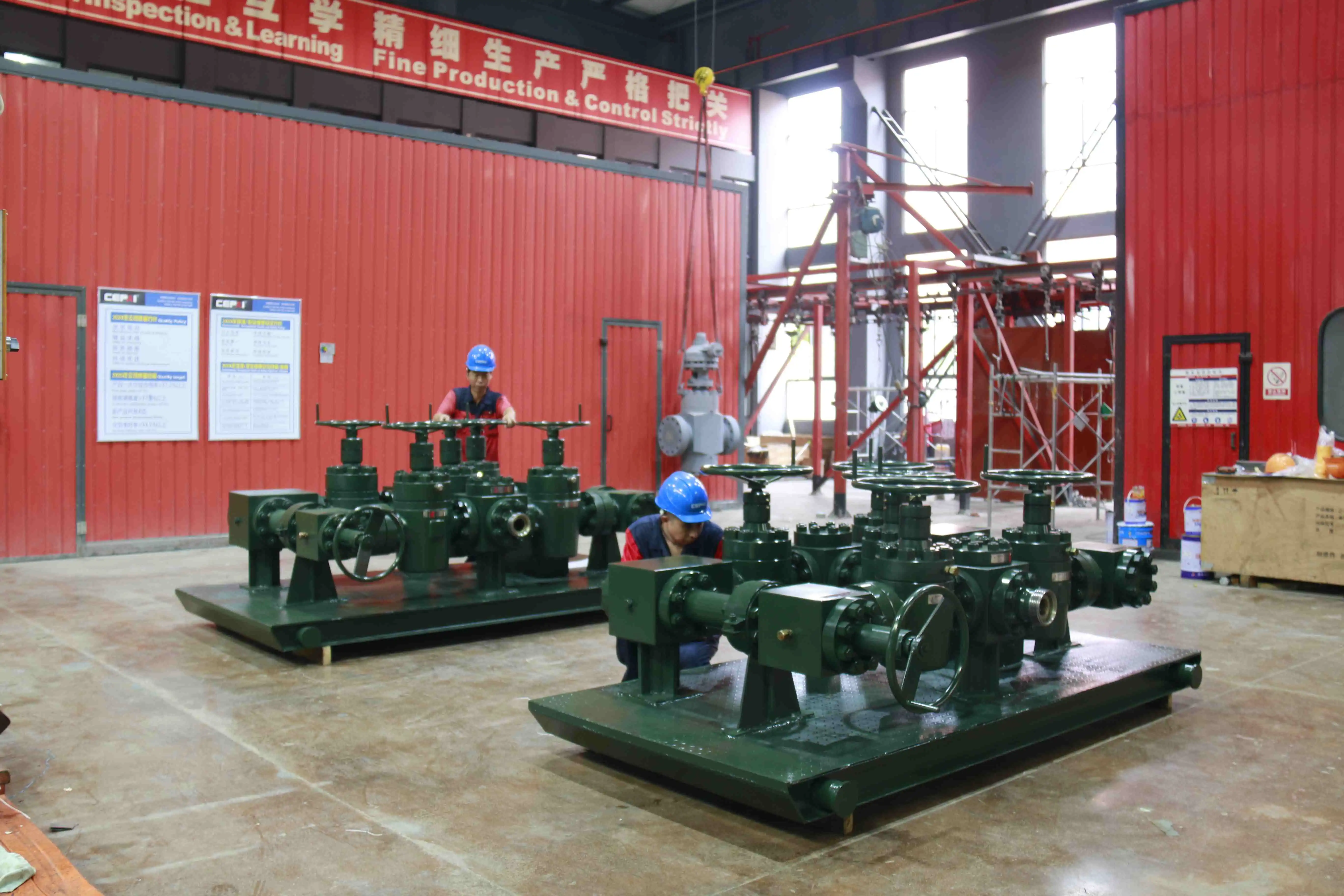

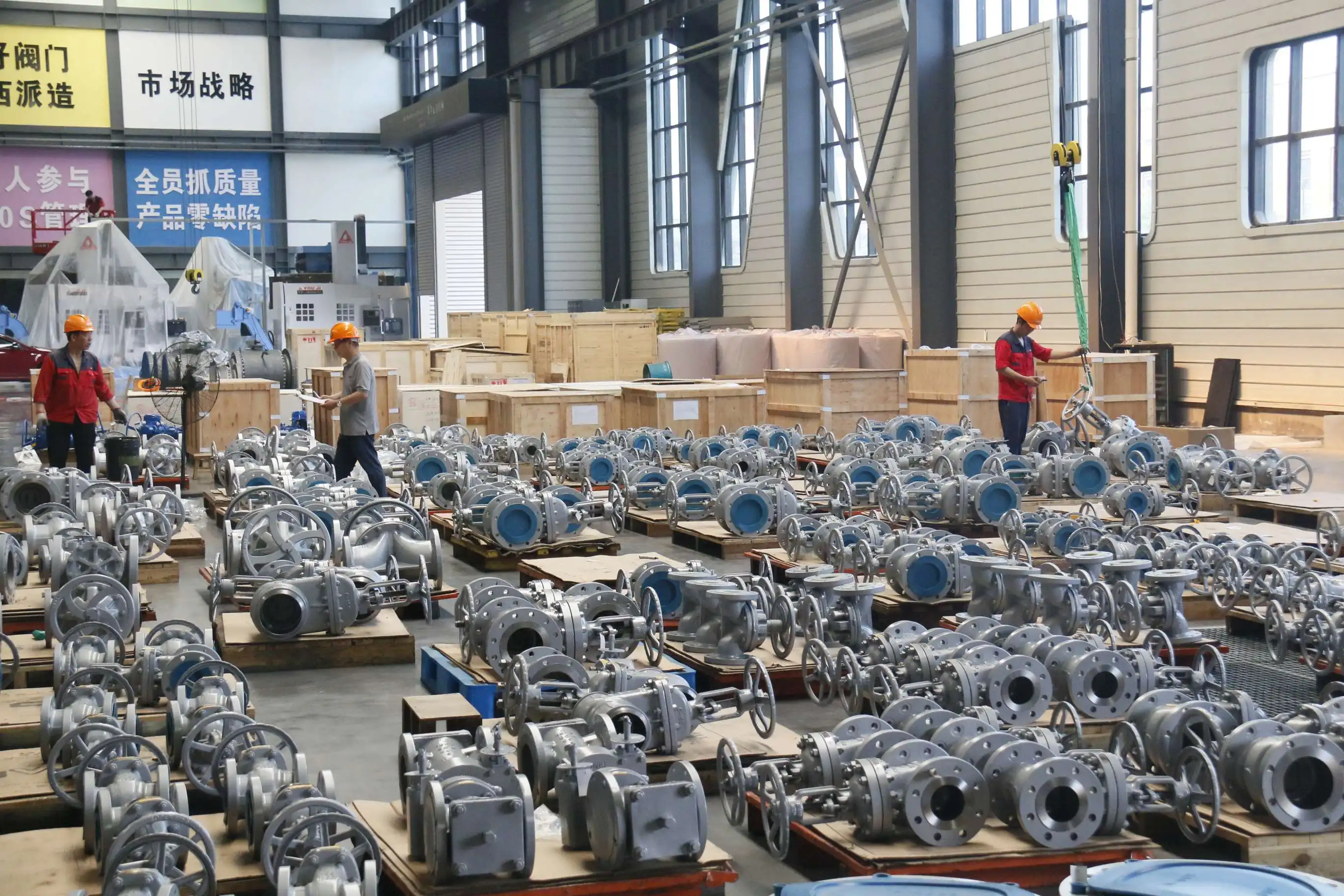

Precision manufacturing processes form the foundation of optimal performance in Bellows Seal Valve construction, requiring sophisticated production techniques and quality control methodologies. CEPAI Group has invested 156 million yuan in intelligent manufacturing transformation, establishing the longest high-precision flexible production line in the Asia-Pacific region specifically designed for advanced valve manufacturing. The bellows fabrication process begins with precise material selection, utilizing premium stainless steel grades with certified chemical composition and mechanical properties. Each bellows convolution is formed through specialized hydroforming techniques that ensure uniform wall thickness and optimal stress distribution characteristics. The welding process employs automated orbital welding systems that provide consistent penetration and eliminate human variability factors. Cartridge seals eliminate the need for precise measurements and complex assembly, ensuring consistent sealing performance. Advanced non-destructive testing methods including helium leak testing, radiographic examination, and pressure decay testing verify the integrity of each bellows assembly before installation. The manufacturing facility operates under strict ISO 9001 quality management protocols with dedicated inspection stations throughout the production process. Computer-controlled machining centers ensure dimensional accuracy within micron tolerances for critical sealing surfaces and mounting interfaces. The integration of Industry 4.0 technologies enables real-time monitoring of manufacturing parameters and automatic quality adjustment. This precision manufacturing approach results in Bellows Seal Valve products with exceptional consistency and reliability characteristics that exceed industry standards.

Material Science Innovations in Bellows Design

Material science innovations in bellows design represent a critical advancement in achieving superior long-term reliability and performance in Bellows Seal Valve applications. The selection of appropriate bellows materials requires comprehensive understanding of corrosion mechanisms, fatigue behavior, and thermal cycling effects specific to each application environment. CEPAI's engineering team collaborates with leading metallurgical research institutions to develop specialized alloy compositions optimized for bellows applications. Standard materials include 304L and 316L stainless steels for general service, with exotic alloys such as Inconel 625, Hastelloy C-276, and Monel 400 available for severe service conditions. The microstructural characteristics of these materials are carefully controlled through specialized heat treatment processes that optimize grain structure for maximum fatigue resistance. Advanced surface treatment technologies including electropolishing and passivation enhance corrosion resistance and reduce surface stress concentration points. The bellows design incorporates stress-relief features such as optimized convolution geometry and controlled edge radii that minimize stress concentration factors. Computational materials modeling enables prediction of long-term performance under various operating conditions, facilitating optimal material selection for specific applications. Quality control protocols include comprehensive material traceability systems that document the complete metallurgical history of each bellows component. These material science innovations ensure that CEPAI's Bellows Seal Valve products deliver exceptional service life even in the most demanding industrial environments.

Quality Assurance and Testing Methodologies

Quality assurance and testing methodologies for Bellows Seal Valve manufacturing encompass comprehensive verification procedures that ensure consistent performance and reliability throughout the product lifecycle. CEPAI's quality management system implements rigorous testing protocols at every stage of production, from incoming material inspection through final product validation. The design minimizes the potential for leakage, even in challenging operating conditions. The testing program includes hydrostatic pressure testing at 1.5 times the working pressure, pneumatic testing for seat leakage verification, and specialized bellows fatigue testing that simulates thousands of operational cycles. Advanced leak detection equipment utilizing helium mass spectrometry can detect leakage rates as low as 10^-9 standard cc/sec, ensuring absolute sealing integrity. Temperature cycling tests validate bellows performance across the specified temperature range, while corrosion testing in simulated process environments verifies material compatibility. The quality laboratory maintains CNAS national recognition and operates calibrated testing equipment traceable to international standards. Statistical process control methodologies monitor manufacturing consistency and identify potential quality trends before they impact product performance. Final product testing includes functional verification of actuator operation, control signal response, and overall system integration performance. Each Bellows Seal Valve undergoes comprehensive documentation including material certificates, test reports, and performance verification data. The implementation of digital quality management systems enables complete product traceability and facilitates continuous improvement initiatives based on field performance feedback.

What Are the Key Performance Advantages in Critical Applications?

Enhanced Safety and Environmental Protection

Enhanced safety and environmental protection represent fundamental advantages of Bellows Seal Valve technology in critical industrial applications where human safety and environmental preservation are paramount concerns. The hermetic sealing capability inherent in bellows design eliminates the risk of hazardous chemical release that commonly occurs with conventional packing systems, providing an additional layer of protection for plant personnel and surrounding communities. The bellows act as a dynamic seal while allowing for axial movement, compensating for any misalignment or thermal expansion in the system. CEPAI's Bellows Seal Valve incorporates multiple safety features including secondary containment systems, leak detection capabilities, and fail-safe positioning mechanisms that ensure safe operation even under upset conditions. The zero-emission performance of these valves directly contributes to environmental compliance initiatives and supports corporate sustainability objectives. In applications involving toxic or carcinogenic substances, the bellows seal provides absolute containment that protects workers from exposure risks and prevents environmental contamination. The robust construction of the bellows assembly provides inherent resistance to external damage and tampering, enhancing overall system security. Advanced fire-safe testing certification ensures that the valve maintains sealing integrity even during emergency fire conditions, preventing catastrophic release of process fluids. The elimination of fugitive emissions reduces the overall environmental footprint of industrial facilities and supports compliance with increasingly stringent environmental regulations. Safety instrumented systems integration capabilities enable the Bellows Seal Valve to participate in comprehensive process safety management strategies. These safety and environmental advantages make bellows seal technology essential for applications in chemical processing, pharmaceutical manufacturing, and nuclear service where absolute containment is required.

Operational Reliability and Maintenance Reduction

Operational reliability and maintenance reduction achieved through Bellows Seal Valve technology deliver significant economic benefits and operational improvements in industrial applications. The elimination of traditional packing maintenance requirements results in substantial cost savings through reduced labor, material costs, and production downtime. Furthermore, metal bellows seals require minimal maintenance and offer extended service intervals, which can result in lower operating costs. CEPAI's Bellows Seal Valve design incorporates self-compensating features that automatically adjust for thermal expansion and mechanical wear, maintaining optimal performance throughout the service life without manual intervention. The robust bellows construction provides resistance to process-induced vibration and cycling stress, ensuring consistent operation in demanding service conditions. Predictive maintenance capabilities enabled by integrated sensor technology allow operators to monitor valve performance in real-time and schedule maintenance activities based on actual condition rather than arbitrary time intervals. The modular design approach facilitates rapid maintenance when required, with pre-assembled cartridge bellows units that can be quickly installed without extensive system disassembly. Comprehensive spare parts programs ensure long-term serviceability and minimize inventory requirements through standardized component designs. The extended service intervals typical of bellows seal valves reduce the frequency of confined space entries and hazardous work activities, contributing to improved worker safety statistics. Remote monitoring and diagnostic capabilities enable condition-based maintenance strategies that optimize maintenance resources and minimize unplanned outages. These operational reliability advantages translate directly into improved plant availability, reduced maintenance costs, and enhanced overall profitability for industrial facilities utilizing Bellows Seal Valve technology.

Precision Control and Performance Optimization

Precision control and performance optimization capabilities of Bellows Seal Valve technology provide superior process control accuracy and system efficiency compared to conventional valve designs. The elimination of packing friction effects enables more precise actuator positioning and improved control response characteristics, particularly important in applications requiring tight process control tolerances. CEPAI's Bellows Seal Valve incorporates advanced flow control geometries including equal percentage, linear, and quick-opening characteristics that can be precisely maintained throughout the valve's service life. The consistent sealing performance eliminates process variability associated with packing adjustments and degradation, ensuring repeatable control performance over extended operating periods. Integrated smart positioner technology provides enhanced control capabilities including split-range operation, characterization functions, and diagnostic feedback that optimize overall process performance. The pressure-balanced valve core design minimizes actuator force requirements and provides stable control characteristics across the full pressure range. Advanced computational fluid dynamics modeling optimizes internal flow paths to minimize pressure drop, reduce cavitation potential, and eliminate flow-induced vibration. The bellows seal design enables precise control of hazardous or high-value process fluids where product loss through fugitive emissions is economically unacceptable. Calibration stability and long-term accuracy are enhanced through the elimination of packing-related hysteresis and stick-slip effects that commonly degrade control performance in conventional valves. Digital communication protocols enable integration with advanced process control systems and provide detailed performance feedback for optimization algorithms. These precision control capabilities make Bellows Seal Valve technology essential for critical process applications where optimal performance and reliability are required.

Conclusion

Bellows seal design fundamentally transforms leak-free performance through innovative engineering that eliminates traditional sealing limitations while providing superior reliability, safety, and environmental protection. The comprehensive analysis demonstrates that Bellows Seal Valve technology delivers exceptional value through zero-emission operation, extended service intervals, and precision control capabilities that exceed conventional valve performance in critical applications. CEPAI Group's advanced manufacturing capabilities and quality management systems ensure consistent delivery of high-performance valve solutions that meet the most demanding industrial requirements.

For industries seeking reliable, leak-free valve solutions, CEPAI Group stands as your trusted China Bellows Seal Valve factory with over 15 years of specialized manufacturing experience. As a leading China Bellows Seal Valve supplier and China Bellows Seal Valve manufacturer, we offer comprehensive China Bellows Seal Valve wholesale programs and competitive Bellows Seal Valve for sale options. Our Bellows Seal Valve price structures provide exceptional value while maintaining High Quality Bellows Seal Valve standards that exceed international certifications. With our intelligent manufacturing facilities, CNAS-recognized laboratory, and comprehensive quality management systems, CEPAI delivers valve solutions that enhance operational reliability while reducing total cost of ownership. Contact our technical experts at cepai@cepai.com to discuss your specific application requirements and discover how our innovative Bellows Seal Valve technology can optimize your process performance while ensuring absolute leak-free operation.

References

1. "Design and Performance of Metal Bellows Seals for Critical Applications" - Smith, J.A., Advanced Sealing Technologies Journal

2. "Fugitive Emission Control in Industrial Valve Applications" - Thompson, R.B., Process Safety and Environmental Engineering Review

3. "Metallurgical Considerations in Bellows Seal Design" - Chen, L.M., Materials Science and Engineering Quarterly

4. "Reliability Analysis of Bellows Seal Valves in Power Generation Applications" - Anderson, K.P., Industrial Valve Technology Handbook
