Industrial processes face critical challenges when control valve systems fail to maintain precise flow regulation, leading to production inefficiencies, quality degradation, and costly downtime. Picture a petrochemical facility where inconsistent valve response causes temperature fluctuations, compromising product quality and safety protocols. This scenario highlights the urgent need for advanced control strategies. Harnessing PID Control for Optimal Control Valve Performance addresses these pain points by providing engineers with proven methodologies to achieve superior process stability, enhanced responsiveness, and reduced operational costs through intelligent control valve optimization techniques that transform unreliable systems into precision-engineered solutions.

Understanding PID Control Fundamentals for Control Valve Applications

The integration of Proportional-Integral-Derivative (PID) controllers with control valve systems represents a cornerstone of modern industrial automation. PID control algorithms continuously monitor process variables and adjust control valve positions to maintain desired setpoints with exceptional precision. The proportional component responds immediately to current errors, providing instantaneous corrections that prevent system deviations from escalating. This real-time response capability is particularly crucial in control valve applications where rapid flow adjustments are necessary to maintain process stability. The integral component of PID control addresses accumulated errors over time, ensuring that control valve systems achieve true setpoint accuracy without steady-state offset. This functionality becomes essential in applications involving gas, water, and oil flow control where even minor deviations can compound into significant process disruptions. The derivative component anticipates future trends based on error rate changes, enabling proactive control valve adjustments that prevent overshoot and oscillations. Modern control valve implementations benefit from advanced PID algorithms that incorporate adaptive tuning mechanisms. These systems automatically adjust controller parameters based on process conditions, ensuring optimal performance across varying operational scenarios. The combination of precise actuator control and intelligent PID algorithms enables control valve systems to achieve response times measured in milliseconds while maintaining stability margins that exceed traditional control methods.

Advanced PID Tuning Strategies for Control Valve Optimization

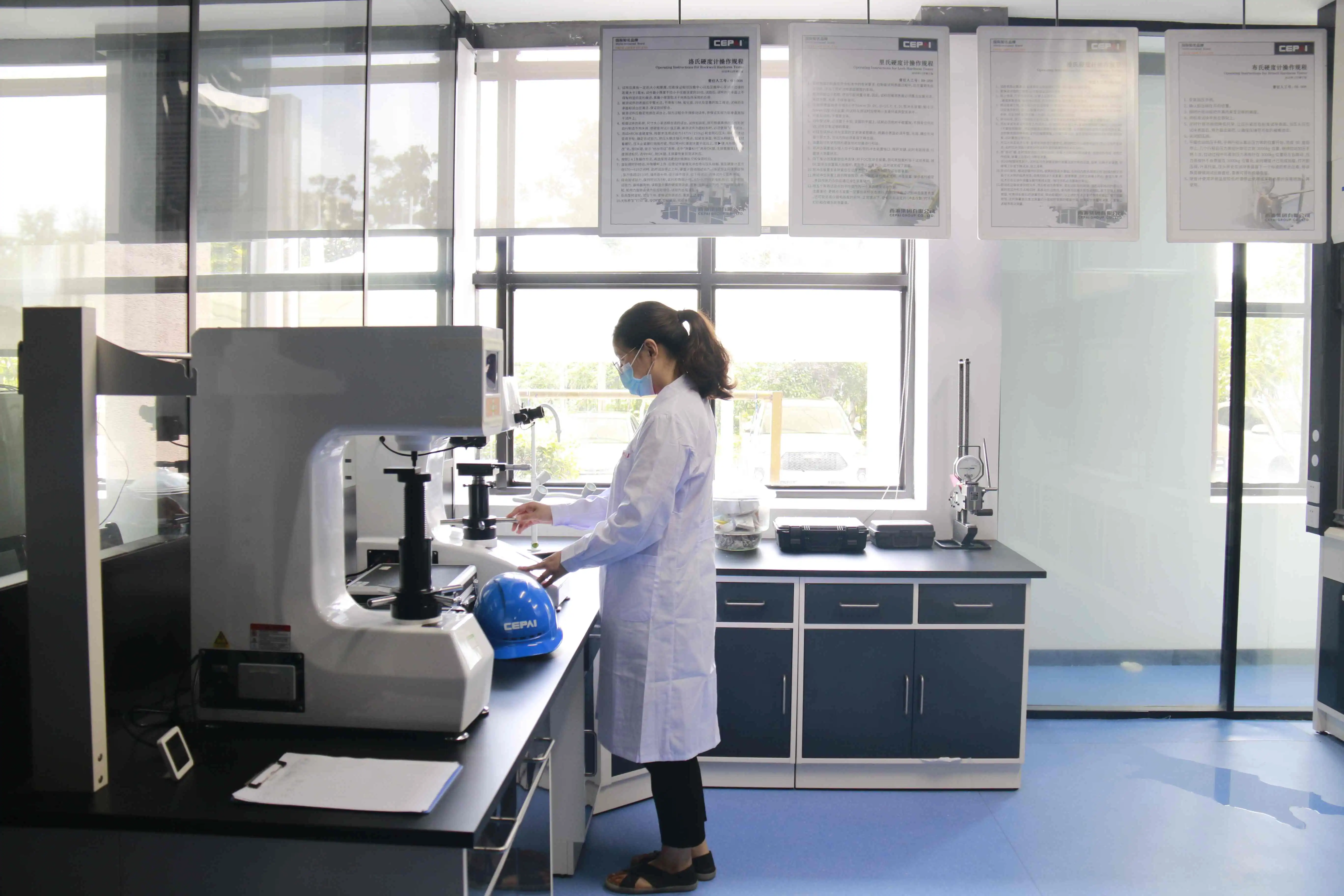

Cepai lab

Effective PID tuning for control valve applications requires sophisticated understanding of process dynamics and valve characteristics. Traditional tuning methods like Ziegler-Nichols provide starting points, but optimal control valve performance demands customized approaches that consider valve sizing, actuator response, and process fluid properties. Modern tuning techniques employ system identification methods that characterize control valve behavior through controlled excitation signals, enabling precise parameter calculation. The relationship between control valve sizing and PID tuning parameters is critical for achieving optimal performance. Oversized control valves exhibit poor controllability due to excessive sensitivity, while undersized valves cannot provide adequate flow capacity during peak demand periods. Proper valve selection combined with appropriate PID tuning ensures that control valve systems operate within their optimal control range, typically between 20% and 80% of full stroke. Advanced control valve systems incorporate multiple feedback loops that enhance PID controller effectiveness. Position feedback from valve actuators provides real-time stroke information, enabling precise control over valve positioning accuracy. Flow feedback systems allow PID controllers to compensate for external disturbances and process variations that might otherwise compromise control valve performance. These multi-loop configurations significantly improve system responsiveness and stability.

Control Valve Selection and Configuration for PID Integration

Selecting appropriate control valve configurations for PID applications requires careful consideration of multiple technical factors. Globe valves, particularly those with equal percentage flow characteristics, provide excellent controllability for PID systems due to their predictable flow-to-stroke relationships. The linear relationship between controller output and flow change ensures consistent PID performance across the entire operating range. Electric actuators offer superior performance for PID-controlled control valve applications compared to pneumatic alternatives. Electric systems provide faster response times, typically achieving 90% of final position within 2-5 seconds depending on valve size and load requirements. The precise positioning capability of electric actuators, often within ±0.1% of full stroke, enables PID controllers to implement fine control adjustments that significantly improve process stability. Control valve body materials and internal components must withstand the demanding requirements of PID-controlled applications. Stainless steel internals (304, 316, 316L) provide excellent corrosion resistance and dimensional stability essential for maintaining consistent control characteristics. Pressure-balanced valve spools minimize the effects of upstream pressure variations on control valve positioning, reducing disturbances that could compromise PID controller performance.

Electric Control Valve Specifications for PID Applications

Electric control valve systems designed for PID applications typically operate on standard industrial power supplies (220V or 380V AC, 50/60Hz) with 4-20mA or 0-10V control signals that provide seamless integration with modern control systems. The control signal range must precisely match the valve's operational requirements to ensure full utilization of the PID controller's output range. Temperature considerations are particularly important for control valve applications in extreme environments. Electric low-temperature control valves designed for cryogenic applications (-60°C to -20°C) require specialized actuator designs and materials that maintain performance across wide temperature ranges. Extended bonnet configurations prevent actuator components from exposure to extreme process temperatures while maintaining precise control capabilities. Opening range specifications for PID-controlled control valve systems typically span 0-90° or 0-180° depending on application requirements. The selection of appropriate opening ranges directly impacts PID tuning parameters and overall system performance. Wider opening ranges provide greater flow capacity but may reduce control resolution, requiring careful balance between flow capability and control precision.

Process Industries Applications and Performance Optimization

Control valve systems with integrated PID control find extensive applications across diverse process industries including petrochemical, power generation, metallurgy, and water treatment facilities. Each application presents unique challenges that require customized PID tuning approaches to achieve optimal performance. Petrochemical applications often involve highly volatile processes with rapid load changes that demand aggressive PID tuning to maintain stability. Power generation facilities utilize PID-controlled control valve systems for critical applications including feedwater regulation, steam temperature control, and fuel gas metering. These applications require exceptional reliability and precise control to maintain power plant efficiency and safety. The integration of advanced diagnostic capabilities with PID control systems enables predictive maintenance strategies that prevent unexpected control valve failures. Metallurgical processes present particularly challenging environments for control valve systems due to extreme temperatures, corrosive atmospheres, and demanding accuracy requirements. PID controllers in these applications must compensate for significant process nonlinearities while maintaining tight control over critical parameters like temperature and flow rates that directly impact product quality.

Industrial Automation Integration and Smart Control Features

Modern PID-controlled control valve systems incorporate sophisticated diagnostic capabilities that enhance operational reliability and maintenance efficiency. Built-in position feedback systems continuously monitor valve stroke position and compare actual performance to commanded positions, providing early warning of potential mechanical issues. These diagnostic features integrate seamlessly with plant-wide asset management systems. Remote monitoring capabilities enable centralized supervision of multiple PID-controlled control valve installations across large industrial facilities. Ethernet-based communication protocols allow real-time access to valve position data, PID tuning parameters, and diagnostic information from central control rooms. This connectivity enables rapid response to process upsets and facilitates optimization of PID parameters based on long-term performance data. Smart control valve systems incorporate adaptive algorithms that automatically adjust PID parameters based on changing process conditions. These self-tuning capabilities reduce maintenance requirements while ensuring consistent control performance throughout the valve's operational lifecycle. Machine learning algorithms analyze historical performance data to predict optimal tuning parameters for various operating scenarios.

Quality Assurance and Compliance Standards for Control Valve Systems

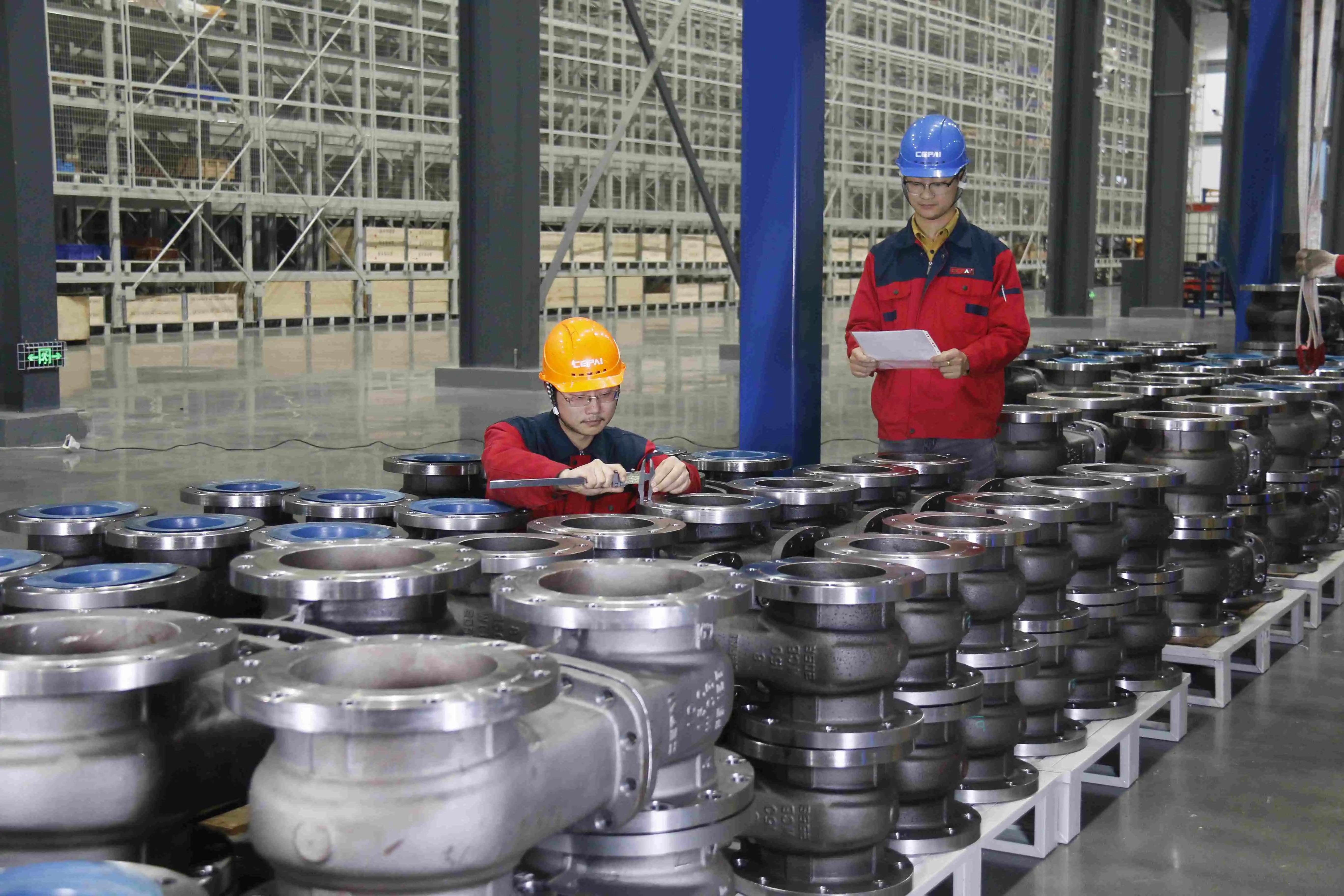

Cepai valves

Quality management systems for PID-controlled control valve applications must address both mechanical reliability and control system performance. ISO 9001 quality management principles ensure consistent manufacturing processes that produce control valves with predictable performance characteristics essential for effective PID tuning. Strict dimensional tolerances and material specifications prevent variations that could compromise control accuracy. Comprehensive testing protocols validate control valve performance under various operating conditions before system deployment. Pressure testing ensures valve integrity under maximum operating pressures while flow testing verifies control characteristics across the full stroke range. Dynamic response testing evaluates actuator performance and positioning accuracy critical for PID control applications. Compliance with international standards including API 602, ANSI B16.104, and CE marking requirements ensures control valve systems meet safety and performance criteria for global applications. These certifications provide confidence that PID-controlled control valve systems will perform reliably in demanding industrial environments while meeting regulatory requirements.

Manufacturing Excellence and Technical Innovation

Advanced manufacturing processes incorporate precision machining and assembly techniques that ensure consistent control valve characteristics essential for PID applications. Computer-controlled machining centers maintain dimensional tolerances within ±0.02mm, ensuring that valve trim components provide predictable flow characteristics that enable accurate PID tuning. Automated assembly processes reduce human error and improve consistency across production runs. Investment in advanced testing equipment enables comprehensive validation of control valve performance parameters. Flow test facilities with precision instrumentation verify control characteristics across the entire operating range while dynamic testing systems evaluate actuator response times and positioning accuracy. These capabilities ensure that every control valve system meets stringent performance requirements before shipment. Research and development initiatives focus on advancing control valve technology through innovative materials, actuator designs, and control algorithms. Collaboration with leading universities and research institutions accelerates the development of next-generation control valve technologies that push the boundaries of performance and reliability in PID applications.

Conclusion

Harnessing PID Control for Optimal Control Valve Performance represents a critical advancement in industrial process control technology. The integration of sophisticated PID algorithms with precision-engineered control valve systems delivers unprecedented levels of process stability, responsiveness, and efficiency. Through careful selection of valve configurations, proper PID tuning methodologies, and comprehensive quality assurance programs, industrial facilities can achieve significant improvements in operational performance while reducing maintenance costs and enhancing safety protocols.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Control Valve manufacturer with over 15 years of expertise in developing high-performance control valve solutions for global industrial applications. As a national high-tech enterprise certified with API Q1, API 6A, and ISO 9001 standards, CEPAI delivers exceptional quality control valves that excel in PID-controlled applications across petrochemical, power generation, and metallurgical industries.

Our intelligent manufacturing facility, featuring the Asia Pacific region's longest high-precision flexible production line, ensures consistent quality and rapid delivery of customized control valve solutions. As your trusted China Control Valve supplier, we offer comprehensive pre-sales technical consultation, customized solution development, and complete after-sales support services. Whether you need standard Control Valve for sale or specialized High Quality Control Valve systems, our experienced engineering team provides expert guidance for optimal PID integration.

Contact CEPAI Group today at cepai@cepai.com to discover competitive Control Valve price options and leverage our position as a premier China Control Valve wholesale provider. Our China Control Valve factory delivers superior value through innovative design, precision manufacturing, and reliable global support services that ensure your control valve systems achieve optimal PID performance.

FAQ

Q: What are the key advantages of PID control for control valve applications?

A: PID control provides precise setpoint tracking, eliminates steady-state errors, and prevents overshoot through integrated proportional, integral, and derivative actions that optimize control valve response.

Q: How do you select the proper control valve size for PID applications?

A: Select control valves to operate between 20-80% of full stroke at normal conditions, ensuring adequate flow capacity while maintaining controllability for effective PID performance.

Q: What control signal types work best with PID-controlled control valves?

A: Standard 4-20mA current signals provide excellent noise immunity and linear response characteristics ideal for PID control applications, with optional position feedback for enhanced accuracy.

Q: How often should PID parameters be adjusted in control valve systems?

A: PID parameters typically require adjustment only during commissioning and after significant process changes, with modern adaptive systems automatically optimizing parameters based on performance data.
