Flow Control Mastery: Pneumatic Control Valves vs Self-Operated Valves for Precision

In modern industrial process control, achieving precise flow regulation remains a critical challenge that directly impacts operational efficiency, product quality, and system safety. The selection between pneumatic control valves and self-operated control valves represents a fundamental decision that engineers must make when designing control systems for petrochemical, power generation, and manufacturing applications. This comprehensive analysis explores the technical distinctions, performance characteristics, and application-specific advantages of both valve technologies. Understanding these differences enables engineers to make informed decisions that optimize system performance while ensuring reliable operation across diverse industrial environments. The Pneumatic Control Valve technology continues to evolve, offering enhanced precision and reliability for demanding applications.

Technical Architecture and Operating Principles

Pneumatic Control Valve Mechanism and Components

The Pneumatic Control Valve operates through a sophisticated system that converts compressed air signals into precise mechanical actuation. The core architecture consists of a pneumatic actuator, valve body, trim components, and positioner system working in synchronized harmony. The pneumatic actuator receives air pressure signals typically ranging from 3-15 PSI or 6-30 PSI, which are translated into linear or rotary motion depending on the valve design. This air-powered mechanism provides exceptional force multiplication, enabling the valve to handle high-pressure differentials while maintaining precise control resolution. The positioner system acts as an intelligent interface, comparing the control signal with actual valve position and making continuous adjustments to ensure accuracy. Modern pneumatic control valves incorporate smart positioners with digital communication capabilities, allowing for remote monitoring, diagnostics, and calibration. The Self-operated Control Valve mechanism differs fundamentally by utilizing the process fluid's own energy for actuation, eliminating the need for external power sources.

Self-Operated Control Valve Design Philosophy

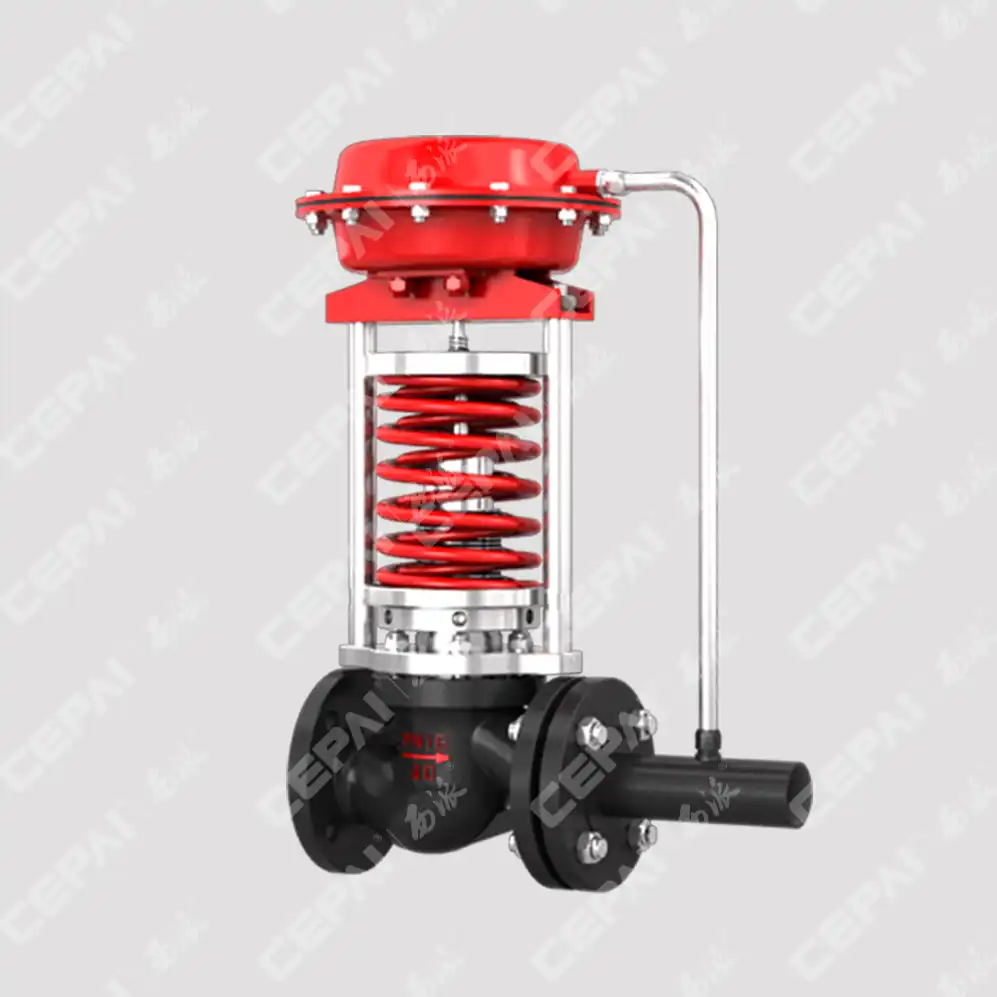

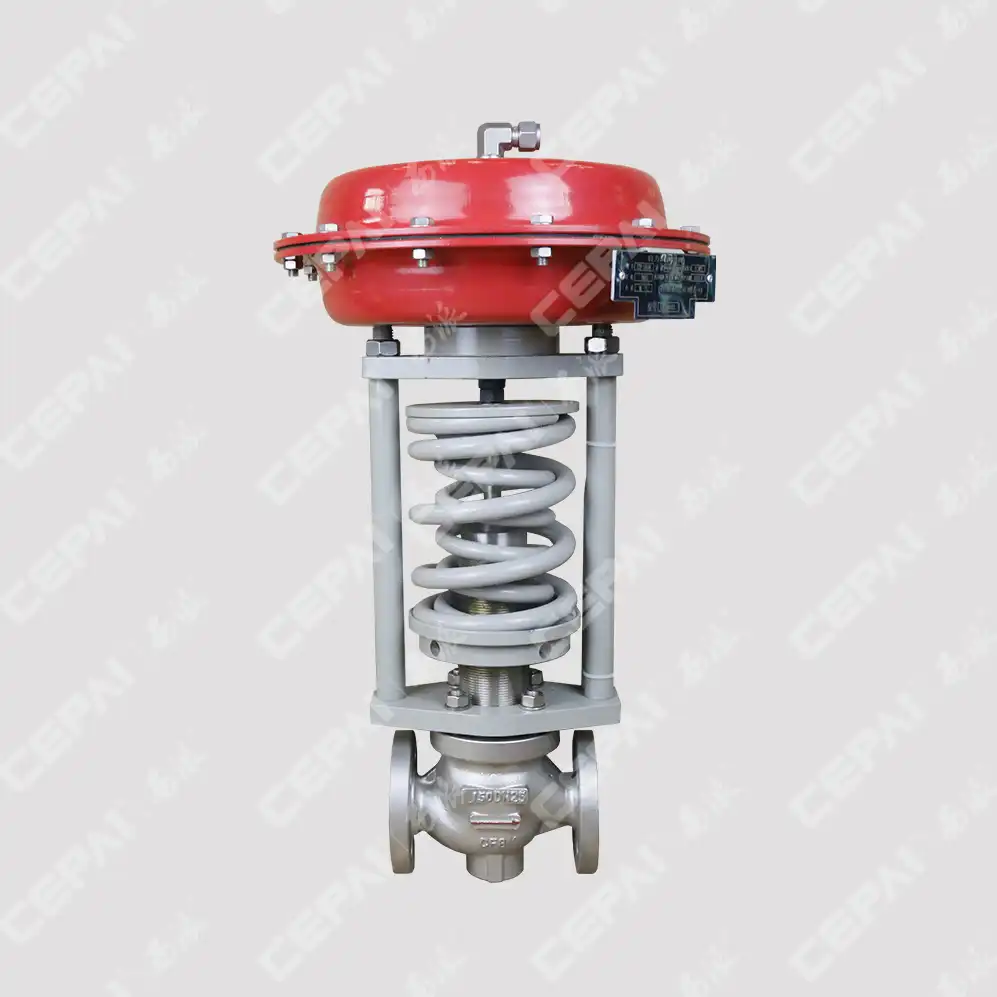

Self-operated Control Valve systems represent an elegant engineering solution that harnesses the inherent energy within the process stream for valve operation. These valves utilize direct-acting mechanisms where process pressure, temperature, or flow changes directly influence valve positioning through mechanical linkages, springs, and diaphragm assemblies. The design philosophy centers on simplicity and reliability, with fewer moving parts compared to externally powered alternatives. Temperature-actuated self-operated valves employ thermal expansion elements that respond to process temperature variations, while pressure-actuated versions use diaphragm or bellows assemblies to sense upstream or downstream pressure changes. The spring-loaded mechanism provides the restoring force necessary for stable operation and fail-safe positioning. This inherent simplicity translates to lower maintenance requirements and enhanced reliability in remote or hazardous locations where external power sources may be unavailable or impractical. The Pneumatic Control Valve complexity offers greater flexibility but requires more sophisticated support systems.

Integration with Modern Control Systems

Contemporary industrial control systems demand seamless integration between field devices and centralized control platforms. Pneumatic Control Valve systems excel in this environment through advanced digital communication protocols such as HART, Foundation Fieldbus, and Profibus PA. These communication capabilities enable bi-directional data exchange, allowing control systems to not only send positioning commands but also receive diagnostic information, valve health status, and performance metrics. Smart valve positioners can perform self-diagnostics, detecting issues such as actuator problems, air supply irregularities, or valve stem friction before they impact process performance. The integration extends to predictive maintenance programs where continuous monitoring of valve parameters enables condition-based maintenance strategies. Self-operated Control Valve systems, while simpler in design, can be enhanced with auxiliary monitoring devices to provide basic feedback to control systems. However, their autonomous operation makes them ideal for standalone applications or as backup systems where external control complexity is undesirable.

Performance Analysis and Precision Capabilities

Accuracy and Response Characteristics

The precision capabilities of Pneumatic Control Valve systems stem from their ability to provide infinitely variable positioning within their operating range. Modern pneumatic actuators achieve positioning accuracy within ±0.25% of full scale when equipped with high-quality positioners, making them suitable for critical process control applications. The response time characteristics depend on actuator size, air supply pressure, and tubing configuration, with typical response times ranging from 2-15 seconds for full stroke operation. The pneumatic system's compressibility provides natural damping that helps prevent oscillation and hunting in control loops. Digital positioners enhance accuracy through advanced control algorithms that compensate for hysteresis, dead band, and linearity errors. The Self-operated Control Valve achieves different but equally valuable performance characteristics through its direct mechanical response to process variables. While these valves may not offer the fine resolution of pneumatic systems, they provide immediate response to process changes without the delays associated with signal transmission and processing.

Stability and Control Loop Performance

Control loop stability represents a critical factor in process optimization, where valve performance directly influences the entire control system's behavior. Pneumatic Control Valve systems offer excellent stability through their high thrust capabilities and precise positioning control. The pneumatic actuator's force output remains consistent across the operating range, providing reliable performance even under varying process conditions. Smart positioners contribute to stability by implementing adaptive control algorithms that automatically adjust to changing process dynamics. These systems can detect and compensate for valve packing friction, actuator hysteresis, and supply pressure variations. The Self-operated Control Valve provides inherent stability through its direct mechanical coupling to the process variable being controlled. This direct coupling eliminates potential instabilities associated with electronic control loops, measurement delays, and signal processing. The mechanical nature of self-operated valves makes them naturally resistant to external electromagnetic interference and control system failures that might affect electronic alternatives.

Dynamic Performance Under Varying Conditions

Industrial processes rarely operate under steady-state conditions, making dynamic performance a crucial consideration in valve selection. Pneumatic Control Valve systems demonstrate excellent dynamic performance through their ability to respond rapidly to control signal changes while maintaining stability under varying load conditions. The pneumatic actuator's force output can be precisely controlled through supply pressure regulation, allowing for optimal performance across different operating pressures and flow rates. Modern positioners incorporate adaptive algorithms that automatically adjust control parameters based on process conditions, maintaining optimal performance without manual intervention. The Self-operated Control Valve excels in applications where the controlled variable directly relates to the actuating force, providing immediate response to process upsets without the delays associated with measurement, signal processing, and actuation sequences. This direct response characteristic makes self-operated valves particularly effective in safety and emergency shutdown applications where rapid response is paramount.

​​​​​​​

Selection Criteria and Application Guidelines

Process Requirements and Operating Conditions

Selecting between Pneumatic Control Valve and Self-operated Control Valve systems requires careful analysis of process requirements, operating conditions, and performance expectations. Pneumatic Control Valve systems excel in applications requiring precise control, wide rangeability, and integration with sophisticated control systems. These valves are ideal for processes where control accuracy directly impacts product quality, such as chemical reactors, distillation columns, and pharmaceutical manufacturing. The ability to provide remote operation and comprehensive diagnostics makes pneumatic valves suitable for critical applications where continuous monitoring is essential. Conversely, Self-operated Control Valve systems are optimal for applications where simplicity, reliability, and autonomous operation are prioritized over precision control. These valves perform exceptionally well in utility applications, safety systems, and remote locations where maintenance access is limited.

Economic Considerations and Lifecycle Costs

The economic evaluation of valve selection extends beyond initial purchase price to encompass installation, operation, and maintenance costs over the valve's service life. Pneumatic Control Valve systems typically require higher initial investment due to their complexity and the need for auxiliary equipment such as air compressors, air treatment systems, and instrument air distribution networks. However, their precision control capabilities can generate significant operational savings through improved process efficiency, reduced waste, and enhanced product quality. The comprehensive diagnostic capabilities reduce unplanned downtime and enable condition-based maintenance strategies that optimize maintenance costs. Self-operated Control Valve systems offer lower initial costs and minimal auxiliary equipment requirements, making them attractive for budget-conscious applications. Their simplicity translates to lower maintenance costs and reduced spare parts inventory requirements, contributing to favorable lifecycle economics in appropriate applications.

Installation and Maintenance Considerations

Installation complexity varies significantly between pneumatic and self-operated valve systems, influencing both initial deployment costs and ongoing operational considerations. Pneumatic Control Valve installations require comprehensive planning for instrument air supply, electrical connections for positioners, and integration with control systems. The installation process involves calibration, loop testing, and system commissioning that requires skilled technicians and specialized test equipment. However, once properly installed, these systems provide extensive diagnostic capabilities that simplify troubleshooting and maintenance activities. Self-operated Control Valve installations are generally simpler, requiring only process connections and basic mechanical assembly. The absence of external power requirements and control system integration simplifies installation in remote or hazardous locations. Maintenance procedures focus on mechanical components such as springs, diaphragms, and sealing elements, which can often be serviced using standard maintenance tools and techniques without specialized instrumentation expertise.

Conclusion

The choice between pneumatic control valves and self-operated control valves ultimately depends on specific application requirements, with each technology offering distinct advantages in appropriate contexts. Pneumatic control valves provide superior precision, flexibility, and integration capabilities for sophisticated control applications, while self-operated valves excel in simplicity, reliability, and autonomous operation scenarios. Understanding these fundamental differences enables engineers to optimize valve selection for enhanced process performance and operational efficiency.

At CEPAI Group, we leverage decades of experience in valve manufacturing excellence to deliver precision-engineered solutions that meet the most demanding industrial requirements. Our commitment to quality through strict ISO quality system implementation ensures every valve meets international standards and customer specifications. From blank castings to final products, our advanced inspection methods and testing equipment guarantee zero defects in valve performance. Whether you need pneumatic control valves for sophisticated process control or self-operated valves for reliable autonomous operation, our technical experts provide comprehensive pre-sales consultation, customized solutions, and ongoing support services. Ready to optimize your flow control systems? Contact our engineering team at cepai@cepai.com to discuss your specific requirements and discover how CEPAI's innovative valve solutions can enhance your operational performance.
