Decoding Control Valve Specifications: What You Need to Know Before You Buy

Picture this scenario: you're overseeing a critical industrial process when suddenly your Control Valve fails, bringing production to a halt. The replacement you ordered doesn't fit properly, lacks the required pressure rating, or simply can't handle the flow demands of your system. This nightmare situation occurs more often than you'd think, and it all stems from inadequate specification understanding during the initial purchase. Control Valve selection isn't just about finding any valve that fits – it's about finding the precise solution that ensures optimal performance, safety, and long-term reliability in your specific application. This comprehensive guide will decode the complex world of Control Valve specifications, empowering you with the knowledge needed to make informed purchasing decisions that prevent costly mistakes and ensure operational excellence.

Understanding Control Valve Fundamentals and Specifications

Control valves serve as the final control element in industrial process systems, regulating fluid flow, pressure, and temperature with precision. Control valves often determine the capability of the control system. Poorly sized and selected control valves will make tight control impossible regardless of the control strategy or tuning employed. The fundamental specifications that define a Control Valve's performance include flow coefficient (Cv), pressure rating, temperature range, and material compatibility. These specifications work together to determine whether a particular Control Valve can effectively manage your process requirements while maintaining safety standards and operational efficiency.

• Material Selection and Compatibility

The material composition of your Control Valve directly impacts its longevity, performance, and suitability for specific applications. Different process fluids require different materials to prevent corrosion, erosion, or chemical reactions that could compromise system integrity. Stainless steel Control Valves offer excellent corrosion resistance for many applications, while exotic alloys like Hastelloy or Inconel may be necessary for highly corrosive or high-temperature environments. The body, trim, seats, and sealing components must all be compatible with your process media to ensure reliable operation throughout the valve's service life.

• Pressure and Temperature Specifications

Understanding pressure and temperature specifications is crucial for safe Control Valve operation. The maximum working pressure rating must exceed your system's operating pressure with adequate safety margin, while the temperature rating ensures the valve components maintain their properties under process conditions. These specifications are interconnected – higher temperatures typically reduce pressure ratings due to material property changes. Additionally, differential pressure across the Control Valve affects sizing calculations and must be considered when evaluating flow capacity requirements.

Control Valve Sizing and Flow Calculations

Proper sizing represents one of the most critical aspects of Control Valve specification. The control valve's size should be selected so that it will operate somewhere between 60 and 80% open at the maximum required flow rate and whenever possible, not much less than 20% open at the minimum required flow rate. The sizing process involves calculating the required flow coefficient (Cv) based on your process conditions including flow rate, fluid properties, pressure drop, and specific gravity. Undersized Control Valves cannot provide adequate flow, while oversized valves operate in a narrow range where control becomes difficult and unstable.

• Flow Coefficient and Capacity Determination

The flow coefficient (Cv) represents the fundamental measure of a Control Valve's capacity to pass fluid. It defines the flow rate in gallons per minute of water at 60°F that will pass through the valve with a 1 psi pressure drop when the valve is fully open. For other fluids and conditions, correction factors must be applied to account for differences in density, viscosity, and compressibility. Modern Control Valve manufacturers provide sophisticated sizing software that considers these variables, but understanding the underlying principles ensures you can evaluate sizing recommendations critically and make informed decisions.

• Rangeability and Control Characteristics

Rangeability describes the ratio between maximum and minimum controllable flow rates through a Control Valve. A valve with 50:1 rangeability can control flow from 2% to 100% of its maximum capacity while maintaining stable control. The inherent flow characteristic – linear, equal percentage, or quick opening – determines how flow rate changes relative to valve position. Equal percentage characteristics suit most process control applications because they provide relatively constant percentage change in flow per unit change in valve position across the operating range, ensuring consistent control performance.

Critical Standards and Certifications for Control Valve Selection

Industrial Control Valve applications must comply with various international standards and certifications to ensure safety, performance, and compatibility. API standards such as API 602, API 6D, and API 6A define requirements for different valve types and applications, particularly in oil and gas industries. ISO 9001 quality management certification ensures manufacturing processes meet international standards, while pressure vessel certifications like ASME demonstrate compliance with safety requirements for high-pressure applications.

• Safety Integrity Level (SIL) Requirements

Safety Integrity Level certification has become increasingly important for Control Valves used in safety-critical applications. SIL-rated Control Valves undergo rigorous testing to demonstrate their reliability and failure mode behavior. SIL 1, 2, or 3 ratings indicate different levels of risk reduction capability, with SIL 3 representing the highest safety performance level. When specifying Control Valves for emergency shutdown or process safety applications, SIL certification ensures the valve will perform as required during critical situations, potentially preventing accidents or environmental incidents.

• Quality Assurance and Testing Protocols

Comprehensive testing protocols validate Control Valve performance against specifications before delivery. Hydrostatic testing verifies pressure ratings, while seat leakage tests ensure tight shutoff capability when required. Factory acceptance testing (FAT) allows verification of valve performance under simulated process conditions, identifying any issues before installation. Documentation requirements include material certificates, test reports, and compliance statements that demonstrate conformance to specified standards and provide traceability throughout the valve's lifecycle.

Advanced Control Valve Technologies and Smart Features

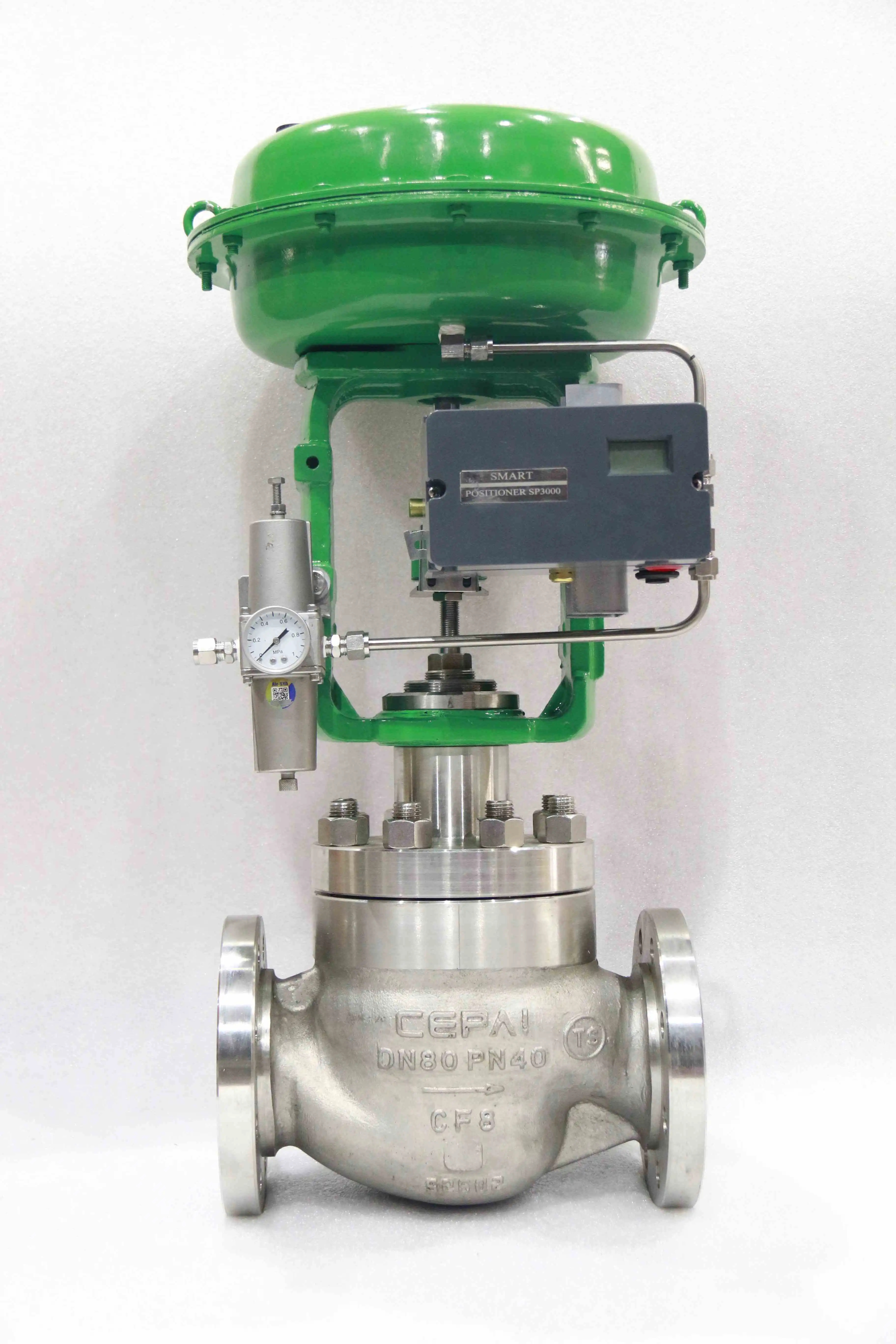

Modern Control Valve technology extends far beyond basic on/off or throttling functions. Smart positioners with digital communication capabilities provide real-time diagnostic information, predictive maintenance alerts, and enhanced control performance. These devices can communicate via protocols like HART, Foundation Fieldbus, or Profibus, integrating seamlessly with modern distributed control systems. Digital valve controllers offer features such as split-range operation, characterization functions, and advanced diagnostics that enhance process performance and reduce maintenance requirements.

• Digital Communication and Diagnostics

Smart Control Valve assemblies equipped with digital positioners provide valuable operational data including valve position, actuator pressure, internal temperature, and travel counts. This information enables condition-based maintenance strategies that optimize maintenance intervals and reduce unplanned downtime. Diagnostic capabilities can detect issues such as packing leakage, actuator problems, or positioner malfunctions before they cause process disruptions. Integration with asset management systems allows trending of valve performance parameters and prediction of maintenance requirements.

​​​​​​​

• Actuator Selection and Performance Considerations

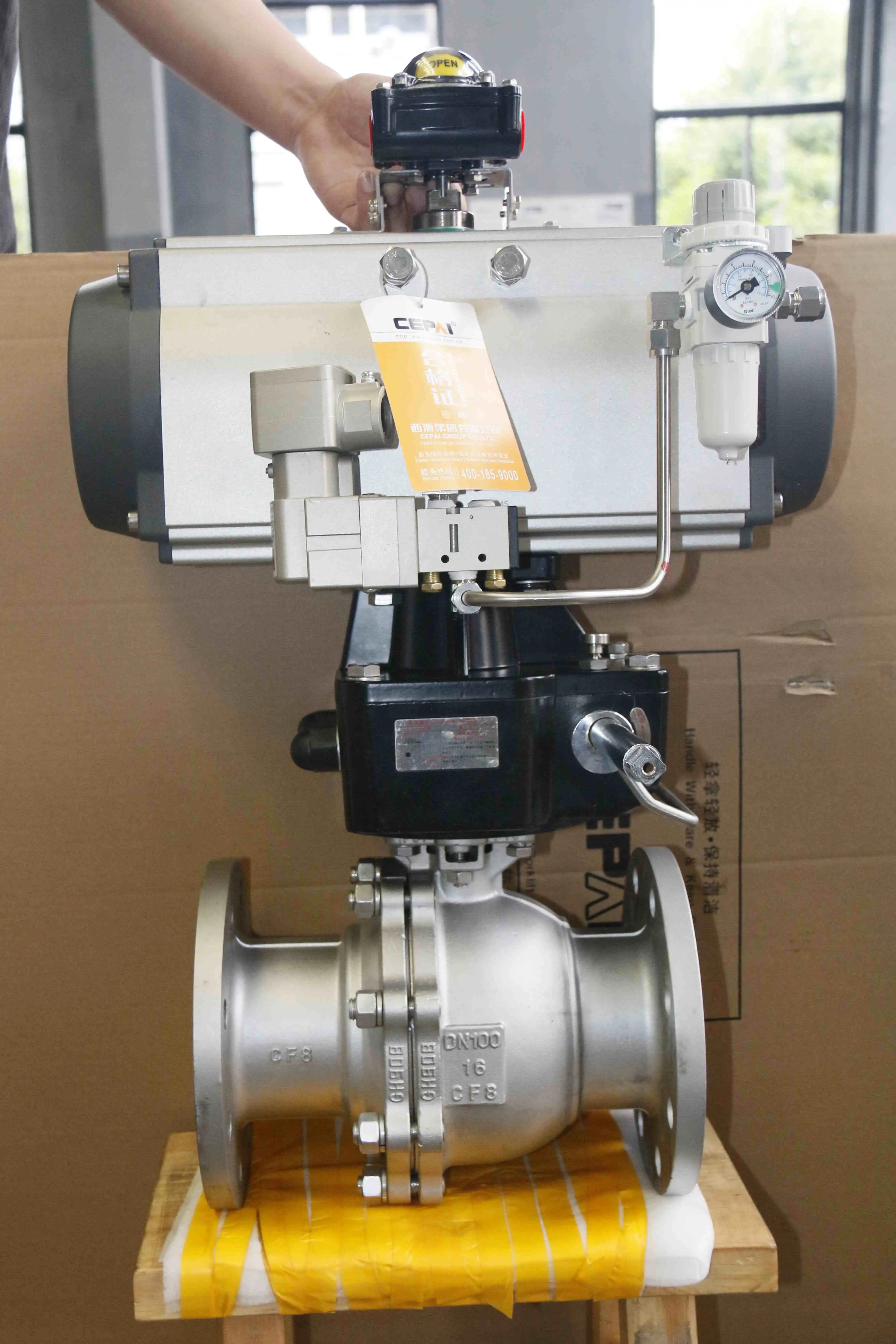

The actuator represents half of the Control Valve assembly and must be properly matched to valve requirements. Pneumatic actuators offer fast response and fail-safe operation, while electric actuators provide precise positioning and eliminate air supply requirements. Actuator sizing must consider the forces required to operate the valve under all process conditions, including friction, unbalanced forces, and packing loads. Safety considerations include fail-safe action – whether the valve should fail open or closed upon loss of power or signal – which depends on process safety requirements and risk analysis.

Economic Considerations and Total Cost of Ownership

While initial purchase price represents an obvious cost factor, total cost of ownership provides a more comprehensive economic evaluation for Control Valve selection. Maintenance costs, energy consumption, and productivity impacts throughout the valve's lifecycle often exceed initial capital expenditure. High-quality Control Valves may cost more initially but offer superior reliability, longer service life, and lower maintenance requirements that result in better overall value. Additionally, properly sized and specified valves improve process efficiency and product quality, providing ongoing economic benefits.

• Maintenance Requirements and Service Life

Different Control Valve designs and materials offer varying maintenance requirements and service life expectations. Ball valves typically require less frequent maintenance than globe valves but may have higher initial costs. Trim materials affect both performance and maintenance intervals – hardened trim materials resist wear and extend service life in erosive applications. Consideration of maintenance access, spare parts availability, and local service support capabilities influences long-term operating costs and should factor into specification decisions.

• Energy Efficiency and Environmental Impact

Control Valve selection impacts overall system energy efficiency through pressure drop characteristics and control performance. Excessive pressure drop wastes energy, while poor control performance may require higher safety margins that increase energy consumption. Environmental considerations include fugitive emissions from valve packing, material recyclability, and manufacturing processes. Modern low-emission packing designs and certified environmental management systems demonstrate manufacturers' commitment to environmental responsibility.

Conclusion

Decoding Control Valve specifications requires understanding the complex interplay between technical requirements, safety standards, and economic considerations. Success depends on thorough analysis of process conditions, careful evaluation of valve characteristics, and selection of appropriate technologies that match your specific application needs. Proper specification ensures optimal performance, safety, and value throughout the Control Valve's service life, preventing costly mistakes and operational disruptions.

Cooperate with CEPAI Group Co., LTD.

CEPAI Group Co., LTD. stands as a leading China Control Valve manufacturer with over 15 years of specialized experience in high-end energy valve manufacturing. As a national high-tech enterprise and Jiangsu Province intelligent manufacturing demonstration factory, CEPAI combines advanced technology with rigorous quality management to deliver exceptional Control Valve solutions. Our company's 156 million yuan investment in intelligent manufacturing transformation has created the longest high-precision flexible production line in the Asia Pacific region, ensuring superior product quality and delivery performance.

With comprehensive certifications including API 6A, API 6D, ISO 9001, and Control Valve SIL certification, CEPAI serves major clients including PetroChina, Sinopec, and CNOOC. Our China Control Valve factory operates under strict ISO quality systems, implementing incoming inspection, process inspection, and final testing protocols that guarantee product excellence. As your trusted China Control Valve supplier, we offer pre-sales technical consultation, customized solutions, and comprehensive after-sales support backed by our CNAS-certified laboratory and advanced testing facilities.

Looking for High Quality Control Valves at competitive Control Valve prices? CEPAI's extensive product range includes sleeve-type regulating valves, throttle valves, and emergency cut-off valves designed for demanding applications. Our China Control Valve wholesale solutions combine cutting-edge technology with proven reliability, making us the preferred choice for Control Valve for sale requirements worldwide. Contact our technical team at cepai@cepai.com to discuss your specific requirements and discover why leading companies choose CEPAI as their Control Valve manufacturer.

FAQ

Q: What are the most critical specifications to consider when purchasing a Control Valve?

A: The most critical specifications include flow coefficient (Cv), pressure rating, temperature limits, material compatibility with process media, and control characteristics that match your application requirements.

Q: How do I determine the correct size for my Control Valve application?

A: Control Valve sizing requires calculating the required Cv based on maximum flow rate, pressure drop, fluid properties, and operating conditions, typically targeting 60-80% open at maximum flow.

Q: What certifications should I look for in a Control Valve manufacturer?

A: Look for API certifications (6A, 6D), ISO 9001 quality management, SIL ratings for safety applications, and industry-specific certifications like NACE for corrosive environments.

Q: What is the difference between pneumatic and electric Control Valve actuators?

A: Pneumatic actuators offer faster response times and natural fail-safe operation, while electric actuators provide precise positioning, eliminate air supply requirements, and integrate better with digital control systems.
