Control Valve Troubleshooting: 7 Common Problems and How to Fix Them

When your industrial process suddenly experiences unexpected pressure drops, erratic flow rates, or complete system shutdowns, the culprit is often a malfunctioning Control Valve. These critical components, which regulate flow and pressure in countless industrial applications, can fail without warning, causing production delays, safety hazards, and significant financial losses. Understanding the most frequent Control Valve problems and their solutions is essential for maintaining optimal system performance and preventing costly downtime in petrochemical, power generation, and manufacturing facilities.

Understanding Control Valve Fundamentals and Common Failure Modes

Control valves serve as the final control element in automated systems, directly manipulating fluid flow to maintain desired process conditions. These sophisticated devices integrate mechanical components, pneumatic actuators, and electronic positioners to achieve precise control. However, their complex nature also makes them susceptible to various failure modes that can compromise entire process operations.

• The Critical Role of Control Valves in Industrial Applications

Modern industrial facilities rely heavily on Control Valve systems to maintain safety, efficiency, and product quality. In petrochemical plants, these valves regulate dangerous chemicals under extreme pressures and temperatures. Power generation facilities depend on Control Valves to manage steam flow and cooling water circulation. Manufacturing operations use them to control raw material feed rates and maintain consistent product specifications. When a Control Valve fails, the ripple effects can extend throughout the entire facility, affecting production schedules, energy consumption, and environmental compliance. The complexity of modern Control Valve systems means that troubleshooting requires systematic approaches and deep understanding of both mechanical and control system interactions. Advanced manufacturing facilities like CEPAI Group's intelligent production lines integrate sophisticated Control Valve monitoring systems that can detect anomalies before they lead to catastrophic failures. These systems utilize real-time data analytics, predictive maintenance algorithms, and remote monitoring capabilities to optimize valve performance and extend operational life.

Problem 1: Internal Leakage and Seat Wear Issues

Internal leakage represents one of the most persistent and costly Control Valve problems in industrial applications. This condition occurs when the valve fails to achieve complete shutoff, allowing fluid to pass through even when the valve is supposedly closed. Internal leakage typically manifests as gradual performance degradation, making it difficult to detect until significant efficiency losses have occurred.

• Root Causes and Detection Methods

The primary causes of internal leakage include seat wear, foreign particle contamination, thermal cycling damage, and improper valve sizing. Seat wear occurs naturally over time as the valve plug repeatedly contacts the seat during normal operation. However, accelerated wear can result from cavitation, erosion from abrasive particles, or chemical corrosion from aggressive process fluids. Foreign particles, such as scale, debris, or weld spatter from upstream piping, can lodge between the plug and seat, preventing proper sealing. Detection of internal leakage requires systematic testing procedures. Acoustic monitoring can identify the characteristic sound signature of fluid passing through partially closed valves. Thermal imaging reveals temperature anomalies that indicate unwanted flow. Pressure decay testing provides quantitative measurements of leak rates by monitoring pressure drop across the isolated valve over time. Advanced facilities implement continuous monitoring systems that track valve performance metrics and alert operators to developing problems before they become critical.

• Comprehensive Repair Strategies

Addressing internal leakage begins with thorough inspection of the valve trim components. The valve plug and seat surfaces must be examined for scoring, pitting, or erosion damage. Minor surface imperfections can often be repaired through lapping or machining, restoring proper sealing surfaces. However, severely damaged components require replacement with high-quality parts that match the original specifications. CEPAI Group's advanced manufacturing processes ensure that replacement valve trim components meet stringent dimensional tolerances and surface finish requirements, providing reliable long-term performance. Prevention strategies include proper upstream filtration to remove particles that could damage seating surfaces, regular maintenance scheduling based on operating conditions, and implementation of soft-seating options for applications requiring tight shutoff. Control system modifications can also help by minimizing unnecessary valve cycling and optimizing control algorithms to reduce wear on critical components.

Problem 2: Stiction and Hysteresis in Valve Response

Stiction, a combination of "stick" and "friction," represents a particularly troublesome Control Valve problem that causes the valve to remain stationary despite changes in control signal until sufficient force accumulates to overcome the static friction. This phenomenon creates a deadband in valve response, leading to oscillating control behavior, overshooting setpoints, and unstable process conditions.

• Understanding the Mechanics of Stiction

Stiction occurs when static friction forces exceed the available actuator force at low signal levels. Common causes include deteriorated actuator seals, contaminated valve stem packing, misaligned valve components, or insufficient lubrication of moving parts. The problem is particularly pronounced in applications with frequent small adjustments, where the valve must make minor position changes to maintain process stability. When stiction is present, these small movements are impossible, forcing the control system to make larger corrections that often overshoot the target. The symptoms of stiction include saw-tooth patterns in process variable trends, excessive controller output movement, and cycling behavior in automatic control mode. Process operators often notice that manual valve positioning requires significant signal changes to initiate movement, followed by rapid jumps when the static friction is overcome. These characteristics distinguish stiction from other valve problems and help guide appropriate troubleshooting approaches.

• Diagnostic and Repair Procedures

Diagnosing stiction requires systematic testing of the valve's mechanical response characteristics. Step response tests reveal the valve's ability to respond to small signal changes, while ramp tests show the relationship between input signal and actual valve position. Modern valve positioners equipped with diagnostic capabilities can perform automated tests and provide quantitative measurements of stiction levels, deadband, and response times. Repair procedures depend on the root cause of the stiction problem. Actuator maintenance may involve replacing worn diaphragms, O-rings, or seals that have hardened or deteriorated over time. Valve packing replacement requires careful attention to proper compression and lubrication to ensure smooth stem movement without excessive friction. In some cases, upgrading to advanced packing materials or stem coatings can significantly reduce friction and extend maintenance intervals. CEPAI Group's Control Valve designs incorporate low-friction stem guides, high-quality packing materials, and precision-machined components that minimize the likelihood of stiction problems. Their intelligent manufacturing processes ensure consistent quality and dimensional accuracy, reducing the variability that can contribute to mechanical binding and friction issues.

Problem 3: Positioner Calibration and Response Issues

Modern Control Valves rely on sophisticated positioners to translate control signals into precise valve positions. These devices compare the desired position signal with actual valve position feedback and adjust actuator pressure accordingly. However, positioner problems can create significant control issues, including poor response times, positioning errors, and instability in automatic control loops.

• Common Positioner-Related Problems

Positioner calibration drift occurs gradually over time due to temperature effects, component aging, and mechanical wear. Symptoms include steady-state position errors, where the valve fails to reach the exact position commanded by the control signal. Dynamic response problems manifest as slow valve movement, overshooting, or oscillatory behavior when responding to setpoint changes. These issues often stem from incorrect tuning parameters, inadequate air supply pressure, or mechanical problems in the positioner mechanism. Environmental factors significantly impact positioner performance. Temperature extremes can affect electronic components and cause calibration drift. Vibration from nearby equipment can interfere with position feedback mechanisms. Moisture infiltration can corrode electrical connections and damage sensitive electronic components. Proper environmental protection and regular calibration verification are essential for maintaining reliable positioner operation.

• Troubleshooting and Optimization Strategies

Systematic troubleshooting begins with verification of input signals and air supply conditions. The control signal must be clean, stable, and within the specified range. Air supply pressure should meet minimum requirements and be free from moisture and contaminants. Position feedback mechanisms require inspection for mechanical wear, loose connections, or damage from environmental exposure. Calibration procedures must follow manufacturer specifications precisely. This includes proper setup of input signal ranges, position feedback calibration, and tuning of dynamic response parameters. Advanced positioners offer automated calibration routines that can significantly reduce setup time and improve accuracy. However, understanding the underlying principles remains important for troubleshooting complex problems and optimizing performance for specific applications. CEPAI Group's commitment to advanced technology integration ensures their Control Valve systems include state-of-the-art positioners with comprehensive diagnostic capabilities. These systems provide real-time performance monitoring, automatic calibration verification, and remote access for troubleshooting and optimization. The combination of high-quality mechanical components and intelligent electronic systems delivers superior reliability and performance in demanding industrial applications.

Problem 4: Cavitation and Flashing Damage

​​​​​​​

Cavitation and flashing represent severe operating conditions that can rapidly destroy Control Valve components and create operational hazards. These phenomena occur when liquid pressure drops below the vapor pressure, causing bubble formation and subsequent collapse. The resulting pressure waves and erosive forces can damage valve trim, create excessive noise and vibration, and compromise process safety.

• Understanding Cavitation Mechanisms

Cavitation occurs when high-velocity liquid flow through the valve creates low-pressure regions where vapor bubbles form. As the liquid continues downstream and pressure recovers, these bubbles collapse violently, creating shock waves and localized heating. The repeated formation and collapse of vapor bubbles creates a characteristic crackling or rumbling sound and can erode metal surfaces through microjet impingement and fatigue failure. Flashing differs from cavitation in that the pressure recovery downstream of the valve is insufficient to condense the vapor bubbles back to liquid. While flashing typically causes less mechanical damage than cavitation, it can still create significant noise, vibration, and operational problems. Both phenomena are more likely to occur in high-pressure drop applications, particularly when handling volatile liquids or operating near the fluid's saturation temperature.

• Prevention and Mitigation Strategies

Preventing cavitation requires careful attention to valve sizing and selection. Using larger valves or multiple valves in series can reduce the pressure drop across each valve, keeping the minimum pressure above the vapor pressure threshold. Specialized anti-cavitation trim designs create multiple pressure drops in stages, allowing controlled pressure recovery and minimizing the potential for vapor bubble formation. When cavitation cannot be completely eliminated, mitigation strategies focus on minimizing damage and maintaining operability. Hardened trim materials, such as stellite-faced components or ceramic inserts, provide superior resistance to cavitation erosion. Proper upstream and downstream piping design can help maintain adequate pressure levels and provide smooth flow conditions that reduce the severity of cavitation effects. CEPAI Group's engineering expertise includes advanced fluid dynamics analysis and specialized trim designs for challenging applications. Their high-performance Control Valve solutions incorporate proven anti-cavitation technologies and materials specifically selected for resistance to erosive service conditions. The company's comprehensive testing facilities enable validation of cavitation performance under actual operating conditions, ensuring reliable performance in critical applications.

Problem 5: Actuator and Control Air Supply Problems

Pneumatic actuators depend on clean, dry, properly regulated compressed air to provide the force necessary for valve operation. Air supply problems can cause erratic valve behavior, reduced response speed, positioning errors, and complete loss of control. These issues are particularly problematic in facilities where compressed air quality is inconsistent or where air distribution systems are inadequately maintained.

• Air Supply Quality and Distribution Issues

Contaminated air supply represents a major cause of actuator problems. Moisture in the air system can freeze in cold weather, blocking air passages and preventing proper actuator operation. Oil contamination from poorly maintained compressors can cause diaphragm swelling and seal deterioration. Particulate matter can clog small orifices in positioners and cause wear in moving components. These contaminants accumulate over time, gradually degrading actuator performance until failure occurs. Air pressure regulation problems create dynamic response issues and positioning errors. Inadequate supply pressure reduces the available actuator force, potentially preventing the valve from fully opening or closing against process forces. Pressure fluctuations can cause valve hunting and instability in control loops. Oversized air reservoirs or inadequate air supply capacity can slow response times and create control problems during periods of high demand.

• Systematic Air System Maintenance

Effective air system maintenance begins with proper filtration and drying equipment sized for the actual air consumption requirements. Regular replacement of filter elements and drainage of moisture separators prevents contamination buildup. Pressure regulators require periodic calibration to ensure stable output pressure under varying flow conditions. Air distribution piping should be properly sized to minimize pressure drop and equipped with appropriate drainage points to remove accumulated moisture. Actuator maintenance procedures include regular inspection of diaphragms for cracking, hardening, or contamination damage. O-rings and seals should be replaced according to manufacturer recommendations or when signs of deterioration appear. Air connections require checking for leaks, proper tightening, and corrosion protection. Positioner air supply systems need regular cleaning of filters and calibration of pressure reducing valves. CEPAI Group's intelligent manufacturing approach includes comprehensive air system design and maintenance protocols that ensure reliable operation of pneumatic Control Valve systems. Their expertise in actuator design and materials selection provides superior resistance to contamination and environmental effects. The company's remote monitoring capabilities enable proactive maintenance scheduling based on actual operating conditions rather than arbitrary time intervals.

Conclusion

Effective Control Valve troubleshooting requires systematic approaches, proper diagnostic tools, and deep understanding of valve mechanics and control system interactions. The seven common problems discussed represent the majority of issues encountered in industrial applications, and addressing them promptly can prevent costly downtime and safety hazards.

Cooperate with CEPAI Group Co., LTD.

As a leading China Control Valve manufacturer, CEPAI Group Co., LTD. combines decades of engineering expertise with cutting-edge intelligent manufacturing technology to deliver superior Control Valve solutions. Our comprehensive product range includes regulating valves, wellhead valves, and specialized Control Valve designs for demanding applications in petrochemical, power generation, and industrial process industries.

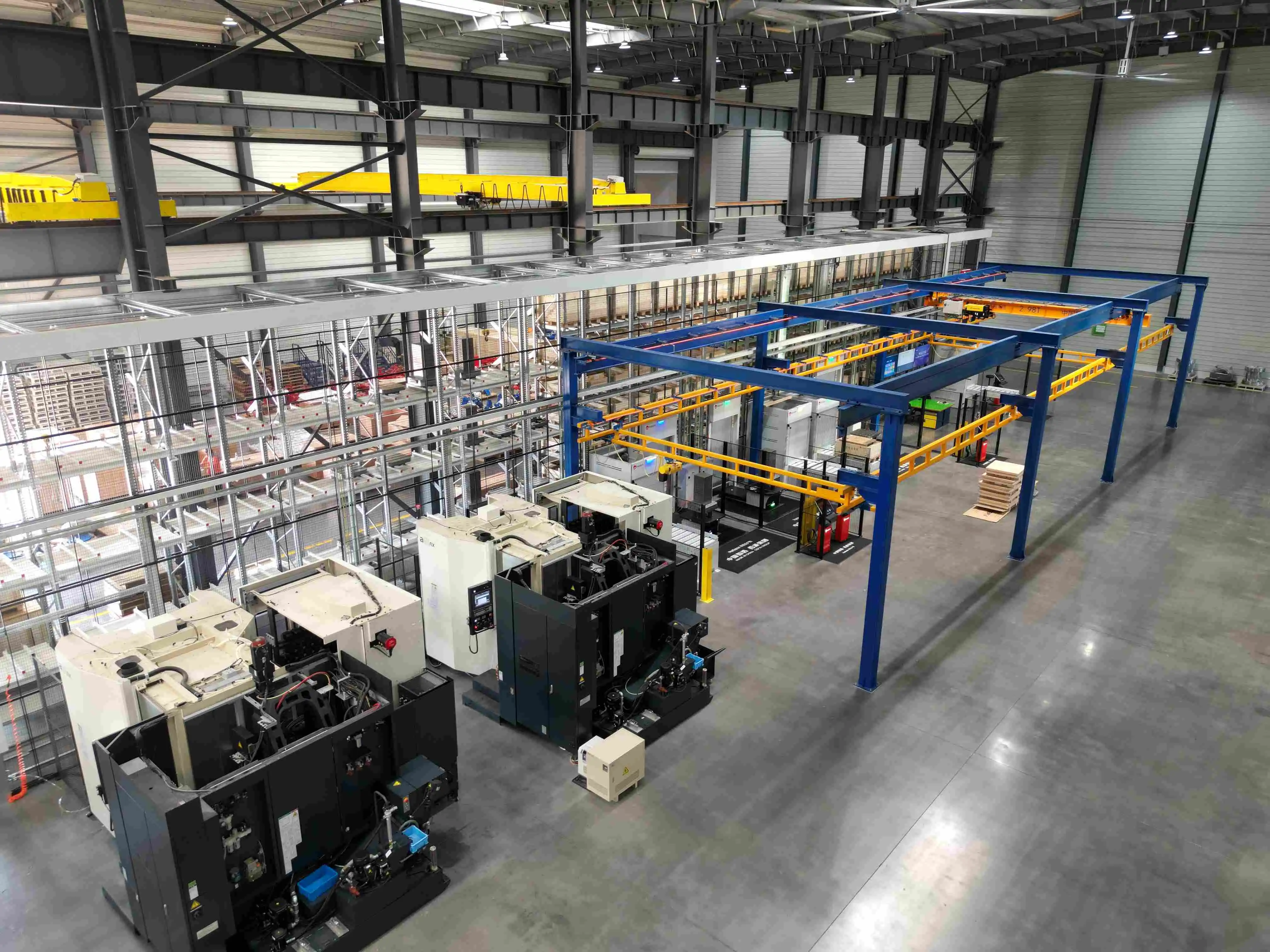

Located in Jiangsu Province's advanced manufacturing hub, CEPAI operates state-of-the-art production facilities with 156 million yuan invested in intelligent transformation and upgrading. Our high-precision manufacturing lines represent the longest and most accurate Control Valve production systems in the Asia Pacific region. As both a China Control Valve supplier and innovative technology leader, we maintain extensive quality certifications including API, ISO, and CE standards that ensure global compliance.

Our position as a premier China Control Valve wholesale partner stems from proven relationships with major industry players including PetroChina, Sinopec, and CNOOC. Whether you need standard Control Valve for sale or customized solutions, our engineering team provides comprehensive pre-sales consultation and post-delivery support. Contact our High Quality Control Valve specialists at cepai@cepai.com to discuss your specific requirements and discover competitive Control Valve price options for your projects.

FAQ

Q: What are the most common signs that a Control Valve needs troubleshooting?

A: Key indicators include erratic process control, excessive noise or vibration, visible external leakage, inability to reach setpoints, and cycling or hunting behavior in automatic control mode.

Q: How often should Control Valve maintenance be performed?

A: Maintenance frequency depends on operating conditions, but typically ranges from quarterly inspections for critical applications to annual maintenance for standard service conditions.

Q: Can stiction problems be prevented through proper valve selection?

A: Yes, selecting valves with low-friction designs, appropriate actuator sizing, and quality packing materials significantly reduces the likelihood of stiction-related problems.

Q: What diagnostic tools are essential for effective Control Valve troubleshooting?

A: Essential tools include pressure gauges, position indicators, acoustic monitoring equipment, and portable valve testing devices capable of measuring response characteristics and leak rates.
