Control Valve Leakage: Causes, Consequences, and Solutions

Industrial operations worldwide face a critical challenge that silently drains billions from their bottom line: control valve leakage. Imagine discovering that your production facility loses thousands of dollars monthly due to undetected valve failures, compromising both operational efficiency and environmental safety. This comprehensive guide explores the root causes of control valve leakage, its far-reaching consequences on industrial processes, and proven solutions to prevent costly failures. Whether you're managing petrochemical plants, power generation facilities, or oil and gas operations, understanding control valve integrity is essential for maintaining optimal system performance and avoiding catastrophic operational disruptions.

Understanding Control Valve Leakage Types and Classification

Control valve leakage represents one of the most significant operational challenges in industrial fluid control systems. The classification of leakage types provides essential insights for maintenance professionals and engineers tasked with ensuring system reliability. Internal leakage occurs when fluid bypasses the valve's sealing elements, flowing through the valve even when it should be completely closed. This type of leakage directly impacts process control accuracy and can lead to substantial energy losses in systems requiring precise flow regulation. External leakage manifests as visible fluid escape from valve connections, stem seals, or body joints, creating immediate safety hazards and environmental concerns. The severity of external leakage varies significantly based on the fluid properties, system pressure, and environmental conditions. Industrial standards define acceptable leakage rates through classification systems such as ANSI/FCI 70-2, which establishes specific leakage criteria for different valve types and applications. Understanding these classifications enables facilities to implement appropriate maintenance schedules and replacement strategies for their control valve inventory. Process engineers must recognize that leakage classification directly influences valve selection criteria for specific applications. Critical control valve installations in petrochemical processing, power generation, and oil refining operations demand stricter leakage tolerances compared to general industrial applications. The relationship between leakage class and operational costs becomes particularly evident in high-pressure systems where even minor internal leakage can result in significant energy waste and reduced process efficiency.

• Internal vs External Leakage Characteristics

Internal control valve leakage typically occurs through worn or damaged sealing surfaces, creating a direct path for process fluid to bypass the valve's intended flow restrictions. This phenomenon affects system performance by reducing the valve's ability to achieve complete shutoff, impacting downstream pressure control and flow regulation accuracy. Advanced diagnostic techniques, including acoustic emission monitoring and thermal imaging, enable maintenance teams to detect internal leakage before it reaches critical levels that compromise process safety and efficiency. External leakage presents immediate visual evidence of valve degradation, often appearing as fluid stains, droplets, or vapor around valve connections and stem assemblies. The progression of external leakage follows predictable patterns, beginning with minor seepage around gaskets and packing materials before escalating to significant flow losses that trigger emergency shutdown procedures. Environmental regulations strictly govern external leakage limits, particularly for hazardous or toxic fluids where even minimal release can trigger costly remediation procedures and regulatory penalties. The distinction between internal and external leakage becomes crucial when developing preventive maintenance programs for control valve systems. While internal leakage may remain undetected for extended periods, gradually degrading process efficiency, external leakage demands immediate attention due to safety and environmental implications. Modern control valve designs incorporate advanced sealing technologies and materials specifically engineered to minimize both leakage types throughout extended operational lifecycles.

Primary Causes of Control Valve Leakage

The root causes of control valve leakage stem from multiple interconnected factors that affect valve performance over time. Common examples include incorrect calibration of positioners, improper setting up of actuators, and wear and tear of internal components, creating systematic failures that compound operational challenges. Manufacturing tolerances, material selection, and assembly procedures significantly influence a valve's susceptibility to leakage development during normal operation. Thermal cycling represents a primary contributor to control valve degradation, as repeated heating and cooling cycles cause expansion and contraction of valve components at different rates. These thermal stresses gradually compromise sealing surfaces, gasket integrity, and dimensional stability, leading to progressive leakage development. Industrial processes involving temperature variations exceeding 200°F create particularly challenging operating environments that accelerate valve wear patterns and reduce service life expectations. Fluid contamination introduces abrasive particles and corrosive substances that erode control valve internals, creating microscopic channels that evolve into significant leakage paths. Particulate matter suspended in process fluids acts as an abrasive medium, gradually wearing away precision-machined sealing surfaces and creating permanent damage that cannot be resolved through standard maintenance procedures. Chemical incompatibility between valve materials and process fluids accelerates corrosion processes, leading to premature failure of critical sealing components.

• Material Degradation and Wear Mechanisms

Control valve materials undergo complex degradation processes influenced by process conditions, fluid chemistry, and operational stresses. Elastomeric sealing materials experience hardening, cracking, and dimensional changes when exposed to temperature extremes, aggressive chemicals, and mechanical stress cycles. These material property changes directly impact the valve's ability to maintain effective sealing contact with mating surfaces, resulting in progressive leakage increases over time. Metallic valve components suffer from multiple wear mechanisms including erosion, corrosion, and mechanical fatigue that compromise dimensional accuracy and surface finish quality. Cavitation damage creates microscopic pitting on valve trim surfaces, providing nucleation sites for accelerated wear and corrosion processes. The combination of high-velocity fluid flow and pressure variations generates dynamic loading conditions that exceed material fatigue limits, leading to crack initiation and propagation in critical structural elements. Advanced metallurgy and surface treatment technologies provide enhanced resistance to common degradation mechanisms, extending valve service life and reducing leakage susceptibility. Specialized coatings, hardfacing materials, and engineered alloys offer superior performance in demanding applications where standard materials prove inadequate. The selection of appropriate materials requires comprehensive analysis of process conditions, fluid properties, and expected service life to optimize valve performance and minimize lifecycle costs.

• Installation and Maintenance Factors

Improper installation procedures represent a significant contributor to premature control valve leakage, often resulting from inadequate training, insufficient tools, or rushed project schedules. Incorrect torque application during assembly creates uneven stress distributions that compromise gasket sealing performance and valve body integrity. Misalignment between valve components and associated piping systems generates mechanical stresses that accelerate wear patterns and reduce operational reliability. Maintenance practices directly influence control valve leakage rates throughout the equipment's operational lifecycle. When a valve leaks, it's common for an operator to try to stop the leak by tightening the packing. Often, however, this leads to a different problem — the valve sticks, creating additional operational challenges that compound the original leakage issue. Inadequate maintenance intervals, poor record-keeping, and lack of condition monitoring programs contribute to undetected valve degradation that eventually manifests as significant leakage problems. Professional maintenance programs incorporate systematic inspection procedures, predictive monitoring technologies, and proactive component replacement strategies to minimize leakage development. Vibration analysis, thermographic surveys, and acoustic emission testing provide early warning indicators of valve degradation before leakage becomes critical. The implementation of comprehensive maintenance protocols significantly reduces unplanned downtime, improves process efficiency, and extends equipment service life while maintaining environmental compliance standards.

Consequences and Impact of Control Valve Leakage

The economic consequences of control valve leakage extend far beyond immediate material losses, creating cascading effects throughout industrial operations. In industrial settings, it can lead to the loss of valuable chemical substances or other fluids, resulting in monetary losses. Additionally, if the leaked fluid is hazardous or toxic, it can pose serious health and safety risks to personnel and the environment. Production efficiency suffers as process control systems struggle to maintain optimal operating conditions with compromised valve performance. Energy consumption increases significantly when control valves exhibit internal leakage, as process systems require additional energy input to compensate for lost efficiency. Steam systems particularly suffer from valve leakage, as escaping steam represents direct energy waste that translates into increased fuel consumption and higher utility costs. Cooling water systems with leaking control valves experience reduced heat transfer efficiency, forcing auxiliary equipment to operate at higher capacities to maintain process temperatures within acceptable ranges. Environmental compliance becomes increasingly challenging when control valve leakage releases regulated substances into the atmosphere or surrounding environment. Fugitive emissions from leaking valves contribute to air quality degradation and may trigger enforcement actions from environmental regulatory agencies. The cost of environmental remediation following significant valve failures can exceed the original equipment cost by orders of magnitude, particularly in sensitive ecological areas or densely populated regions.

• Safety and Environmental Implications

Control valve leakage creates immediate safety hazards through the uncontrolled release of process fluids that may be toxic, flammable, or corrosive. Personnel exposure risks increase dramatically when leaking valves involve hazardous chemicals, requiring implementation of additional safety protocols and personal protective equipment requirements. Emergency response procedures must account for potential valve failures, necessitating regular training updates and equipment maintenance to ensure rapid containment capabilities. Fire and explosion risks escalate when control valve leakage involves flammable substances, particularly in confined spaces or areas with potential ignition sources. The accumulation of leaked vapors can create explosive atmospheres that endanger facility personnel and surrounding communities. Process safety management programs must incorporate valve integrity monitoring as a critical element to prevent catastrophic incidents and maintain operational safety standards throughout facility lifecycles. Environmental protection requirements demand strict control of valve emissions, with regulatory agencies establishing increasingly stringent limits on allowable leakage rates for various industrial applications. Monitoring and reporting obligations require facilities to maintain detailed records of valve performance, leakage incidents, and corrective actions taken to address deficiencies. The integration of automated monitoring systems provides continuous surveillance capabilities that ensure rapid detection and response to emerging leakage problems before they escalate into environmental compliance violations.

• Production and Quality Control Issues

Process control accuracy deteriorates significantly when control valves exhibit leakage problems, affecting product quality and consistency throughout manufacturing operations. Temperature control systems with leaking valves struggle to maintain precise setpoints, resulting in product variations that may require rework or disposal. Flow control applications suffer reduced accuracy when internal valve leakage creates unintended bypass flows that compromise measurement and control system performance. Quality assurance programs must account for potential valve-related process variations by implementing additional monitoring and testing procedures. Statistical process control systems require adjustment of control limits and detection algorithms when valve leakage introduces systematic errors into process measurements. The documentation requirements for quality management systems increase substantially when valve performance issues affect product specifications or customer requirements. Production scheduling becomes more complex when control valve reliability issues create uncertainty in process timing and capacity utilization. Maintenance windows must be scheduled more frequently to address developing leakage problems before they impact production targets. The integration of predictive maintenance technologies provides advance warning of valve deterioration, enabling proactive scheduling of repairs during planned downtime rather than forcing emergency shutdowns that disrupt production schedules and customer commitments.

Advanced Solutions and Prevention Strategies

​​​​​​​

Modern control valve leakage prevention relies on comprehensive strategies that integrate advanced materials, precision manufacturing, and intelligent monitoring systems. Preventing most control valve leaks comes down to two key factors: regular inspections and specifying the right valve for your process control system. Contemporary valve designs incorporate engineered sealing solutions that significantly outperform traditional approaches, utilizing specialized elastomers, metal-to-metal sealing configurations, and advanced surface treatments optimized for specific process conditions. Predictive maintenance technologies revolutionize control valve management by providing continuous monitoring capabilities that detect developing problems before they manifest as leakage issues. Wireless sensor networks enable remote monitoring of valve performance parameters including stem position, actuator pressure, and acoustic emissions that indicate internal wear patterns. Machine learning algorithms analyze historical performance data to predict optimal maintenance timing and identify valves requiring immediate attention based on operational patterns and degradation trends. Smart valve technologies integrate diagnostic capabilities directly into control valve assemblies, providing real-time feedback on valve health and performance metrics. Digital valve controllers incorporate advanced algorithms that compensate for wear patterns and optimize valve response characteristics throughout the equipment lifecycle. These intelligent systems enable proactive maintenance scheduling and provide early warning indicators of developing problems that could compromise process safety or environmental compliance.

• Material Selection and Design Optimization

Advanced material technologies provide superior resistance to common degradation mechanisms that cause control valve leakage in demanding industrial applications. Engineered polymer sealing materials offer enhanced chemical resistance, temperature stability, and mechanical durability compared to conventional elastomeric compounds. Specialized coatings and surface treatments create protective barriers that resist corrosion, erosion, and wear while maintaining dimensional accuracy and surface finish quality throughout extended service periods. Precision manufacturing techniques enable the production of control valve components with tighter tolerances and superior surface finishes that enhance sealing performance and reduce leakage susceptibility. Computer-controlled machining processes ensure consistent dimensional accuracy across large production quantities while maintaining cost-effectiveness for standard industrial applications. Quality assurance programs incorporate advanced measurement technologies to verify component specifications and ensure compliance with industry standards and customer requirements. Design optimization strategies focus on minimizing stress concentrations and mechanical loading conditions that contribute to premature valve failure and leakage development. Finite element analysis enables engineers to evaluate stress distributions and optimize component geometries for specific operating conditions and service requirements. The integration of advanced simulation tools throughout the design process ensures that new valve designs meet or exceed performance expectations while maintaining manufacturability and cost objectives.

• Intelligent Monitoring and Diagnostics

Contemporary monitoring systems provide unprecedented visibility into control valve performance characteristics through the integration of multiple sensor technologies and data analysis capabilities. Vibration monitoring detects mechanical wear patterns and alignment issues that precede leakage development, enabling proactive maintenance interventions. Temperature monitoring identifies thermal cycling effects and process condition changes that affect valve performance and longevity, providing valuable insights for optimization of operating procedures and maintenance scheduling. Acoustic emission monitoring represents an advanced diagnostic technique that detects microscopic material changes within valve assemblies before they become visible through conventional inspection methods. High-frequency acoustic sensors identify crack formation, wear progression, and seal degradation at the earliest stages of development. The analysis of acoustic signatures provides detailed information about the nature and location of developing problems, enabling targeted maintenance actions that minimize repair costs and downtime requirements. Digital communication protocols enable seamless integration of valve diagnostic data with plant-wide asset management systems, providing comprehensive visibility into equipment health and performance trends. Cloud-based analytics platforms process large volumes of sensor data to identify patterns and correlations that indicate emerging problems across multiple valve installations. The aggregation of performance data from similar applications enables continuous improvement of maintenance strategies and optimization of valve selection criteria for future projects.

CEPAI's Specialized Control Valve Solutions

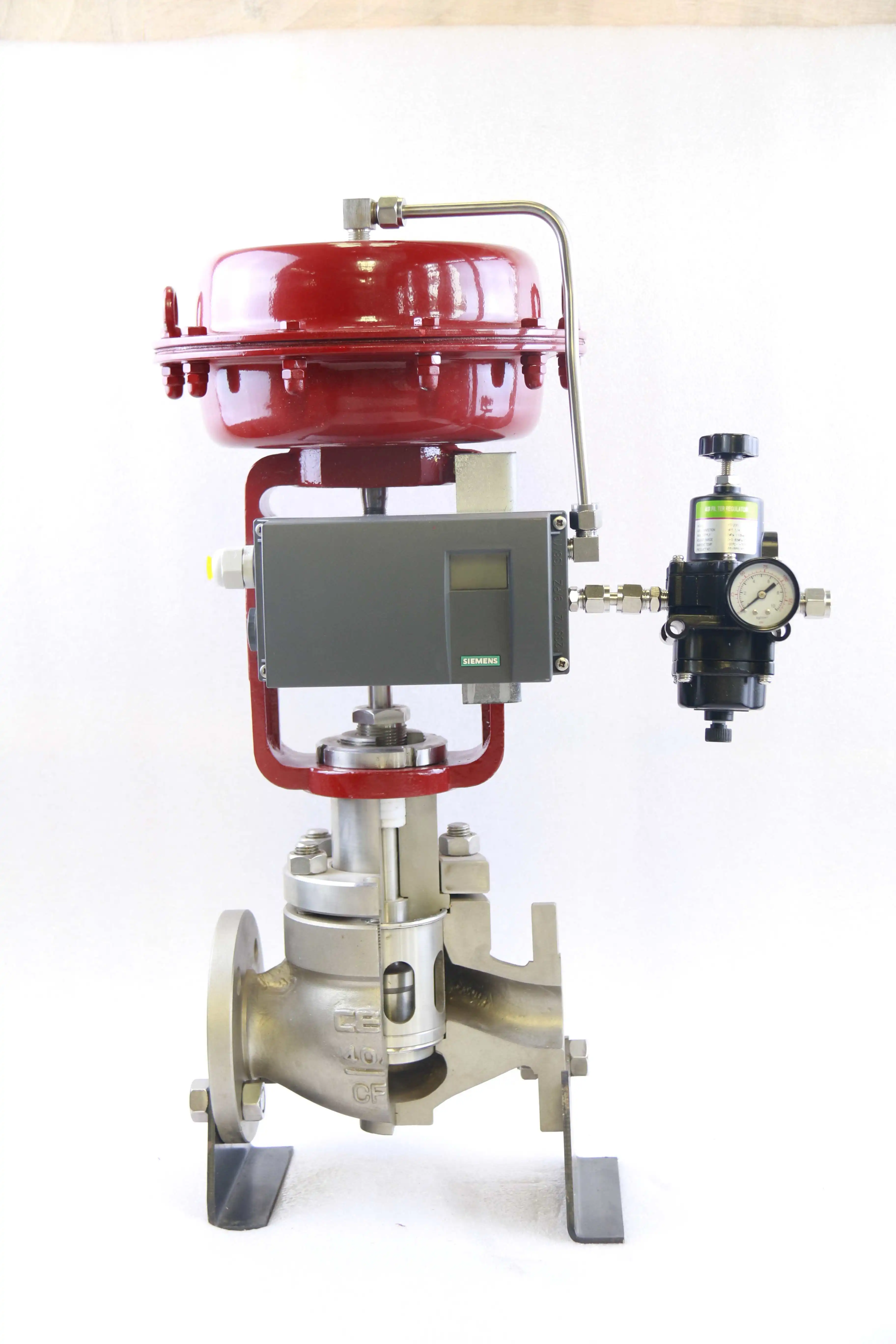

CEPAI Group Co., Ltd. has established itself as a leading manufacturer of high-performance control valve solutions specifically engineered to minimize leakage risks in demanding industrial applications. The company's comprehensive approach to valve design integrates advanced materials, precision manufacturing processes, and rigorous quality control procedures to deliver superior sealing performance throughout extended service lifecycles. With over 15 years of specialized experience in fluid control technology, CEPAI has developed innovative solutions that address the most challenging leakage prevention requirements in oil and gas, petrochemical, and power generation industries. The company's intelligent manufacturing capabilities represent a significant advancement in control valve production technology, incorporating automated precision machining and quality verification systems that ensure consistent dimensional accuracy and surface finish quality. CEPAI's 156 million yuan investment in advanced manufacturing equipment has created the longest high-precision intelligent production line in the Asia-Pacific region, enabling the production of control valves with tolerances that exceed industry standards. This manufacturing excellence directly translates to improved sealing performance and reduced leakage susceptibility in field applications. CEPAI's comprehensive quality management system implements stringent testing protocols that verify sealing performance under simulated operating conditions before shipment to customers. Every control valve undergoes pressure testing, leakage verification, and performance validation according to international standards including API, ISO, and customer-specific requirements. The company's CNAS-accredited laboratory provides independent verification of material properties, dimensional accuracy, and performance characteristics to ensure compliance with the most demanding industrial applications.

• Engineering Excellence in Leak Prevention

Advanced sealing technologies developed by CEPAI's engineering team address the fundamental causes of control valve leakage through innovative design approaches and material selection strategies. The company's control valve portfolio features engineered sealing solutions that maintain integrity under extreme temperature, pressure, and chemical exposure conditions common in industrial processing environments. Specialized trim materials and surface treatments provide enhanced resistance to erosion, corrosion, and mechanical wear that typically lead to premature leakage development. CEPAI's research and development programs continuously advance the state-of-the-art in control valve sealing technology through collaboration with leading universities and research institutions. The company's provincial engineering research centers focus on developing next-generation materials and manufacturing processes that further improve leakage prevention capabilities. These ongoing innovations ensure that CEPAI's control valve solutions remain at the forefront of technological advancement while meeting the evolving requirements of modern industrial applications. The integration of digital technologies into CEPAI's control valve designs enables advanced diagnostic capabilities that provide early warning of developing leakage conditions. Smart valve controllers incorporate predictive algorithms that analyze performance trends and identify optimal maintenance timing to prevent leakage development. These intelligent systems reduce operational costs by enabling proactive maintenance scheduling and extending equipment service life through optimized operating procedures and condition-based maintenance strategies.

• Comprehensive Support and Service Excellence

CEPAI's commitment to customer success extends beyond equipment delivery through comprehensive technical support services that optimize control valve performance throughout the equipment lifecycle. Pre-sales engineering consultation services ensure proper valve selection and sizing for specific process conditions, minimizing the risk of leakage-related problems during operation. Customized engineering solutions address unique application requirements that exceed the capabilities of standard valve configurations, providing optimized performance for challenging industrial processes. Installation and commissioning support services ensure that CEPAI control valves achieve optimal performance from initial startup through extended operational periods. Factory-trained technicians provide on-site assistance with valve installation, calibration, and performance verification to ensure compliance with design specifications and industry standards. Comprehensive documentation packages include detailed installation procedures, maintenance recommendations, and troubleshooting guides that enable efficient operation and maintenance throughout the equipment lifecycle. Remote monitoring and diagnostic services leverage advanced communication technologies to provide continuous oversight of valve performance and early detection of developing problems. Online support capabilities enable CEPAI's technical experts to assist with troubleshooting, optimization, and maintenance planning without requiring on-site visits. This comprehensive support approach minimizes downtime, reduces maintenance costs, and ensures optimal control valve performance throughout extended service periods in demanding industrial applications.

Conclusion

Control valve leakage represents a critical operational challenge that demands comprehensive understanding and proactive management strategies to minimize economic, environmental, and safety impacts on industrial operations. The complex interplay of material degradation, installation factors, and operational stresses requires systematic approaches to prevention, detection, and remediation that integrate advanced technologies with proven maintenance practices.

Cooperate with CEPAI Group Co., LTD.

As a leading China Control Valve manufacturer, CEPAI Group Co., Ltd. offers comprehensive solutions for preventing and addressing control valve leakage issues across diverse industrial applications. Our status as a premier China Control Valve supplier is built upon decades of engineering excellence, advanced manufacturing capabilities, and unwavering commitment to quality that ensures superior leakage prevention performance. When you choose CEPAI as your China Control Valve factory partner, you gain access to innovative technologies, expert technical support, and competitive Control Valve prices that deliver exceptional value for demanding applications.

Our High Quality Control Valve products feature advanced sealing technologies and precision manufacturing that minimize leakage risks while maximizing operational reliability and efficiency. We invite you to explore our extensive Control Valve for sale inventory and discover how our solutions can address your specific leakage prevention requirements. Contact us today at cepai@cepai.com to discuss your control valve needs and experience the CEPAI difference in quality, service, and technical excellence that makes us your preferred China Control Valve wholesale partner for critical industrial applications.

FAQ

Q: What are the most common causes of control valve internal leakage?

A: Internal leakage typically results from worn seating surfaces, damaged trim components, improper valve sizing, or contamination that prevents proper sealing contact between valve components.

Q: How can I detect control valve leakage before it becomes critical?

A: Regular inspection programs, acoustic monitoring, thermal imaging, and performance trend analysis provide early detection capabilities that identify developing leakage before operational impacts occur.

Q: What maintenance practices help prevent control valve leakage?

A: Proper installation procedures, regular packing adjustment, scheduled seal replacement, contamination control, and adherence to manufacturer maintenance recommendations significantly reduce leakage risks.

Q: When should a leaking control valve be repaired versus replaced?

A: Repair is typically cost-effective when leakage results from worn seals or packing, while replacement becomes necessary when valve bodies or internal components show significant wear or damage.
