Control Valve Installation Best Practices You Should Know

Proper installation of control valves is critical for ensuring optimal performance, longevity, and safety in industrial applications. Control valves serve as the final control element in process control systems, regulating fluid flow with precision to maintain desired process conditions. Without correct installation practices, even the highest quality control valves can experience premature failure, reduced efficiency, and compromised safety. This comprehensive guide explores essential best practices for control valve installation that engineers, technicians, and maintenance personnel should know to maximize the performance and lifespan of these crucial components.

Preparation and Planning for Control Valve Installation

Proper preparation before installation is essential for ensuring control valves function efficiently and reliably throughout their service life. This section covers critical pre-installation considerations.

Site Assessment and Environmental Considerations

Before installing control valves, thorough site assessment is imperative for optimal performance and longevity. Environmental factors significantly impact valve functionality, making comprehensive evaluation necessary. Control valves require proper placement in accessible locations with adequate clearance for maintenance and operation while ensuring protection from extreme environmental conditions. Temperature fluctuations can affect internal components, causing thermal expansion or contraction that may lead to leakage or binding. Humidity and corrosive atmospheres demand special attention, potentially necessitating specialized coatings or materials. In outdoor installations, weather protection measures such as covers or enclosures should be employed to shield control valves from direct sunlight, precipitation, and airborne contaminants. Additionally, vibration sources near installation points must be identified and mitigated through isolation mounts or reinforced supports to prevent loosening of components, accelerated wear, and potential calibration issues. A thorough site assessment addressing these factors establishes the foundation for a successful control valve installation that delivers reliable performance throughout its operational life.

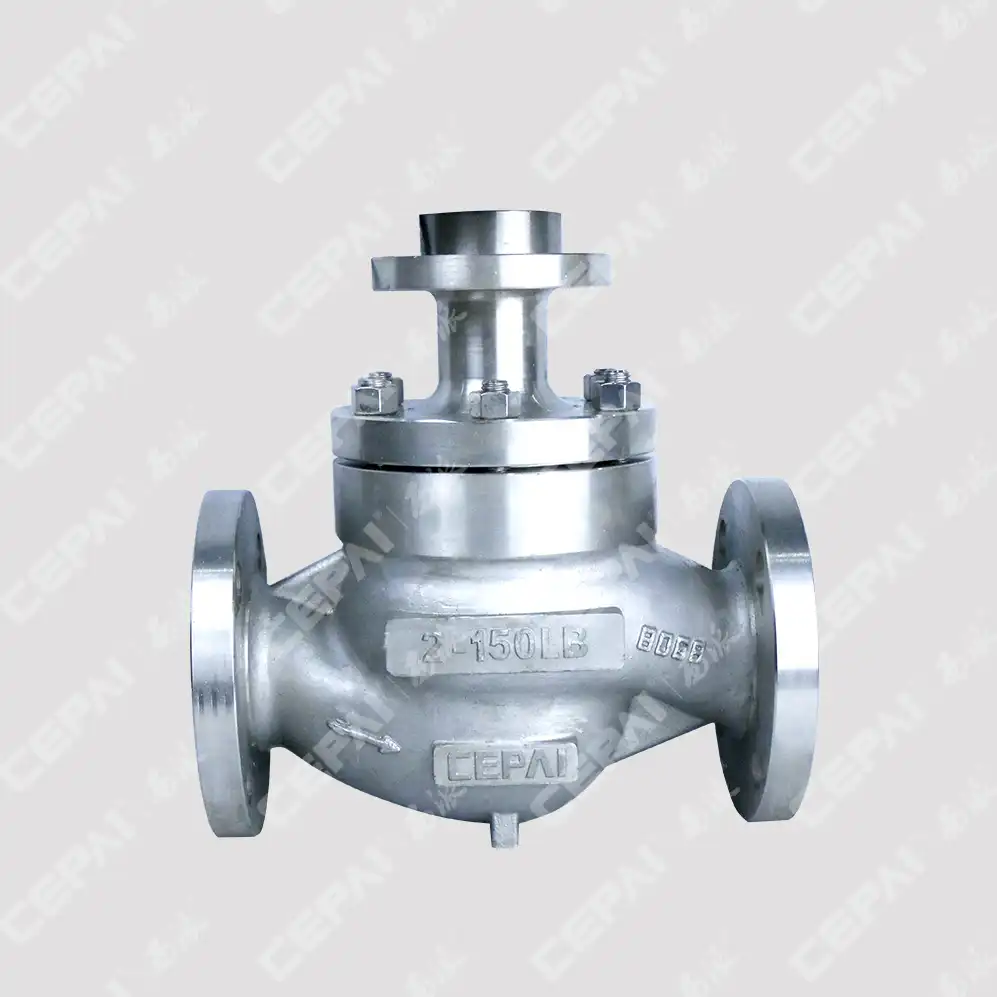

Valve Selection and Verification

Selecting the appropriate control valve for your specific application is fundamental to achieving optimal process control and operational efficiency. The control valve must match the system requirements precisely, considering factors such as flow characteristics, pressure ratings, and material compatibility. Before installation, verify that the valve specifications align with the process conditions, including flow rates, pressure differentials, temperature extremes, and media properties. Control valves come in various types—globe, butterfly, ball, and diaphragm—each designed for specific applications with unique advantages. Review technical documentation thoroughly, confirming all parameters meet your requirements, including valve body material, trim material, actuator type, and control accessories. Additionally, validate that the valve's flow coefficient (Cv) is properly sized for your operating conditions to prevent issues like cavitation, flashing, or noise. Consider future process changes when selecting control valves, allowing for potential increases in flow rates or changes in process conditions. Compatibility with existing control systems is equally important, ensuring the valve's control signals, feedback mechanisms, and communication protocols integrate seamlessly with your automation infrastructure. This verification process is crucial for preventing costly retrofits or replacements due to improper valve selection.

Required Tools and Safety Equipment

Proper preparation with the right tools and safety equipment is essential for efficient and safe control valve installation. Installation requires a comprehensive toolkit including calibrated torque wrenches for precise bolt tightening, alignment tools to ensure proper valve positioning, lifting equipment for safely handling heavy control valves, and specialized gasket installation tools. Precision measuring instruments such as calipers, micrometers, and alignment lasers help verify critical dimensions and ensure proper alignment between the valve and adjacent piping. Safety must remain paramount throughout the installation process. Personal protective equipment including safety glasses, hard hats, gloves, steel-toed boots, and appropriate respiratory protection when necessary provide essential protection against workplace hazards. When working with control valves that may contain pressurized fluids or hazardous substances, specialized equipment like pressure release tools and chemical-resistant clothing becomes necessary. For installations in confined spaces or at heights, additional safety equipment such as harnesses, gas detectors, and breathing apparatus may be required. Electrical safety tools including voltage testers and insulated tools are essential when dealing with electric actuators or instrumentation. Having the correct tools not only facilitates professional installation but significantly reduces the risk of damage to the control valves or injury to personnel during the installation process.

Installation Process Best Practices

Following a systematic approach during the actual installation ensures control valves perform optimally and reliably.

Proper Alignment and Orientation

Achieving proper alignment and orientation of control valves is perhaps the most critical aspect of the installation process, directly affecting performance and service life. Control valves must be installed with precise alignment to prevent uneven stress distribution that can lead to premature component wear, leakage at connection points, and increased maintenance requirements. When installing control valves, technicians must ensure the valve body is perfectly aligned with the piping system, using alignment jigs or laser alignment tools to verify perpendicularity and concentricity. The orientation of control valves must follow manufacturer specifications, particularly regarding flow direction, which is typically indicated by arrows on the valve body. Installing a valve against the intended flow direction can severely compromise performance and potentially cause catastrophic failure. Additionally, proper orientation ensures that actuators and accessories remain accessible for maintenance and adjustments. For control valves with positioners or other electronic components, orientation affects protection from environmental factors and ease of calibration. Many control valves have specific installation position requirements—horizontal, vertical, or at defined angles—that must be strictly followed to ensure proper functioning of internal components such as diaphragms, pistons, or plugs. Careful attention to alignment and orientation during installation prevents issues like binding, increased friction, excessive wear, and uneven loading, ultimately extending the service life of control valves while maintaining optimal performance.

Piping Connections and Support Systems

Establishing proper piping connections and robust support systems is fundamental to maintaining the integrity and performance of control valves in industrial applications. When connecting control valves to piping systems, technicians must ensure that pipe ends are clean, properly prepared, and meet the required specifications for the connection type—whether flanged, welded, or threaded. For flanged connections, proper gasket selection and installation is critical, with gasket material compatible with the process media and operating conditions. Bolts must be tightened in a cross-pattern sequence using calibrated torque wrenches to ensure even compression and prevent leakage. Control valves often represent significant weight in piping systems, necessitating adequate support structures to prevent pipe stress and valve distortion. Support systems should be designed to bear the combined weight of the valve, actuator, and associated instrumentation while accommodating thermal expansion and contraction. The installation of expansion joints or flexible connectors near control valves may be necessary in systems subjected to temperature fluctuations or vibration. Additionally, technicians should ensure that piping is properly aligned before valve installation to prevent transmission of pipe stress to the valve body, which can cause deformation and affect valve performance. For larger control valves, independent support structures may be required to isolate the valve weight from the piping system, preventing sagging that could compromise alignment and seal integrity. Proper implementation of these connection and support practices ensures that control valves maintain their designed performance characteristics throughout their operational lifespan.

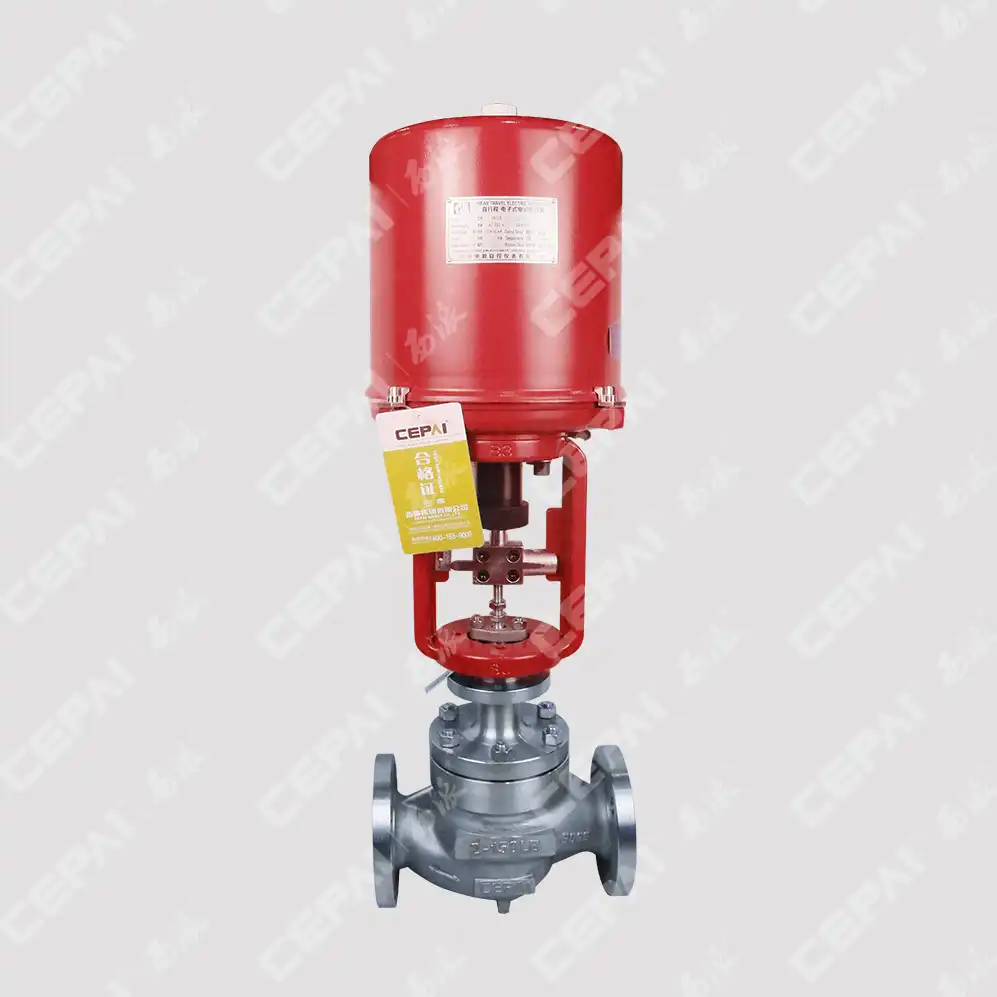

Electrical and Pneumatic Connections

The proper implementation of electrical and pneumatic connections is vital for ensuring reliable operation of automated control valves in industrial systems. When installing pneumatic connections for control valves, technicians must verify the air supply meets manufacturer specifications for pressure, flow capacity, and cleanliness. Undersized or contaminated air supplies can cause erratic valve operation, poor positioning accuracy, and accelerated wear of pneumatic components. Air lines should be installed with appropriate slope and drains to prevent condensate accumulation, particularly in outdoor or humid environments where moisture can freeze or corrode internal valve components. Control valves with electronic components require careful attention to electrical connections, including proper wire sizing, routing, and protection. Cables should be secured to prevent strain on terminals and protected from physical damage, heat sources, and electromagnetic interference that could corrupt control signals. Proper grounding and shielding techniques must be implemented to protect sensitive electronic components from electrical noise and potential voltage spikes. When installing control valves in hazardous locations, electrical connections must comply with relevant explosion-proof or intrinsically safe requirements, using appropriately rated enclosures, seals, and cable glands. Signal wiring should be separated from power wiring to prevent signal interference, and junction boxes should include appropriate strain relief and environmental sealing. For networked control valves using digital communication protocols such as HART, Foundation Fieldbus, or Profibus, proper termination and addressing are essential for reliable network operation. Thorough testing of electrical and pneumatic connections before commissioning helps identify potential issues and ensures control valves respond accurately to control signals during operation.

Post-Installation Testing and Maintenance

After installation, proper testing and ongoing maintenance are essential for ensuring reliable control valve performance over time.

Initial Testing and Commissioning

Thorough testing and commissioning after control valve installation are essential steps that validate proper functionality before integrating valves into operational systems. The commissioning process begins with comprehensive visual inspection to verify correct installation, orientation, and freedom from visible defects or transportation damage. Technicians should then perform leak testing using appropriate methods such as bubble testing, pressure decay testing, or hydrostatic testing depending on the application and system requirements. Control valves must be stroke tested through their entire range of motion to ensure smooth, consistent movement without binding or excessive friction. This testing reveals potential installation issues that might otherwise remain undetected until operational problems arise. For automated control valves, signal testing verifies proper communication between the control system and valve positioner, confirming accurate response to input signals. Step response tests evaluate how quickly and accurately control valves reach commanded positions, a critical parameter for process control stability. Control valves with positioners should undergo calibration verification to ensure precise positioning throughout the valve's operating range. Additionally, fail-safe functionality testing confirms that valves respond correctly during power or instrument air failures, moving to their designated safe position. Positioner tuning may be necessary to optimize control valve performance for specific process conditions, balancing response speed with stability requirements. Comprehensive documentation of all testing results establishes a performance baseline for future reference during routine maintenance or troubleshooting activities.

Regular Maintenance Procedures

Implementing structured maintenance procedures is fundamental to extending the service life and maintaining the performance of control valves in industrial applications. Routine inspection should be conducted at scheduled intervals to identify early signs of wear, leakage, or performance degradation before they develop into costly failures. During these inspections, technicians should examine control valves for external leakage around stems, flanges, and gaskets, while checking for unusual noise, vibration, or erratic movement that might indicate internal issues. Control valves require periodic lubrication of moving parts according to manufacturer specifications, using lubricants compatible with both the valve components and process conditions. This prevents increased friction, binding, and accelerated wear of critical components such as stems, guides, and bearings. Calibration verification should be performed regularly on control valves with positioners or smart instrumentation to ensure accurate response to control signals and maintain precise process control. Over time, changes in friction, packing compression, or component wear can affect calibration accuracy, necessitating adjustment or recalibration. Packing maintenance is particularly important for control valves, as it prevents process fluid leakage while balancing friction requirements. Technicians should inspect packing for compression set, hardening, or extrusion, adjusting or replacing as necessary to maintain effective sealing without excessive stem friction. Documentation of all maintenance activities, including observations, measurements, and adjustments, provides valuable historical data for trend analysis and predictive maintenance planning. This documentation helps identify recurring issues, optimize maintenance intervals, and inform future replacement decisions for control valves approaching the end of their service life.

Troubleshooting Common Issues

Effectively troubleshooting common control valve issues requires systematic diagnostic approaches and understanding of potential failure modes. Hunting or oscillation in control valves often indicates tuning issues in the positioner or control loop, requiring careful analysis of controller settings, process conditions, and valve response characteristics. Technicians should check for mechanical issues causing stiction, oversized actuators, or undersized valves that can contribute to unstable control. Leakage problems, whether through the valve seat or external connections, demand thorough investigation to identify root causes such as wear, misalignment, improper gasket installation, or damaged seating surfaces. Control valves exhibiting high cycle times may suffer from air supply restrictions, actuator sizing issues, or increased friction in packing or guides. Systematic testing of the instrument air system, actuator force output, and valve internal components helps isolate the specific cause. When control valves fail to respond to control signals, technicians should methodically verify the control signal integrity, check positioner functionality, and examine mechanical connections between the actuator and valve stem. Signal-to-position testing can reveal issues with input signal quality, positioner response, or mechanical limitations. Excessive noise or vibration during control valve operation often indicates flow-related issues such as cavitation, flashing, or turbulence, requiring evaluation of process conditions against valve design limitations. In some cases, modifications to upstream or downstream piping, changes in process conditions, or valve trim redesign may be necessary to address these issues. For each troubleshooting scenario, systematic documentation of observations, measurements, and resolution steps creates valuable reference material for addressing similar issues in the future, ultimately improving maintenance efficiency and control valve reliability.

Conclusion

Implementing these control valve installation best practices ensures optimal performance, extended service life, and enhanced process control in industrial applications. Proper planning, precise installation techniques, and regular maintenance create a foundation for reliable operation that minimizes downtime and maintenance costs. CEPAI Group's control valves, engineered with exceptional durability and high-precision control performance, represent the culmination of significant R&D investment and innovation, protected by numerous patents and technological barriers.

Are you facing challenges with your control valve applications? CEPAI offers comprehensive solutions including pre-sales technical consultation, customized solutions, professional installation, debugging and training services, and ongoing maintenance support. Our ISO-certified quality management system ensures the highest standards in every valve we produce, with rigorous testing from raw materials to finished products. Experience the difference that industry-leading control valve technology can make in your operations. Contact us today at cepai@cepai.com to discuss how our expertise can optimize your control systems.
