Comparison Between Pneumatic and Electric Control Valves: Which Is Better for Automation

In today's rapidly evolving industrial automation landscape, selecting the right control valve technology is crucial for optimizing system performance, reducing operational costs, and ensuring reliable process control. The choice between pneumatic and electric control valves represents one of the most significant decisions engineers face when designing automated systems. This comprehensive comparison examines the key differences, advantages, and applications of both technologies to help you make an informed decision. Electric valve actuators are suitable for applications that require precision, feedback, and digital control, such as modulating valves or complex systems. In contrast, pneumatic valve actuators are better for applications that require speed, torque, and safety, such as on-off valves or harsh environments. Understanding these fundamental differences enables engineers to select the optimal Electric Control Valve solution that aligns with their specific automation requirements, operational constraints, and long-term strategic objectives.

Performance Characteristics and Technical Specifications

Precision and Control Accuracy

Electric Control Valve systems deliver exceptional precision in modern automation applications, making them the preferred choice for processes requiring tight control tolerances. These valves utilize sophisticated electronic actuators with position feedback mechanisms, enabling precise positioning with accuracy levels typically within ±0.1% of full scale. The digital control interface allows for seamless integration with programmable logic controllers (PLCs) and distributed control systems (DCS), providing real-time monitoring and adjustment capabilities. Advanced Electric Control Valve designs incorporate smart positioners with microprocessor-based controllers that continuously monitor valve position, detect potential issues, and optimize performance automatically. This level of precision is particularly valuable in pharmaceutical manufacturing, semiconductor production, and chemical processing where even minor variations can impact product quality or safety. Electric actuators are known for their high levels of precision while pneumatic actuators are considered less expensive and easier to maintain. The superior accuracy of Electric Control Valve technology also enables better compliance with stringent industry regulations and quality standards.

Speed and Response Time

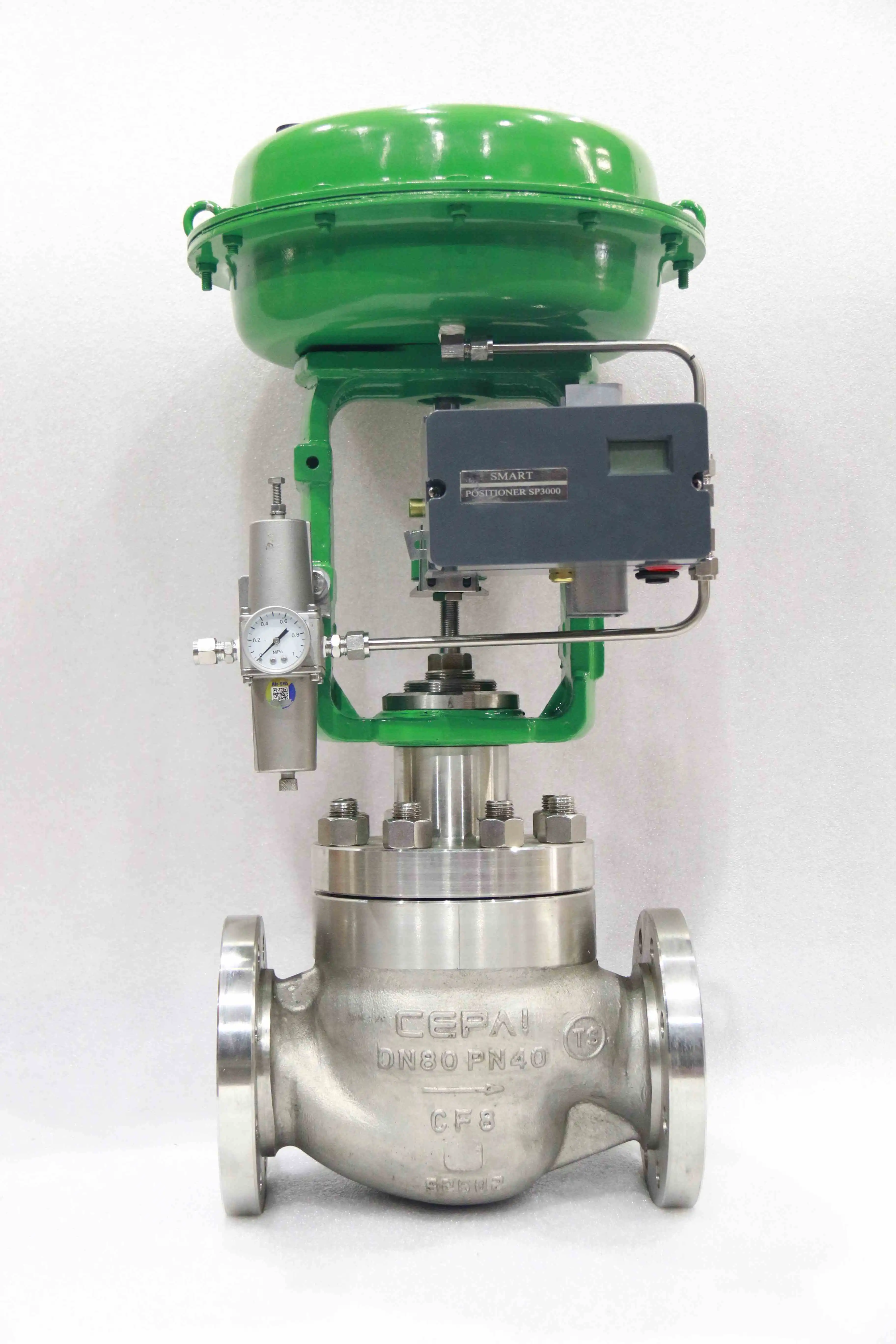

Pneumatic Control Valve systems demonstrate superior response characteristics in applications requiring rapid actuation and high-speed operation. Pneumatic Control Valve features fast actuation speeds due to the quick expansion and contraction of air, and pneumatic controls are faster and give a quick response to the operator in comparison to the Motorized Control valve. The compressed air medium enables instantaneous valve movement, with typical response times ranging from 0.1 to 1.0 seconds depending on valve size and air pressure availability. This rapid response capability makes Pneumatic Control Valve technology ideal for emergency shutdown systems, safety relief applications, and processes requiring frequent cycling. However, Electric Control Valve systems have made significant improvements in response time through advanced motor technologies and optimized gear reduction systems. Modern electric actuators can achieve response times of 2-5 seconds for most applications, which is acceptable for many process control scenarios. The trade-off between speed and precision often determines the optimal choice, with Pneumatic Control Valve systems excelling in speed-critical applications and Electric Control Valve systems providing superior accuracy for precise control requirements.

Force and Torque Output

The force and torque characteristics of control valve actuators significantly impact their suitability for different applications and valve sizes. Pneumatic actuators typically provide high force and speed in a smaller footprint depending on available air pressure supply than electric actuators. Pneumatic Control Valve systems can generate substantial torque output, particularly beneficial for large valve applications or high-pressure differential conditions. The force multiplication achieved through pneumatic cylinders or diaphragms allows these systems to operate valves that would require significantly larger electric motors. Conversely, Electric Control Valve generally provides lower torque compared to pneumatic valves, though modern designs can offer enhanced performance with appropriate gear systems. Electric Control Valve technology compensates for lower inherent torque through precision gear reduction systems and servo motor designs that deliver consistent performance across varying load conditions. The constant torque characteristics of electric actuators provide more predictable operation compared to pneumatic systems, which may experience torque variations due to air pressure fluctuations. This consistency makes Electric Control Valve systems particularly suitable for applications requiring stable, repeatable performance over extended operating periods.

Cost Analysis and Economic Considerations

Initial Investment and Equipment Costs

The initial capital investment for control valve systems varies significantly between pneumatic and electric technologies, with multiple factors influencing the total cost of ownership. Pneumatic Control Valve systems typically require lower upfront equipment costs, as basic pneumatic actuators are generally less expensive than comparable electric units. However, the total system cost must include compressed air infrastructure, including compressors, air treatment equipment, distribution piping, and backup systems. Pneumatic valves are less expensive and easier to install, making them attractive for applications with existing compressed air infrastructure. Electric Control Valve systems require higher initial investment for the actuators themselves, along with electrical infrastructure including power supplies, control cables, and junction boxes. Despite higher equipment costs, Electric Control Valve technology often provides better long-term value through reduced energy consumption, lower maintenance requirements, and improved process efficiency. The absence of compressed air requirements eliminates ongoing compressor operating costs and reduces overall system complexity. Modern Electric Control Valve designs also offer modular construction and standardized interfaces that can reduce installation time and costs.

Operating Expenses and Energy Efficiency

Long-term operating costs represent a critical factor in control valve selection, with energy efficiency playing an increasingly important role in industrial sustainability initiatives. Pneumatic Control Valve systems consume energy continuously through compressed air generation, even when valves are in static positions. Typical compressed air systems operate at 15-20% efficiency, meaning significant energy waste in air production and distribution. Electric Control Valve technology operates with much higher energy efficiency, consuming power only during valve movement and maintaining position without continuous energy input. This fundamental difference can result in substantial cost savings over the valve's operational lifetime, particularly in applications with frequent positioning requirements. Additionally, Electric Control Valve systems eliminate compressed air leakage costs, which can represent 20-30% of total compressed air consumption in typical industrial facilities. The precise control capabilities of Electric Control Valve technology also contribute to process optimization, reducing waste and improving overall system efficiency. Energy monitoring and optimization features available in modern Electric Control Valve systems provide valuable data for continuous improvement initiatives.

Maintenance Requirements and Lifecycle Costs

Maintenance considerations significantly impact the total cost of ownership for control valve systems throughout their operational lifecycle. Pneumatic Control Valve systems require regular maintenance of compressed air components, including filter replacement, moisture removal, and air line inspections. The presence of moving parts in pneumatic cylinders and diaphragms necessitates periodic seal replacement and lubrication. However, pneumatic actuators are considered less expensive and easier to maintain. Electric Control Valve systems typically require less frequent maintenance due to fewer wearing components and the absence of compressed air system dependencies. Modern electric actuators utilize sealed bearing systems and brushless motor technologies that extend maintenance intervals significantly. The diagnostic capabilities inherent in Electric Control Valve systems enable predictive maintenance strategies, allowing operators to identify potential issues before failure occurs. This proactive approach reduces unplanned downtime and extends equipment life. Pneumatic Control Valve maintenance can often be performed by general maintenance personnel, while Electric Control Valve systems may require specialized electrical technicians for certain procedures. The overall maintenance cost advantage depends on facility capabilities, existing infrastructure, and the specific application requirements.

Application Suitability and Industry Implementation

Process Industry Applications

The petrochemical and oil and gas industries represent primary markets for both Pneumatic Control Valve and Electric Control Valve technologies, with application-specific requirements driving technology selection. Pneumatic Control Valve systems excel in hazardous environments where explosion-proof electric equipment would be prohibitively expensive or technically challenging to implement. The inherent safety characteristics of pneumatic systems, combined with fail-safe operation capabilities, make them ideal for emergency shutdown applications and safety instrumented systems. Electric Control Valve technology provides superior performance in applications requiring precise flow control, such as catalyst injection systems, additive metering, and product blending operations. The integration capabilities of Electric Control Valve systems with modern distributed control systems enable advanced control strategies including cascade control, feedforward compensation, and adaptive tuning. Many refineries and chemical plants utilize hybrid approaches, employing Pneumatic Control Valve systems for safety-critical applications and Electric Control Valve technology for precision process control. The selection often depends on the specific process requirements, safety classifications, and existing infrastructure capabilities within each facility.

​​​​​​​

Manufacturing and Industrial Automation

Modern manufacturing environments increasingly demand flexible, responsive control systems that can adapt to changing production requirements and quality specifications. Electric Control Valve technology provides significant advantages in these applications through its inherent compatibility with Industry 4.0 initiatives and smart manufacturing concepts. The digital communication capabilities of Electric Control Valve systems enable real-time data exchange with manufacturing execution systems (MES) and enterprise resource planning (ERP) systems, facilitating advanced analytics and optimization strategies. Pneumatic Control Valve systems remain valuable in manufacturing applications requiring high-speed operation, such as packaging machinery, material handling systems, and assembly line automation. The rapid cycling capability of Pneumatic Control Valve technology makes it well-suited for applications with frequent start-stop operations or emergency stop requirements. Electric Control Valve systems excel in applications requiring precise positioning, such as coating thickness control, mixing ratio adjustment, and quality control sampling. The ability to program complex motion profiles and implement advanced control algorithms makes Electric Control Valve technology particularly valuable in automated manufacturing processes where consistency and repeatability are paramount.

Water Treatment and Environmental Systems

Water and wastewater treatment facilities present unique challenges for control valve selection, with factors including corrosive environments, variable flow conditions, and stringent environmental regulations influencing technology choice. Electric Control Valve systems provide excellent performance in water treatment applications through their ability to maintain precise positioning under varying pressure conditions and their compatibility with advanced control strategies. The digital interface capabilities of Electric Control Valve technology enable integration with supervisory control and data acquisition (SCADA) systems, facilitating remote monitoring and automated optimization of treatment processes. Pneumatic Control Valve systems offer advantages in applications where rapid response is critical, such as emergency discharge systems or flood control operations. The robust construction typical of Pneumatic Control Valve designs provides reliable operation in harsh outdoor environments with temperature extremes and moisture exposure. Electric Control Valve technology excels in applications requiring precise chemical dosing, pH control, and effluent quality management where accuracy directly impacts compliance with environmental regulations. The energy efficiency advantages of Electric Control Valve systems also align with sustainability objectives common in modern water treatment facilities, contributing to reduced operational costs and environmental impact.

Conclusion

The selection between Pneumatic Control Valve and Electric Control Valve technologies ultimately depends on specific application requirements, existing infrastructure, and long-term operational objectives. Electric valves offer high precision and automation but are more expensive. Pneumatic valves provide fast response times and are suitable for hazardous environments but can be less efficient and noisier. Each technology offers distinct advantages that make them optimal for different scenarios, and many facilities benefit from utilizing both technologies strategically throughout their operations.
