Compact Pneumatic Sleeve Control Valve: A Buyer’s Guide

A Compact Pneumatic Sleeve Control Valve: A Buyer’s Guide is beneficial for engineers, procurement teams, EPC contractors, and plant operators who require precise flow control in a confined installation area. Small Pneumatic Sleeve Control Valve: The combination of sleeve-guided throttling, pneumatic actuation, and small valve construction enables the automated control of flow, pressure, temperature, or liquid level. This guide talks about the considerations of design, performance, supplier capability, and purchasing requirements before placing an order based on CEPAI’s pneumatic control valve product information and manufacturing experience in regulating valves, pipeline valves, wellhead devices, instruments, and oil and gas equipment.

What Buyers Should Know First

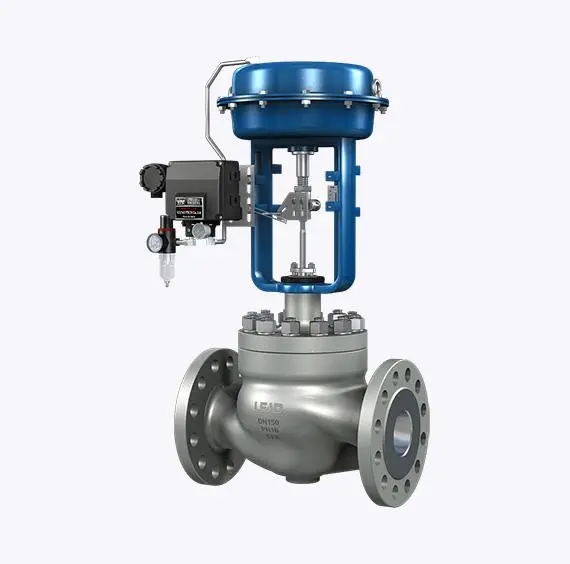

What Is a Compact Pneumatic Sleeve Control Valve?

A Compact Pneumatic Sleeve-Managed Valve is an automated regulating valve used to manage process media by moving a plug relative to a sleeve-type trim. The sleeve has constructed flow channels, and the pneumatic actuator turns compressed air into mechanical motion. As the plug position varies, the flow area accessible changes. This allows the valve to control flow, rather than just open or stop a line. CEPAI CEPAI’s pneumatic control valve product information refers to this kind of valve in its industrial regulating valve line for automated process applications. The small construction is particularly advantageous for purchasers where equipment layout, actuator clearance, pipe density, and modular installation space are essential selection criteria.

Why Compact Design Matters in Industrial Projects

A Compact Pneumatic Sleeve Control Valve is often selected when a project requires dependable control performance but has limited space around the pipeline or skid. Compact design can be valuable in modular process systems, pipeline stations, chemical injection packages, metering skids, and crowded plant areas. Buyers should not treat “compact” as only a dimensional advantage; it also affects installation convenience, actuator orientation, maintenance access, and piping arrangement. CEPAI’s related pneumatic control valve information suggests a complete valve assembly with body, sleeve trim, pneumatic actuator, and accessories. Before purchasing, users should request general arrangement drawings, face-to-face dimensions, actuator height, connection details, and required service clearance to avoid installation conflicts.

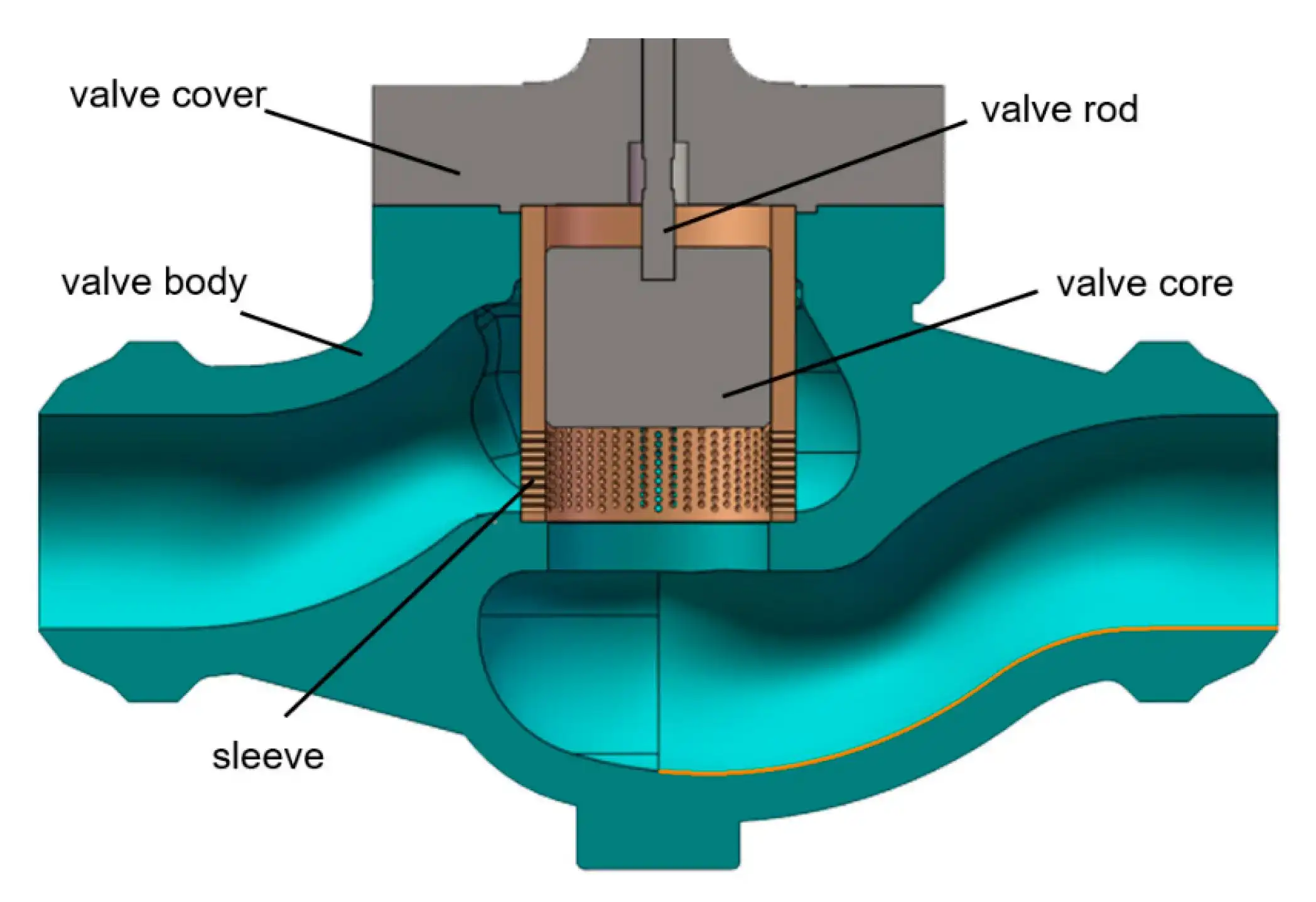

How Sleeve Trim Supports Control Accuracy

A Compact Pneumatic Sleeve Control Valve uses sleeve trim to guide the flow path and improve control behavior. The sleeve helps define how process media passes through the valve as the plug moves. Depending on the trim design, the valve can support different flow characteristics, capacity ranges, and pressure-drop requirements. This makes it useful for continuous control loops where stable regulation is more important than manual adjustment. CEPAI’s pneumatic control valve product information should be reviewed together with actual process conditions, including flow rate, inlet pressure, outlet pressure, temperature, and medium properties. Buyers should ask for CV or KV sizing, trim description, material selection, actuator thrust confirmation, and recommended accessories.

Buyer Checkpoint	What to Confirm	Why It Matters
Valve size	Cv/Kv, pipe size, flow range	Ensures correct regulation capacity
Compact dimensions	Face-to-face, actuator height, clearance	Prevents installation problems
Sleeve trim	Flow characteristic, material, trim type	Supports stable control performance
Pneumatic actuator	Thrust, travel, fail action	Ensures reliable movement
Accessories	Positioner, regulator, solenoid, switches	Matches automation requirements
Documentation	Drawings, certificates, test reports	Supports project approval

Key Performance Factors Before Buying

Flow Capacity and Control Range

A Compact Pneumatic Sleeve Control Valve should be selected according to actual process data, not just nominal pipe diameter. Buyers need to provide minimum, normal, and maximum flow rates, inlet pressure, outlet pressure, pressure drop, operating temperature, density, viscosity, and medium state. These data allow the manufacturer to calculate Cv or Kv and recommend the right valve size and sleeve trim. CEPAI’s pneumatic control valve product information provides a product foundation, but final sizing must be based on real operating conditions. A well-sized valve should operate within a practical travel range during normal service, helping the control loop respond smoothly and reducing unnecessary field adjustment during commissioning.

Pressure, Temperature, and Material Compatibility

A Compact Pneumatic Sleeve Control Valve must match the pressure class, temperature range, and chemical properties of the process medium. Buyers should confirm the valve body material, bonnet material, sleeve material, plug material, stem material, seat material, packing, gasket, and bolting requirements. Carbon steel, stainless steel, alloy steel, or special materials may be selected depending on corrosion, temperature, and project standards. CEPAI manufactures valves for oil and gas and broader industrial applications, so material review is an important part of the selection process. Buyers should also specify flange standard, end connection type, pressure rating, painting system, and material traceability requirements before approving the final technical datasheet.

Pneumatic Actuator and Positioner Selection

A Compact Pneumatic Sleeve Control Valve depends heavily on correct actuator and positioner selection. The pneumatic actuator must provide enough thrust to move the plug under maximum differential pressure while maintaining the required fail action. A positioner improves accuracy by comparing the desired valve position with the actual travel and adjusting actuator air pressure accordingly. Buyers may select pneumatic, electro-pneumatic, or smart positioners based on plant automation requirements. CEPAI’s experience in regulating valves and instruments is relevant because a control valve should be purchased as a complete automated package. Important details include air supply pressure, signal type, hazardous-area classification, enclosure rating, manual override needs, and accessory preferences.

Common Industrial Applications

Oil and Gas Production and Pipeline Control

A Compact Pneumatic Sleeve Control Valve can be used in oil and gas production systems, pipeline stations, wellhead-related process lines, separation units, injection systems, and utility control loops. CEPAI is mainly engaged in the research, development, and manufacturing of wellhead devices, pipeline valves, wellhead valves, regulating valves, instruments, and meters for oil and gas drilling and production. This background is relevant for buyers who need valves suitable for demanding energy-sector conditions. In oil and gas projects, users usually focus on pressure rating, material compatibility, actuator reliability, test reports, and certification documents. Compact valve design may be especially useful in skid-mounted packages and space-limited field installations.

Petrochemical, Chemical, and Power Systems

​​​​​​​

A Compact Pneumatic Sleeve Control Valve is also suitable for petrochemical, chemical, and power generation facilities that require automated regulation of process fluids and utility services. In petrochemical and chemical plants, it may regulate feedstock, solvents, steam, fuel gas, cooling water, additives, or reaction-related streams. In power plants, it may support auxiliary steam, condensate, fuel gas, cooling circuits, and water systems. CEPAI’s pneumatic control valve product information and broader valve manufacturing background align with these industrial requirements. Buyers should define medium corrosiveness, operating pressure, flow range, temperature, leakage class, actuator action, and control signal. Accurate early information helps the selected valve integrate smoothly with plant automation.

Metallurgy and Water Treatment Applications

A Compact Pneumatic Sleeve Control Valve can support metallurgy and water treatment systems where stable control improves continuous operation. Metallurgy facilities may use it for cooling water, process gas, additives, and utility lines. Water treatment plants may apply it in flow distribution, filtration control, chemical dosing, and pressure management. CEPAI’s downstream industry background includes petrochemical, power, metallurgy, and water treatment, which matches many practical use cases. In these applications, the compact structure can help fit equipment into control stations, modular packages, or limited-space service corridors. Buyers should clarify fluid cleanliness, solids content, required flow accuracy, maintenance access, material selection, actuator response, and documentation needs before placing an order.

Industry	Typical Use	Main Buying Focus
Oil and gas	Pipeline and production flow regulation	Pressure rating, certificates, actuator force
Petrochemical	Feedstock, steam, gas, cooling water	Material compatibility, leakage class
Chemical	Dosing, solvents, utility control	Corrosion resistance and precise control
Power	Cooling, steam auxiliary, fuel gas	Temperature, response, documentation
Metallurgy	Cooling water, gas, additives	Rugged structure and stable operation
Water treatment	Flow distribution, dosing, pressure control	Compact layout and maintenance access

Why CEPAI Is Worth Considering

Manufacturing Scale and Company Background

A Compact Pneumatic Sleeve Control Valve requires precise machining, stable assembly, actuator matching, and strict inspection. CEPAI Group Co., LTD. was established in January 2009 and is located at 333 Jianshe West Road, Jinhu Economic Development Zone, Jiangsu Province. The company has a registered capital of 200 million yuan and a total plant area of about 56,000 square meters. CEPAI is recognized as a national high-tech enterprise, a national specialized and special new “small giant” enterprise, a Jiangsu Smart Factory, a Jiangsu Internet benchmarking factory, and a winner of the Mayor Quality Award. For buyers, this manufacturing background supports confidence in production consistency, technical communication, and project-based valve supply.

Certifications and Testing Support

A Compact Pneumatic Sleeve Control Valve is often purchased for projects where quality certificates, inspection records, and supplier qualifications matter. CEPAI has obtained API Q1, API 6A, API 6D, API 16C, API 602, ISO 9001, ISO 14001, ISO 45001, ISO 3834, ISO 17025, CE, PR2, and other management system and product-related certificates within its broader manufacturing framework. Buyers should confirm which certifications apply to the exact valve order, but this qualification background supports procurement approval and technical review. CEPAI also has a CNAS nationally recognized laboratory, strengthening inspection and testing capability. Recommended documents include drawings, material certificates, pressure test reports, leakage test reports, actuator data, and manuals.

Engineering Platforms and Industry Experience

A Compact Pneumatic Sleeve Control Valve performs best when the supplier can support application review, sizing, trim selection, actuator configuration, and documentation planning. CEPAI has a Jiangsu Province-certified enterprise Technology Center, Fluid Control Engineering Technology Research Center, Industrial Design Center, High-Performance Fluid Control Device Engineering Research Center, Postdoctoral Innovation Practice Base, and CNAS-recognized laboratory. CEPAI has also obtained supplier qualifications with PetroChina, Sinopec, and CNOOC, and serves markets connected with China Datang Group, China Chemical Engineering, Baowu Group, China Huaneng, Wanhua Chemical, Yulong Petrochemical, and China Power Construction. This experience is useful for buyers seeking project-specific valve solutions rather than generic equipment.

Practical Buying Checklist

Prepare a Complete Technical Datasheet

A Compact Pneumatic Sleeve Control Valve should be quoted only after the buyer provides a complete technical datasheet. Essential information includes medium name, fluid state, minimum flow, normal flow, maximum flow, inlet pressure, outlet pressure, pressure drop, temperature, density, viscosity, vapor pressure where applicable, pipe size, pressure class, connection standard, installation position, control objective, and leakage requirement. These details allow CEPAI or another qualified manufacturer to calculate capacity, select sleeve trim, confirm actuator thrust, and propose suitable materials. A complete datasheet also reduces repeated clarification during quotation and production. For EPC and industrial projects, clear data can shorten technical approval and make commissioning more predictable.

Review Inspection, Documentation, and Spare Parts

A Compact Pneumatic Sleeve Control Valve should be purchased with a clear inspection and documentation package. Buyers should request dimensional inspection, material verification, hydrostatic shell testing, seat leakage testing, actuator functional testing, positioner calibration, painting inspection, and final visual inspection as required. Documentation may include general arrangement drawings, sectional drawings if needed, datasheets, material certificates, pressure and leakage test reports, actuator manuals, positioner manuals, calibration records, and recommended spare-parts lists. CEPAI integrates research, production, sales, and service, which supports communication after delivery. Spare parts such as packing, gaskets, plugs, sleeves, seats, actuator seals, and positioner components should be identified early for maintenance planning.

Compare Total Value, Not Only Price

A Compact Pneumatic Sleeve Control Valve should be evaluated by lifecycle value, not only by the lowest purchase price. Important value factors include correct sizing, material traceability, actuator margin, positioner compatibility, accessory quality, factory testing, documentation completeness, packing quality, delivery reliability, warranty terms, and after-sales support. A valve that is well matched to the process can save time during installation and commissioning. CEPAI’s high-tech enterprise background, smart factory recognition, quality systems, engineering resources, and industrial application experience can support buyers who need dependable project execution. When comparing quotations, ask each supplier to state what is included: valve body, actuator, positioner, accessories, testing, certificates, manuals, and spare parts.

Conclusion

A Compact Pneumatic Sleeve Control Valve is a strong choice for automated flow regulation where space efficiency, stable control, pneumatic actuation, and project-ready documentation are important. Buyers should focus on process data, Cv/Kv sizing, sleeve trim, material compatibility, actuator selection, accessories, inspection, and supplier capability. CEPAI’s pneumatic control valve product information, manufacturing scale, certifications, engineering platforms, CNAS-recognized laboratory, and industry experience make it a practical supplier for oil and gas, petrochemical, chemical, power, metallurgy, and water treatment projects. A complete datasheet is the best starting point.

FAQ

Q1: What is a Compact Pneumatic Sleeve Control Valve used for?

It is used for automated flow, pressure, temperature, or level regulation in industrial systems.

Q2: Why choose a compact valve design?

It helps save installation space in skids, modular units, and crowded plant areas.

Q3: What data is needed for sizing?

Flow, pressure, temperature, medium properties, pipe size, and control requirements are needed.

Q4: Can it work with a smart positioner?

Yes. It can be configured with pneumatic, electro-pneumatic, or smart digital positioners.

Q5: Why consider CEPAI for this valve?

CEPAI offers valve manufacturing experience, certifications, testing resources, engineering support, and project documentation.
