Best Practices for Choosing Pneumatic Valves for High Temperature Applications

Selecting the appropriate pneumatic high temperature control valve for demanding industrial applications requires careful consideration of multiple technical and operational factors. In high-temperature environments, traditional valve components face accelerated wear, thermal expansion challenges, and potential material degradation that can compromise system performance and safety. The success of any high-temperature process operation depends on implementing proven best practices that address material compatibility, actuator sizing, sealing technology, and long-term reliability requirements. Understanding these critical selection criteria enables engineers to specify pneumatic high temperature control valve systems that deliver consistent performance while minimizing maintenance costs and operational downtime in challenging thermal environments.

Key Technical Specifications for High-Temperature Pneumatic Valve Selection

Material Compatibility and Temperature Ratings

Material selection forms the foundation of reliable pneumatic high temperature control valve performance in elevated temperature applications. For temperatures below -20°F (-29°C), stainless steel or nickel alloys are recommended, while high-pressure steam applications with pressure differentials exceeding 200 psi require chrome-molybdenum alloys. The valve body material must demonstrate adequate tensile strength, creep resistance, and thermal stability at operating temperatures while maintaining dimensional stability throughout thermal cycling operations. Stainless steel grades such as 316L and 321 offer excellent corrosion resistance and thermal stability for pneumatic high temperature control valve applications up to 1200°F (649°C). These materials provide superior oxidation resistance compared to carbon steel alternatives while maintaining mechanical properties at elevated temperatures. Specialized superalloys including Inconel 625 and Hastelloy C-276 enable operation in extreme temperature environments exceeding 1500°F (816°C) where standard stainless steels would experience significant strength reduction. The selection process must also consider the coefficient of thermal expansion differences between valve components to prevent binding or excessive clearances during temperature fluctuations. Material selection for pneumatic control valve components directly impacts service life, maintenance requirements, and operational reliability, requiring careful evaluation of process temperature, pressure, and corrosive conditions while maintaining structural integrity. Advanced ceramic materials and specialized metal matrix composites are increasingly utilized in pneumatic high temperature control valve designs for applications involving severe thermal shock or aggressive chemical environments. These materials offer exceptional thermal conductivity properties and reduced thermal expansion coefficients that enhance valve performance stability across wide temperature ranges.

Actuator Sizing and Performance Considerations

Proper actuator sizing becomes increasingly critical in high-temperature pneumatic high temperature control valve applications due to reduced actuator output force at elevated temperatures and potential changes in valve stem friction characteristics. Experts generally recommend oversizing pneumatic valves by at least 25% to account for various losses in pneumatic systems, with additional safety margins required for high-temperature applications where air density and actuator spring characteristics may be affected. High-temperature environments typically require specialized actuator designs incorporating heat shields, extended bonnets, or cooling fins to protect pneumatic components from thermal damage. The actuator diaphragm materials must demonstrate compatibility with elevated temperatures while maintaining elasticity and pressure response characteristics throughout the operating temperature range. Advanced fluoroelastomer and perfluoroelastomer diaphragm materials enable reliable operation at temperatures up to 400°F (204°C) for standard pneumatic actuators, while specialized high-temperature actuator designs can accommodate process temperatures exceeding 800°F (427°C). Spring selection within pneumatic high temperature control valve actuators requires careful consideration of temperature effects on spring rate and potential stress relaxation phenomena. High-temperature spring materials such as Inconel X-750 or specialized cobalt-based alloys maintain consistent performance characteristics at elevated temperatures while resisting oxidation and creep deformation. The actuator control air supply system must also incorporate appropriate filtration and conditioning equipment to prevent contamination that could compromise valve response characteristics in high-temperature service conditions.

Sealing Technology and Leak Prevention Strategies

​​​​​​​

Hard seat safety valves represent an excellent choice for high-temperature applications and corrosive environments, while soft seat designs using elastomer materials are not suitable for applications involving extremely high temperatures. The sealing technology selection for pneumatic high temperature control valve applications must balance leak-tight performance requirements against the thermal limitations of available sealing materials and potential thermal cycling effects. Metal-to-metal sealing systems utilizing stellite or tungsten carbide facing materials provide superior leak-tight performance in pneumatic high temperature control valve applications where elastomeric seals would experience thermal degradation. These hard-faced sealing surfaces can withstand process temperatures exceeding 1000°F (538°C) while maintaining Class IV or Class V leakage performance standards throughout extended service periods. Advanced surface treatments including plasma spraying and laser cladding techniques enable customized sealing surface properties optimized for specific high-temperature application requirements. Secondary sealing systems including bellows assemblies, lantern rings, and live-loading arrangements enhance pneumatic high temperature control valve reliability in challenging thermal environments. Metallic bellows fabricated from specialized alloys provide stem sealing without reliance on elastomeric components while accommodating thermal expansion movements. The integration of graphite or expanded PTFE packing materials with appropriate load distribution systems ensures reliable stem sealing performance throughout thermal cycling operations while minimizing maintenance requirements in high-temperature pneumatic valve applications.

Application-Specific Design Requirements and Industry Standards

Power Generation and Steam Service Applications

Power generation facilities represent one of the most demanding application environments for pneumatic high temperature control valve systems, particularly in steam turbine bypass, feedwater control, and condensate management applications. These systems typically operate at temperatures ranging from 400°F to 1050°F (204°C to 566°C) with pressures up to 4500 psi, requiring specialized valve designs that can accommodate severe service conditions while maintaining precise flow control capabilities. The unique challenges of steam service applications include potential flashing and cavitation phenomena that can cause rapid valve trim erosion and noise generation. Pneumatic high temperature control valve designs for steam service incorporate specialized trim geometries including multi-stage pressure reduction, tortuous flow paths, and velocity control features that minimize cavitation effects while providing stable control characteristics. Advanced computational fluid dynamics modeling enables optimization of internal valve geometry to reduce turbulence and pressure drop across the valve trim components. Steam service pneumatic high temperature control valve applications also require consideration of thermal shock resistance due to rapid temperature changes during startup and shutdown operations. Specialized valve body designs incorporating thermal sleeves, integral heat barriers, and controlled expansion joints accommodate thermal stress while maintaining structural integrity throughout cyclic operation. The actuator mounting systems must provide adequate thermal isolation to protect pneumatic components from radiant heat transfer while ensuring reliable valve positioning response under all operating conditions.

Petrochemical Processing and Refinery Applications

Petrochemical and refinery operations utilize pneumatic high temperature control valve systems in critical process control applications including reactor temperature control, distillation column management, and thermal cracking processes. These applications typically involve corrosive hydrocarbon streams at temperatures up to 1200°F (649°C) with potential for hydrogen sulfide, naphthenic acid, and other aggressive chemical species that can accelerate material degradation processes. The selection of pneumatic high temperature control valve systems for refinery applications requires extensive material compatibility testing and certification to ensure long-term reliability in specific process environments. Specialized corrosion-resistant alloys including duplex stainless steels, super duplex alloys, and nickel-based superalloys provide enhanced resistance to sulfidation, carburization, and hydrogen attack phenomena commonly encountered in high-temperature hydrocarbon processing applications. Fire-safe design requirements significantly influence pneumatic high temperature control valve selection for petrochemical applications, necessitating compliance with API 607 and ISO 10497 fire test standards. These specifications require valve assemblies to maintain leak-tight integrity and operational capability during exposure to 1800°F (982°C) flame conditions for specified test durations. The integration of metal-seated sealing systems, graphite-based secondary seals, and specialized fire-safe actuator designs ensures continued valve functionality during emergency fire exposure scenarios.

Chemical Manufacturing and Specialty Process Industries

Chemical manufacturing operations present unique challenges for pneumatic high temperature control valve selection due to the wide variety of process chemistries, temperature profiles, and purity requirements encountered across different production processes. Pharmaceutical, specialty chemical, and fine chemical manufacturing applications often require pneumatic high temperature control valve systems that can accommodate frequent product changeovers while maintaining stringent contamination control standards. High-purity chemical processes demand pneumatic high temperature control valve designs that minimize dead spaces, surface contamination potential, and material compatibility issues with reactive chemical species. Electropolished internal surfaces, special cleaning procedures, and material traceability documentation ensure compliance with cGMP requirements and product quality specifications. The valve trim materials must demonstrate chemical inertness while maintaining mechanical properties at elevated process temperatures. Batch processing operations in chemical manufacturing require pneumatic high temperature control valve systems capable of rapid response and precise positioning control throughout wide temperature and pressure ranges. Advanced positioner technology incorporating digital communication capabilities enables integration with distributed control systems while providing comprehensive valve diagnostics and predictive maintenance capabilities. These features become particularly important in high-temperature applications where traditional monitoring methods may be limited by harsh environmental conditions.

Technology Comparison and Advanced Control Integration

Pneumatic vs. Electric Actuator Performance Analysis

For high-pressure applications, pneumatic or electric temperature control valves are recommended to ensure the selected valve is rated for the pressure range of the system. The comparison between pneumatic and electric actuator technologies for pneumatic high temperature control valve applications involves multiple performance factors including response speed, positioning accuracy, environmental compatibility, and maintenance requirements under elevated temperature conditions. Pneumatic actuators offer inherent advantages in high-temperature environments including simple construction, reliable fail-safe operation, and immunity to electromagnetic interference that may affect electronic control systems. The air supply requirements for pneumatic high temperature control valve systems can be readily conditioned and filtered to remove contaminants while providing cooling benefits for actuator components exposed to elevated process temperatures. However, pneumatic actuators may experience reduced output force at higher temperatures due to air density changes and potential effects on diaphragm elasticity. Electric actuators provide superior positioning accuracy and control resolution for pneumatic high temperature control valve applications requiring precise flow modulation capabilities. Advanced electric actuator designs incorporate temperature compensation algorithms and specialized motor cooling systems that maintain performance characteristics throughout wide temperature ranges. The integration capabilities with digital control systems enable sophisticated control strategies including adaptive tuning, predictive maintenance, and remote diagnostics that enhance overall system reliability and performance optimization.

Smart Valve Technology and Digitalization Benefits

Modern pneumatic high temperature control valve systems increasingly incorporate smart valve technology that provides enhanced diagnostic capabilities, predictive maintenance features, and optimized performance characteristics through advanced control algorithms. Digital valve controllers and smart positioners enable real-time monitoring of valve performance parameters including stem position, actuator air pressure, valve response time, and internal temperature measurements that provide valuable insights into valve condition and performance trends. The implementation of wireless communication technologies in pneumatic high temperature control valve systems eliminates the need for extensive wiring installations in high-temperature environments while providing secure data transmission capabilities. Advanced diagnostics algorithms can detect early signs of valve degradation including seal leakage, actuator performance changes, and potential mechanical binding conditions that may develop due to thermal cycling effects or process contamination. Predictive maintenance capabilities enabled by smart valve technology significantly reduce unplanned downtime and maintenance costs in pneumatic high temperature control valve applications. Machine learning algorithms analyze historical performance data to identify patterns and trends that indicate potential failure modes before they result in valve malfunction. This approach enables planned maintenance activities during scheduled outages while optimizing valve replacement strategies based on actual condition assessment rather than fixed time intervals.

Integration with Process Control Systems and Safety Functions

Advanced process control integration for pneumatic high temperature control valve systems requires consideration of both normal operating control requirements and emergency shutdown functionality under high-temperature conditions. The valve control systems must maintain reliable communication and response characteristics throughout the complete operating temperature range while providing failsafe operation during power loss or control system failure scenarios. Safety instrumented system (SIS) integration becomes particularly critical for pneumatic high temperature control valve applications in hazardous process environments where rapid valve closure may be required to prevent equipment damage or personnel injury. The valve response time requirements for safety applications must account for potential temperature effects on actuator performance while ensuring compliance with SIL (Safety Integrity Level) requirements specified for the application. Modern distributed control system (DCS) integration capabilities enable sophisticated control strategies for pneumatic high temperature control valve systems including cascade control, feedforward compensation, and adaptive tuning algorithms that optimize valve performance under varying process conditions. The availability of comprehensive valve diagnostics data within the control system database enables operators to monitor valve health status and performance trends while implementing predictive maintenance strategies that maximize equipment reliability and minimize operational costs.

Conclusion

The selection of pneumatic high temperature control valve systems requires a comprehensive understanding of material science, actuator technology, sealing solutions, and application-specific requirements to ensure reliable long-term performance in demanding thermal environments. Success depends on careful evaluation of material compatibility, proper actuator sizing with appropriate safety margins, and implementation of proven sealing technologies that can withstand thermal cycling and potential process chemistry effects. Modern smart valve technology and advanced control integration capabilities provide additional benefits through enhanced diagnostics, predictive maintenance, and optimized performance characteristics that justify investment in premium valve solutions.

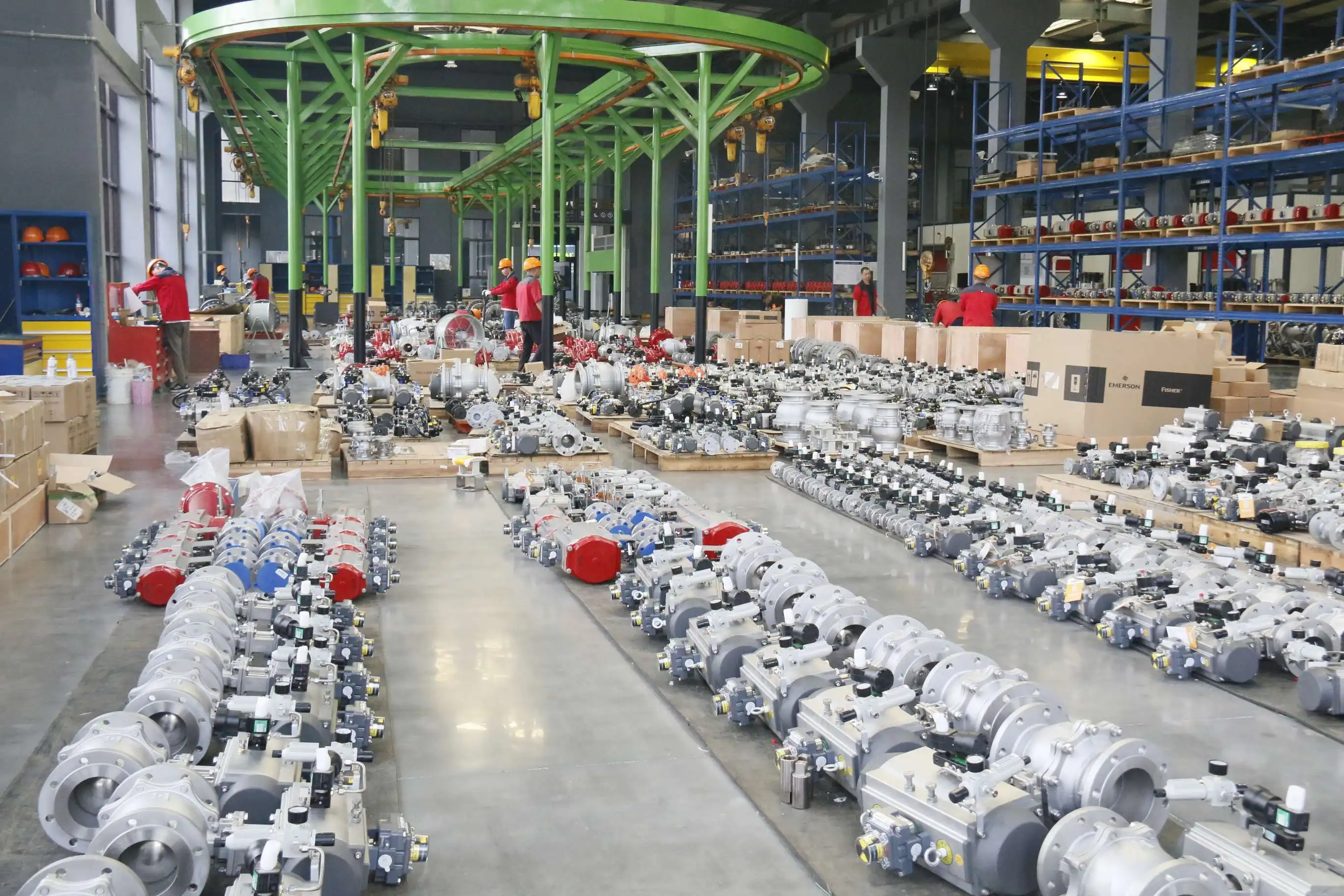

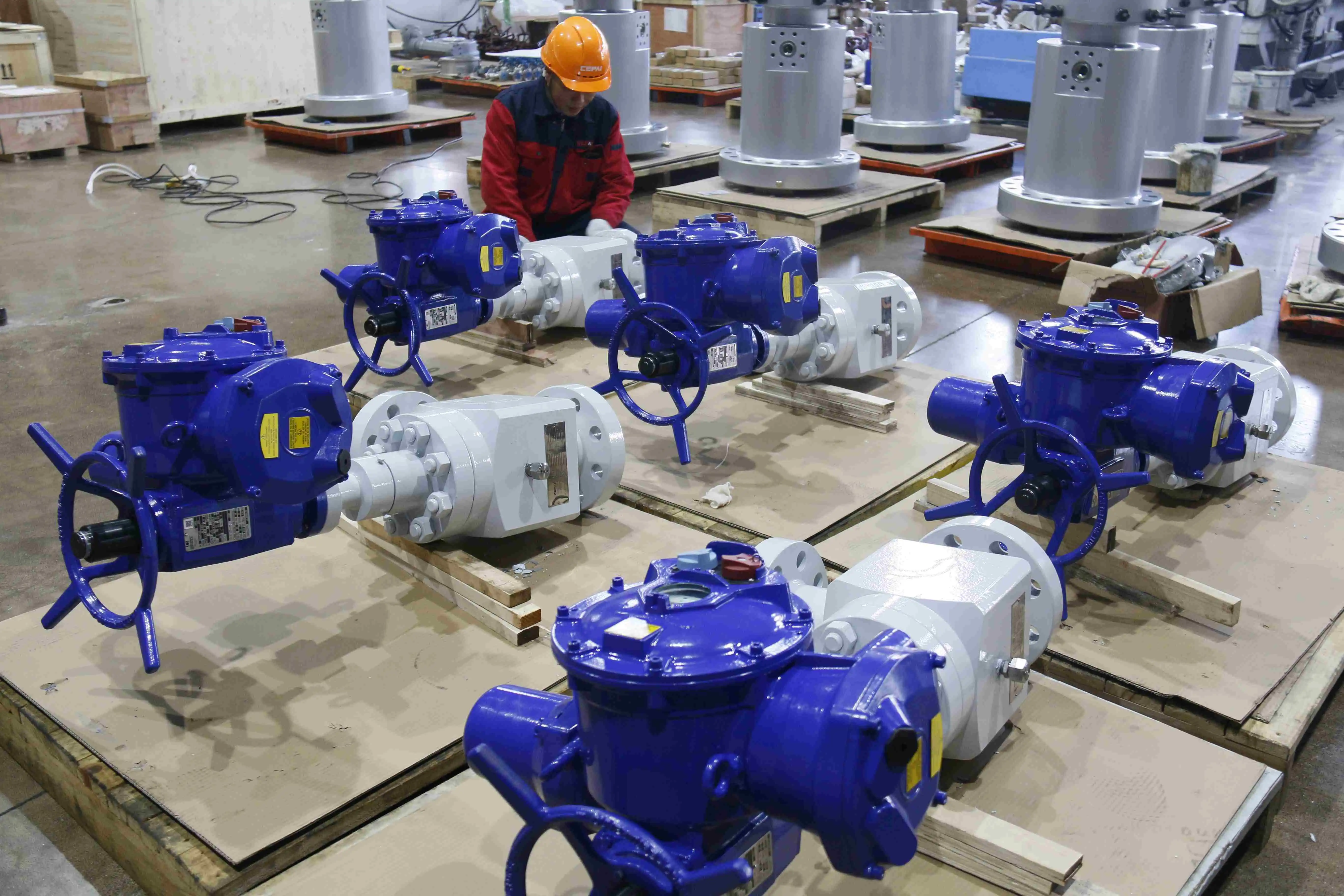

CEPAI Group Co., Ltd. stands at the forefront of pneumatic high temperature control valve technology, combining decades of specialized experience with cutting-edge manufacturing capabilities to deliver world-class valve solutions for demanding industrial applications. As a China pneumatic high temperature control valve manufacturer with extensive certifications including API, ISO, and CE standards, CEPAI provides comprehensive technical expertise from initial specification through long-term service support. Our state-of-the-art intelligent manufacturing facility, recognized as a Jiangsu Smart Factory and Internet benchmarking facility, produces premium pneumatic high temperature control valve systems that meet the most stringent quality requirements.

Whether you need a China pneumatic high temperature control valve supplier for standard applications or require custom-engineered solutions as a China pneumatic high temperature control valve wholesale partner, CEPAI's technical team provides unparalleled support throughout the selection and implementation process. Our extensive product range includes pneumatic high temperature control valve for sale options that address diverse industry requirements while our competitive pneumatic high temperature control valve price structures ensure optimal value for your investment. Contact our technical specialists at cepai@cepai.com to discuss your specific application requirements and discover how CEPAI's pneumatic high temperature control valve solutions can enhance your process reliability and performance.
