Beginner’s Guide to Choosing the Right Pneumatic Control Valve for Your Process

Selecting the appropriate Pneumatic Control Valve for your industrial process can significantly impact operational efficiency, safety, and cost-effectiveness. Whether you're managing petrochemical operations, power generation facilities, or water treatment systems, understanding the fundamentals of pneumatic control valve selection is crucial for optimal system performance. This comprehensive guide will walk you through essential considerations, from basic valve principles to advanced selection criteria, ensuring you make informed decisions that align with your specific process requirements and operational goals.

Understanding Pneumatic Control Valve Fundamentals

Basic Operating Principles and Components

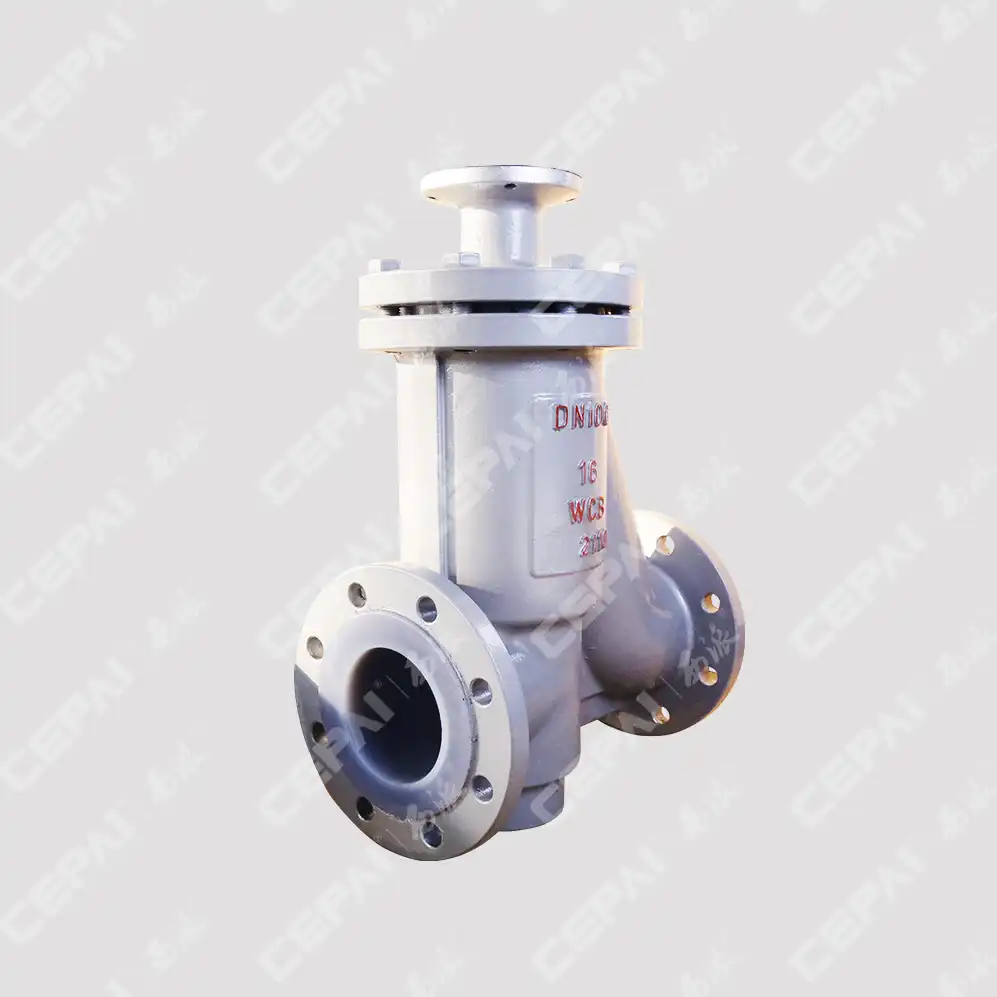

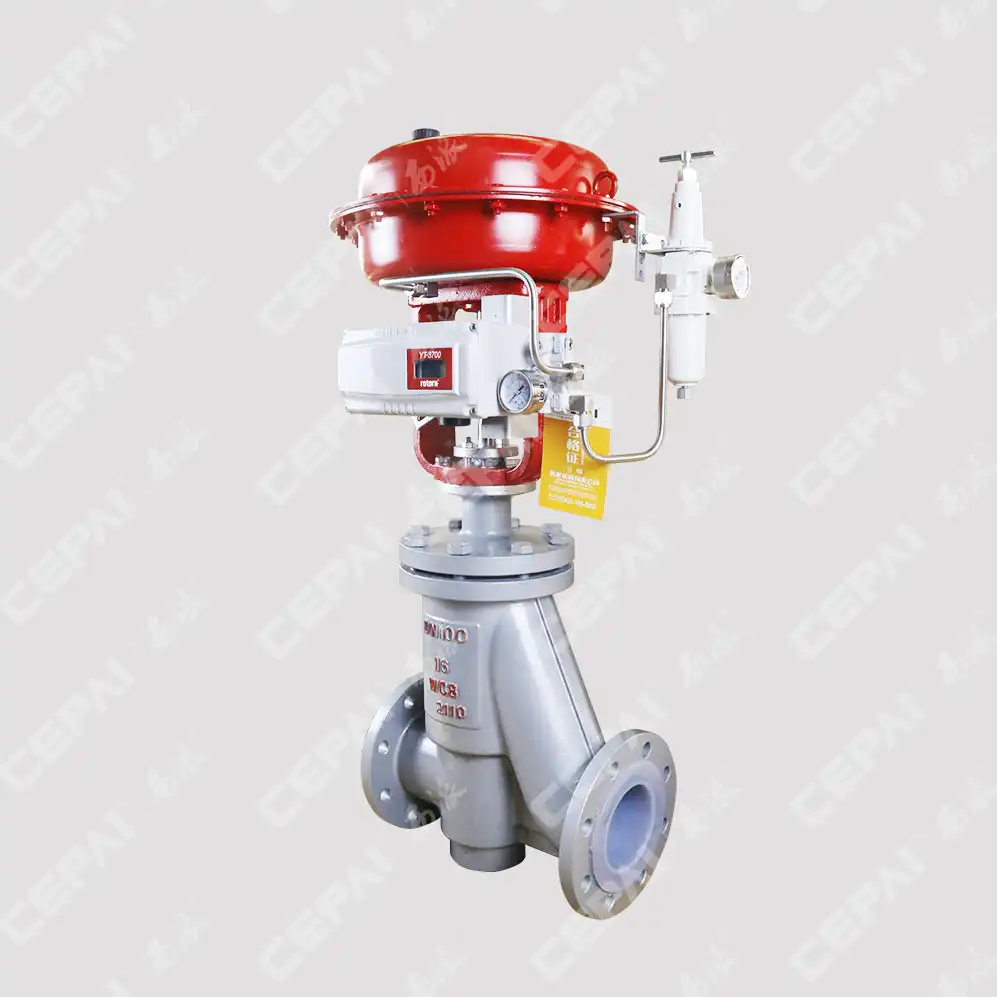

A Pneumatic Control Valve operates through compressed air signals that control the valve's actuator, which in turn regulates fluid flow through the valve body. The fundamental components include the valve body, actuator, positioner, and control accessories. The valve body houses the internal trim components such as the plug, seat, and cage, which directly control flow characteristics. The pneumatic actuator converts air pressure signals into mechanical motion, typically ranging from 3-15 psi or 4-20 mA signals. Understanding these basic principles is essential because the interaction between these components determines the valve's control accuracy, response time, and overall performance in your specific application. The actuator design varies significantly based on application requirements. Spring-return actuators provide fail-safe operation by returning to a predetermined position upon air supply failure, making them ideal for critical safety applications. Double-acting actuators offer higher thrust capabilities and precise positioning control, suitable for high-pressure applications or where exact flow control is paramount. The positioner, often overlooked by beginners, plays a crucial role in ensuring accurate valve positioning by comparing the control signal with actual valve position and adjusting air pressure accordingly. This feedback mechanism is particularly important in applications requiring precise flow control or when dealing with variable process conditions.

Flow Characteristics and Valve Sizing

Flow characteristics define how the flow rate changes relative to valve opening percentage, and selecting the appropriate characteristic is fundamental to achieving desired control performance. Linear flow characteristics provide equal flow changes for equal changes in valve opening, ideal for applications where pressure drop across the Pneumatic Control Valve remains relatively constant. Equal percentage characteristics offer small flow changes at low openings and larger changes at high openings, making them suitable for applications with variable pressure drops or where tight control at low flows is required. Quick opening characteristics provide maximum flow change at the beginning of valve travel, typically used in on-off applications rather than precise control scenarios. Proper valve sizing ensures optimal control performance and prevents issues such as cavitation, noise, or insufficient flow capacity. The valve sizing process involves calculating the required flow coefficient (Cv) based on maximum flow requirements, pressure conditions, and fluid properties. Oversized valves operate at low openings where control sensitivity is poor and hunting may occur, while undersized valves cannot provide sufficient flow capacity and may experience excessive pressure drop. Modern sizing calculations must consider factors such as Reynolds number effects, piping geometry factors, and potential choked flow conditions. Advanced sizing software and consultation with valve manufacturers help ensure accurate sizing for complex applications involving non-standard fluids or extreme operating conditions.

Material Selection and Construction Standards

Material selection for Pneumatic Control Valve components directly impacts service life, maintenance requirements, and operational reliability. The valve body material must withstand process temperature, pressure, and corrosive conditions while maintaining structural integrity. Carbon steel suits general-purpose applications with non-corrosive fluids, while stainless steel grades like 316L provide excellent corrosion resistance for chemical processing applications. Exotic alloys such as Hastelloy or Inconel may be necessary for highly corrosive or high-temperature applications, though these significantly increase initial costs and should be specified only when standard materials are inadequate. Internal trim materials require even more careful consideration as they experience direct contact with process fluids and high-velocity flow conditions. Hardened stainless steel trims provide good erosion resistance for clean fluids, while tungsten carbide or ceramic coatings offer superior performance in erosive or high-temperature applications. Seat materials must balance sealing performance with durability, with soft seats providing tight shut-off but limited temperature capability, while metal seats offer higher temperature capability but potentially higher leakage rates. Construction standards such as ASME, API, and IEC ensure valve design meets industry requirements for pressure ratings, dimensional compliance, and performance testing protocols.

Process Requirements and Application Analysis

Operating Conditions Assessment

Thorough assessment of operating conditions forms the foundation for successful Pneumatic Control Valve selection. Process temperature ranges significantly impact material selection, actuator sizing, and accessory requirements. High-temperature applications may require extended bonnets to protect actuator components, special packing materials, or cooling systems to maintain reliable operation. Low-temperature services present challenges including material brittleness, condensation in air lines, and reduced actuator response times. Temperature cycling applications require materials and designs that accommodate thermal expansion and contraction without compromising sealing or mechanical integrity. Pressure conditions influence valve body design, actuator sizing, and safety considerations. High-pressure applications require heavy-duty valve construction, high-thrust actuators, and careful attention to bolting and gasket specifications. Vacuum applications present unique challenges including actuator sizing for negative pressure conditions and potential outgassing from internal components. Pressure drop calculations must consider not only normal operating conditions but also startup, shutdown, and emergency scenarios where conditions may differ significantly from steady-state operation. Dynamic pressure conditions, such as those encountered in reciprocating compressor applications, require special valve designs and actuator configurations to handle rapid pressure fluctuations.

Fluid Properties and Compatibility

Fluid properties profoundly impact Pneumatic Control Valve performance and longevity. Corrosive fluids require careful material selection and may necessitate special coatings or linings to prevent degradation. Abrasive fluids cause erosion of internal trim components, requiring hardened materials or special geometries to minimize wear. Multi-phase fluids present complex flow patterns that affect valve sizing and may cause vibration or cavitation issues. Understanding fluid compatibility extends beyond basic corrosion resistance to include considerations such as polymer swelling, metal embrittlement, and catalytic reactions that may occur at valve component interfaces. Viscosity significantly affects valve performance, with high-viscosity fluids requiring different sizing calculations and potentially larger actuators to overcome increased flow resistance. Temperature-dependent viscosity changes must be considered across the entire operating range. Non-Newtonian fluids exhibit viscosity changes with shear rate, complicating flow predictions and requiring specialized expertise for proper valve selection. Gas applications involve compressibility effects that impact flow calculations and may require consideration of sonic velocity limitations. Steam applications combine high temperature with phase change potential, requiring specialized valve designs and careful attention to condensate handling and thermal shock prevention.

Control System Integration Requirements

Modern Pneumatic Control Valve applications require seamless integration with distributed control systems (DCS) or programmable logic controllers (PLC). Signal compatibility is fundamental, with most systems utilizing 4-20 mA current signals or digital communication protocols such as HART, Foundation Fieldbus, or Profibus. Digital communication protocols offer advantages including diagnostic capability, remote configuration, and improved signal integrity, though they require compatible control system infrastructure and may increase initial costs. Understanding your control system's capabilities and limitations helps determine appropriate valve accessories and communication requirements. Response time requirements vary significantly across applications, from fast-acting safety shutdown valves requiring sub-second response to level control applications where slower response may be acceptable or even desirable. Actuator sizing must balance response time requirements with available air supply capacity and system stability considerations. Control loop tuning depends heavily on valve characteristics, and mismatched valve response can lead to oscillation, poor control performance, or system instability. Advanced positioners offer tunable response characteristics and diagnostic capabilities that can optimize control performance and provide early warning of potential problems.

Selection Criteria and Best Practices

Performance Specifications and Standards

Establishing clear performance specifications ensures the selected Pneumatic Control Valve meets application requirements and provides reliable long-term service. Flow capacity specifications must include not only normal operating requirements but also emergency flows, startup conditions, and future expansion possibilities. Control accuracy requirements depend on process criticality, with some applications requiring ±1% control accuracy while others may accept ±5% or greater. Leakage specifications become critical in safety applications or where product loss is costly, with options ranging from ANSI Class II to Class VI shut-off capabilities. Response time specifications must consider both opening and closing times, as these may differ significantly depending on actuator design and air supply configuration. Repeatability specifications ensure consistent valve positioning over multiple cycles, critical for batch processes or applications requiring precise recipe control. Environmental specifications including vibration resistance, electromagnetic compatibility, and seismic qualifications may be mandatory for certain applications. Compliance with industry standards such as API, ANSI, IEC, or specific end-user standards ensures compatibility and provides confidence in valve performance and reliability.

​​​​​​​

Safety and Reliability Considerations

Safety considerations are paramount in Pneumatic Control Valve selection, particularly in applications involving hazardous fluids or critical processes. Fail-safe operation requirements determine actuator type and spring configuration, with fail-open, fail-closed, or fail-in-place options available depending on process safety requirements. Emergency shutdown (ESD) applications may require redundant actuators, quick-acting positioners, or special valve designs to ensure rapid and reliable operation when needed. Fire-safe design requirements, governed by standards such as API 607 or API 6FA, may be mandatory for hydrocarbon applications and require special materials, gaskets, and testing certifications. Reliability requirements influence material selection, design margins, and maintenance accessibility. Mean time between failures (MTBF) specifications help compare valve options and predict maintenance requirements. Diagnostic capabilities available in modern smart positioners can provide early warning of potential problems, enabling predictive maintenance and reducing unplanned shutdowns. Redundancy considerations may require dual valves, backup power supplies, or alternative control methods to ensure continued operation in case of primary system failure. Environmental factors such as corrosive atmospheres, extreme temperatures, or hazardous area classifications impact valve selection and may require special enclosures or certifications.

Economic Optimization and Total Cost of Ownership

Economic optimization requires considering total cost of ownership rather than just initial purchase price. Life cycle cost analysis should include purchase price, installation costs, operating costs, maintenance expenses, and eventual replacement costs. Energy efficiency considerations are increasingly important, with tight shut-off valves reducing product loss and optimized flow characteristics minimizing pressure drop and associated pumping costs. Maintenance requirements vary significantly between valve types, with some designs requiring frequent attention while others operate reliably for years with minimal intervention. Standardization benefits include reduced spare parts inventory, simplified maintenance procedures, and improved technician familiarity. However, over-standardization may result in oversized or inappropriate valves for specific applications. Value engineering exercises can identify opportunities to optimize valve selection without compromising performance or reliability. Long-term availability considerations ensure spare parts and service support remain available throughout the valve's expected service life. Supplier evaluation should consider not only product quality but also technical support capabilities, delivery performance, and long-term financial stability to ensure continued support throughout the valve's operational life.

Conclusion

Selecting the right Pneumatic Control Valve requires careful consideration of multiple factors including process conditions, fluid properties, control requirements, and economic constraints. Success depends on thorough analysis of application requirements, proper valve sizing and specification, and integration with existing control systems. While this process may seem complex for beginners, following systematic evaluation procedures and consulting with experienced valve suppliers ensures optimal valve selection for reliable long-term performance.
