A Simple Guide to Pneumatic Control Valves and Their Functions

Understanding pneumatic control valves is essential for anyone working in industrial automation, process control, or fluid handling systems. These sophisticated devices serve as the backbone of modern industrial processes, providing precise control over fluid flow, pressure, and temperature across various applications. A pneumatic control valve operates using compressed air as its power source, offering reliable and efficient flow regulation in environments where electrical control systems may be impractical or unsafe. This comprehensive guide explores the fundamental principles, operational mechanisms, and practical applications of pneumatic control valves, helping you make informed decisions for your industrial control needs. Whether you're an engineer, technician, or facility manager, mastering the basics of pneumatic control valve technology will enhance your understanding of automated process control systems.

Understanding Pneumatic Control Valve Components and Operation

Essential Components of Pneumatic Control Valve Systems

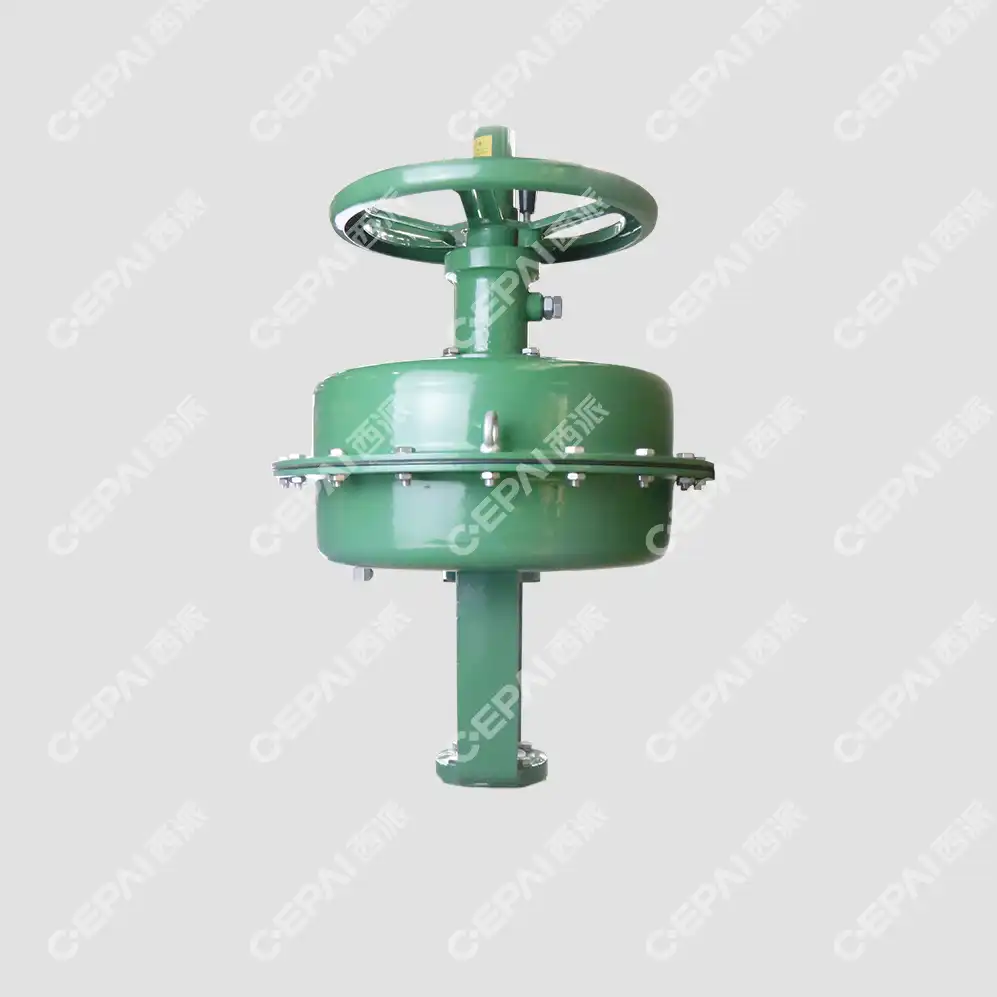

The pneumatic control valve system comprises several critical components that work in harmony to achieve precise flow control. The valve body serves as the primary housing, containing the flow passage and providing mounting points for other components. Within this assembly, the trim elements including the plug, seat, and cage work together to modulate flow characteristics. The actuator, typically a diaphragm or piston-type mechanism, converts pneumatic signals into mechanical motion that positions the valve plug. The positioner, a crucial feedback device, ensures accurate valve positioning by comparing the actual valve position with the desired setpoint signal. Additionally, the pneumatic control valve incorporates various accessories such as limit switches, solenoid valves, and pressure regulators that enhance operational reliability and safety. Understanding these components is fundamental to selecting the appropriate pneumatic control valve configuration for specific applications, as each element contributes to the overall performance, accuracy, and longevity of the control system.

Operating Principles and Signal Processing

The operational principle of a pneumatic control valve relies on compressed air pressure to generate the force necessary for valve actuation. When a control signal, typically ranging from 3-15 PSI or 0.2-1.0 bar, is applied to the actuator diaphragm, it creates a force that overcomes the spring tension and moves the valve stem. This movement translates into precise positioning of the valve plug relative to the seat, thereby controlling the flow area and consequently the flow rate through the valve. The pneumatic control valve responds proportionally to input signals, making it ideal for applications requiring variable flow control rather than simple on-off operation. Advanced pneumatic control valve systems incorporate electronic-to-pneumatic converters (I/P converters) that translate electronic control signals from distributed control systems (DCS) or programmable logic controllers (PLC) into pneumatic signals. This hybrid approach combines the reliability of pneumatic actuation with the precision and flexibility of electronic control, making the pneumatic control valve suitable for modern industrial automation environments.

Performance Characteristics and Control Accuracy

The performance of a pneumatic control valve is characterized by several key parameters including flow coefficient (Cv), rangeability, linearity, and response time. The flow coefficient determines the valve's capacity to handle fluid flow under specific pressure conditions, while rangeability defines the ratio between maximum and minimum controllable flow rates. Linearity refers to how closely the valve's flow characteristics match the desired control curve, whether linear, equal percentage, or quick opening. Response time, crucial for dynamic process control, depends on the actuator size, air supply pressure, and the volume of pneumatic tubing connecting the controller to the valve. Modern pneumatic control valve designs achieve exceptional accuracy, with many units providing positioning accuracy within ±0.25% of full scale. The inherent safety feature of pneumatic control valve systems lies in their fail-safe operation – in case of air supply failure, the valve automatically moves to a predetermined safe position, either fully open or fully closed, depending on the application requirements and safety considerations.

Types and Applications of Pneumatic Control Valves

Globe Valve Configurations for Precise Control

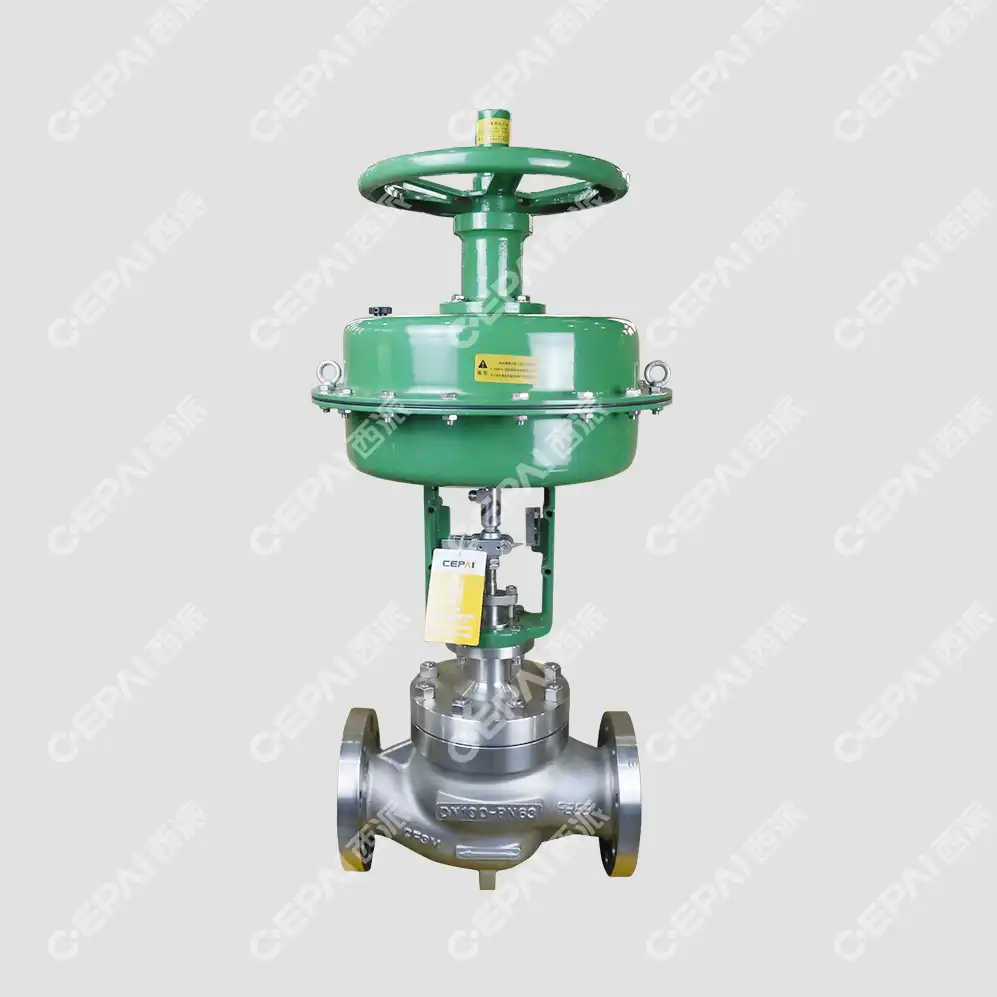

Globe-type pneumatic control valves represent the most common configuration for precise flow control applications across various industries. These valves feature a linear motion design where the plug moves perpendicular to the flow path, providing excellent throttling characteristics and flow control precision. The pneumatic control valve in globe configuration offers superior rangeability, typically 50:1 or higher, making it ideal for applications requiring wide flow variation. Single-seat globe valves provide tight shutoff capabilities with leakage rates as low as ANSI Class VI standards, while double-seat designs offer balanced plug operation that reduces actuator force requirements for high-pressure applications. The cage-guided design in modern pneumatic control valve assemblies provides excellent stability and reduces vibration, particularly important in high-velocity flow conditions. Port-guided configurations offer cost-effective solutions for less demanding applications while maintaining good control characteristics. The versatility of globe-type pneumatic control valve designs allows for various trim configurations including standard, hardened, and noise-reducing options, making them suitable for handling clean liquids, gases, and even some slurry applications where appropriate materials are selected.

Rotary Valve Types and Their Advantages

Rotary pneumatic control valves, including ball, butterfly, and eccentric disc designs, offer unique advantages for specific applications where linear valves may not be optimal. The rotary pneumatic control valve operates through quarter-turn motion, providing faster response times and requiring less air consumption compared to linear actuators. Ball valve configurations excel in applications requiring tight shutoff and minimal pressure drop, making them ideal for on-off service and some throttling applications. However, the pneumatic control valve in ball configuration may experience cavitation issues in high-pressure drop scenarios. Butterfly valves represent cost-effective solutions for large-diameter applications, offering good flow characteristics and compact installation footprint. The pneumatic control valve with butterfly design provides excellent performance in HVAC systems, water treatment plants, and low-pressure gas applications. Eccentric disc valves combine the benefits of both globe and butterfly designs, offering excellent control characteristics with reduced torque requirements. These rotary pneumatic control valve types often incorporate advanced positioners and feedback systems to achieve precise control performance comparable to linear valve designs while maintaining the inherent advantages of rotary motion.

Specialized Applications and Industry-Specific Requirements

Different industries present unique challenges that require specialized pneumatic control valve solutions tailored to specific operating conditions and regulatory requirements. In the oil and gas sector, the products must withstand extreme temperatures, corrosive environments, and high-pressure conditions while maintaining reliable operation in remote locations. The product designs for these applications often incorporate fire-safe features, fugitive emission controls, and materials capable of handling sour gas conditions. Chemical processing applications require pneumatic control valve configurations that resist aggressive chemicals while providing precise control for reaction processes and batch operations. The pharmaceutical industry demands pneumatic control valve systems that meet stringent sanitary standards, with smooth surfaces, validated cleaning procedures, and materials that won't contaminate products. Power generation facilities utilize pneumatic control valves for steam, water, and fuel gas applications, requiring designs that can handle high temperatures and provide reliable operation for critical safety systems. Water treatment applications benefit from pneumatic control valve designs that resist corrosion from chlorine and other treatment chemicals while providing accurate flow control for dosing systems and filtration processes.

​​​​​​​

Installation, Maintenance, and Troubleshooting Best Practices

Proper Installation Techniques and System Integration

Successful installation of a pneumatic control valve system requires careful attention to several critical factors that directly impact performance and longevity. The installation environment must provide adequate access for maintenance while protecting the pneumatic control valve from environmental hazards such as extreme temperatures, corrosive atmospheres, and physical damage. Proper pipe sizing and configuration are essential, with straight pipe runs recommended upstream and downstream of the valve to ensure stable flow patterns and accurate control. The pneumatic control valve should be installed with the actuator in the vertical position when possible, preventing moisture accumulation and ensuring proper operation of the fail-safe mechanism. Air supply systems must be clean, dry, and regulated to the specified pressure range, typically 20-100 PSI for most applications. Installation of air filters, regulators, and moisture separators upstream of the pneumatic control valve prevents contamination that could affect actuator performance and positioner accuracy. Proper grounding and vibration isolation are essential for electronic components, while pneumatic tubing should be properly sized and routed to minimize pressure drops and response time delays. Commissioning procedures should include calibration of the positioner, verification of fail-safe operation, and testing of all safety systems before placing the pneumatic control valve into service.

Preventive Maintenance Programs and Service Schedules

Implementing a comprehensive preventive maintenance program is crucial for ensuring reliable operation and extending the service life of pneumatic control valve systems. Regular inspection schedules should include visual examination of the actuator, positioner, and valve body for signs of wear, corrosion, or damage. The pneumatic control valve actuator requires periodic lubrication of moving parts and inspection of diaphragm condition, as diaphragm failure is one of the most common causes of valve malfunction. Air supply system maintenance includes regular drainage of moisture separators, replacement of filter elements, and verification of pressure regulation accuracy. Positioner calibration should be verified periodically using appropriate test equipment to ensure continued accuracy and responsiveness. The pneumatic control valve trim components require inspection for erosion, corrosion, and seat leakage, with replacement schedules based on operating conditions and performance requirements. Packing and gasket replacement intervals depend on the operating temperature, pressure, and fluid characteristics, with high-temperature or corrosive service requiring more frequent attention. Documentation of maintenance activities, including performance trends and component replacement history, helps optimize maintenance schedules and predict potential failures before they occur.

Common Problems and Diagnostic Procedures

Effective troubleshooting of pneumatic control valve problems requires systematic diagnosis techniques and understanding of common failure modes. Control instability often indicates issues with the positioner tuning, air supply problems, or mechanical binding in the valve trim. The pneumatic control valve may exhibit hunting or oscillation due to improper positioner settings, inadequate air supply, or process-related disturbances such as cavitation or flashing. Slow response times typically result from undersized pneumatic tubing, moisture in the air supply, or excessive friction in the actuator mechanism. Poor control accuracy may indicate wear in the valve trim, calibration drift in the positioner, or changes in process conditions that affect the valve's flow characteristics. The product failing to reach full stroke positions often results from insufficient air supply pressure, actuator problems, or mechanical obstructions in the valve assembly. Excessive leakage through the valve seat may indicate trim wear, foreign material interference, or improper installation. Diagnostic procedures should include verification of air supply conditions, positioner calibration checks, and mechanical inspection of valve components. Modern diagnostic tools, including valve signature analysis and partial stroke testing, provide advanced capabilities for detecting developing problems before they result in process upsets or safety incidents.

Conclusion

Pneumatic control valves serve as essential components in modern industrial automation, providing reliable and precise flow control across diverse applications. Understanding their operational principles, component interactions, and maintenance requirements enables engineers and technicians to optimize system performance while ensuring safety and efficiency. The versatility of pneumatic control valve designs, from linear globe configurations to rotary options, offers solutions for virtually any process control challenge. Proper installation, regular maintenance, and systematic troubleshooting practices maximize operational reliability and extend equipment service life.
