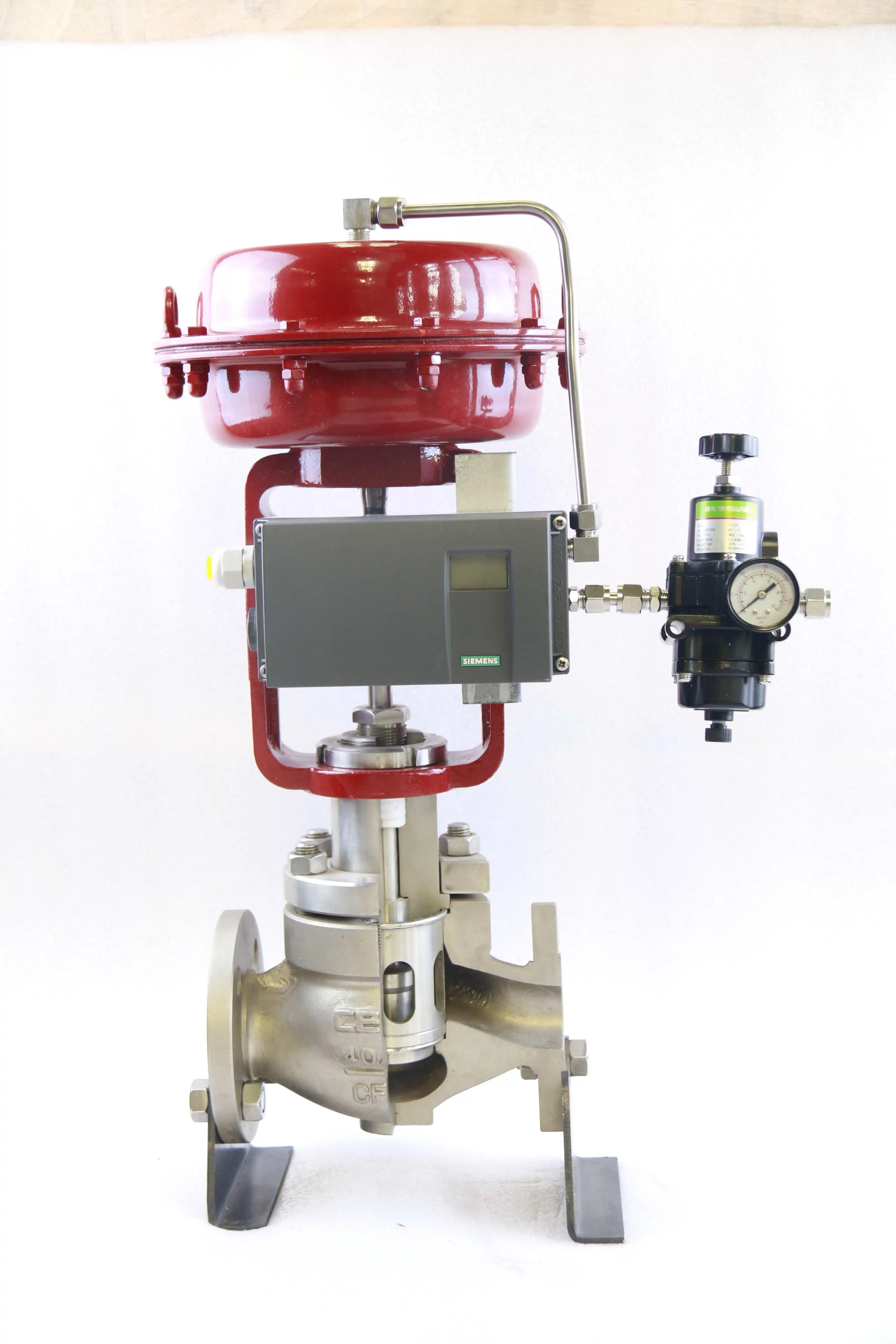

A Guide to Replacing an Old Control Valve with a New One

Industrial facilities face a critical challenge when aging control valves begin to fail, causing system inefficiencies, production delays, and costly emergency shutdowns. Whether you're dealing with excessive leakage, erratic control response, or complete valve failure, replacing an old control valve with a new one can restore system reliability and improve operational performance. This comprehensive guide addresses the pain points facility managers encounter when outdated control valves compromise process control, offering practical solutions and expert insights to ensure successful valve replacement projects that minimize downtime and maximize return on investment.

Signs Your Control Valve Requires Replacement

• Identifying Critical Performance Issues

The decision to replace a control valve often stems from observable performance degradation that impacts overall system efficiency. Control valve failure typically manifests through several warning signs that facility operators should monitor closely. Excessive internal leakage represents one of the most common indicators, where the valve fails to achieve complete shutoff even when fully closed, leading to energy waste and process inefficiencies. Additionally, sluggish response times to control signals indicate worn actuator components or damaged valve internals that compromise precise flow control. Visible external leakage around valve stems or body joints suggests gasket deterioration or body corrosion that requires immediate attention.

• Evaluating Mechanical Wear and Corrosion

Modern control valves must withstand demanding operating conditions, but prolonged exposure to aggressive media, temperature cycling, and pressure fluctuations eventually causes mechanical degradation. Valve trim components, including the plug, seat, and cage, experience erosion from high-velocity fluid flow, particularly in applications involving abrasive particles or cavitating conditions. Corrosion attacks valve internals when processing corrosive chemicals, requiring replacement with superior materials like stainless steel grades 316L or specialized alloys. CEPAI control valves incorporate pressure-balanced spools and equal percentage characteristics to minimize wear while maintaining precise flow control across varying operating conditions.

• Assessing Control System Compatibility

Legacy control valves often lack compatibility with modern digital control systems, limiting integration capabilities and diagnostic functions. Outdated pneumatic actuators may not provide the precise positioning required for advanced process control strategies, while analog control signals lack the accuracy and feedback capabilities of current 4-20mA systems. The transition to smart valve technologies enables predictive maintenance programs and remote monitoring capabilities that significantly reduce operational costs. Electric actuators with 220V or 380V power supplies offer superior control accuracy compared to pneumatic systems, particularly in applications requiring precise positioning within the 0-90 degree operating range typical of modern control valve installations.

Pre-Replacement Planning and Assessment

• Comprehensive System Analysis

Successful control valve replacement begins with thorough system analysis to determine optimal valve specifications and installation requirements. Engineers must evaluate process conditions including flow medium characteristics, operating temperature ranges, and pressure requirements to select appropriate valve materials and sizing. For low-temperature applications ranging from -60°C to -20°C, specialized valve designs with extended bonnets and cryogenic sealing materials ensure reliable operation. The assessment should include flow coefficient calculations, pressure drop analysis, and control characteristic requirements to match valve performance with process demands.

• Dimensional and Connection Verification

Accurate dimensional verification prevents costly installation delays and ensures proper fit within existing piping systems. Control valve flanged connections must match existing pipe specifications, including nominal diameter (DN15-400mm), pressure class ratings (PN16, 40, 64; ANSI150, 300, 600), and flange face finish requirements. Straight cage-type ball valve designs offer advantages in tight spaces while maintaining excellent flow characteristics. Connection form compatibility ensures seamless integration without requiring extensive piping modifications that increase project costs and complexity.

• Material Compatibility Assessment

Selecting appropriate valve body and trim materials is crucial for long-term reliability in specific process applications. Standard materials like WCB (carbon steel) serve general applications, while CF8 and CF8M (stainless steel) provide superior corrosion resistance for chemical processing environments. Internal components including 304, 316, and 316L stainless steel variants offer different corrosion resistance levels based on process media characteristics. The valve cover design must accommodate operating temperature ranges, with -40°C to -196°C extended configurations available for cryogenic applications. Packing materials including flexible graphite and PTFE provide sealing solutions for various temperature and chemical compatibility requirements.

Step-by-Step Replacement Procedure

• Safety Preparation and System Isolation

Proper safety preparation forms the foundation of successful control valve replacement projects. Before beginning work, technicians must implement comprehensive lockout/tagout procedures to isolate electrical power sources, pneumatic air supplies, and process fluids. The system isolation process includes closing upstream and downstream isolation valves, depressurizing the valve body, and verifying zero energy state through appropriate testing procedures. Personal protective equipment requirements vary based on process media but typically include chemical-resistant gloves, safety glasses, and appropriate respiratory protection when handling potentially hazardous materials.

​​​​​​​

• Old Valve Removal Techniques

The removal process for existing control valves requires careful attention to piping connections and actuator disconnection procedures. Electric actuators operating at 220V or 380V require qualified electrical technicians to safely disconnect power cables and control signal wiring. Flange connections should be carefully inspected for corrosion or thread damage that might complicate removal procedures. Specialized lifting equipment may be necessary for larger valve assemblies, particularly those with heavy electric actuators. Documentation of existing wiring connections and control signal configurations facilitates proper reconnection during new valve installation.

• Precision Installation Procedures

Installing the new control valve demands precise alignment and proper torque application to ensure leak-free operation and optimal performance. Flange gasket selection must match process conditions and pressure requirements, with proper gasket installation techniques preventing future leakage issues. Electric actuator mounting requires careful alignment to prevent binding and ensure smooth operation throughout the full stroke range. Control signal connections for 4-20mADC systems must follow manufacturer specifications to achieve accurate positioning feedback and reliable operation. Bolt tensioning procedures should follow established patterns and torque specifications to ensure uniform gasket compression and proper joint integrity.

Testing and Commissioning New Control Valves

• Comprehensive Performance Verification

Thorough testing protocols validate proper control valve installation and verify performance specifications meet design requirements. Initial pressure testing confirms joint integrity and absence of external leakage under operating pressure conditions. Stroke testing verifies actuator response throughout the full operating range, typically 0-90 degrees for rotary valves or 0-180 degrees for specialized applications. Control signal verification ensures proper response to 4-20mA or 0-10V input signals, with calibration adjustments as necessary to achieve specified flow characteristics.

• Functional Testing Procedures

Comprehensive functional testing evaluates control valve performance under actual process conditions to verify proper installation and setup. Flow testing validates that the valve achieves specified flow coefficients and control characteristics, whether linear or equal percentage configurations. Leak testing confirms that metal valve seats comply with ANSI B16.104 Level IV requirements, while non-metallic seats meet Class VI specifications. Response time measurements verify that the valve achieves specified opening and closing times under normal operating conditions, ensuring adequate process control response.

• Control System Integration

Successful control valve replacement requires proper integration with existing control systems and verification of all communication protocols. Digital control systems must recognize the new valve positioner and receive accurate position feedback signals throughout the operating range. Calibration procedures establish proper scaling between control signals and valve position, ensuring accurate process control. Safety system integration includes verification of emergency shutdown functions and fail-safe positioning to protect equipment and personnel during abnormal operating conditions.

Maintenance Best Practices for New Control Valves

• Preventive Maintenance Strategies

Implementing comprehensive preventive maintenance programs maximizes control valve service life and maintains optimal performance throughout the operating lifecycle. Regular inspection schedules should include visual examination of external components, actuator mounting integrity, and control signal connections. Periodic calibration verification ensures continued accuracy of valve positioning and flow control characteristics. Lubrication of actuator components according to manufacturer specifications prevents premature wear and maintains smooth operation. Documentation of maintenance activities creates valuable historical records for predictive maintenance programs.

• Advanced Diagnostic Capabilities

Modern control valves incorporate sophisticated diagnostic capabilities that enable predictive maintenance strategies and reduce unplanned downtime. Valve signature analysis compares current performance characteristics with baseline measurements to identify developing problems before they cause system failures. Remote monitoring systems utilizing industrial internet technologies provide continuous oversight of valve performance parameters and alert operators to developing issues. Position feedback systems enable precise monitoring of valve response times and identification of mechanical problems that might affect control accuracy.

• Long-term Performance Optimization

Optimizing control valve performance requires ongoing attention to changing process conditions and system requirements. Periodic review of control characteristics ensures that valve selection continues to meet evolving process demands. Trim replacement options provide cost-effective alternatives to complete valve replacement when wear affects performance but the valve body remains serviceable. Actuator upgrades can enhance control accuracy and add diagnostic capabilities without requiring complete valve replacement, extending service life and improving operational efficiency.

Conclusion

Replacing an old control valve with a new one requires careful planning, proper execution, and comprehensive testing to ensure reliable operation and optimal performance. Success depends on thorough pre-replacement assessment, precise installation procedures, and comprehensive commissioning protocols that validate all performance specifications. Modern control valves offer enhanced reliability, improved control accuracy, and advanced diagnostic capabilities that justify replacement investment.

Cooperate with CEPAI Group Co., LTD.

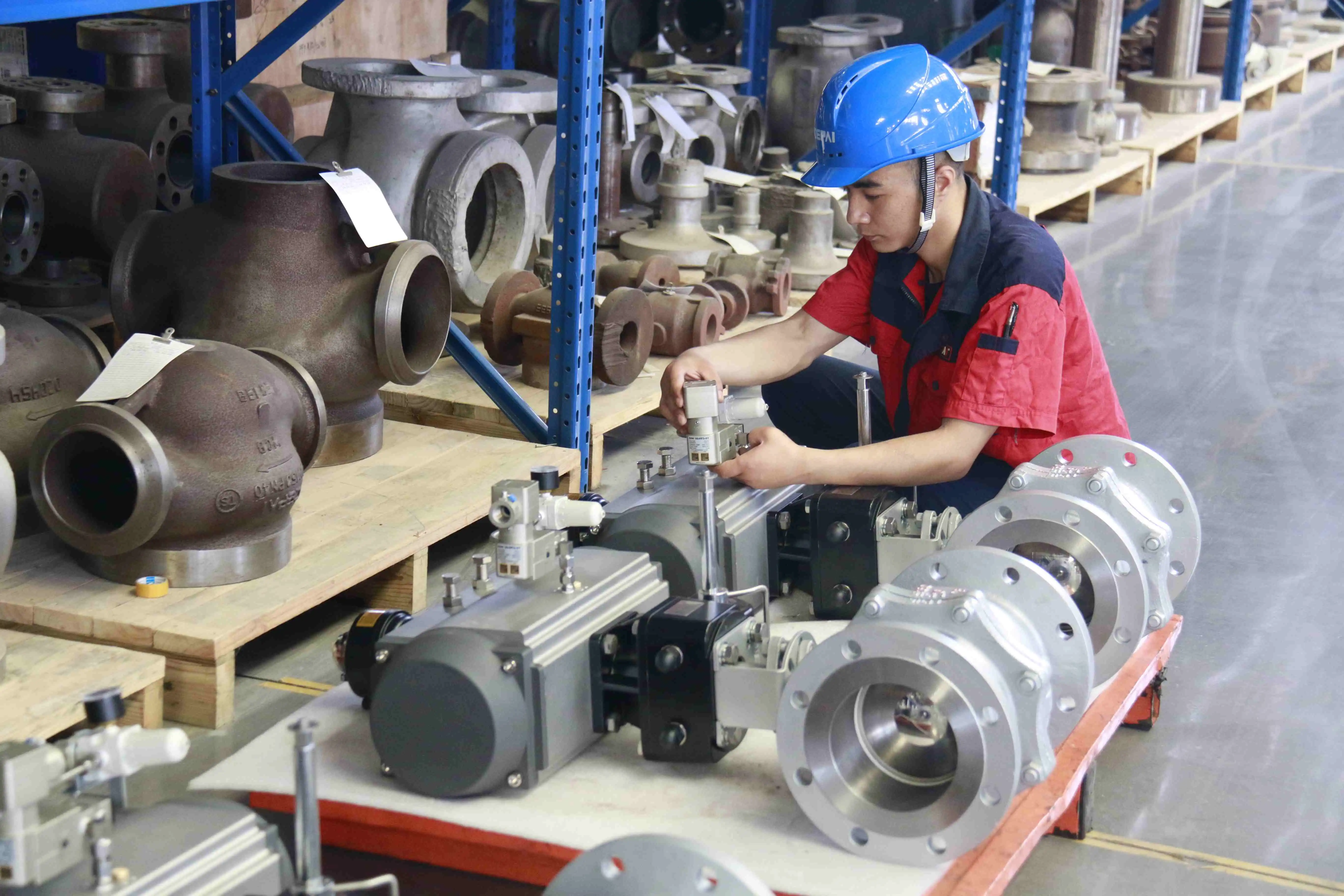

As a leading China Control Valve factory, CEPAI Group Co., LTD. combines advanced manufacturing capabilities with comprehensive engineering expertise to deliver superior fluid control solutions. Established in 2009 with 200 million yuan registered capital and 56,000 square meters of manufacturing space, our company holds national high-tech enterprise status and operates Jiangsu Province's intelligent manufacturing demonstration factory. Our extensive qualifications including API, ISO, and CE certifications demonstrate commitment to international quality standards.

CEPAI specializes in manufacturing high-quality control valves for oil and gas drilling, petrochemical processing, and industrial automation applications. Our products serve major clients including PetroChina, Sinopec, CNOOC, and leading engineering companies worldwide. As a premier China Control Valve supplier, we offer comprehensive OEM customization services and maintain extensive inventory for immediate delivery. Our advanced manufacturing facility features the longest high-precision intelligent production line in the Asia-Pacific region, ensuring exceptional quality and competitive Control Valve prices.

Whether you need a reliable China Control Valve manufacturer for standard applications or require specialized High Quality Control Valve solutions for challenging environments, CEPAI provides complete technical support from design through installation and maintenance. Our experienced engineering team offers pre-sales consultation, customized solutions, and comprehensive after-sales service backed by remote monitoring capabilities. Contact our experts at cepai@cepai.com to discuss your Control Valve for sale requirements and discover why industry leaders choose CEPAI as their preferred China Control Valve wholesale partner.

FAQ

Q: How long does it typically take to replace an industrial control valve?

A: Complete replacement typically requires 4-8 hours depending on valve size, piping complexity, and system pressurization requirements.

Q: What are the most common causes requiring control valve replacement?

A: Primary causes include excessive internal leakage, actuator failure, severe erosion or corrosion, and incompatibility with modern control systems.

Q: Can control valve trim be replaced instead of the entire valve assembly?

A: Yes, trim replacement is often cost-effective when the valve body remains serviceable and dimensional specifications match original components.

Q: What safety precautions are essential during control valve replacement?

A: Essential safety measures include proper lockout/tagout procedures, system depressurization, hazardous energy isolation, and appropriate personal protective equipment.

References

1. "Control Valve Handbook" by Emerson Process Management - Comprehensive technical reference covering valve selection, sizing, and maintenance procedures for industrial applications.

2. "Valve Selection and Service Guide" by Crane Technical Paper No. 410 - Industry standard reference for fluid flow calculations and valve engineering principles.

3. "Industrial Valve Technology" by L.C. Lyons - Detailed analysis of valve design principles, materials selection, and performance characteristics for process industries.

4. "Process Control Instrumentation Technology" by Curtis Johnson - Educational resource covering control system integration and instrumentation practices for industrial automation applications.
