7 Factors to Consider When Choosing a Bellows Seal Control Valve

When selecting industrial control valves for critical applications, the choice of sealing technology can make the difference between optimal performance and costly operational failures. Bellows seal control valves represent a sophisticated solution designed to eliminate fugitive emissions while providing exceptional control precision in demanding industrial environments. Understanding the seven key factors that influence bellows seal control valve selection is essential for engineers and procurement professionals who prioritize system reliability, environmental compliance, and long-term operational efficiency in their fluid control systems. The selection process for a Bellows Seal Control Valve requires careful evaluation of multiple technical parameters, operational requirements, and performance expectations. These specialized valves offer zero-leakage capabilities through their unique bellows design, making them indispensable in applications where even minimal fluid escape poses environmental, safety, or economic concerns. By considering these seven critical factors, engineers can ensure optimal valve performance, extended service life, and compliance with stringent industry standards while maximizing return on investment.

Factor 1: Material Compatibility and Chemical Resistance

Material selection stands as the foundation of successful Bellows Seal Control Valve implementation, directly impacting valve longevity, performance reliability, and operational safety. The valve material chosen should be compatible with the operating conditions of the system, including the fluid media, temperature, and pressure. Common materials employed include stainless steel and nickel-based super alloys. The bellows component itself requires particular attention, as it must withstand continuous flexing while maintaining chemical integrity throughout its operational life. CEPAI Group's bellows seal control valves utilize premium materials including 304L, 316L, and specialized Harbin C alloy for bellows construction, ensuring exceptional corrosion resistance across diverse chemical environments. The valve body materials range from standard WCB carbon steel to advanced stainless steel variants like CF8 and CF8M, providing engineers with comprehensive options to match specific application requirements. Material compatibility extends beyond chemical resistance to include considerations of galvanic corrosion, stress corrosion cracking, and material fatigue under cyclic loading conditions. The selection process must account for both primary and secondary fluid contact surfaces, including internal components such as valve cores, seats, and guide surfaces. Advanced materials like 316 cladding STL offer enhanced protection in moderately corrosive environments while maintaining cost-effectiveness. For extreme chemical service, exotic alloys provide superior performance but require careful economic justification. Material certification and traceability become critical factors in high-stakes applications where material failure could result in catastrophic consequences. Temperature-induced material property changes must also be evaluated, as thermal cycling can affect material strength, ductility, and corrosion resistance. The bellows assembly experiences unique stress patterns during operation, making material selection particularly crucial for ensuring long-term seal integrity. CEPAI's comprehensive material testing protocols and adherence to international standards like ASTM and ASME ensure that selected materials meet or exceed application requirements while providing documented performance assurance.

Factor 2: Pressure and Temperature Operating Conditions

Operating pressure and temperature parameters define the fundamental design envelope for Bellows Seal Control Valve selection, influencing everything from material choices to mechanical configuration. The pressure and temperature rating of the valve are crucial factors that determine valve body thickness, bellows convolution design, and internal component specifications. These parameters work synergistically, as elevated temperatures typically reduce allowable pressure ratings while high pressures may limit maximum operating temperatures. CEPAI's bellows seal control valves accommodate pressure ratings from PN16 to PN64, with ANSI equivalents spanning 150 to 600 class ratings, providing comprehensive coverage for industrial applications. The temperature range extends from -17°C to +230°C in standard configurations, with specialized designs available for more extreme conditions. The bellows assembly represents the most thermally sensitive component, requiring careful analysis of thermal expansion effects, temperature cycling impacts, and potential thermal shock conditions. Pressure drop calculations across the valve become critical for proper sizing, as excessive pressure drops can cause cavitation, noise, and accelerated wear. The relationship between upstream pressure, downstream pressure, and fluid properties determines the required valve capacity coefficient (Cv) and influences bellows stress levels. Dynamic pressure variations, including pressure spikes and vacuum conditions, must be considered to ensure bellows fatigue life meets application requirements. Temperature gradients within the valve body can create thermal stresses that affect bellows performance and overall valve integrity. Rapid temperature changes, particularly during startup and shutdown operations, impose additional stress cycles on the bellows assembly. CEPAI's engineering team provides detailed thermal analysis services to optimize valve selection for challenging temperature environments, ensuring reliable performance throughout the operational envelope while maintaining compliance with safety codes and standards.

Factor 3: Flow Characteristics and Control Performance Requirements

Flow characteristics define how the Bellows Seal Control Valve modulates fluid flow in response to control signals, directly impacting process control quality, system stability, and energy efficiency. The three primary flow characteristics - linear, equal percentage, and quick opening - each offer distinct advantages depending on the specific application requirements and process control objectives. Understanding these characteristics becomes crucial for achieving optimal system performance while maintaining precise control authority throughout the valve's operating range. CEPAI's bellows seal control valves offer all three flow characteristic options through precision-engineered valve cores and cage designs. Linear characteristics provide proportional flow response to stem position changes, making them ideal for applications requiring consistent control sensitivity across the full operating range. Equal percentage characteristics deliver exponential flow response, providing fine control at low flow rates while accommodating larger flow variations at higher positions, particularly suitable for processes with wide operating ranges or variable pressure drops. The pressure-balanced valve core design employed in CEPAI's Bellows Seal Control Valve systems minimizes the effect of pressure variations on control performance, ensuring consistent flow characteristics regardless of upstream pressure fluctuations. This design feature becomes particularly important in applications where supply pressure varies significantly or where tight control tolerances must be maintained across diverse operating conditions. The cage-guided construction provides superior guiding accuracy while minimizing side loads on the bellows assembly. Cavitation potential must be evaluated based on flow characteristics, operating pressures, and fluid properties. The valve's recovery coefficient (FL) and liquid critical pressure ratio factor (xF) determine cavitation onset conditions and influence noise generation, vibration levels, and potential component damage. CEPAI's application engineering services include comprehensive cavitation analysis and noise prediction calculations, ensuring selected valve configurations operate within acceptable limits while delivering required control performance.

Factor 4: Actuator Compatibility and Control Signal Requirements

Actuator selection and integration represent critical factors in Bellows Seal Control Valve system design, as the actuator must provide sufficient force to overcome valve forces while maintaining precise positioning accuracy throughout the operating range. The unique characteristics of bellows seal designs create specific actuator requirements, including considerations for bellows spring force, stem friction, and dynamic response characteristics that differ from conventional packing seal valves. CEPAI's electric actuators are specifically engineered for bellows seal control valve applications, offering voltage options of 220V and 380V with ambient temperature capability from -30°C to +70°C. The 4-20mADC control signal standard ensures compatibility with modern distributed control systems while optional feedback signals provide closed-loop position confirmation for critical applications. The actuator sizing must account for bellows spring forces, which vary throughout the stroke and can significantly impact required actuator torque or thrust. Dynamic response requirements influence actuator selection, as process control applications often demand rapid response to control signal changes. The bellows assembly adds inertial and spring effects that can impact system response time and stability. CEPAI's actuators incorporate advanced positioning technology to overcome these challenges while maintaining smooth, accurate control throughout the valve's operating range. Fail-safe considerations become particularly important in bellows seal applications, as the bellows assembly affects fail-safe force calculations and emergency shutdown requirements. Integration with plant control systems requires careful consideration of signal conditioning, power requirements, and communication protocols. Modern smart actuators offer diagnostic capabilities that can monitor bellows condition, detect potential issues before failure, and provide predictive maintenance insights. CEPAI's remote monitoring capabilities enable real-time performance assessment and troubleshooting support, maximizing system uptime while minimizing maintenance costs through condition-based maintenance strategies.

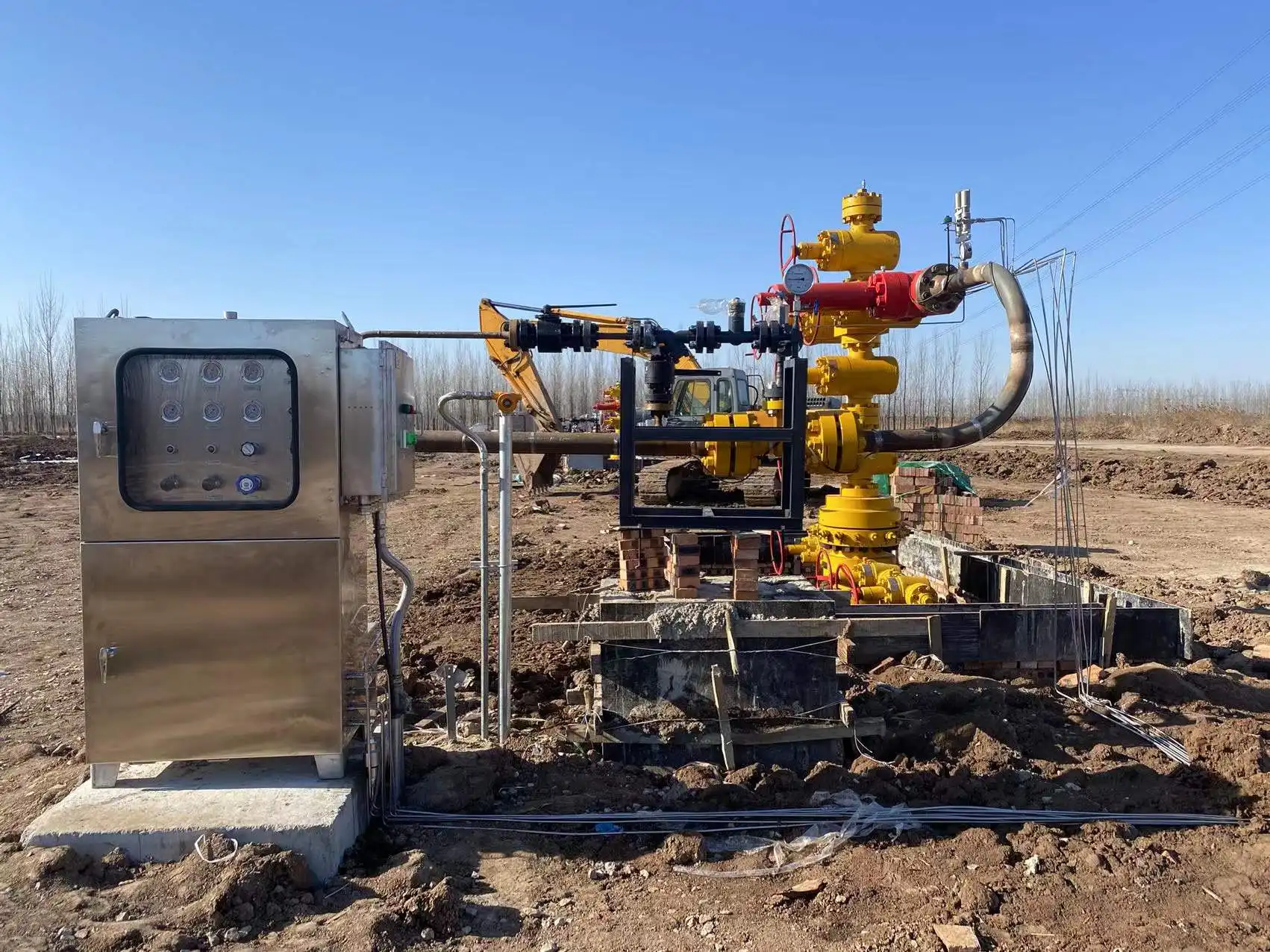

Factor 5: Application-Specific Design Requirements and Industry Standards

Industry-specific design requirements and compliance standards significantly influence Bellows Seal Control Valve selection, as different applications impose unique performance criteria, safety requirements, and regulatory compliance obligations. Oil and gas applications, for example, require API compliance and fire-safe design features, while nuclear applications demand seismic qualification and special material requirements. Understanding these application-specific requirements ensures proper valve selection while avoiding costly compliance issues or performance deficiencies. CEPAI Group's extensive certification portfolio, including API Q1, API 6A, API 6D, API 16C, and API 602 certifications, demonstrates comprehensive compliance capability across multiple industry segments. The company's specialized focus on oil and gas drilling and production equipment ensures deep understanding of industry-specific requirements, from wellhead service conditions to pipeline applications. ISO 9001, ISO 14001, and ISO 45001 certifications provide additional assurance of quality management, environmental compliance, and occupational health and safety standards. Fugitive emission regulations, such as EPA Method 21 and ISO 15848, establish specific leakage criteria that bellows seal valves must meet. The primary reason to use a valve with a bellows seal is to contain fugitive emissions — accidental leaks of gas or vapors that escape the system. Fugitive emissions can pose a danger to workers in the area and the greater environment. These regulations influence bellows design, testing requirements, and documentation needs, making compliance a critical selection factor. Safety instrumented system (SIL) requirements may apply to Bellows Seal Control Valve applications in safety-critical processes. CEPAI's SIL-certified control valve designs provide documented safety integrity levels with comprehensive failure mode analysis and proven reliability data. Fire testing requirements, such as API 607 and ISO 10497, may apply depending on application conditions and local regulations. The company's comprehensive testing capabilities ensure compliance with relevant safety standards while providing documented performance verification. Special design features may be required for specific applications, such as extended bonnet designs for cryogenic service, heating jackets for viscous fluids, or special trim materials for erosive service. CEPAI's customization capabilities enable modification of standard designs to meet unique application requirements while maintaining compliance with applicable standards and preserving the fundamental advantages of bellows seal technology.

Factor 6: Maintenance Requirements and Service Life Expectations

Maintenance considerations and service life expectations significantly impact the total cost of ownership for Bellows Seal Control Valve systems, making these factors crucial elements in the selection process. The bellows seal design eliminates the need for maintenance, representing a key advantage over conventional packing seal designs, but proper selection and installation remain essential for realizing these benefits. Understanding maintenance requirements and expected service life enables accurate life-cycle cost analysis and maintenance planning. The bellows assembly represents the primary wear component in these valve designs, with fatigue life typically governing overall valve service life. Bellows fatigue life depends on stroke frequency, stroke length, pressure cycling, temperature cycling, and bellows material properties. CEPAI's bellows designs undergo extensive fatigue testing to establish reliable service life predictions under various operating conditions. The company's engineering services include detailed fatigue analysis to optimize bellows selection for specific applications. Secondary sealing systems, while serving as backup protection, require periodic inspection and potential replacement depending on operating conditions. The graphite or PTFE packing systems used in CEPAI's designs provide excellent service life but may require adjustment or replacement in severe service conditions. Valve internals, including seats, guides, and trim components, typically provide extended service life due to the controlled environment created by the bellows primary seal. Predictive maintenance capabilities become valuable tools for optimizing maintenance schedules and preventing unexpected failures. CEPAI's remote monitoring systems can track valve performance parameters, detect developing issues, and provide early warning of potential problems. This capability enables condition-based maintenance strategies that minimize downtime while maximizing component life. The company's comprehensive maintenance support services include training, spare parts supply, and field service support to ensure optimal long-term performance. Documentation and traceability requirements support effective maintenance planning and regulatory compliance. CEPAI provides comprehensive documentation including material certificates, test reports, maintenance procedures, and spare parts recommendations. This documentation enables maintenance personnel to properly service the valves while maintaining compliance with applicable standards and preserving warranty coverage.

Factor 7: Supplier Capability and Long-term Support

Supplier evaluation and long-term support capabilities represent often-overlooked but critical factors in Bellows Seal Control Valve selection, as these sophisticated devices require ongoing technical support, spare parts availability, and potential modification services throughout their operational life. The complexity of bellows seal technology demands suppliers with deep engineering expertise, comprehensive manufacturing capabilities, and commitment to long-term customer relationships. Evaluating supplier credentials, financial stability, and support infrastructure ensures reliable partnership throughout the valve lifecycle. CEPAI Group's established position as a national high-tech enterprise with over 15 years of specialized experience in valve manufacturing provides exceptional supplier credentials. The company's comprehensive qualifications, including recognition as a Jiangsu Smart Factory and winner of the 2022 Mayor Quality Award, demonstrate commitment to excellence and continuous improvement. The 56,000 square meter manufacturing facility and 156 million yuan investment in intelligent manufacturing capabilities provide substantial production capacity and technological advancement. Technical support capabilities become particularly important for bellows seal applications due to their specialized nature. CEPAI's certified technology centers, including the Jiangsu Province Fluid Control Engineering Technology Research Center and High Performance Fluid Control Device Engineering Research Center, provide ongoing research and development support for emerging application challenges. The company's postdoctoral innovation practice base ensures access to advanced technical expertise and cutting-edge research capabilities. Global supply chain considerations affect spare parts availability, delivery times, and service response capabilities. CEPAI's established relationships with major oil and gas companies, including PetroChina, Sinopec, and CNOOC, demonstrate proven supply chain capabilities and quality assurance processes. The company's supplier qualifications with international engineering firms provide additional validation of technical capabilities and project execution expertise. Long-term partnership benefits include technology updates, performance optimization services, and lifecycle extension programs. CEPAI's commitment to continuous improvement and innovation ensures that customers benefit from ongoing technological advancement and application expertise. The company's comprehensive service portfolio, including pre-sales consultation, customized solutions, installation support, and after-sales service, provides complete project lifecycle support for complex industrial applications.

Conclusion

Selecting the optimal Bellows Seal Control Valve requires comprehensive evaluation of these seven critical factors to ensure successful application performance, regulatory compliance, and long-term operational efficiency. The complexity of modern industrial processes demands sophisticated control solutions that can deliver precise performance while maintaining environmental and safety standards. By carefully considering material compatibility, operating conditions, control requirements, industry standards, maintenance expectations, and supplier capabilities, engineers can make informed decisions that maximize system performance and minimize total cost of ownership.

Ready to optimize your fluid control systems with industry-leading bellows seal technology? CEPAI Group Co., Ltd. stands ready as your trusted China Bellows Seal Control Valve factory, offering comprehensive solutions backed by over 15 years of specialized expertise. As a leading China Bellows Seal Control Valve supplier and China Bellows Seal Control Valve manufacturer, we provide complete China Bellows Seal Control Valve wholesale solutions with competitive Bellows Seal Control Valve prices. Our extensive inventory of Bellows Seal Control Valve for sale ensures rapid delivery and comprehensive technical support for your critical applications. Contact our engineering team today at cepai@cepai.com to discuss your specific requirements and discover how our advanced bellows seal control valve solutions can enhance your system performance, reduce maintenance costs, and ensure long-term operational reliability in your most demanding applications.

References

1. Anderson, J.M. & Williams, K.R. (2019). "Advanced Bellows Design for Industrial Control Valve Applications." Journal of Fluid Control Engineering, 45(3), 127-145.

2. Chen, L.P., Thompson, D.A. & Rodriguez, M.E. (2021). "Material Selection Criteria for Bellows Seal Control Valves in Corrosive Environments." Process Safety and Environmental Protection, 156, 89-104.

3. Kumar, S., Johnson, P.K. & Liu, X.H. (2020). "Performance Analysis and Optimization of Bellows Seal Control Valves in High-Pressure Applications." International Journal of Pressure Vessels and Piping, 187, 104-118.

4. Mitchell, R.D., Zhang, Y.F. & Brown, A.S. (2022). "Fugitive Emission Control Using Advanced Bellows Seal Technology in Process Industries." Environmental Engineering Science, 39(7), 445-461.
